¶ Fault Symptom:
During printing or after powering on, the touchscreen displays the error message: Duplicate canbus uuid.
¶ Fault Causes:
- The printer is currently a single-extruder model, but the multi-extruder printer mode was incorrectly selected.
- Poor contact or loose wiring at the extruder (print head).
¶ Tools Required for Troubleshooting:
- 2.0 mm hex screwdriver
¶ Troubleshooting Steps:
¶ 1. Check the extruder mode setting on the touchscreen
a. Plug in the power cord and turn on the printer power switch.

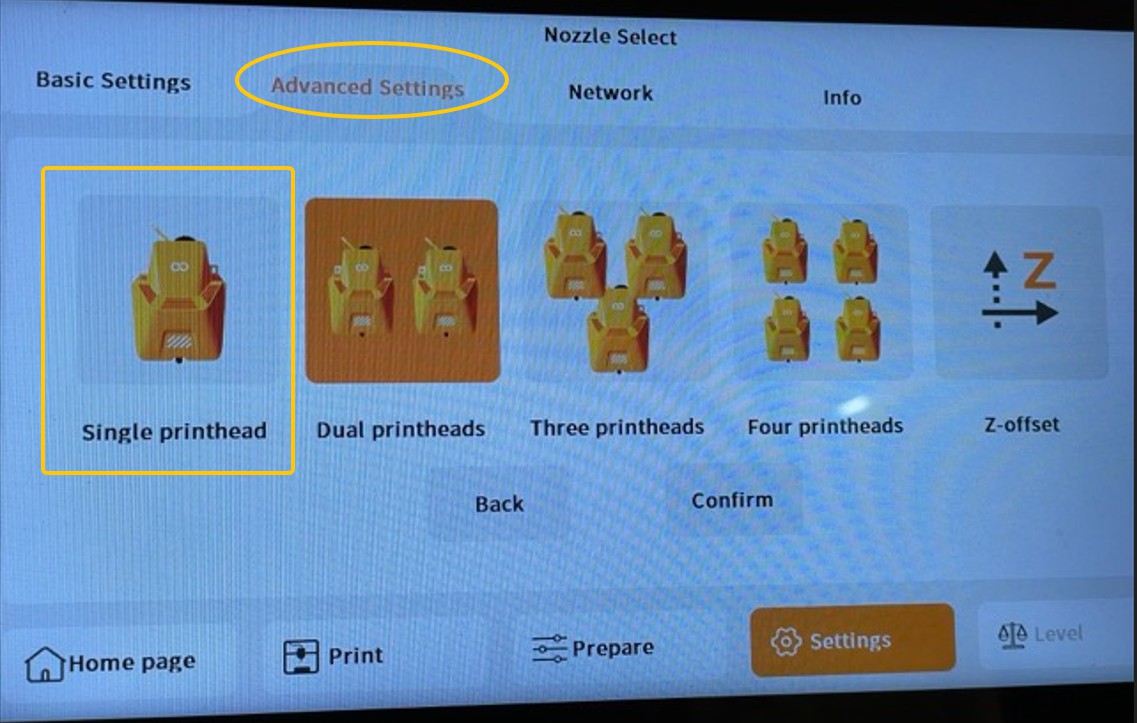

b. On the touchscreen, go to Settings → Advanced Settings and confirm that Single Extruder mode is currently selected.
.jpg)
¶ 2. Check the number of extruders setting in the slicing software

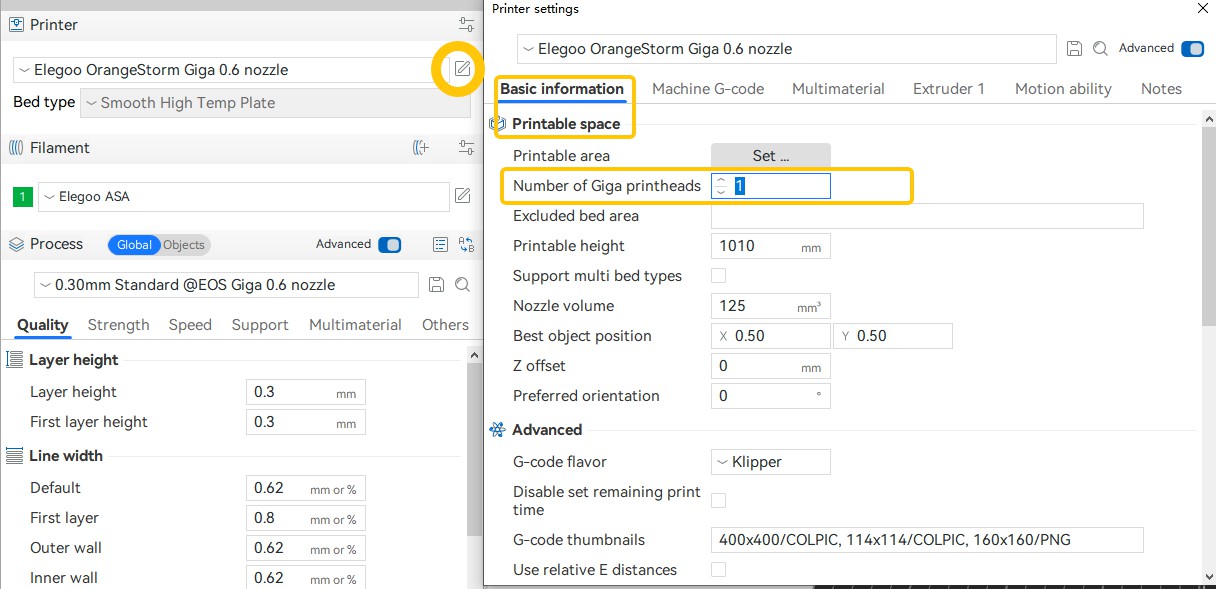

a. Open Elegoo Slicer → Edit profile → Basic Information → Print Area → Number of Print Heads, and confirm that the number of print heads is set to 1.
.jpg)
b. Reload the model into Elegoo Slicer, re-slice it, upload the new G-code file to the printer, and test again. If the same error still occurs after re-slicing, proceed to Step 3 for further troubleshooting.
¶ 3. Check for poor wire connections

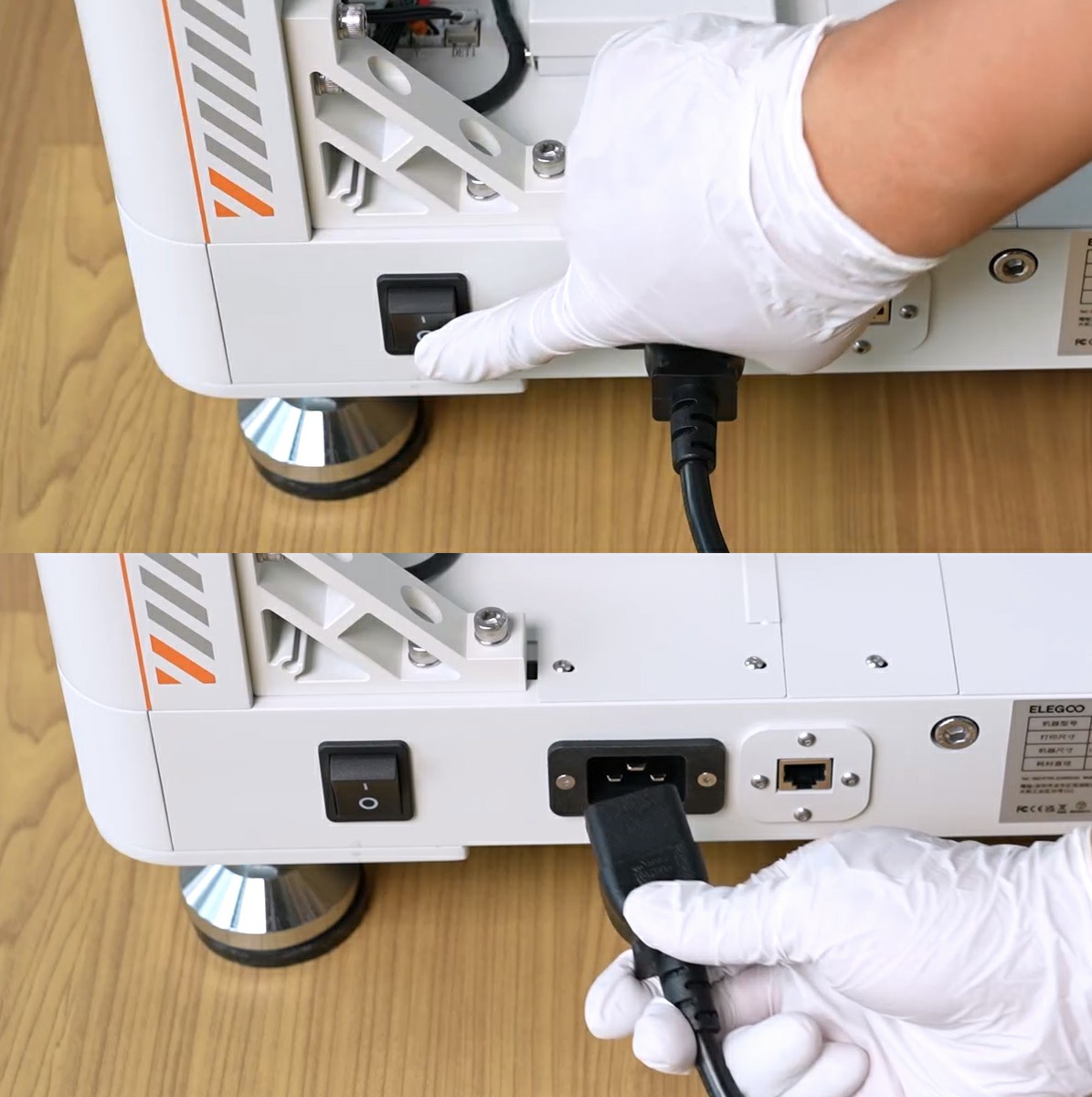

a. Turn off the printer power switch and unplug the power cord.
.jpg)

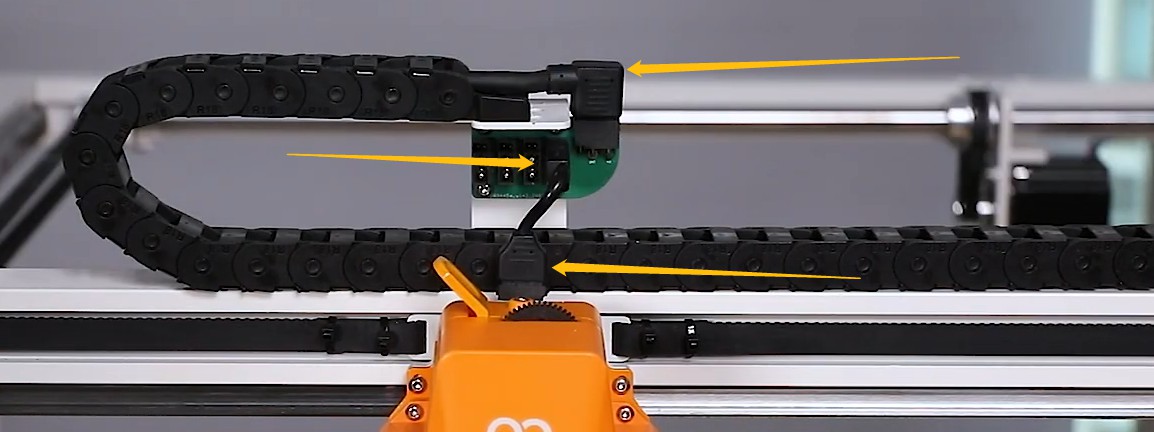

b. Check whether the following three connectors are loose and firmly re-plug the connectors at these three locations.
.jpg)
If the error Duplicate canbus uuid still appears after completing Steps 1–3, please contact our technical support team and provide the following information:
- The G-code file that was printing when the error occurred (if the error appears without printing any file, this is not required).
- Firmware version information (Touchscreen → Settings → Info).

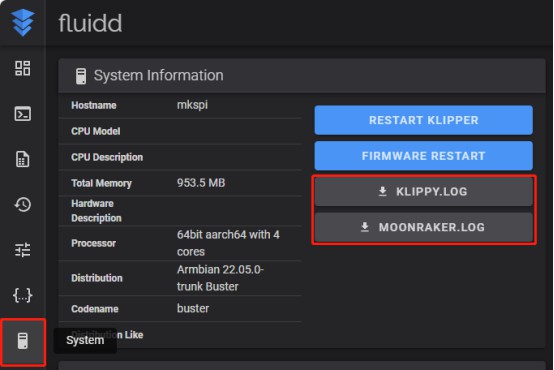

- Log files (Fluidd → System → KLIPPY.LOG / MOONRAKER.LOG).
.jpg)
How to export log files from the touchscreen when the error is displayed:

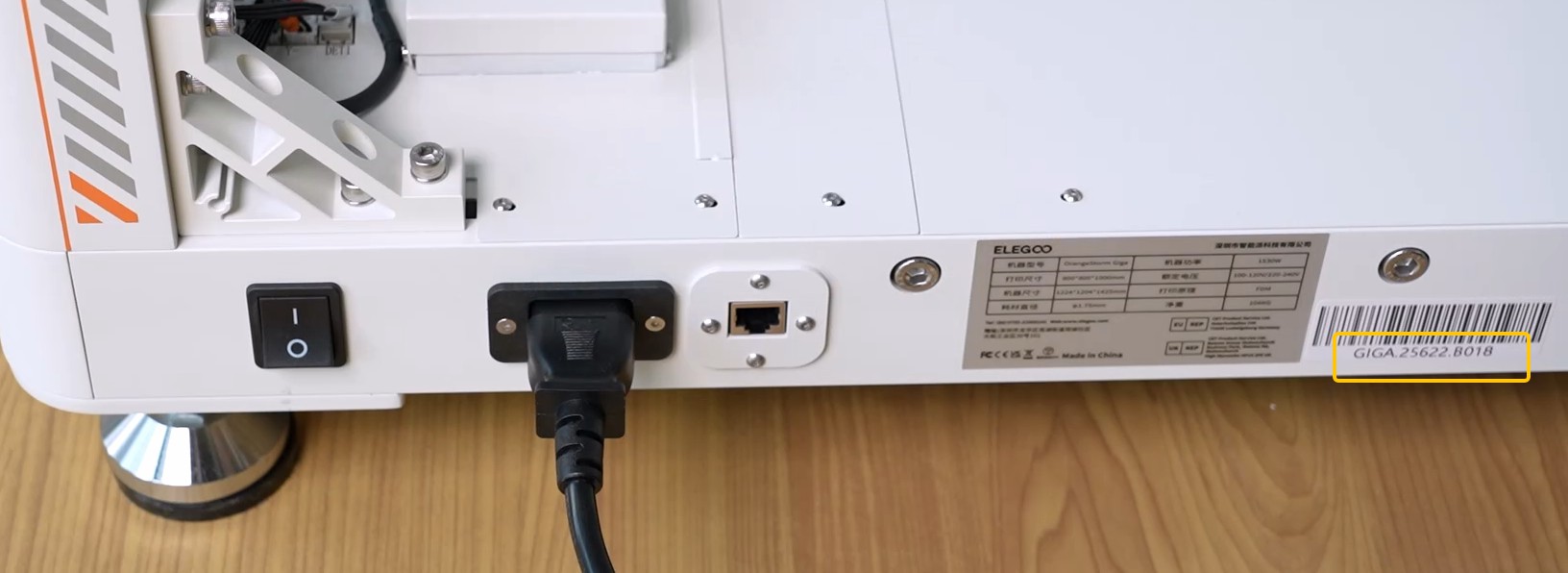

https://wiki.elegoo.com/orangestorm-giga/how-to-export-logs-and-check-firmware-version - SN code (the white sticker near the power button, usually in the format GIGA.XXXXX.XXXX)
.jpg)
