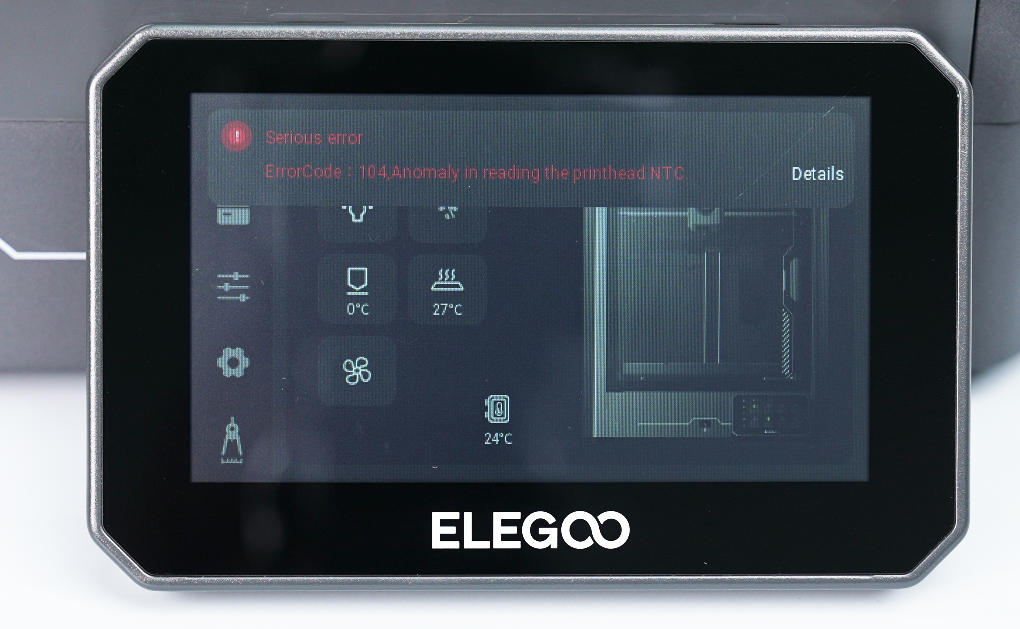

¶ What does it look like
The error code generally occurs when the print head is being heated or a model being printed.
¶ How to fix
Check the pins of the heating adapter board and check the resistance value of the thermistor of the nozzle in turn.
Tools necessary for toubleshooting
- A 2.5 mm Allen key
- A multimeter
¶ Troubleshooting steps
¶ Re-plug the cable of the heating PCB port

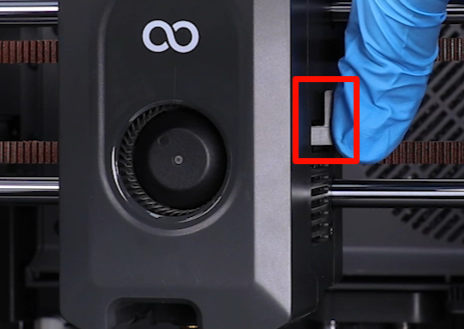

- Power off the printer. Press the lever of the filament cutter backward to cut off the filament. Lift the front cover of the printing head to remove it.
- Unplug the port of the ribbon cables of the model cooling fan.
- Use a 2.5 mm Allen wrench to loosen the 2 screws securing the printing head assembly.

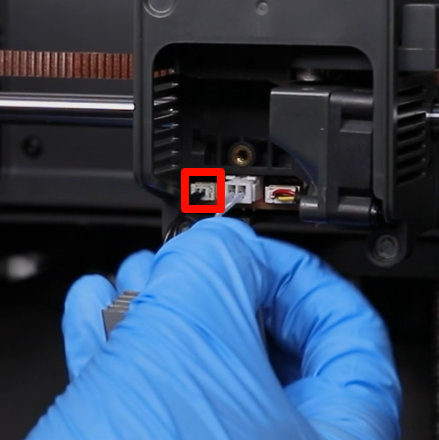

- Re-plug the cables of the nozzle thermistor port and check whether the pins in the terminals are normal. (The figure below shows the normal pin.)

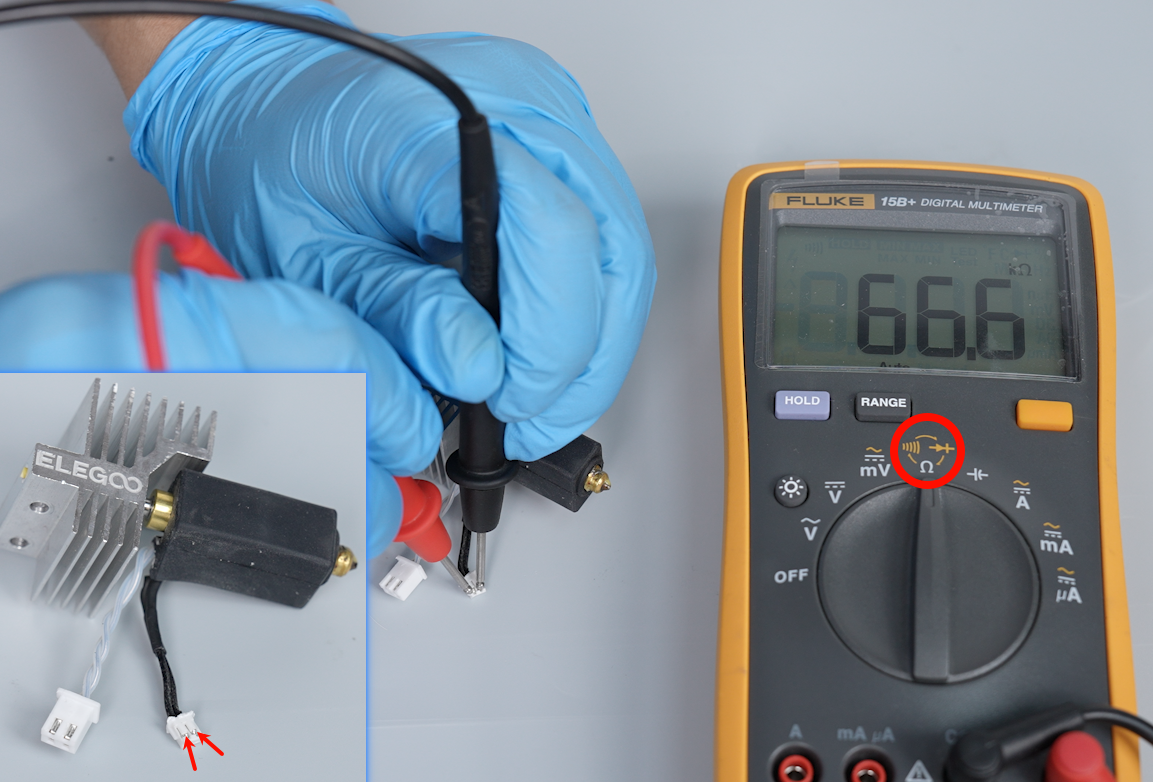

¶ Check the resistance value of the nozzle thermistor using a multimeter
- Adjust the multimeter to the "Ω" gear.
- Check the resistance value of the two pins in the thermistor cable terminals.
Note: The temperature of the nozzle is about 34°C during the detection. The NTC temperature and resistance values are shown in the following table.
The resistance value of NTC (thermistor) varies depending on the temperature.
| ----- | ----- |
| Temperature (℃) | -5 | 0 | 5 | 10 | 15 | 20 | 25 | 30 | 35 |
| Resistance Value (KΩ) | 420.9 | 325.1 | 254.3 | 199.7 | 157.7 | 125.2 | 100 | 80.39 | 65.03 |
If the resistance value of the nozzle thermistor is abnormal or shows no value, replace the thermistor with a new one.
