¶ Tools and Materials
- An Allen key
- A new release film kit
¶ Tutorial Video
Coming soon.
¶ Instruction
¶ Remove the old release film kit

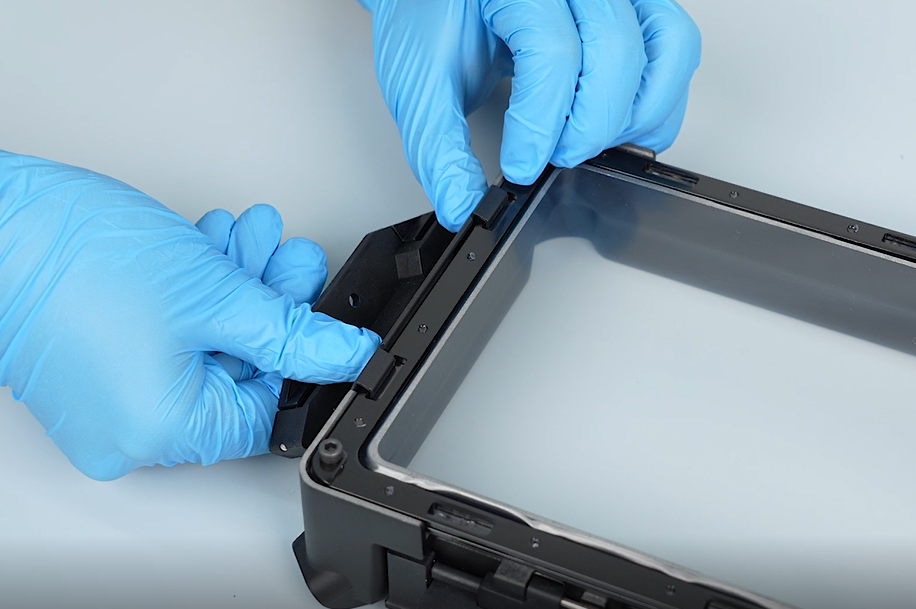

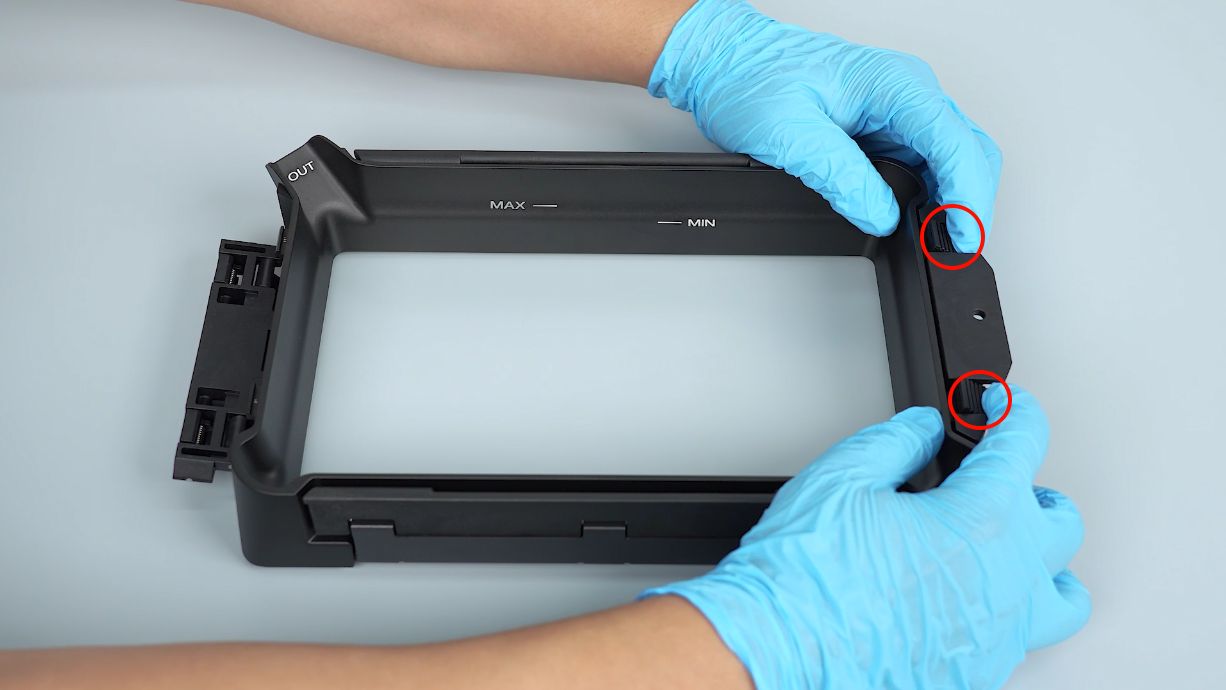

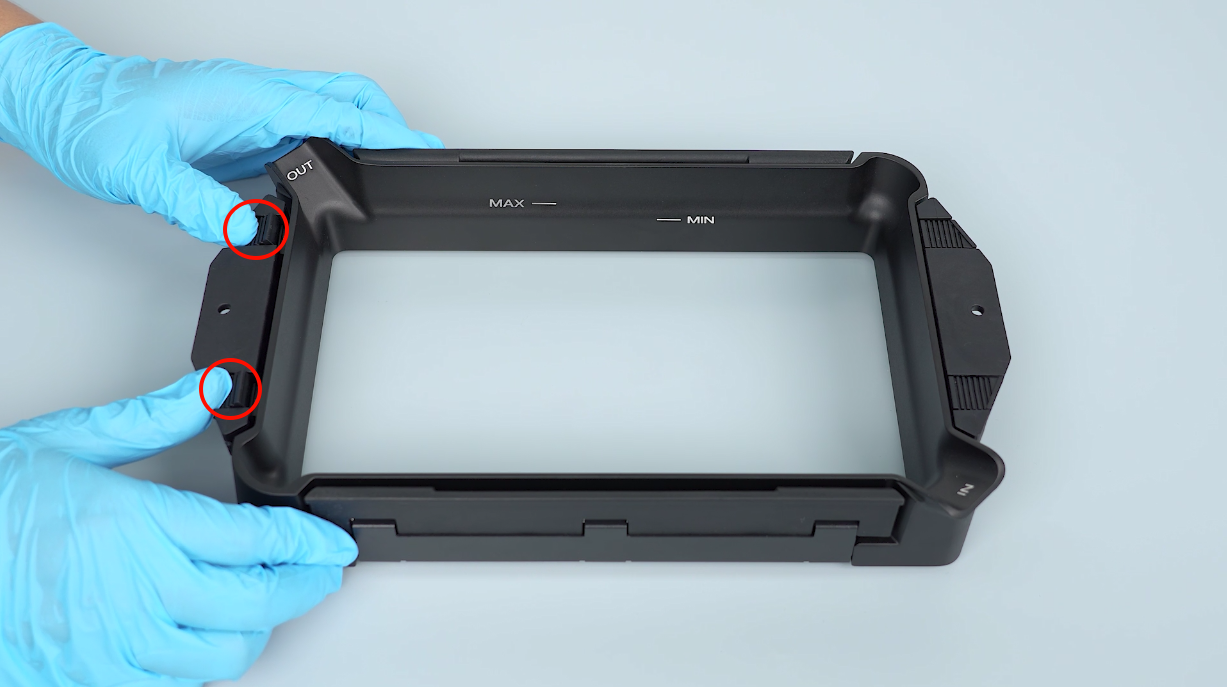

- Press down slightly the snaps on the left and right sides of the resin tank.

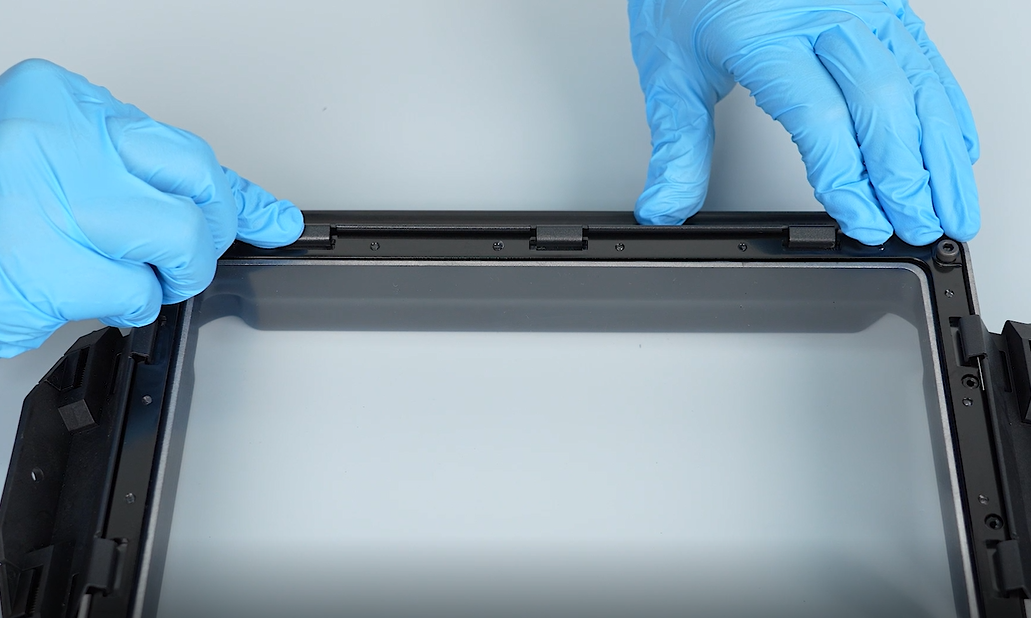

- Press down slightly the snaps on the other two sides.

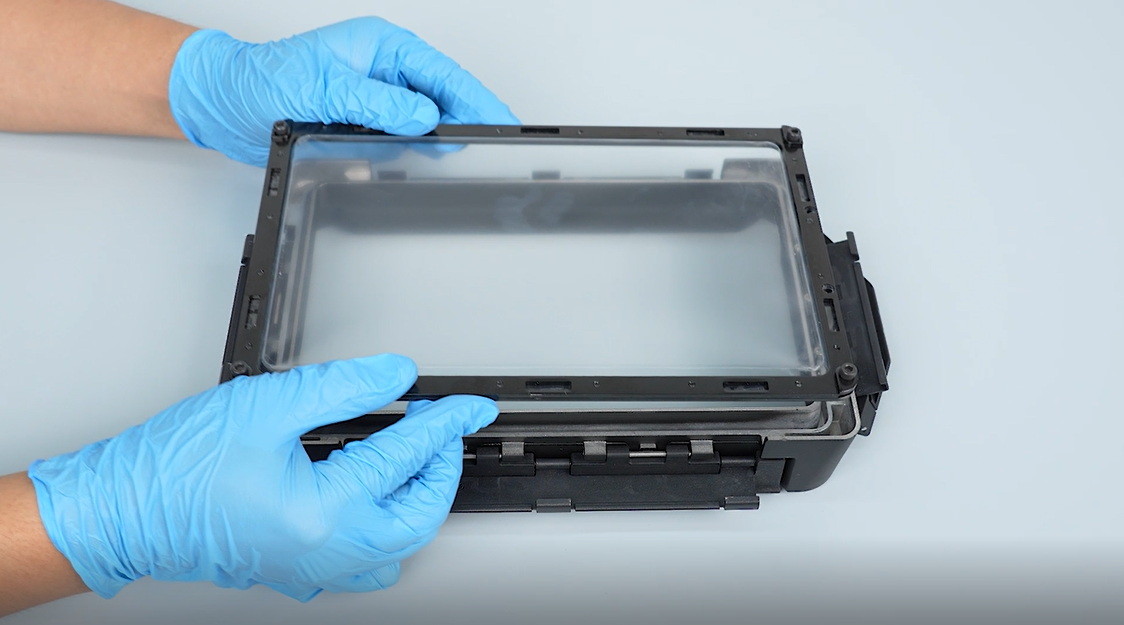

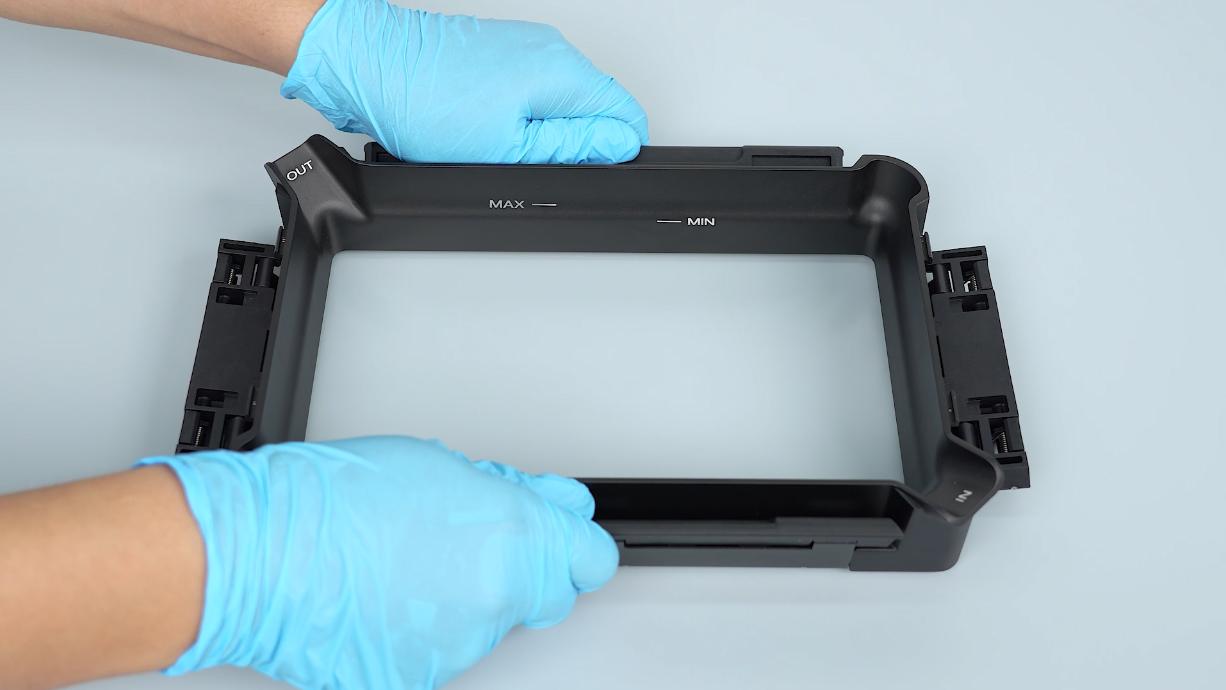

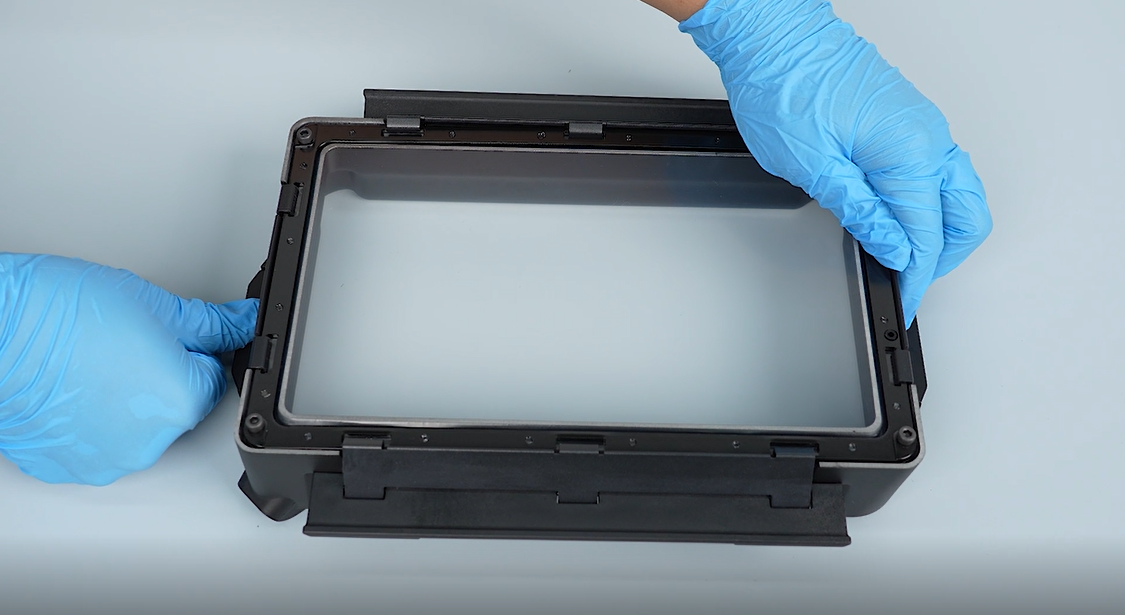

- Turn up the bottom of the resin tank and detach the snaps. Remove the old release film kit.
¶ Install the New Release Film Kit

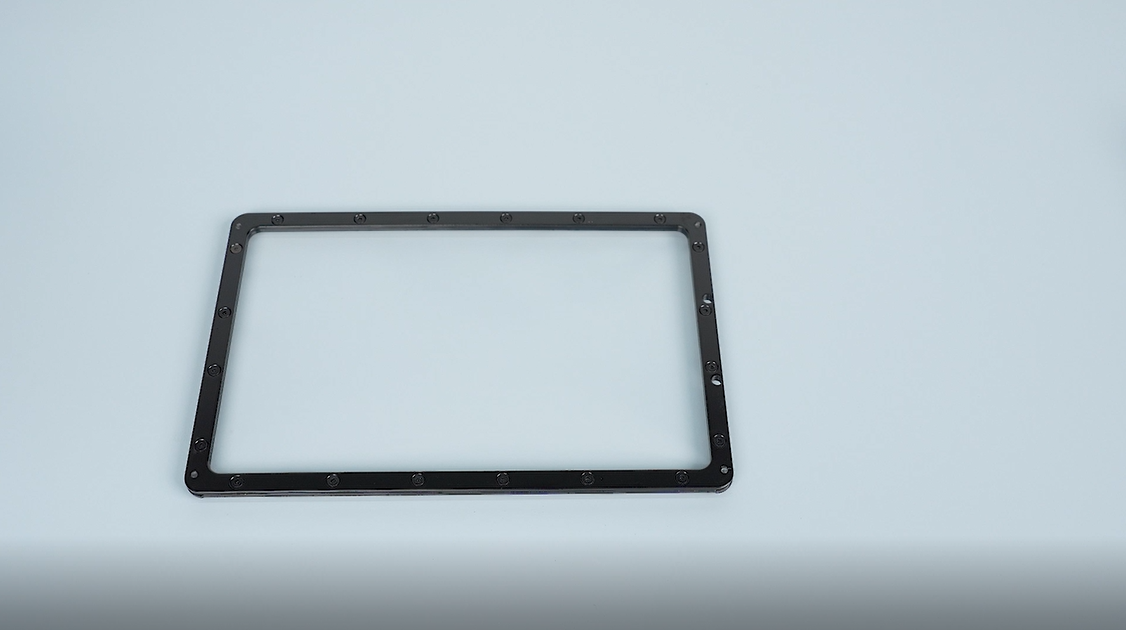

- Prepare the new release film kit.

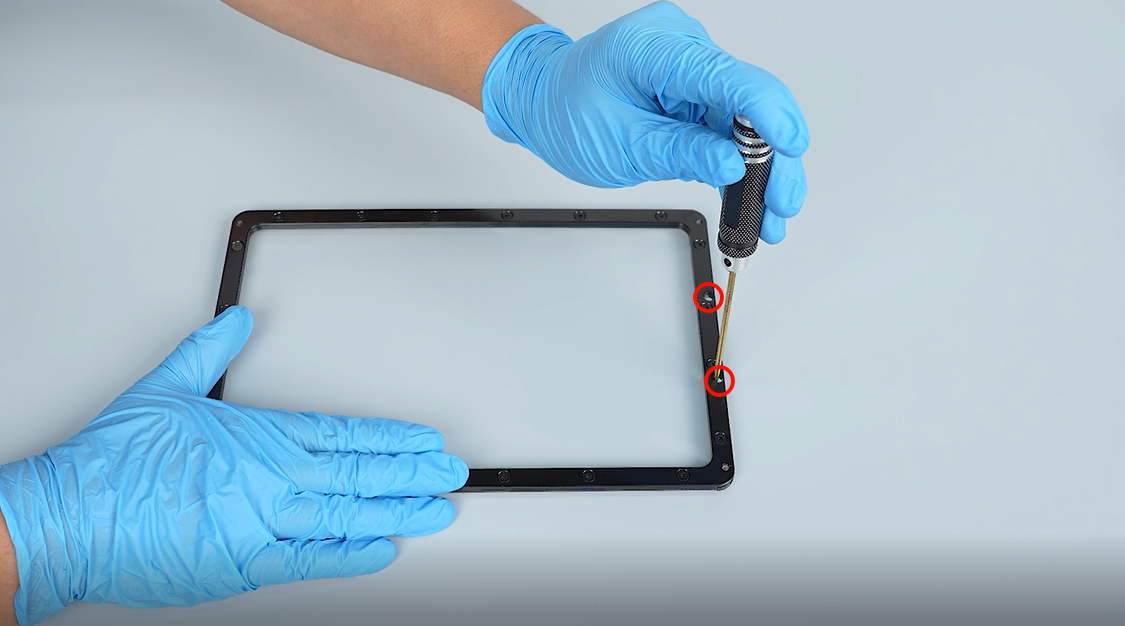

- Poke through the two heating points using a Allen key.

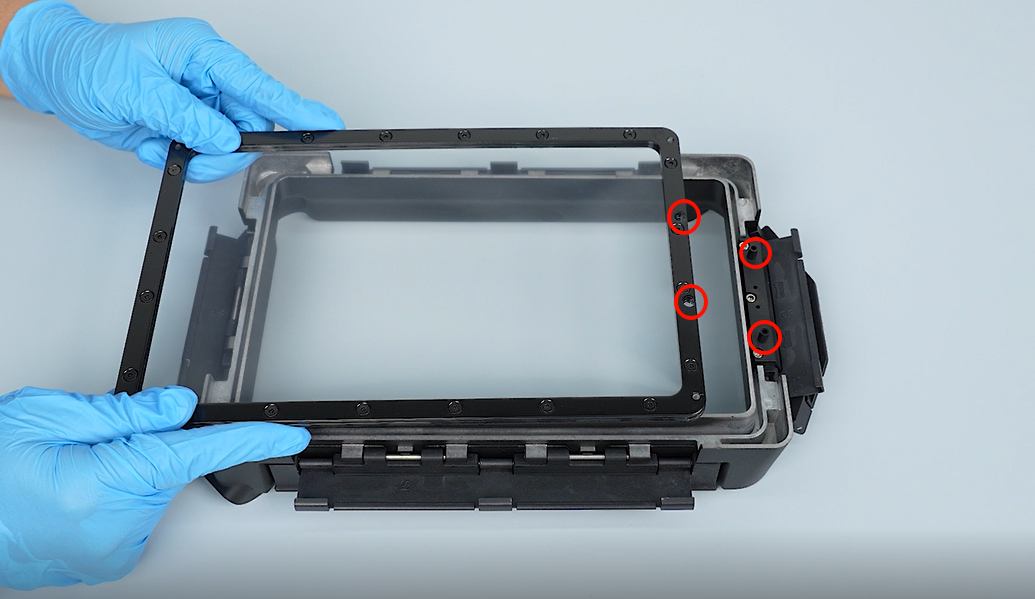

- Align the release film kit with the points and place the kit in the installation position.
Note: Saturn 4 and Saturn 4 Ultra have the holes, instead of heatng holes.

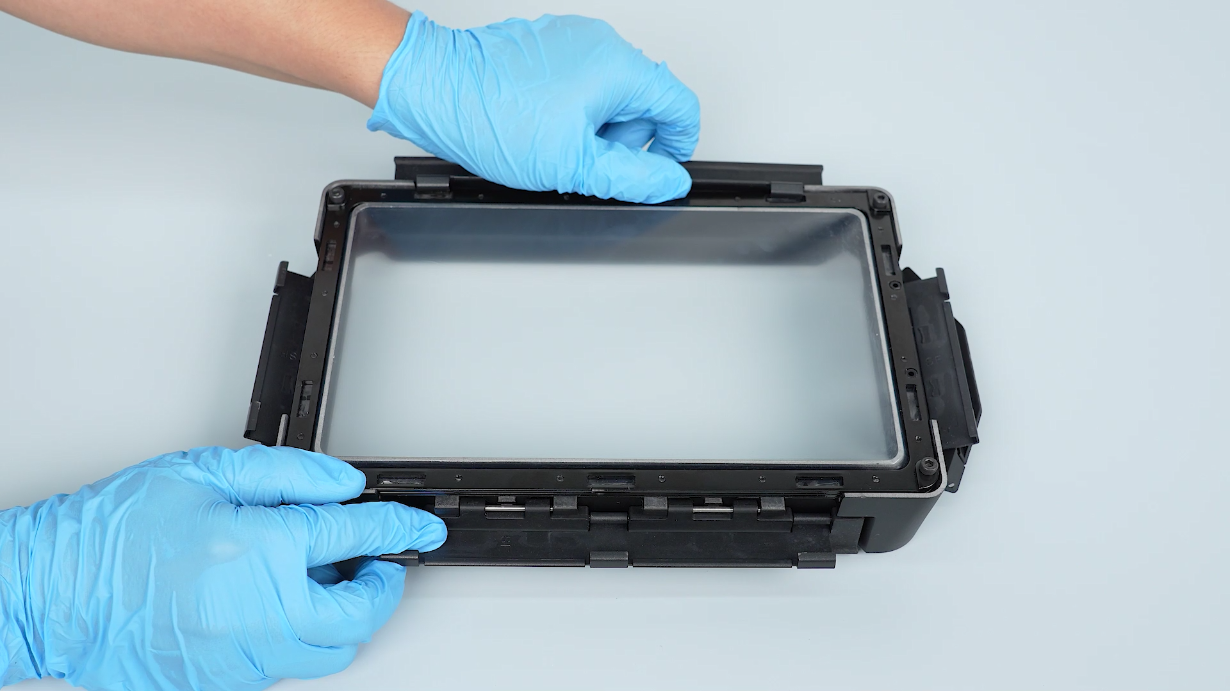

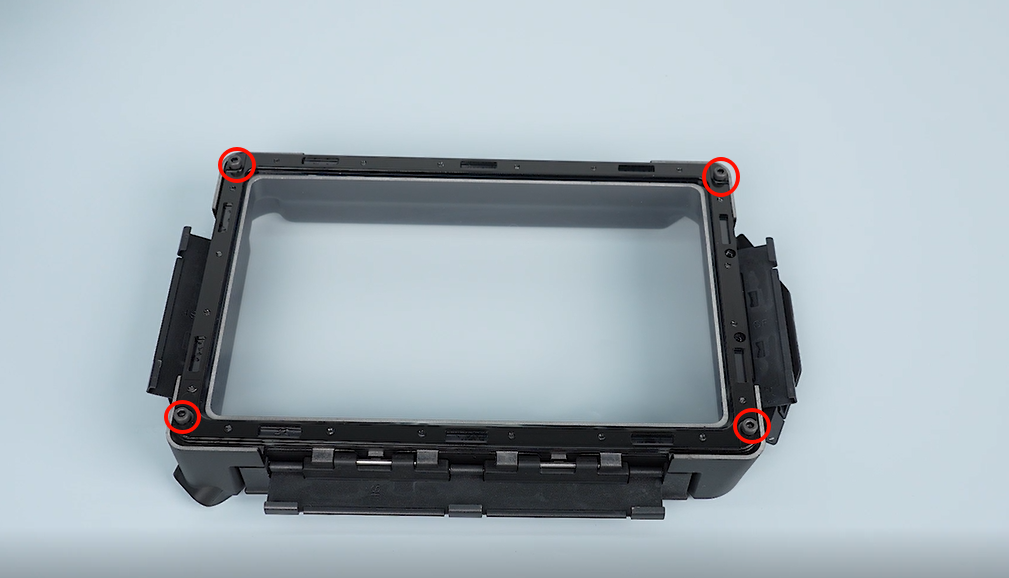

- The four screws should face up. Align the four snaps with the grooves around the bottom of the release film kit and put the resin tank in the installation position.
Note: It is easier to install by pressing down slightly the frame of the release film kit.

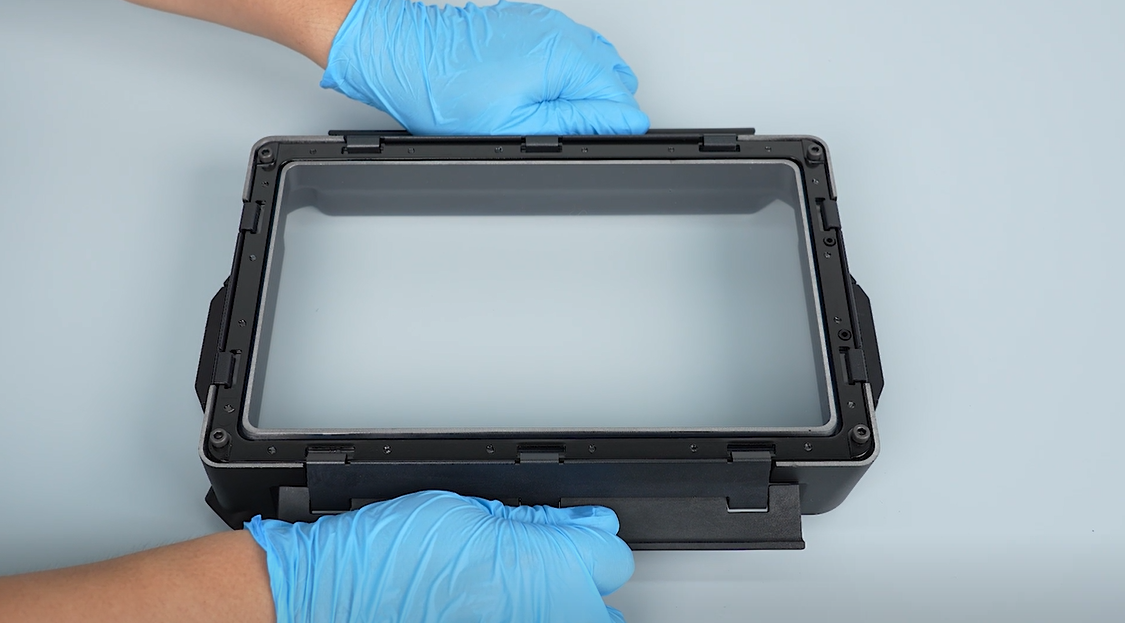

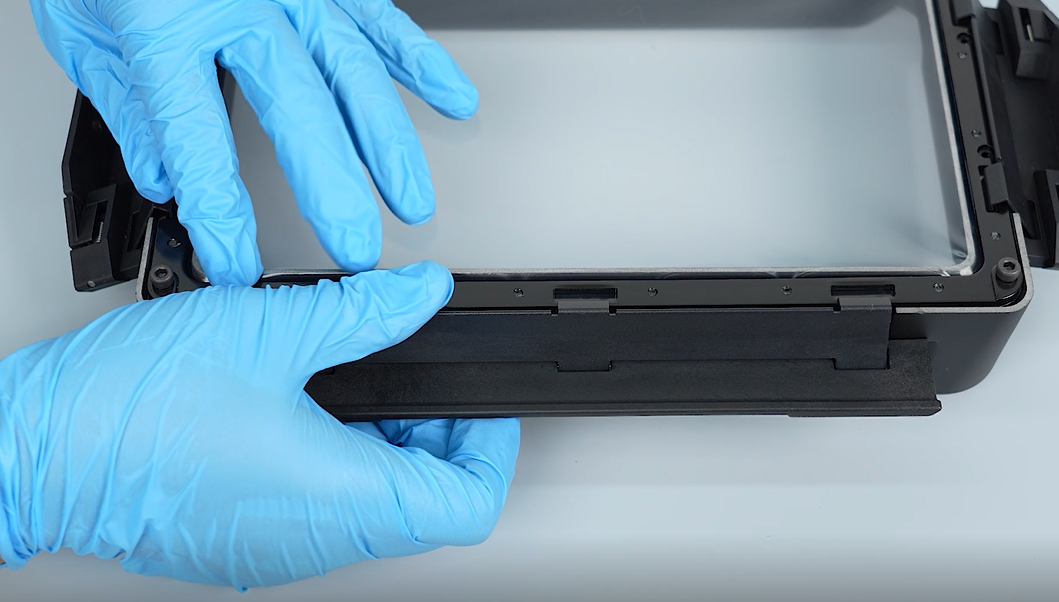

- Press down the four snaps to install the release film kit firmly.

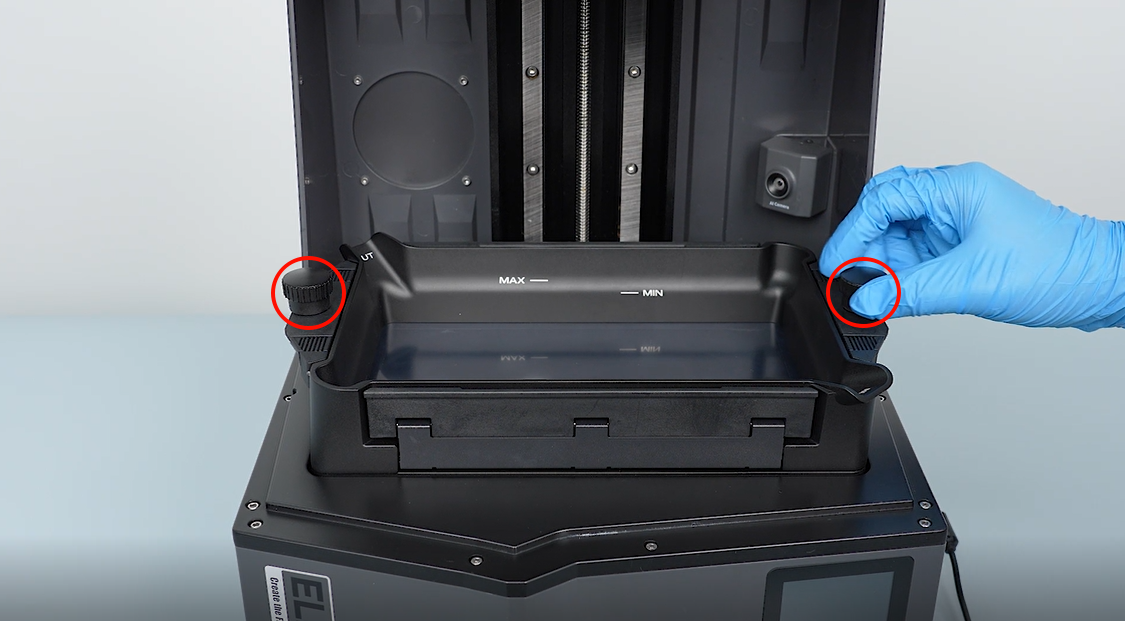

- Secure the resin tank using the two thumb screws. The printer is ready for use.
