¶ Product Introduction
The E32R28T is a 2.8-inch display module controlled by the ESP32-WROOM-32E module, equipped with a resistive touch screen.
It adopts the ILI9341 display driver IC with a resolution of 240×320. It supports connections to various peripheral devices, including SPI devices, speakers, lithium batteries, MicroSD cards, serial ports and more.
Built-in touch capability greatly facilitates users to carry out various DIY projects, and it can meet users' development demands for the Internet of Things (IoT) and human-computer interaction functions.
¶ Accessory List

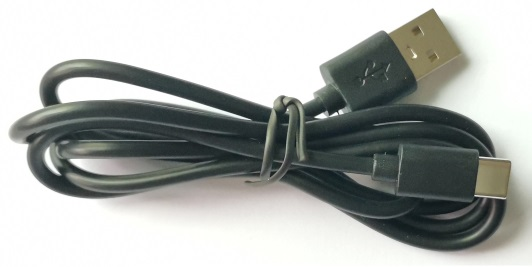

The module is supplied with two accessories: a resistive stylus pen for resistive touch screen operation, and a Type‑C charging/data cable
¶ PRODUCTPARAMETERS

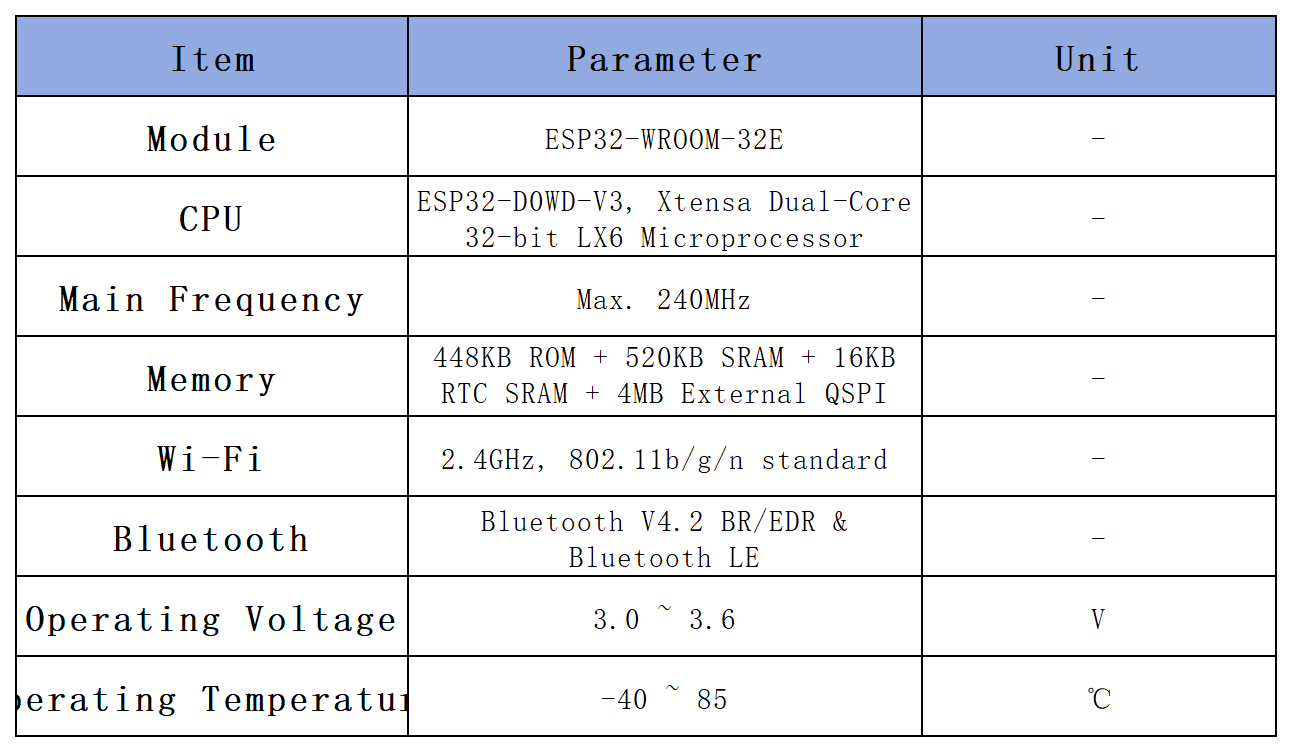

¶ ESP32 main control parameters

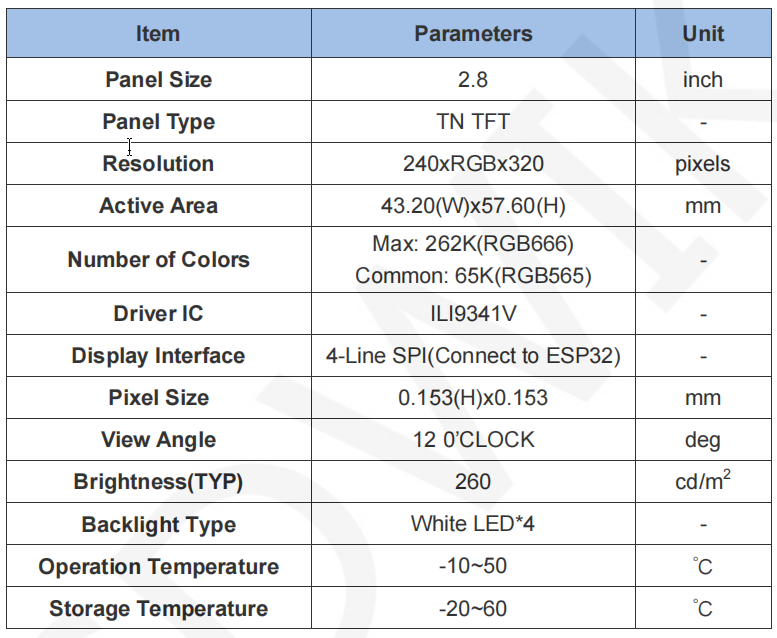

¶ TFT Parameters

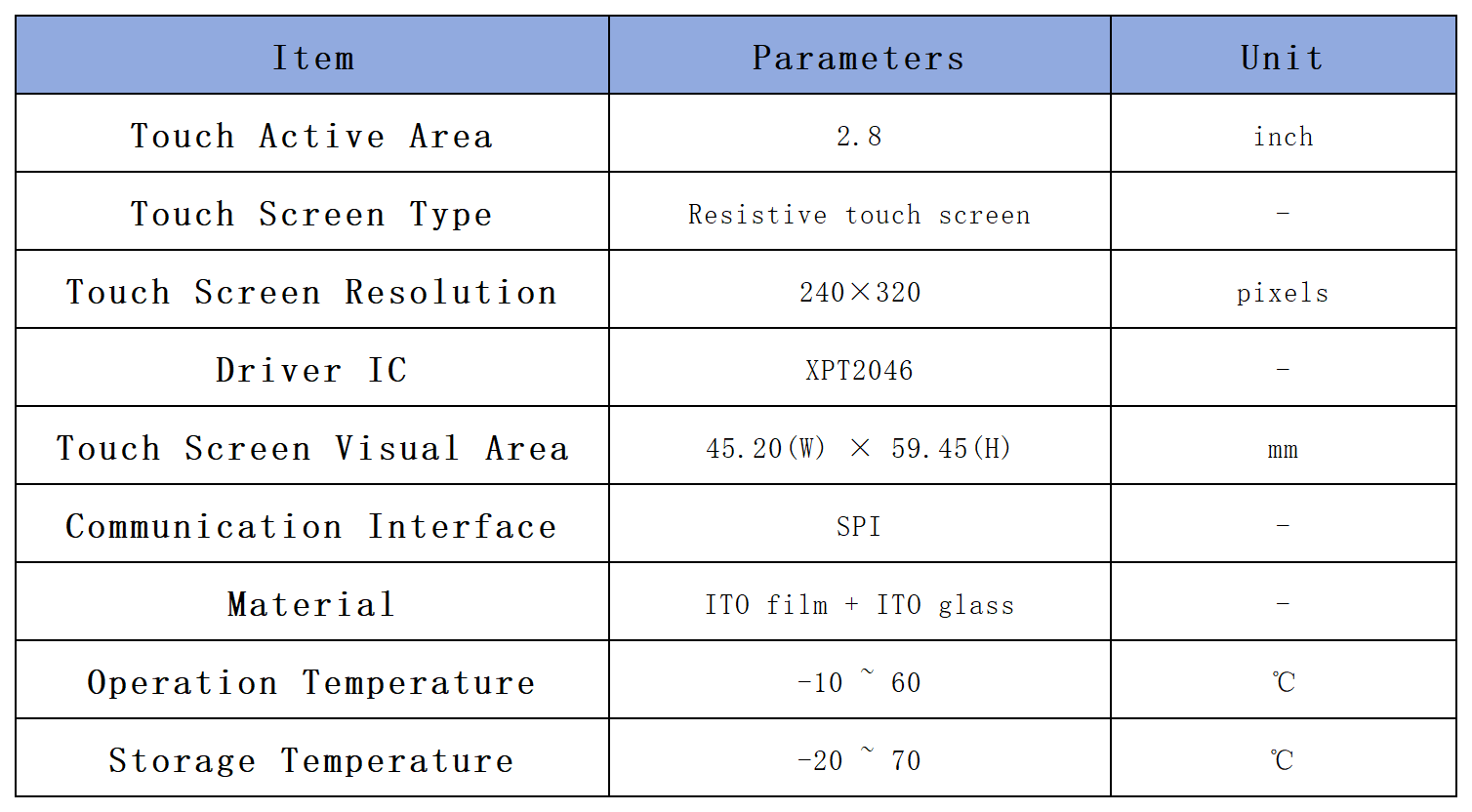

¶ Touch Screen Parameters
¶ Size Parameters

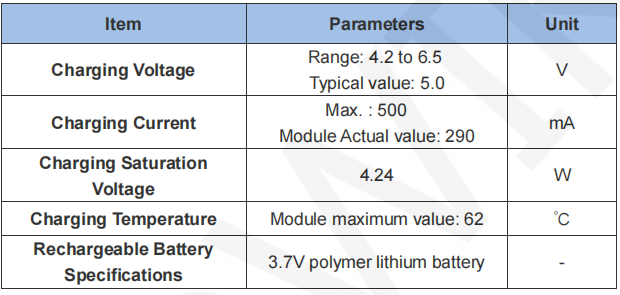

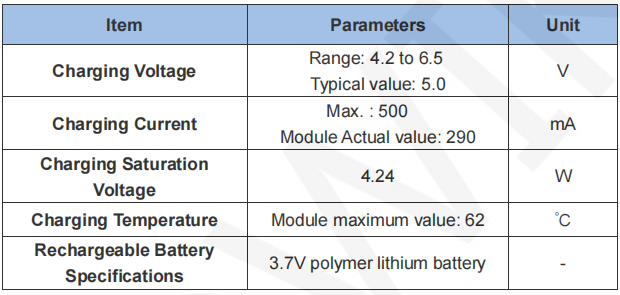

¶ Battery charging parameters

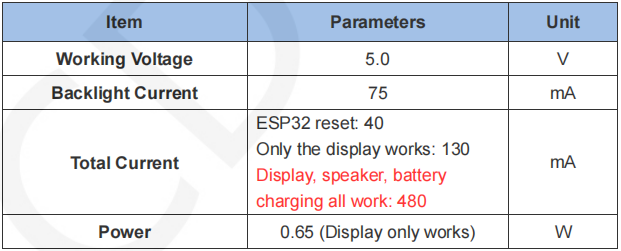

¶ Electrical Parameters

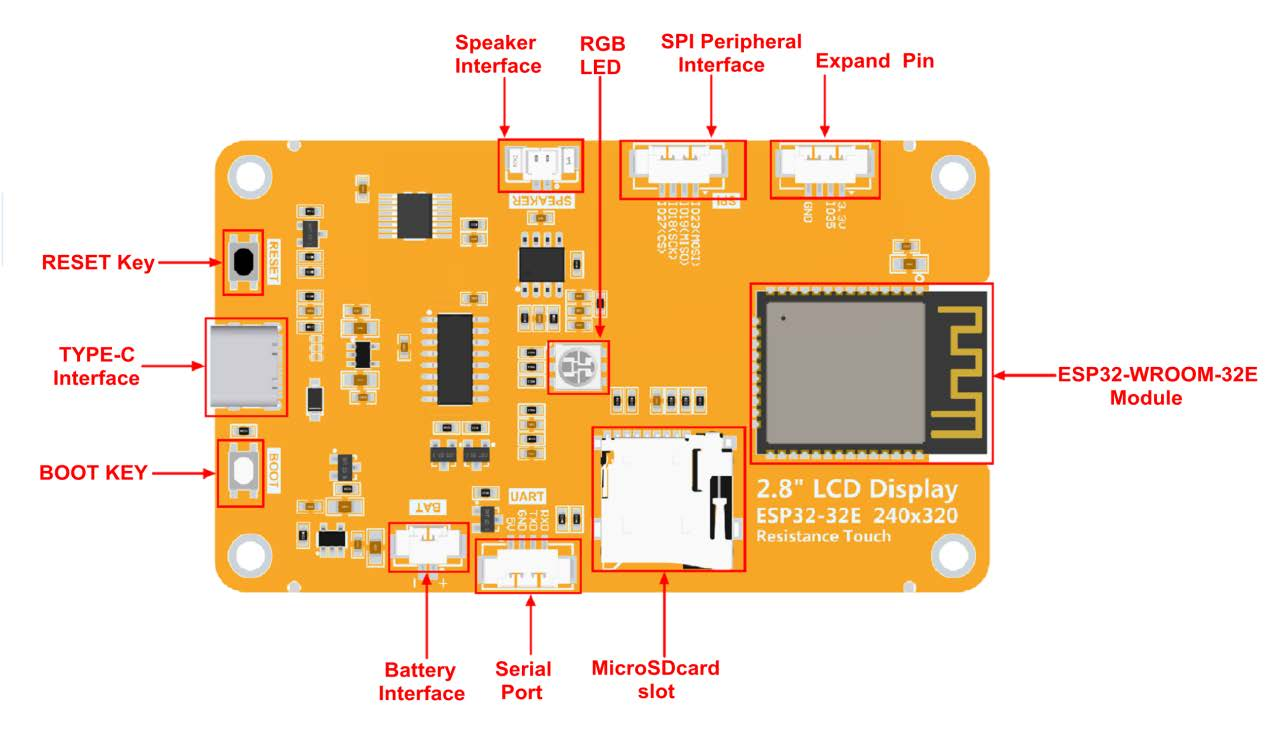

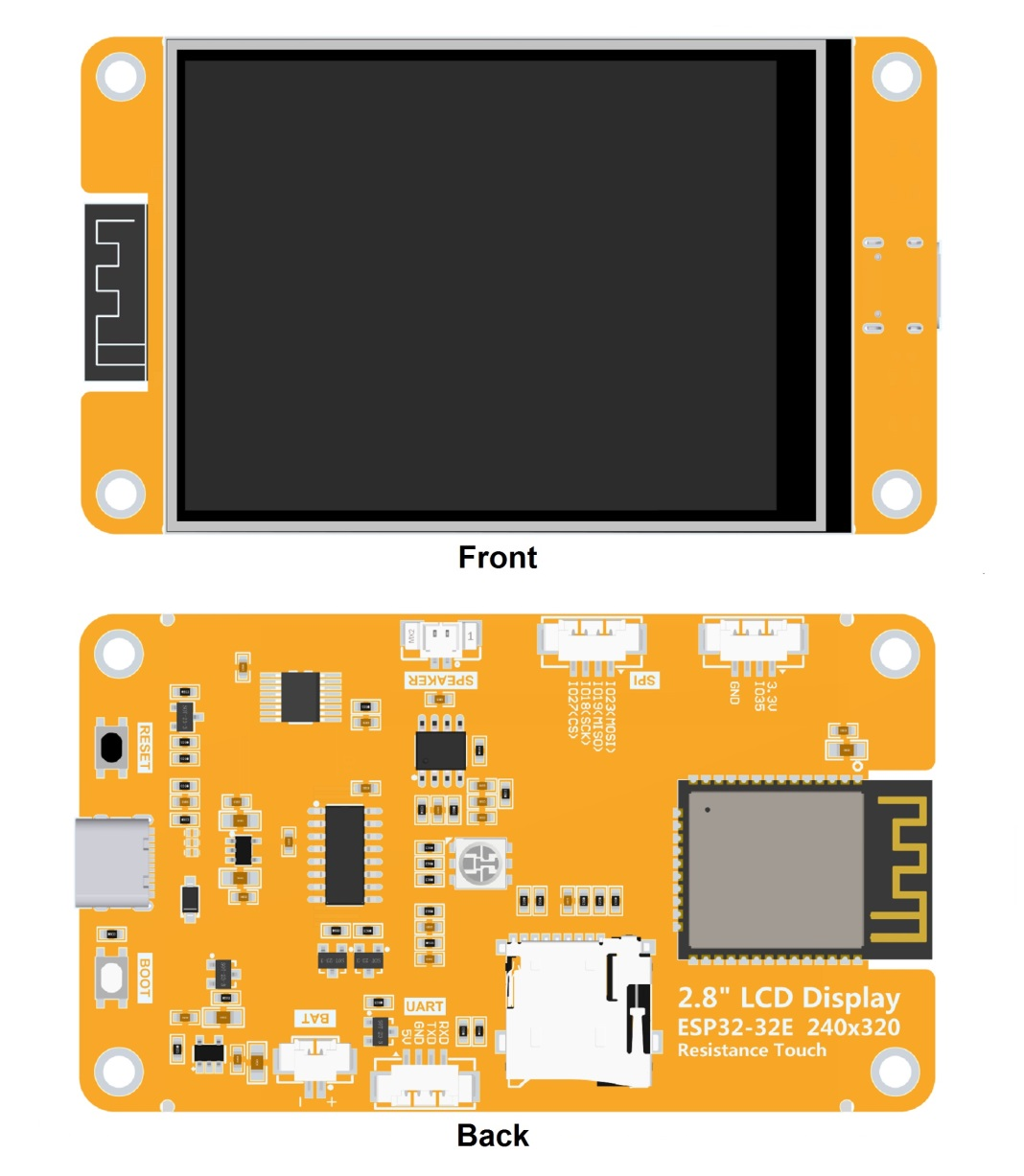

¶ PRODUCT INTERFACE

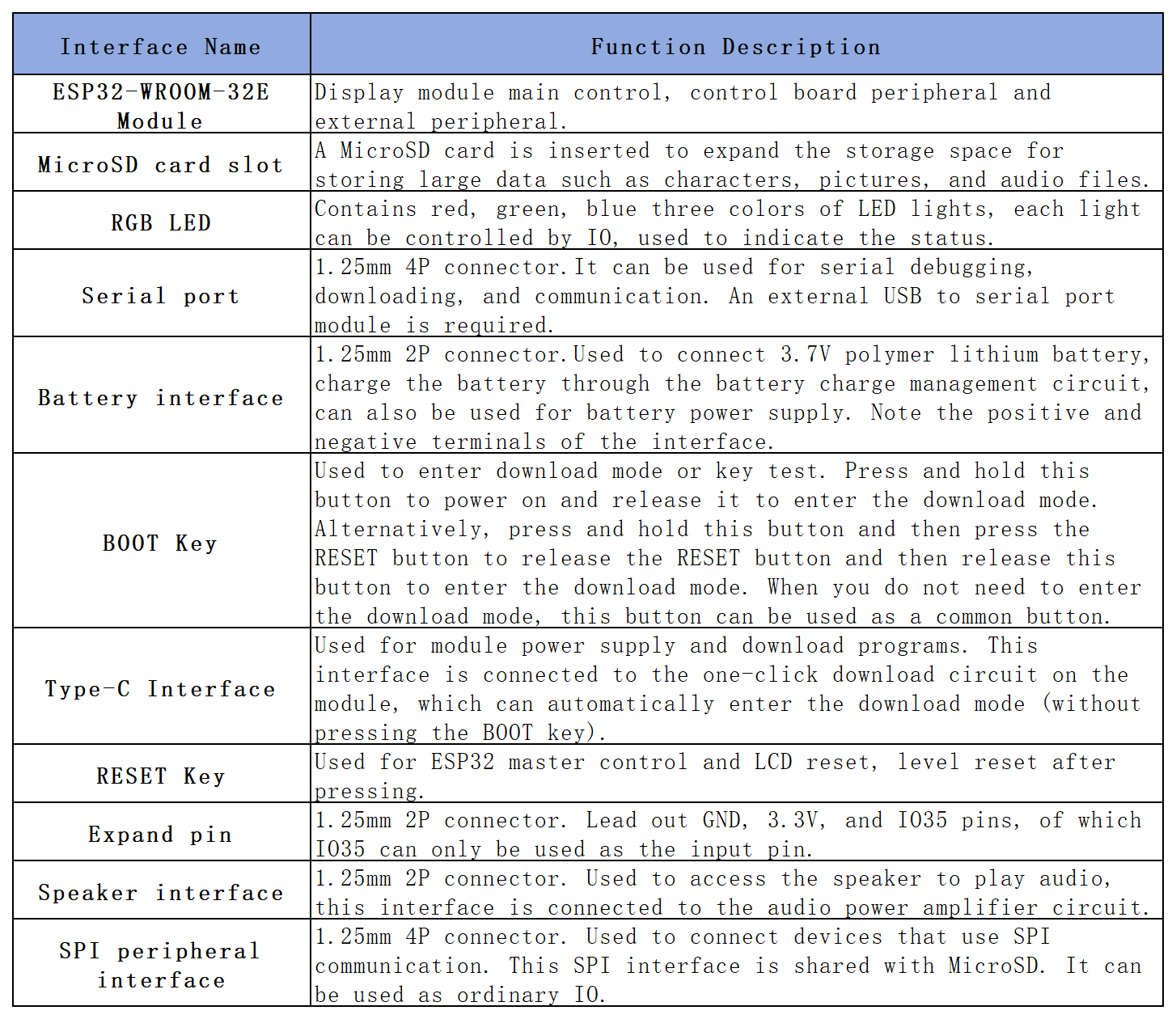

¶ Interface Function Description

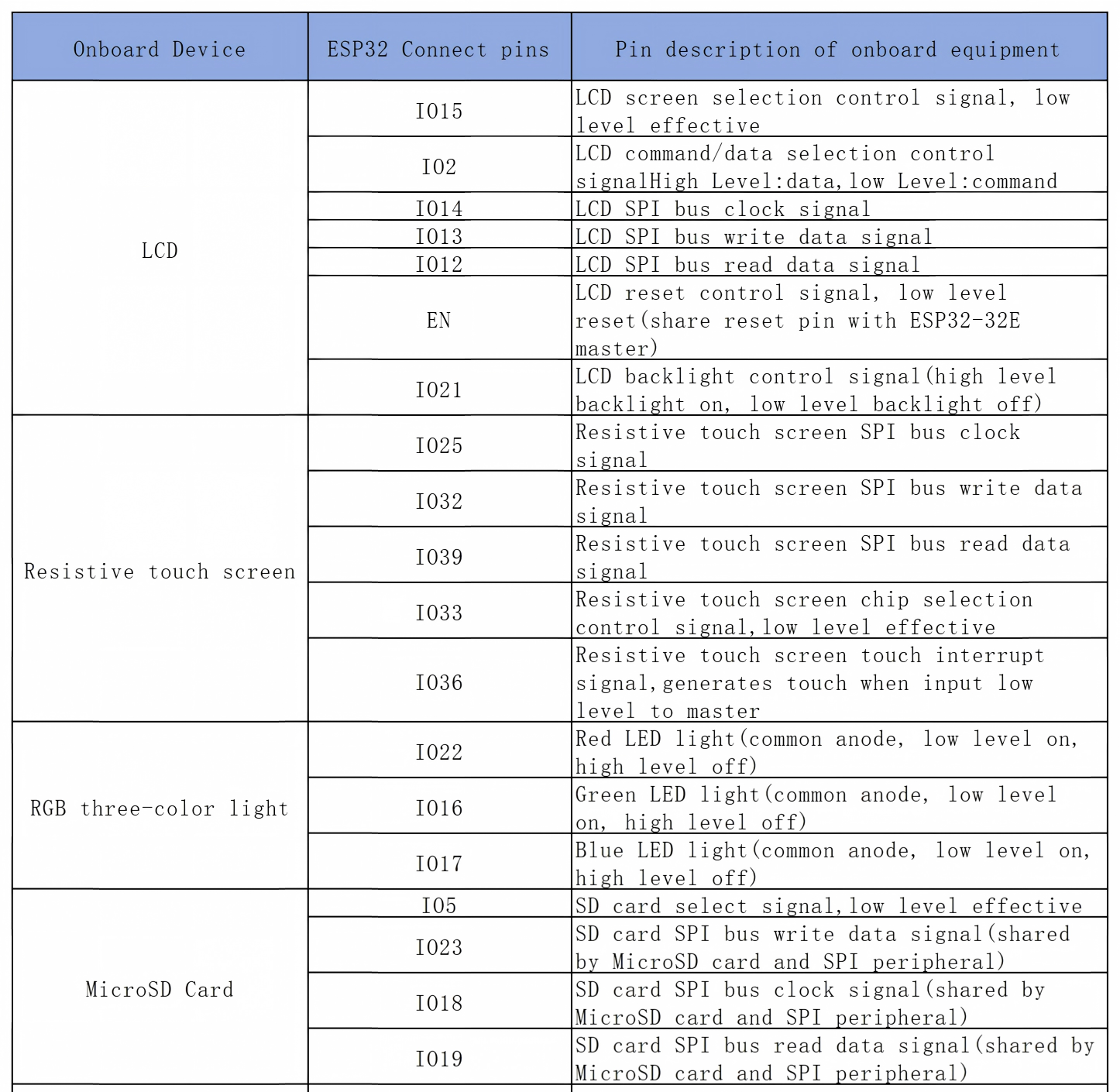

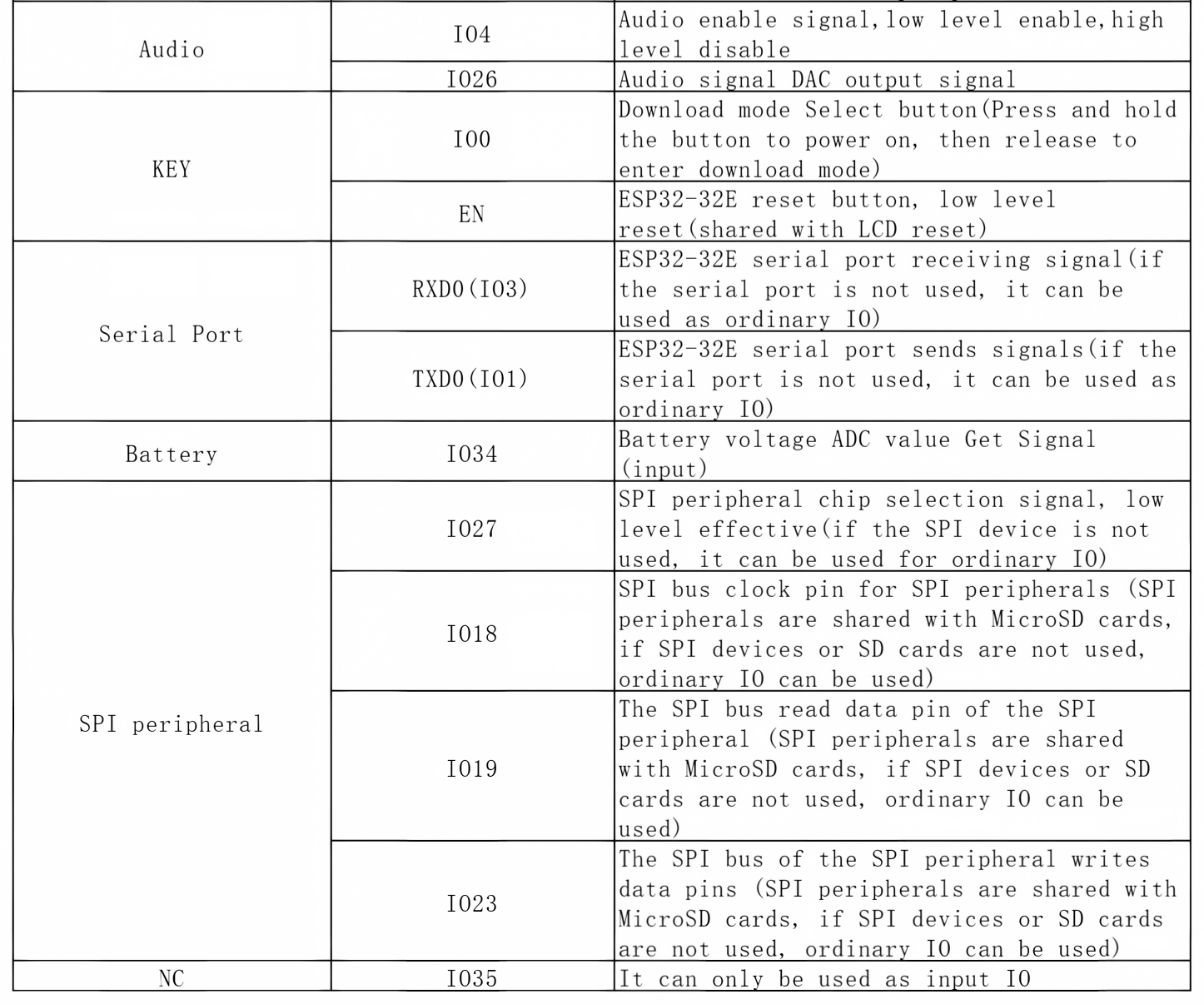

¶ ESP32 pin allocation
