¶ Product Overview
The Arduino UNO Q unlocks a new level of performance for the Arduino ecosystem, blending robust computing power from Qualcomm’s advanced QRB2210 Microprocessor (MPU) running a full Debian Linux OS with upstream support, and the real-time responsiveness of a dedicated STM32U585 Microcontroller (MCU) running Arduino sketches over Zephyr OS — all on a single-board computer.
For more‑detailed information and content, please visit our official website.
https://docs.arduino.cc/tutorials/uno-q/user-manual/

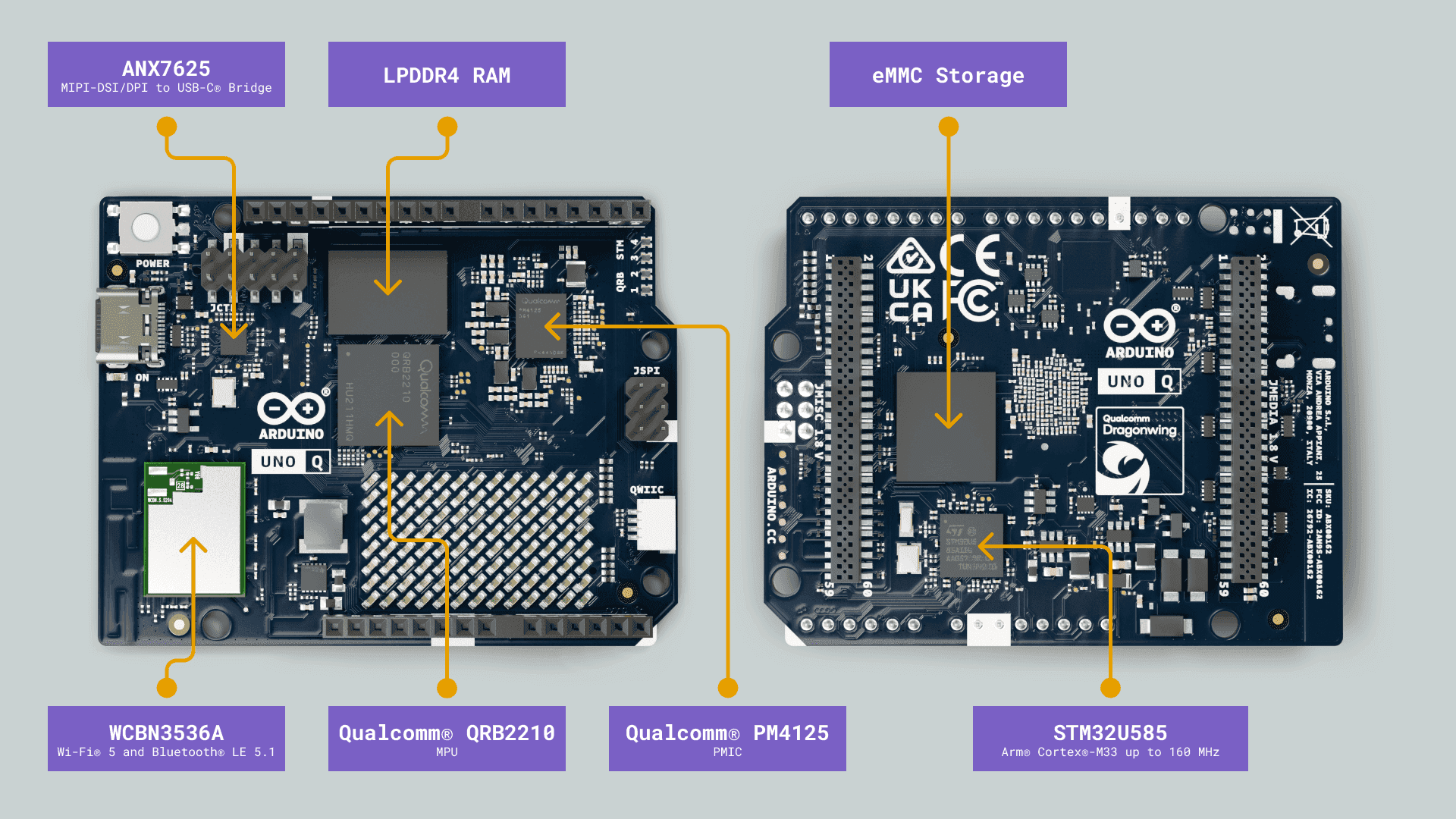

¶ Board Architecture
The Arduino UNO Q blends the high-performance Qualcomm® QRB2210 MPU, running a full Linux environment, with the real-time precision of the STMicroelectronics® STM32U585 (32-bit Arm® Cortex®-M33) MCU, all on a single, compact board. This mixed architecture delivers the power and responsiveness needed for AIoT, machine learning, and advanced automation applications.
-
Microprocessor: The Qualcomm® QRB2210 is a quad-core Arm® Cortex®-A53 processor running at 2.0 GHz, equipped with an Adreno™ 702 GPU (845 MHz) for 3D graphics acceleration and dual ISPs supporting up to 25 MP at 30 fps. It runs Debian Linux OS with upstream support, making it well-suited for embedded vision and edge computing applications.
-
Microcontroller: The STM32U585 microcontroller features an Arm® Cortex®-M33 core running up to 160 MHz, with 2 MB of flash memory and 786 KB of SRAM. It runs the Zephyr OS, providing a secure and efficient platform for low-power embedded applications.
-
Wireless Connectivity: The WCBN3536A radio module provides dual-band Wi-Fi® 5 (2.4/5 GHz) and Bluetooth® 5.1 connectivity, both with onboard antennas for reliable wireless performance.
-
Memory: The board features 16 GB or 32 GB options of eMMC storage and 2 GB or 4 GB options of LPDDR4 RAM, delivering fast memory access and reliable storage for embedded applications.
-
Multimedia Codec: The ANX7625 multimedia codec enables video and audio output through the onboard USB-C connector, providing a high-speed interface for display and sound transmission in embedded applications.
-
Power Management: The UNO Q includes the Qualcomm® PM4145, a power management integrated circuit (PMIC) to meet the demands of always-connected IoT devices.

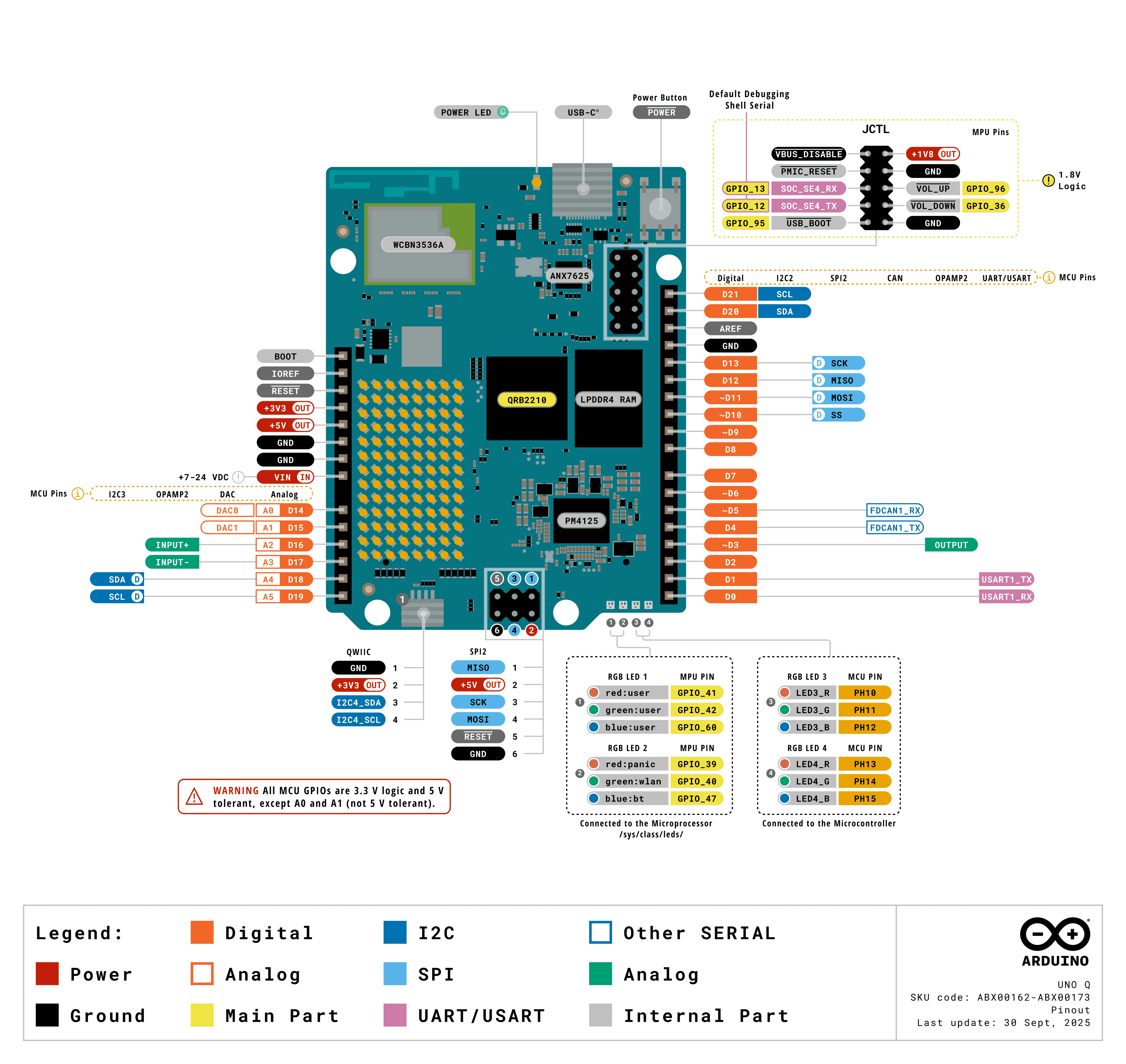

¶ Pinout
For detailed pin‑out information, please visit the link below to download and view.
https://docs.arduino.cc/resources/pinouts/ABX00162-full-pinout.pdf
