¶ Fault Symptom:
During Z-axis homing, the nozzle continues to descend without stopping.
¶ Possible Causes:
- PEI build plate is not installed
- Proximity sensor is tilted and cannot detect the PEI plate
- Nozzle is not installed correctly
- X-axis is tilted
- Proximity sensor is faulty
¶ Tools Required for Troubleshooting:
- 2.0mm hex screwdriver
- Wrench
¶ Troubleshooting Steps:

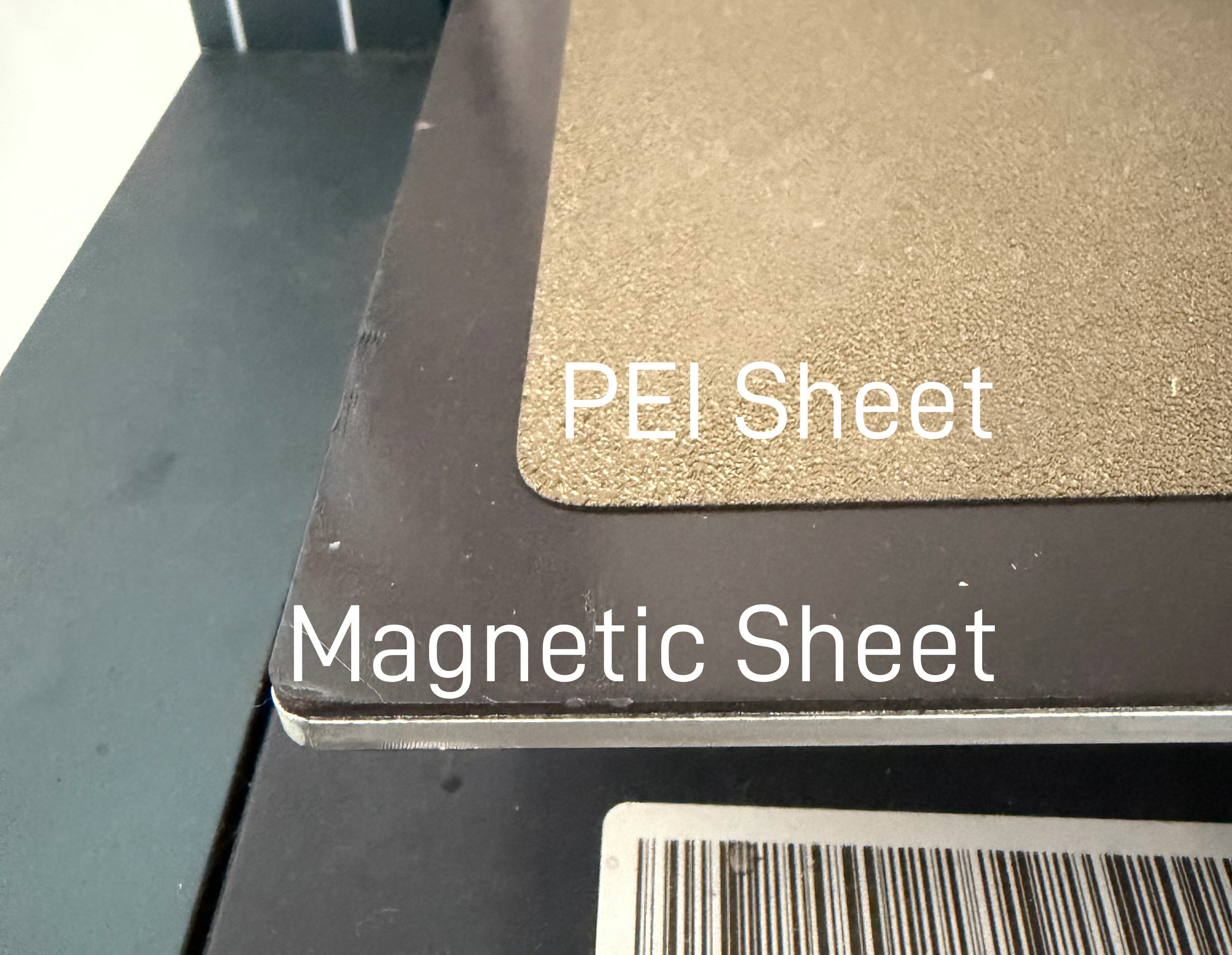

¶ 1. Confirm the default PEI build plate is installed and its material meets requirements
a. The proximity sensor on the Neptune 3 series can only detect metal. Do not click Home, perform leveling, or start a print without installing the PEI build plate.
.jpg)
b. If you are using a non-original PEI build plate, please ensure it is made of metal.
¶ 2. Check if the extruder is loose or tilted

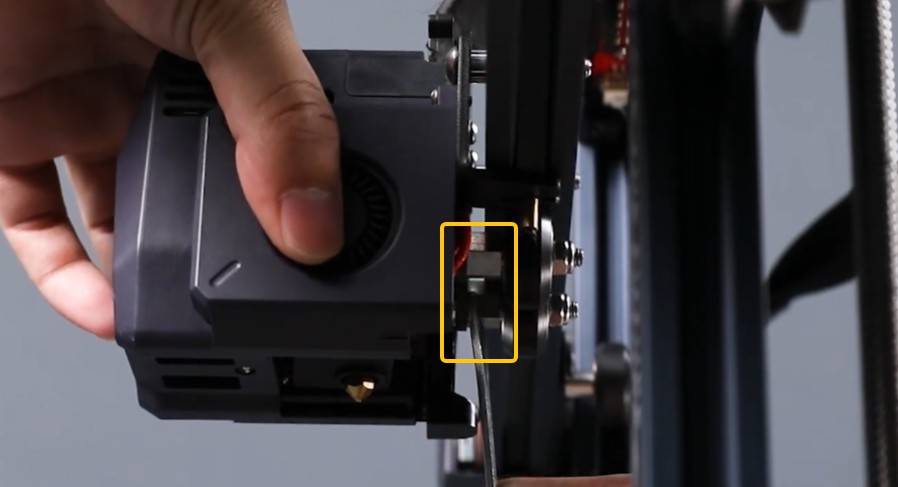

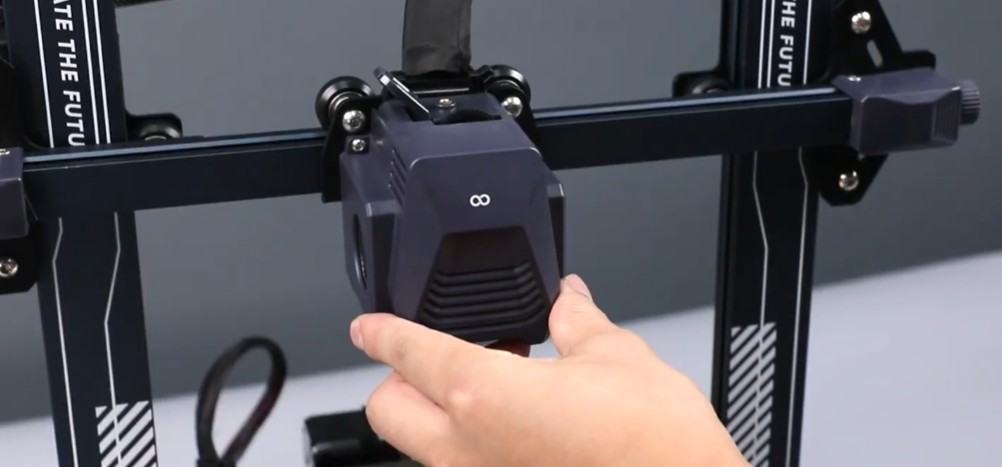

a. Manually shake the extruder assembly and check whether it wobbles.
.jpg)

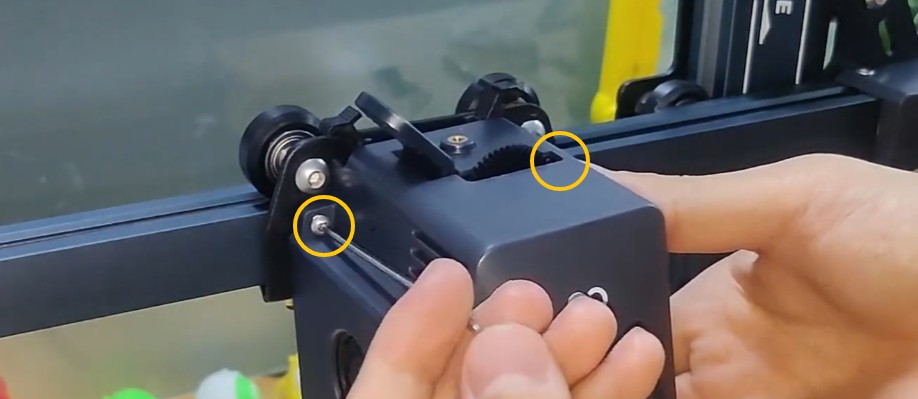

b. If the extruder wobbles, tighten the eccentric nuts at the marked positions.
.jpg)
¶ 3. Check whether the nozzle is installed correctly

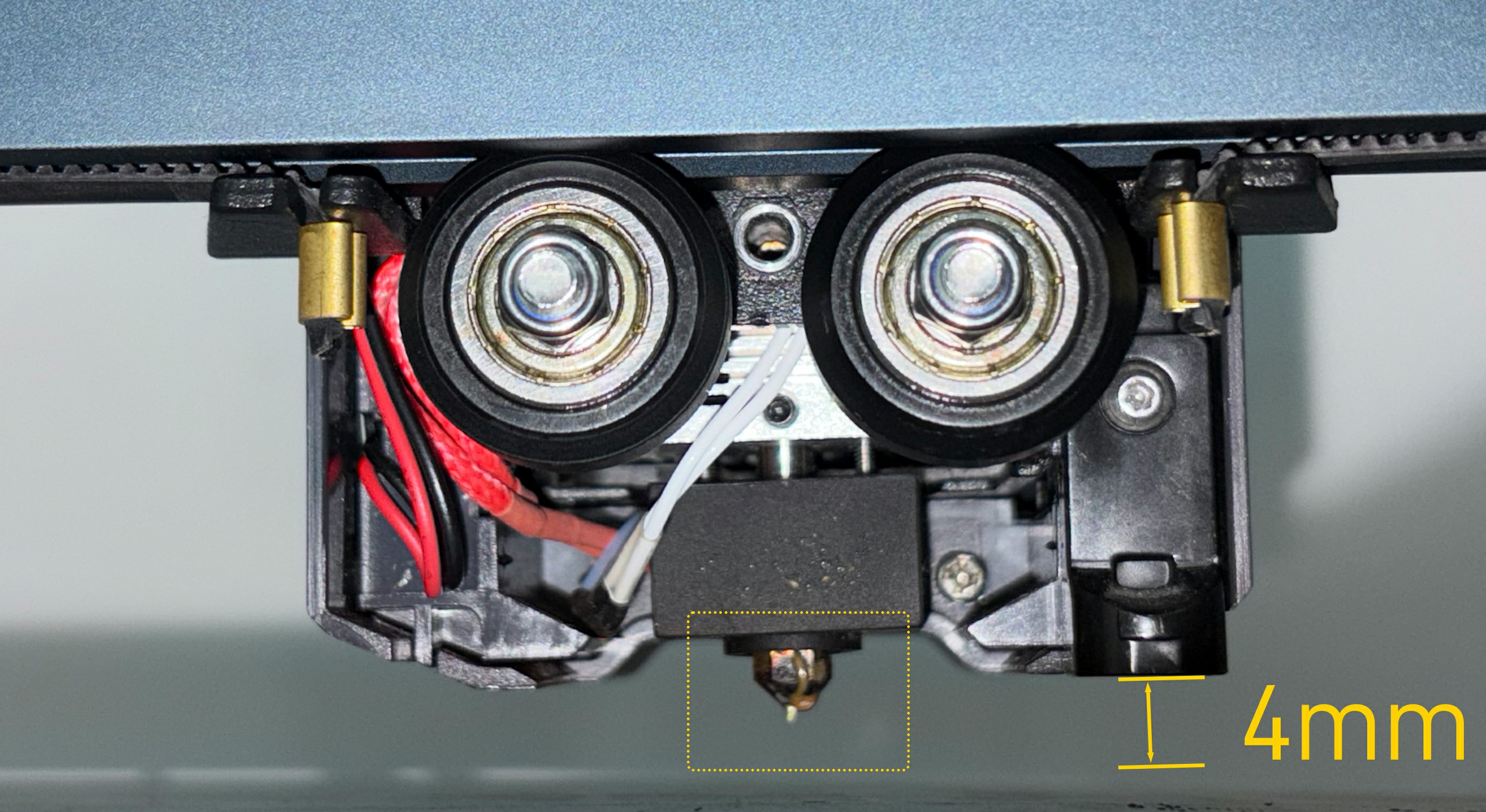

The proximity sensor on the Neptune 3 Pro series has a detection distance of 4mm. If the nozzle protrudes too far due to incorrect installation, it will interfere with the sensor during Z-axis homing.
.jpg)
¶ 4. Check if the proximity sensor is loose or tilted
a. Turn off the printer power switch and unplug the power cord.

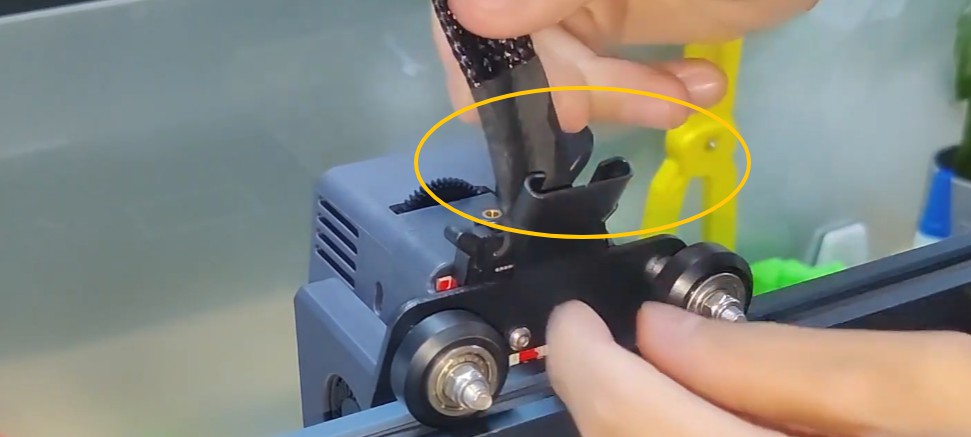

b. Disconnect the cable.
.jpg)

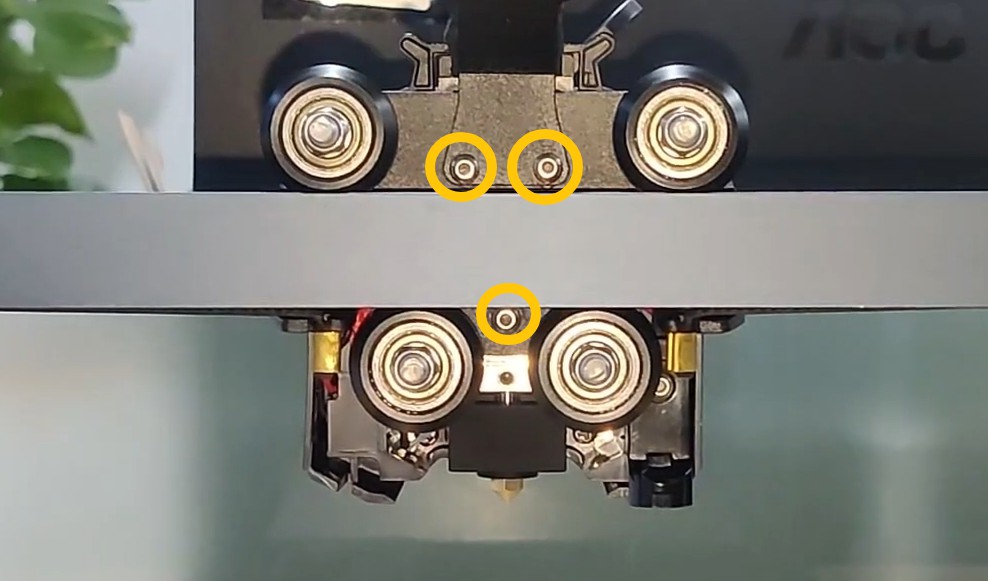

c. Remove the screws securing the extruder and take off the extruder assembly.
.jpg)
.jpg)

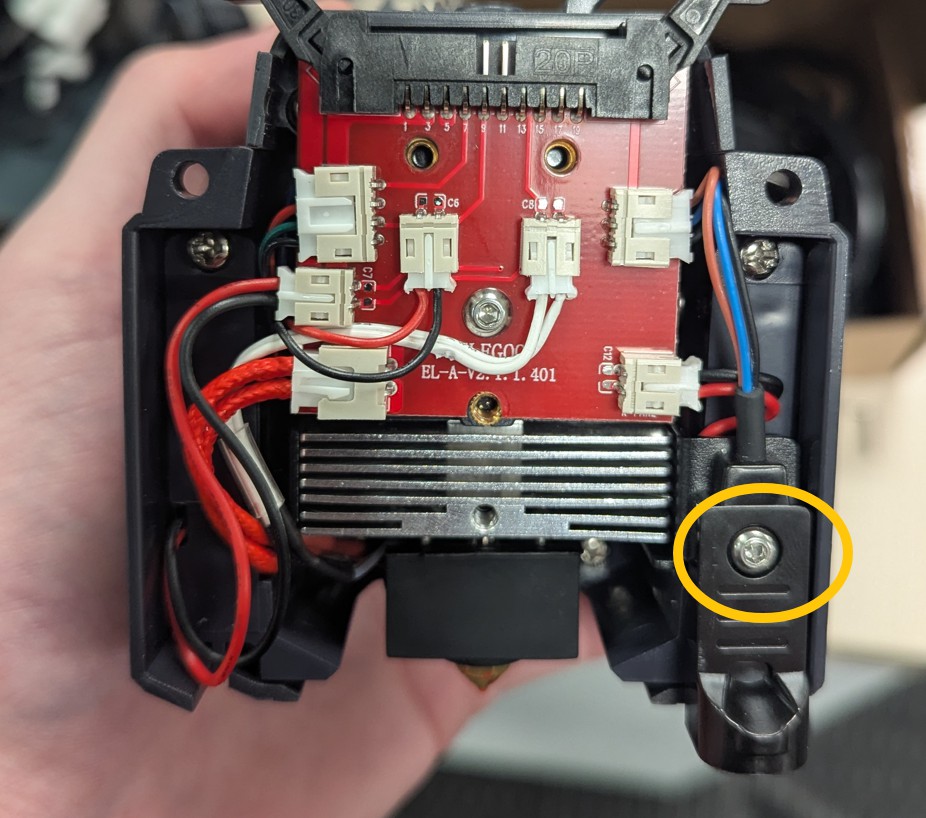

d. Check whether the screws fixing the proximity sensor are loose.
.jpg)

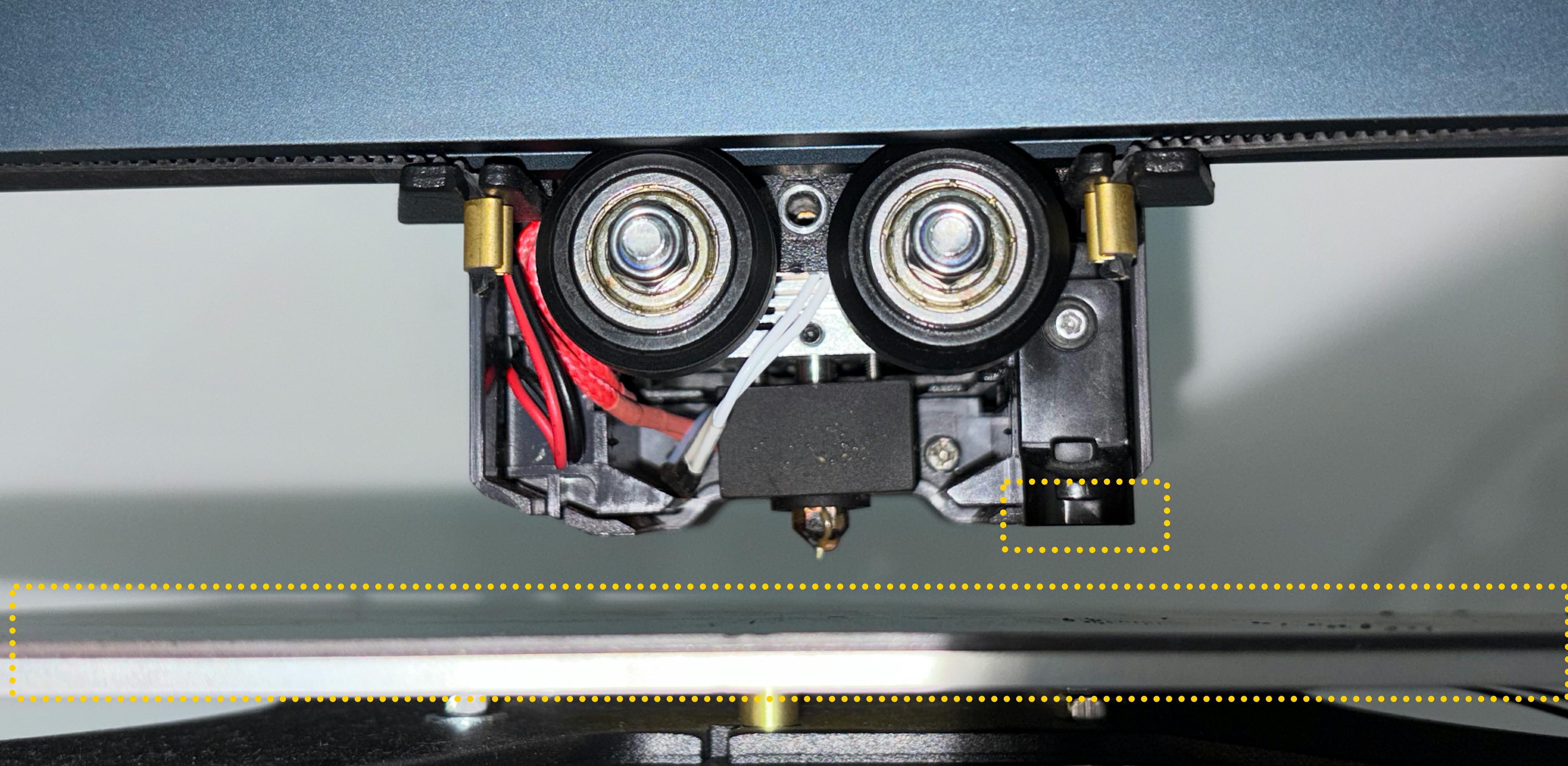

Reminder: The detection part of the proximity sensor must remain parallel to the build plate. If the sensor is tilted, it will fail to trigger properly.
.jpg)
¶ 5. Check whether the X-axis is parallel to the build plate
a. Turn off the printer power switch and unplug the power cord.

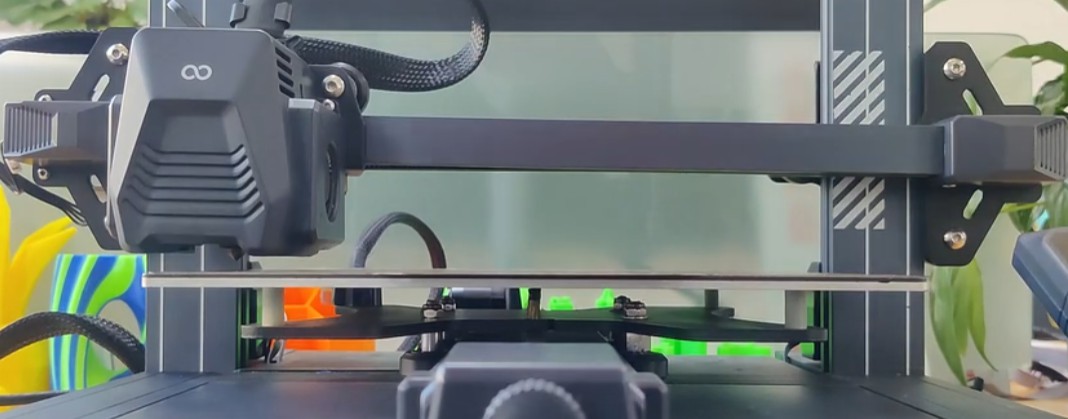

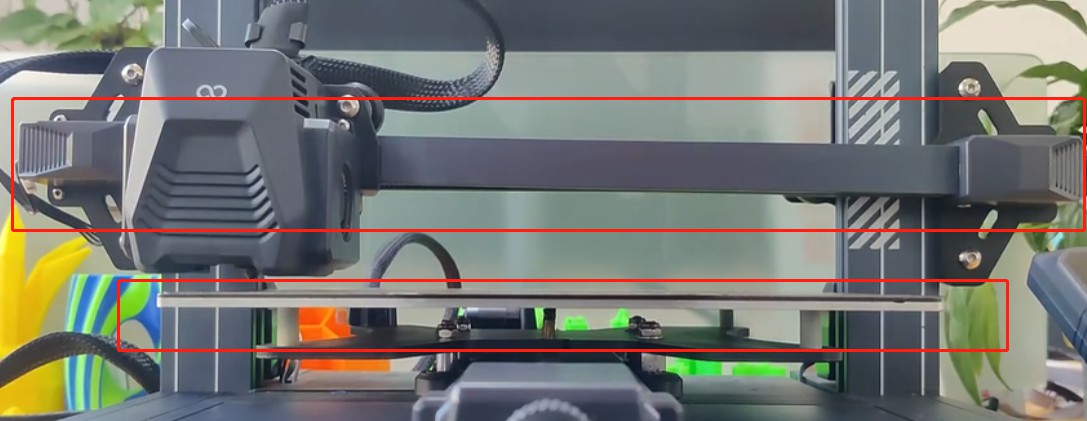

b. Visually check if the X-axis is parallel to the build plate. If it is difficult to judge by eye, use a ruler to measure the distance from both ends of the X-axis to the build plate.
.jpg)
.jpg)
Please refer to the following video to adjust the X-axis:
https://youtu.be/EselQDI0_28
- If the issue persists after completing steps 1–5, the proximity sensor is likely damaged and needs to be replaced.
