When one of the objects fails to be printed, you can skip the model and continue printing the other models.
¶ Supported printer
ELEGOO Neptune 4 Series
¶ Supported software
OrcaSlicer V1.80 and above
PrusaSlicer V2.7.0 and above
Note: OrcaSlicer V1.9.0 supports object exclusion by default.
¶ Requirements for firmware
Neptune 4/Neptune 4 Pro：V1.1.2.41 and above
Neptune 4 Plus/ Max:： V1.2.2.64 and above
¶ Slicing settings
Before printing, enable the objects exclusion function in the slicing software.
¶ OrcaSlicer
- Open the software. Click Prepare - Printer settings.

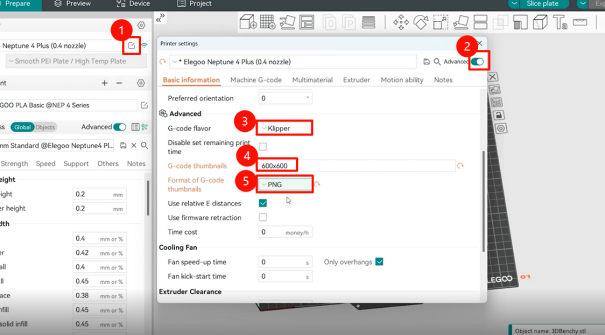

- Click Printer Settings - Basic Information - Advanced.
Set the G-code flavor as Klippper，the G-code thmbnails as 600x600，the format of G-code thmbnails as PNG

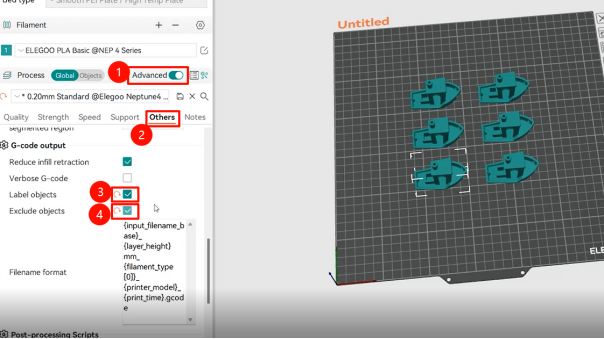

- Click Advanced - Others. Enable Label objects and Exclude objects.
¶ PrusaSlicer

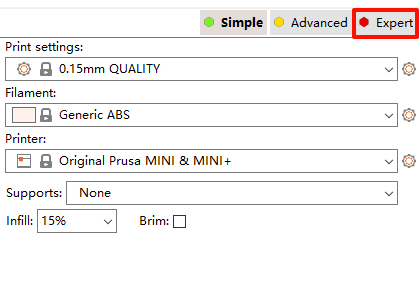

- Open the software. Click Expert.

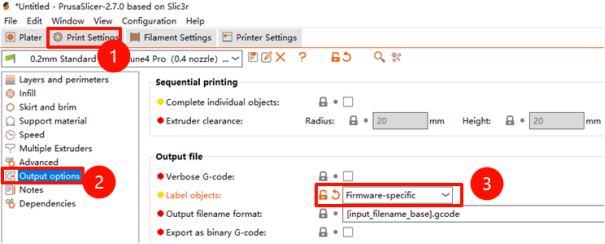

- Click Print Settings - Output options - Label objects - Firmate-specific

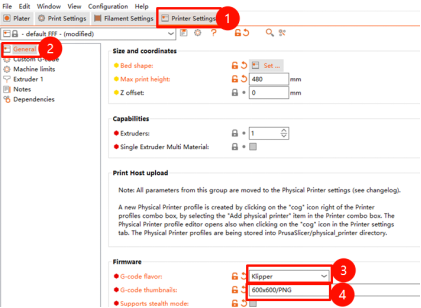

- Click Printer Settings - General - G-code flavor - G-code thmbnails
¶ Exclude the object on the web
- Connect the printer with LAN. On the touchscreen, click Settings - Information and check the IP address

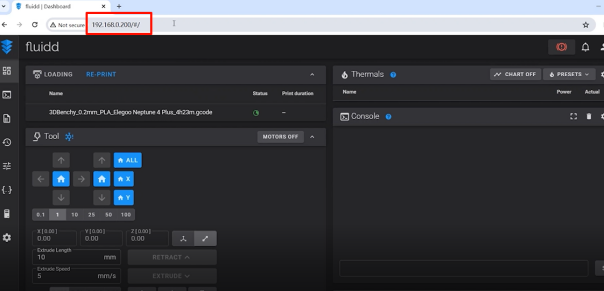

- Enter the IP address into the web.

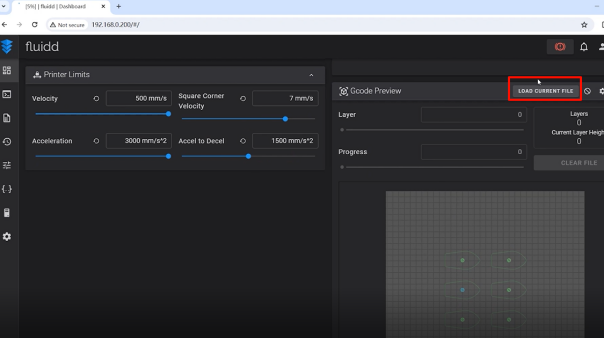

- On the Gcode Preview, click LOAD CURRENT FILE.

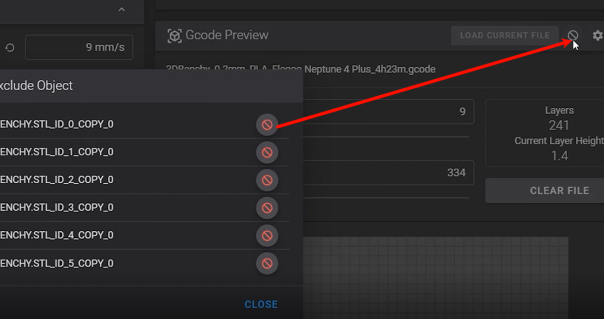

- Click forbidden icon - Yes.

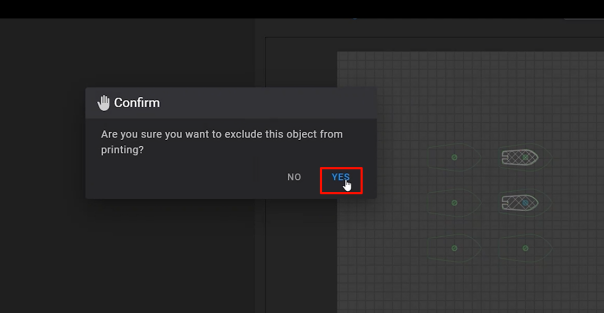

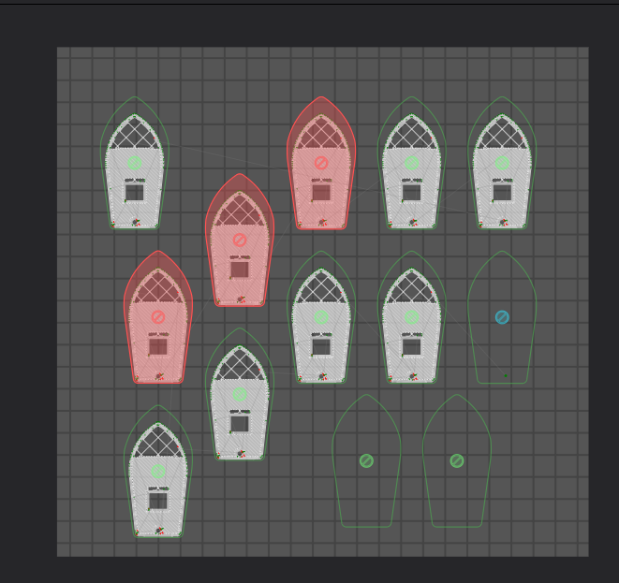

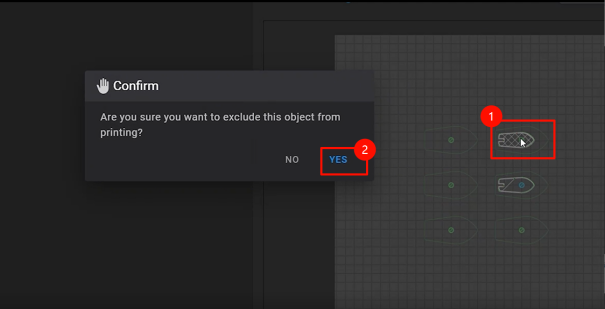

- Click the object - Yes.
