¶ Tools and Materials
L-shaped hex wrench
¶ Tutorial Video
¶ Precautions
Before replacing the fuse, make sure to power off the printer and disconnect the power cable.
¶ Instruction

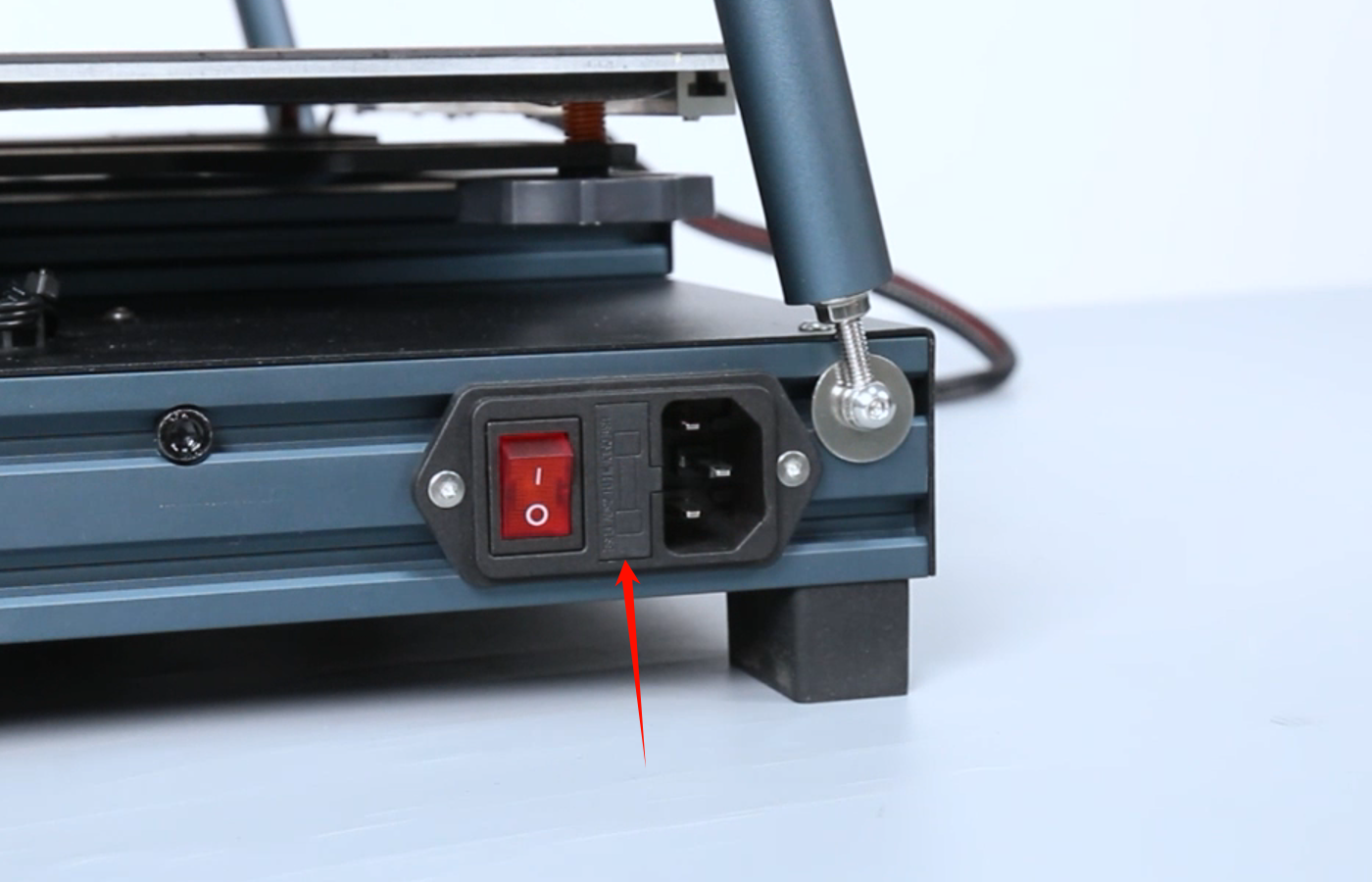

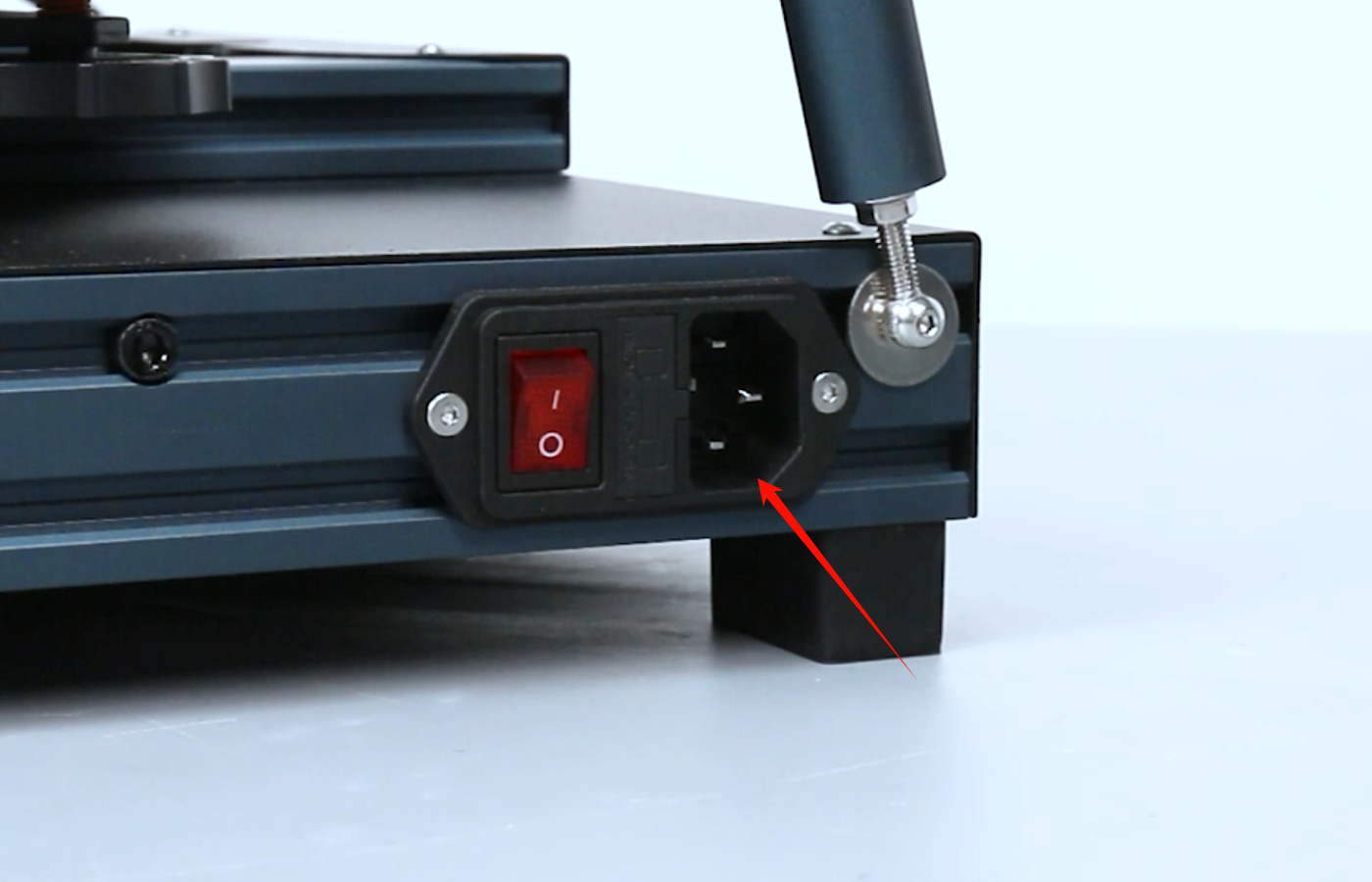

- Power off the printer and unplug the power cord.
- Turn the power switch ON (symbol "I") to drain the flea power.

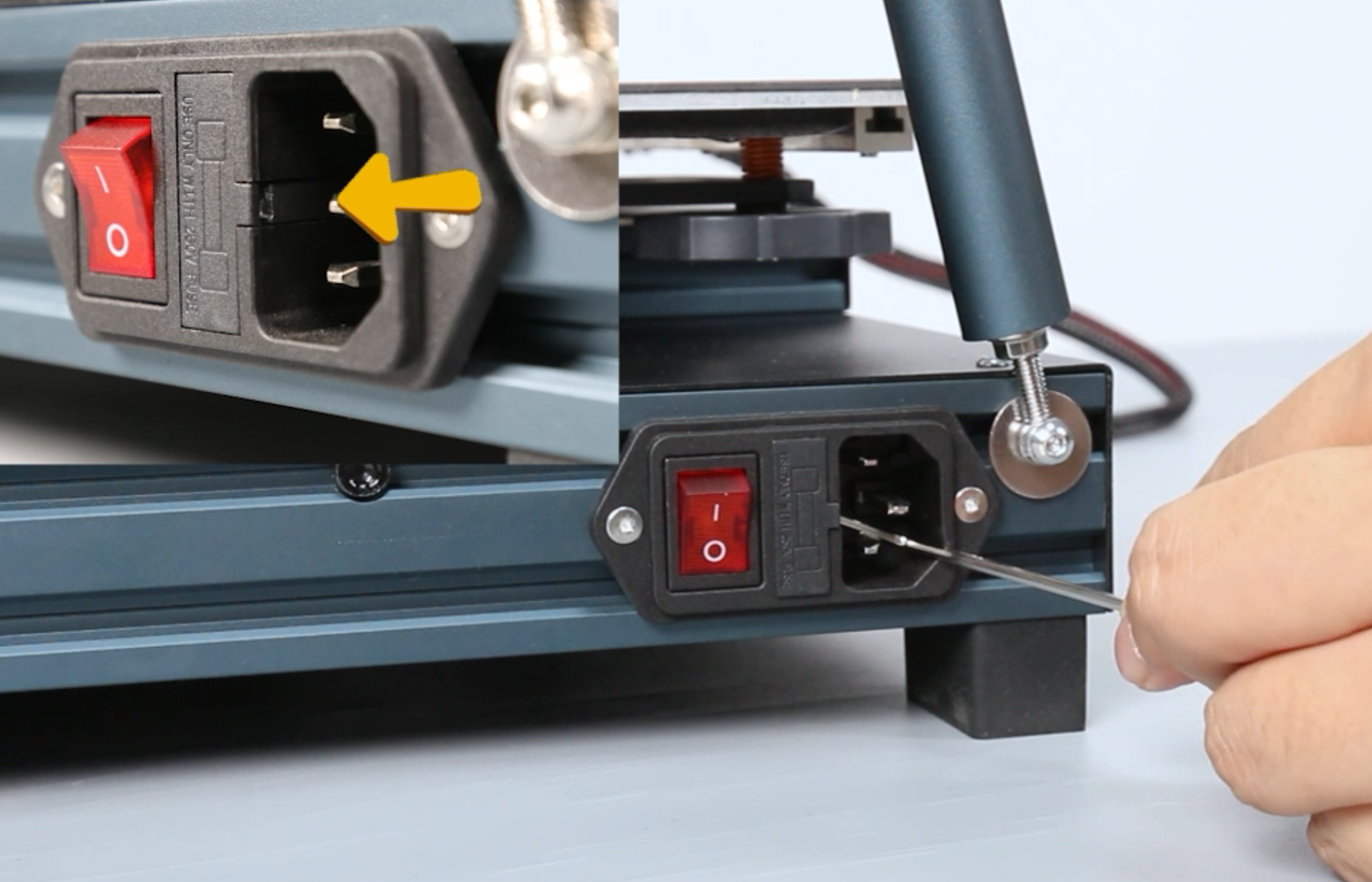

- Remove the fuse holder using the L-shaped hex wrench.

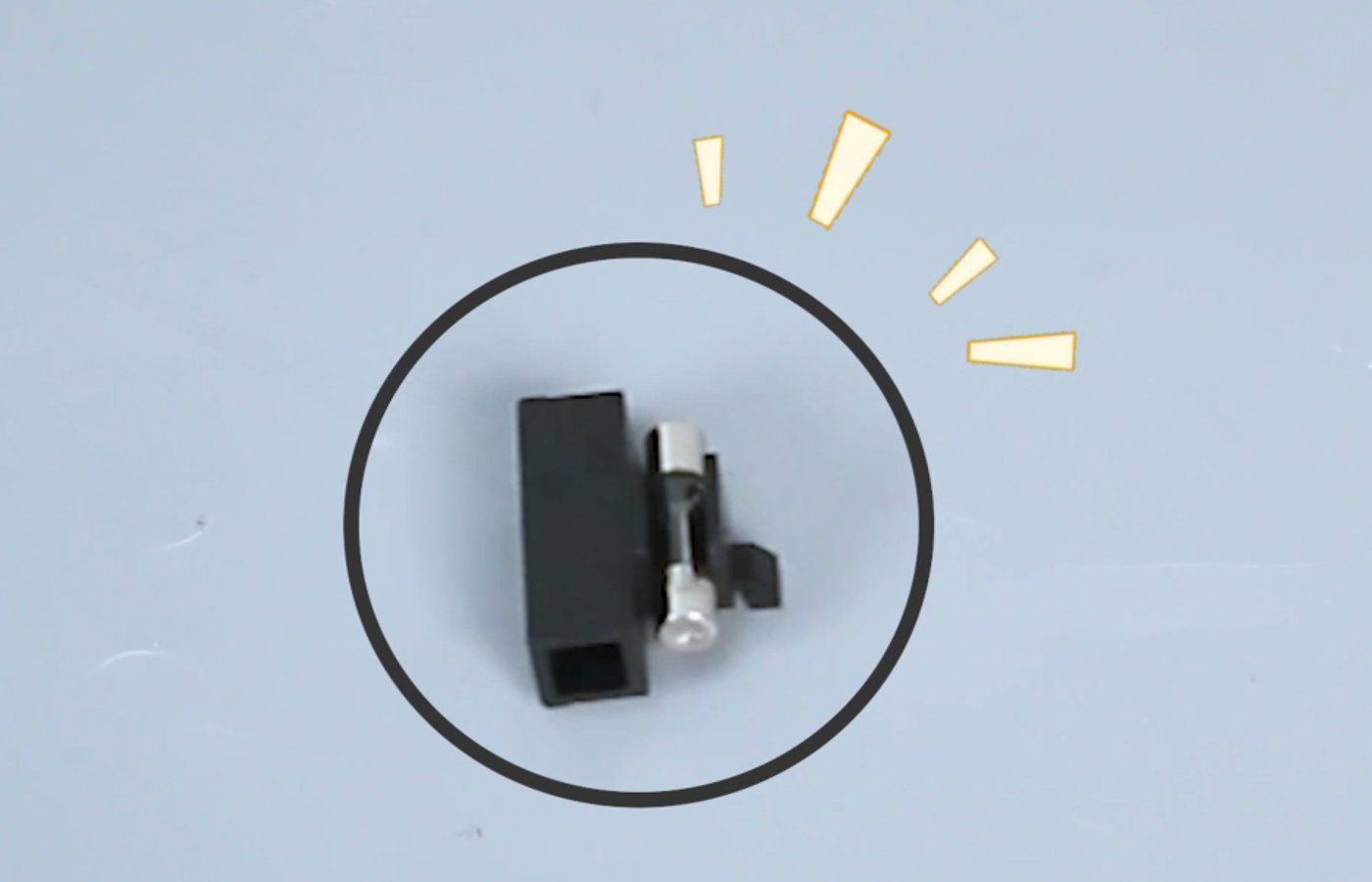

- Remove the fuse holder and take out the fuse.
- Insert the new fuse into the fuse holder. Do not need to discriminate installation direction of the fuse.
- Install the fuse holder.
- Power on the printer and the printer is ready for use.
