¶ Tools Required
- 2.0 mm hex wrench
- 3.0 mm hex wrench
- Eccentric nut wrench
¶ Instructions

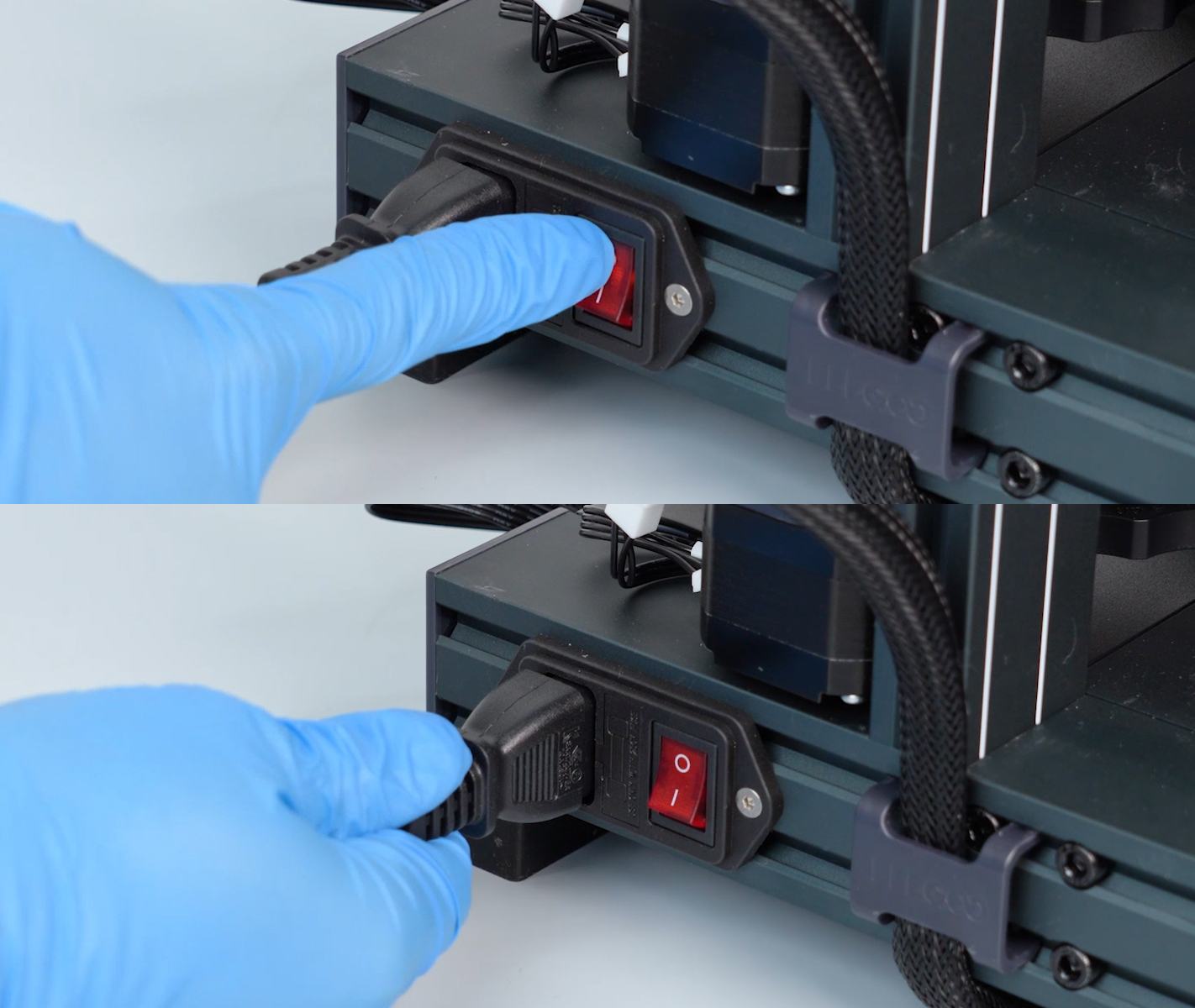

Reminder: Before proceeding, turn off the printer and unplug the power cord.
.jpeg)
¶ Remove the Rear Fan
-

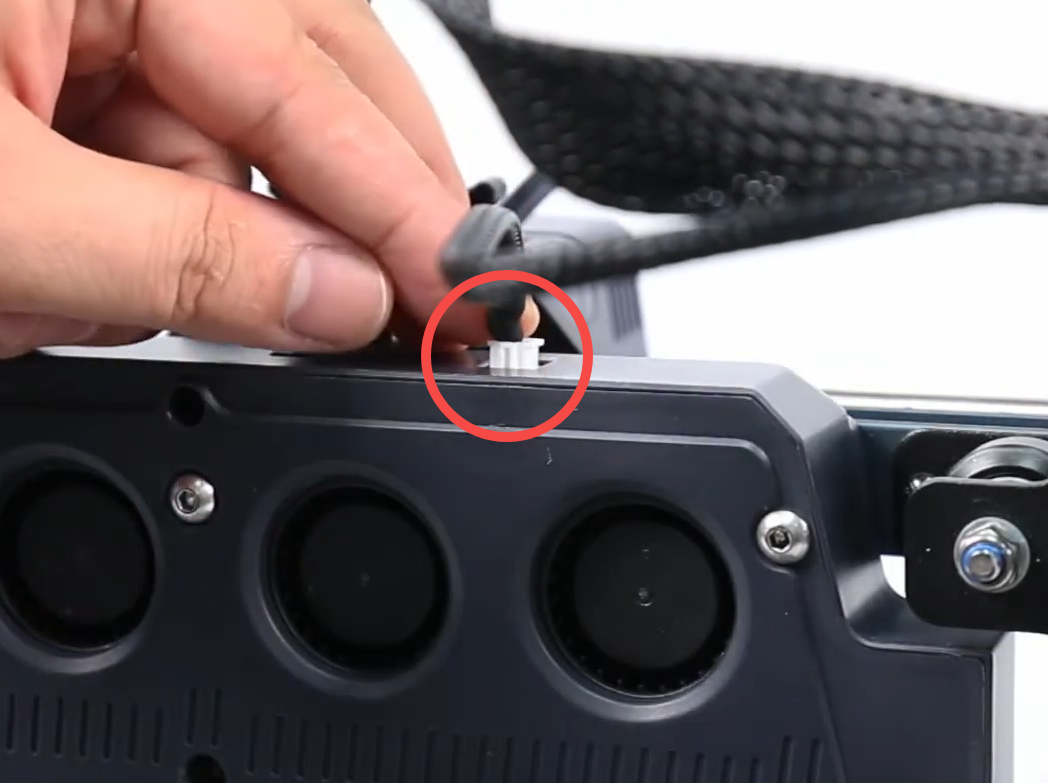

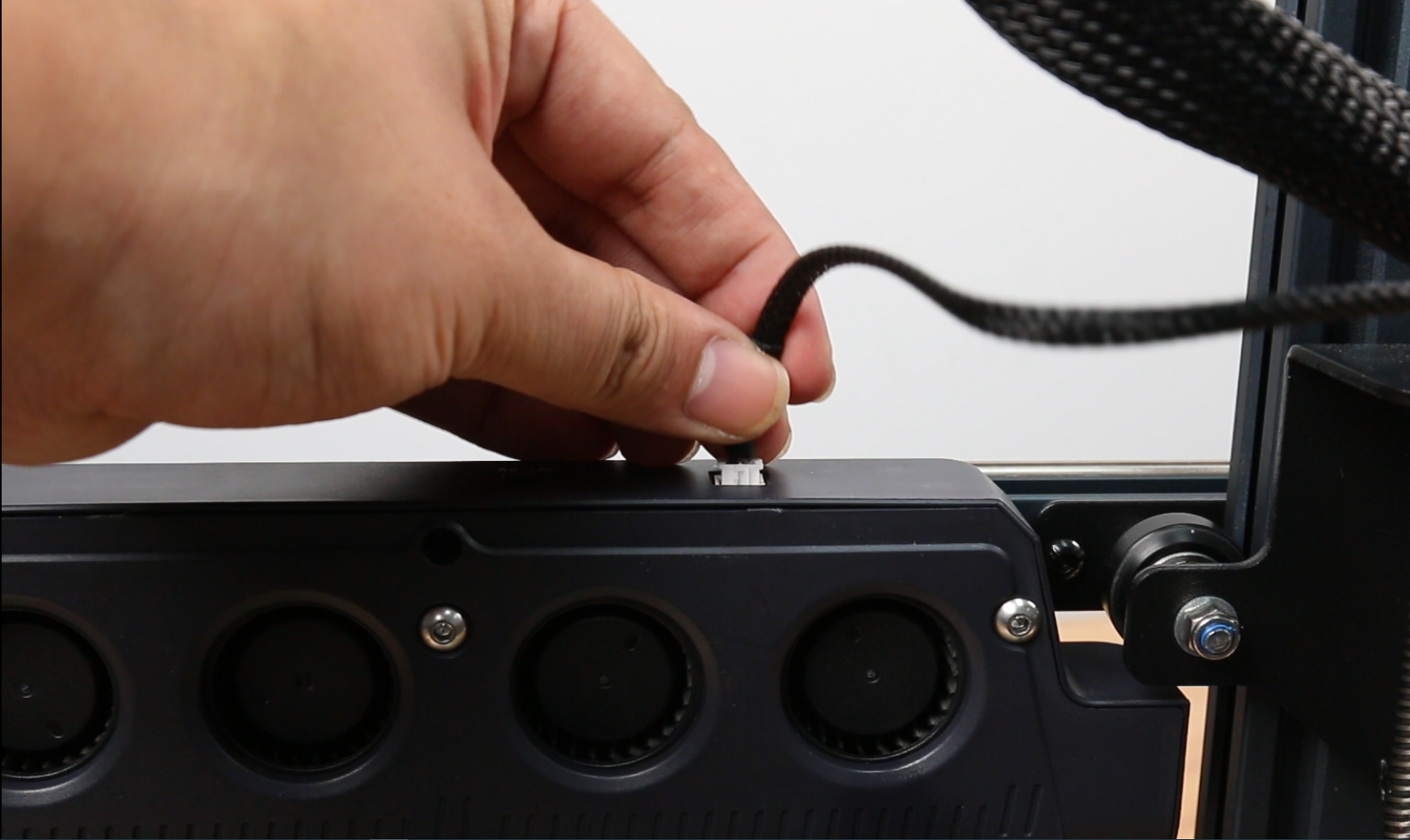

Disconnect the rear fan cable.
.png)
-

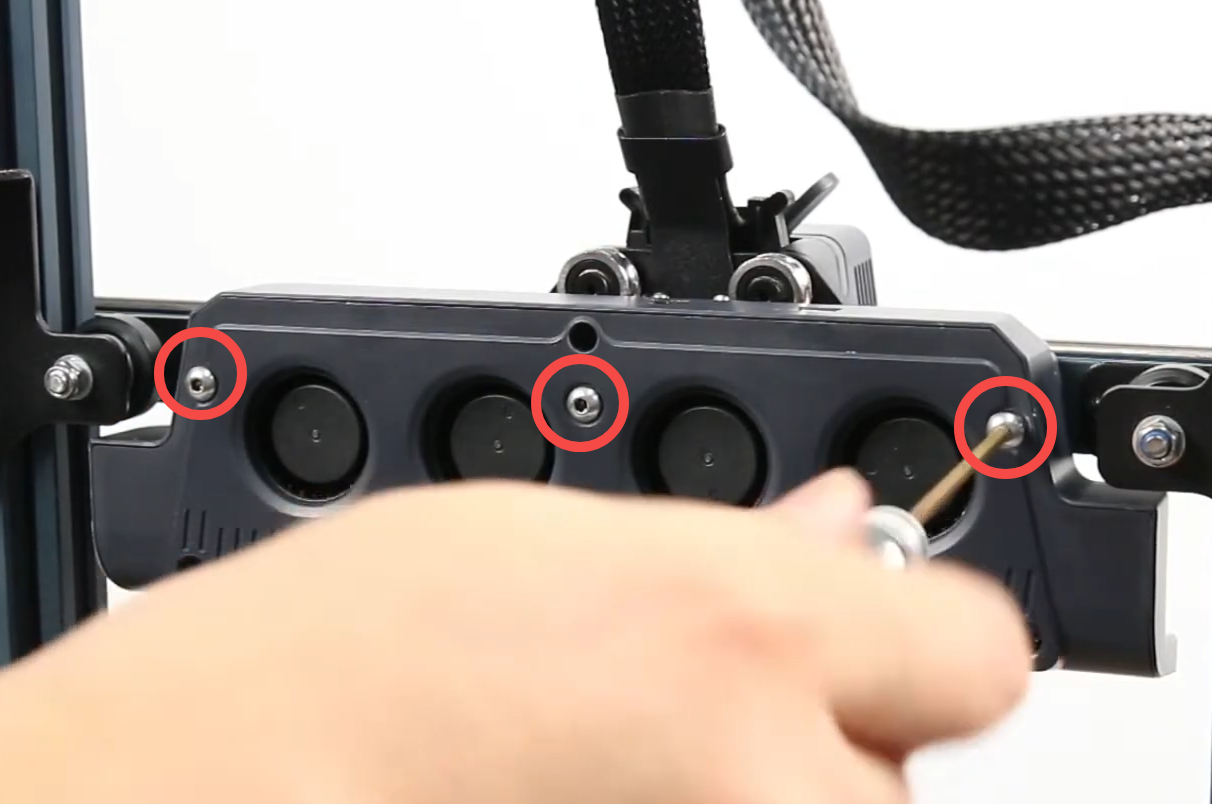

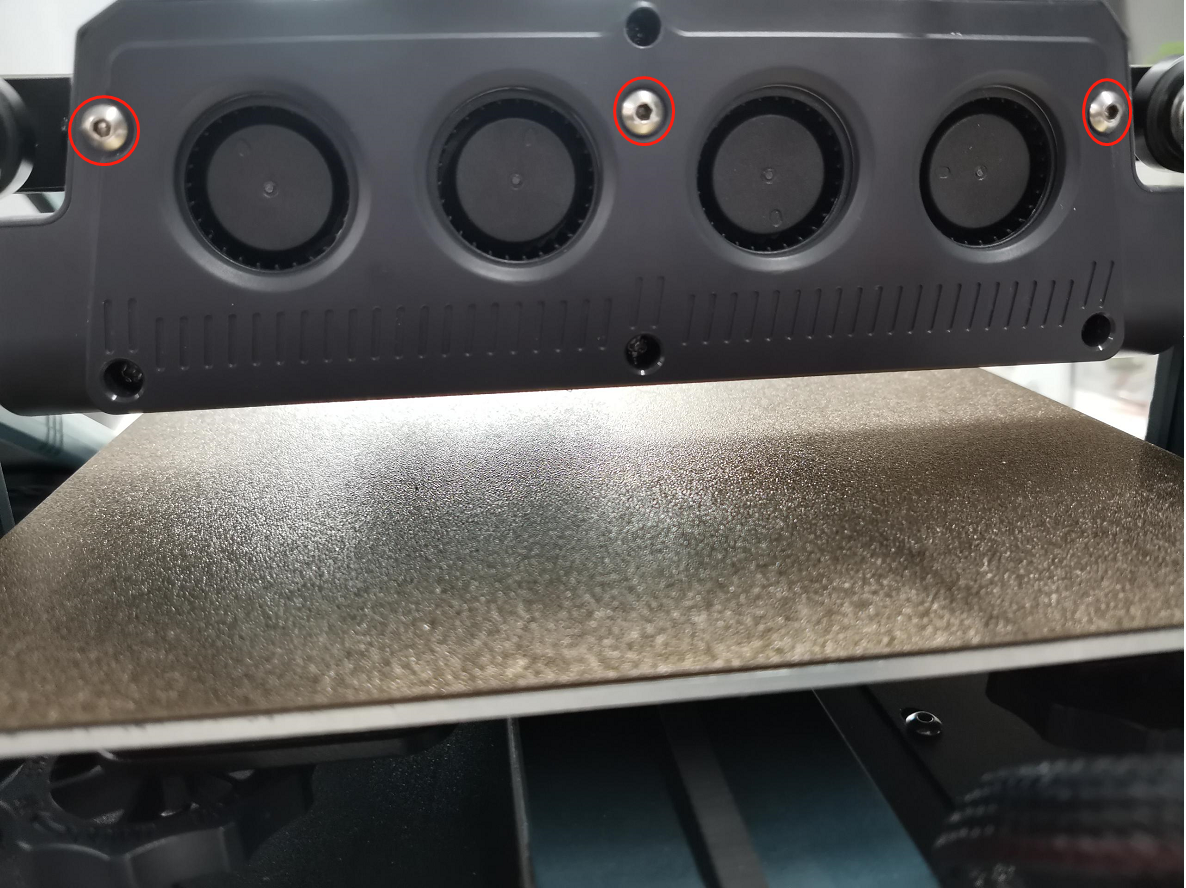

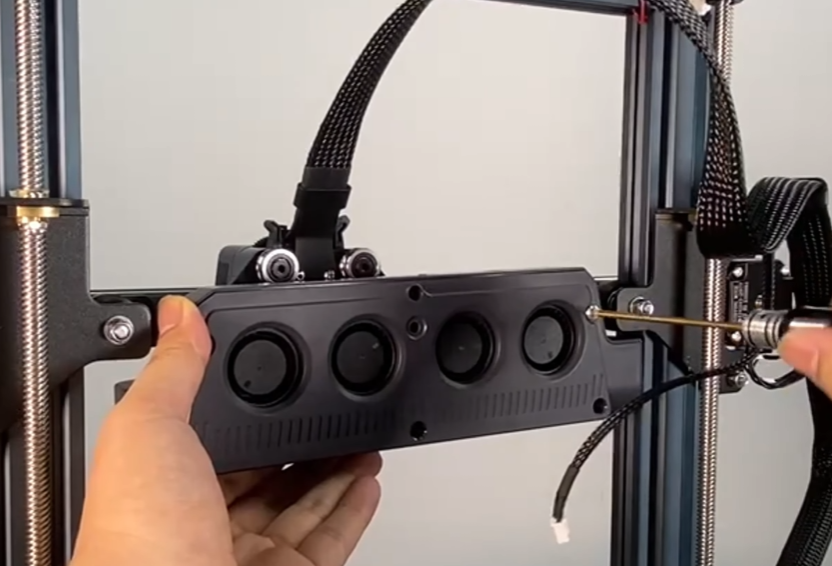

Use a 3.0 mm hex wrench to remove the three screws securing the rear fan.
Reminder: Support the rear fan while removing the last screw to prevent it from falling.
.png)

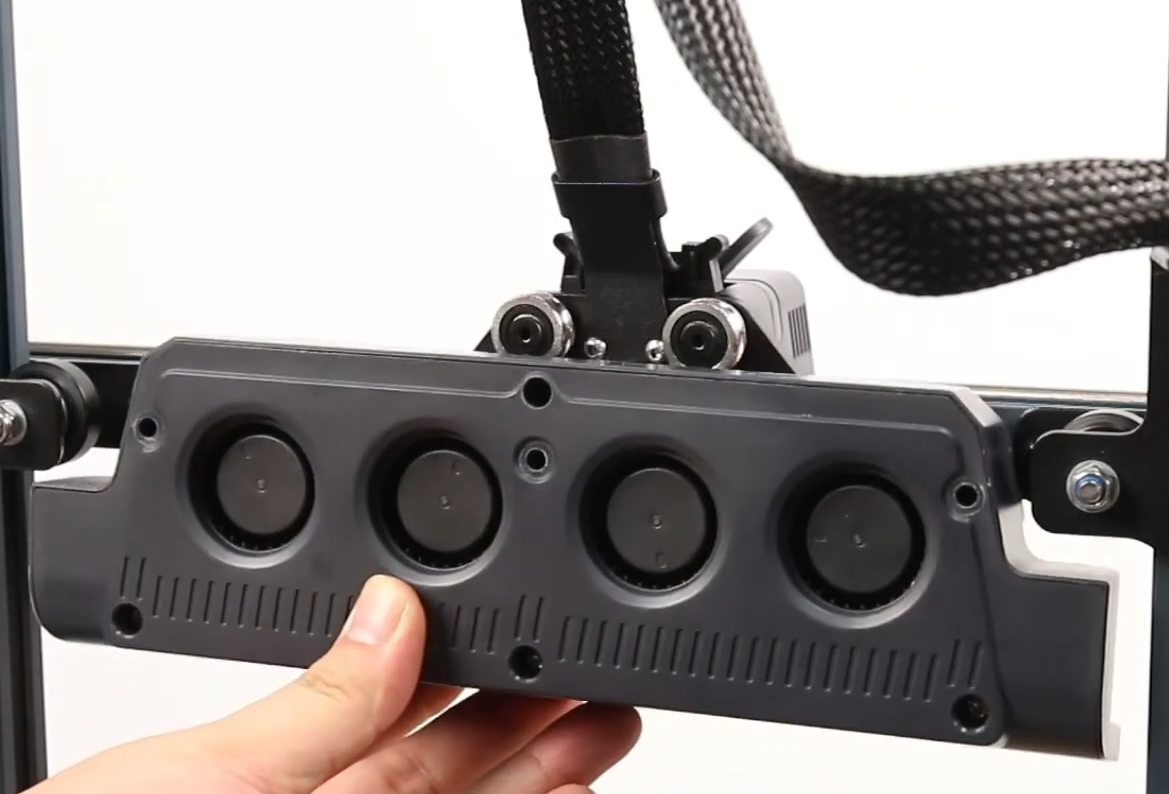

- Remove the rear fan.
.png)
¶ Remove the Extruder

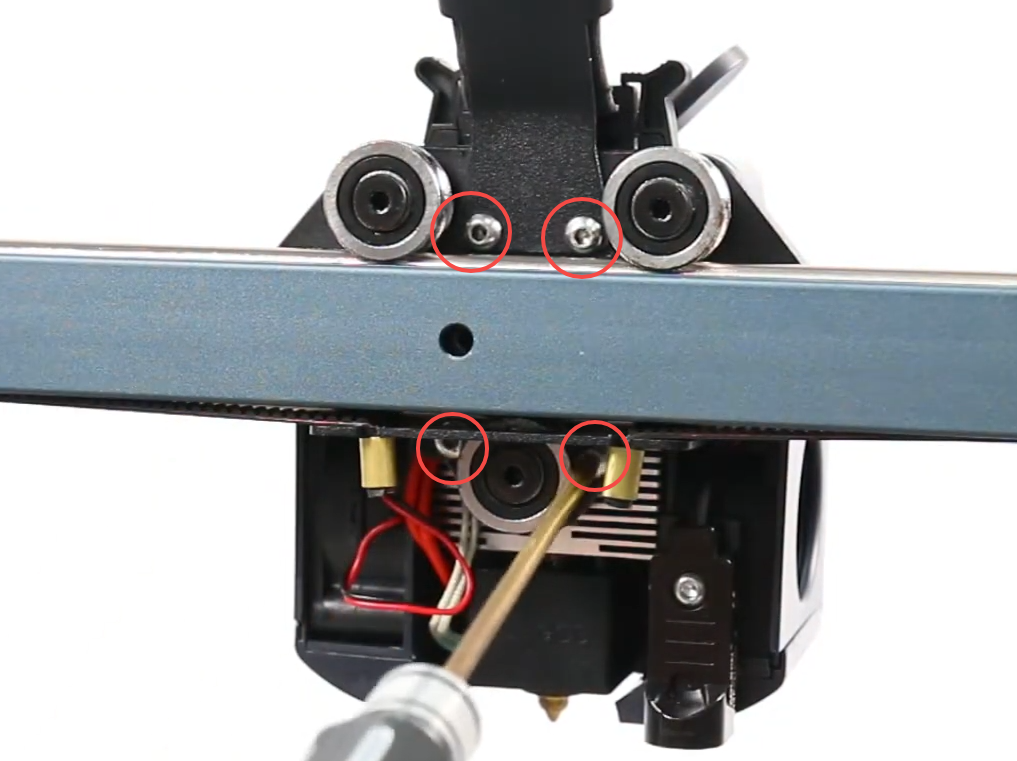

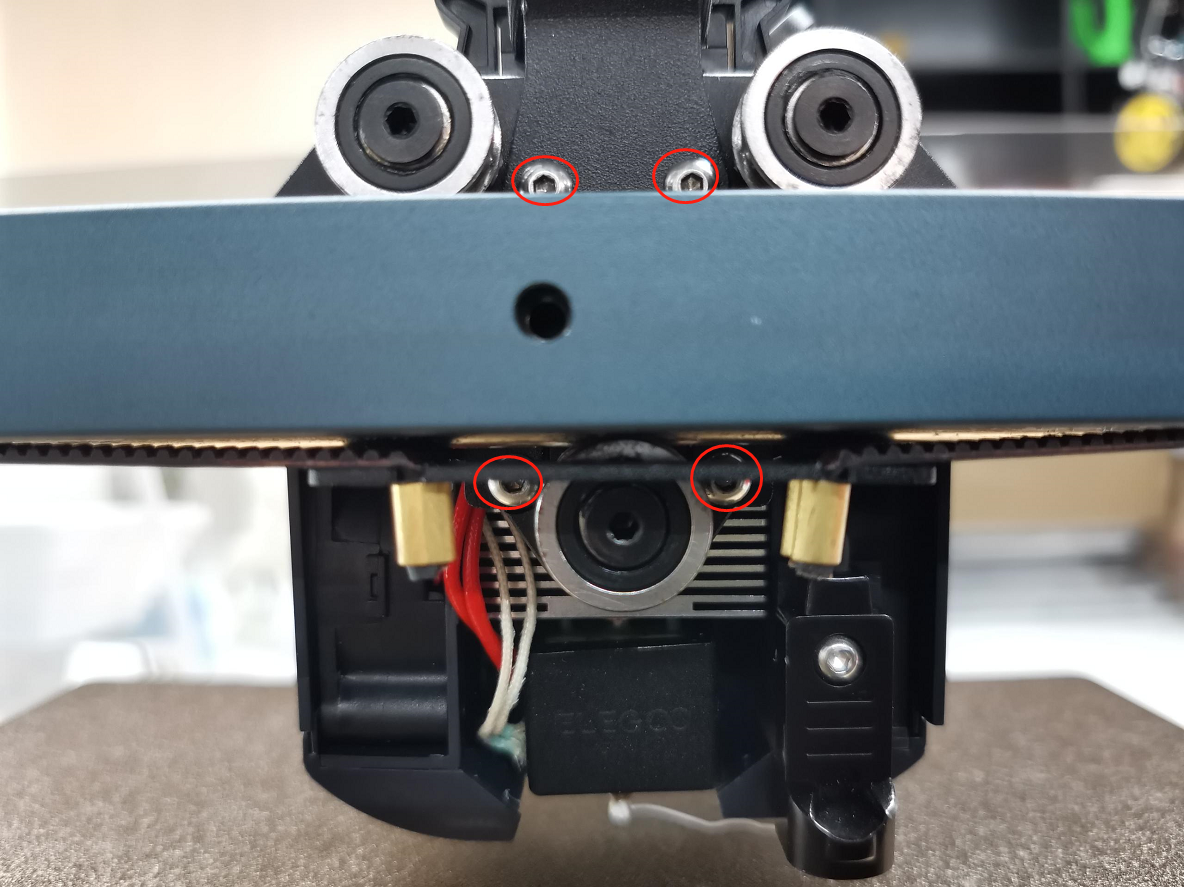

- Use a 2.0 mm hex wrench to remove the four screws from the rear of the extruder.
.png)

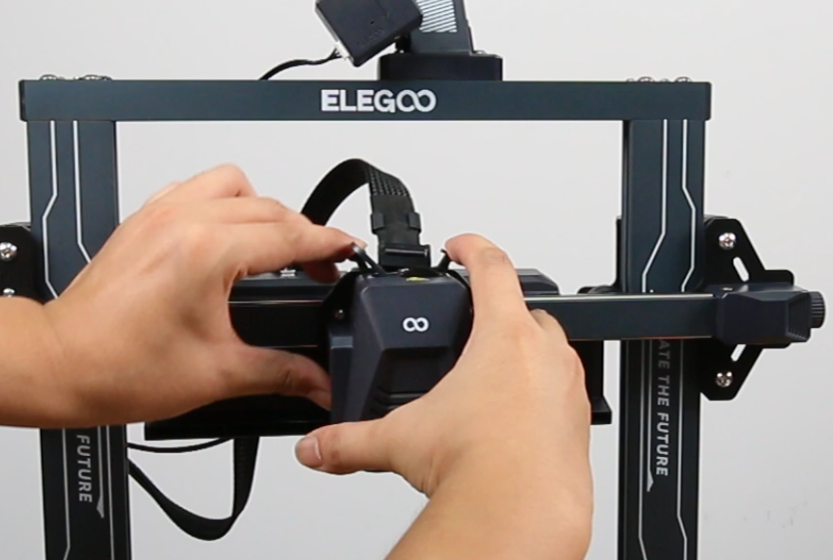

- Press the latches on both sides of the connector on the extruder adapter board, and then disconnect the extruder ribbon cable.
.png)

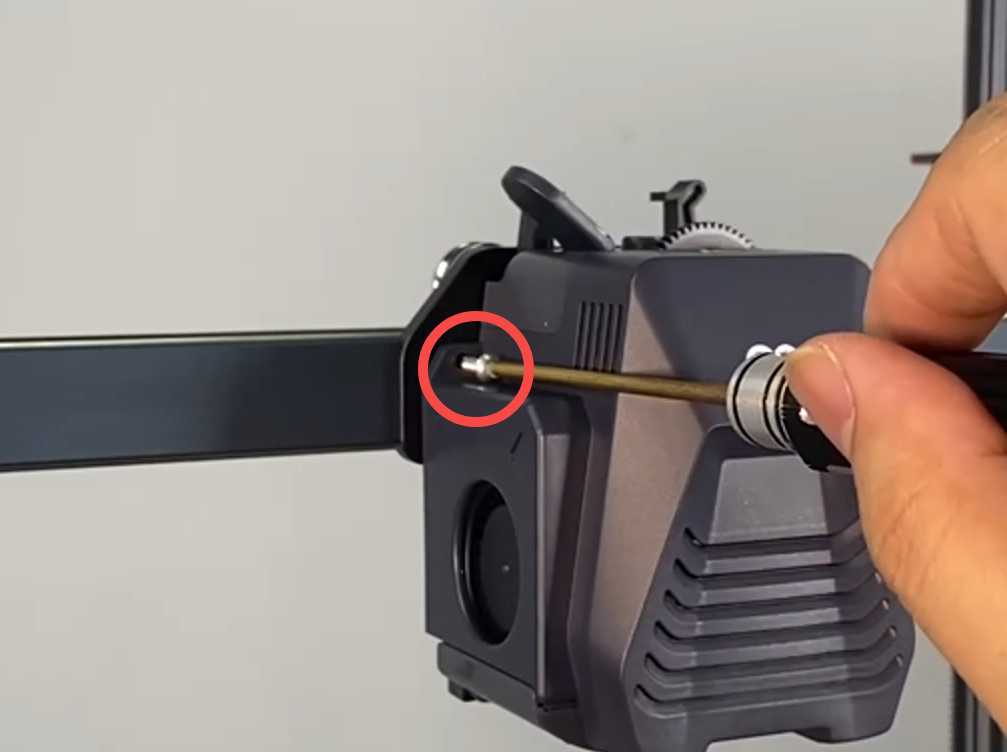

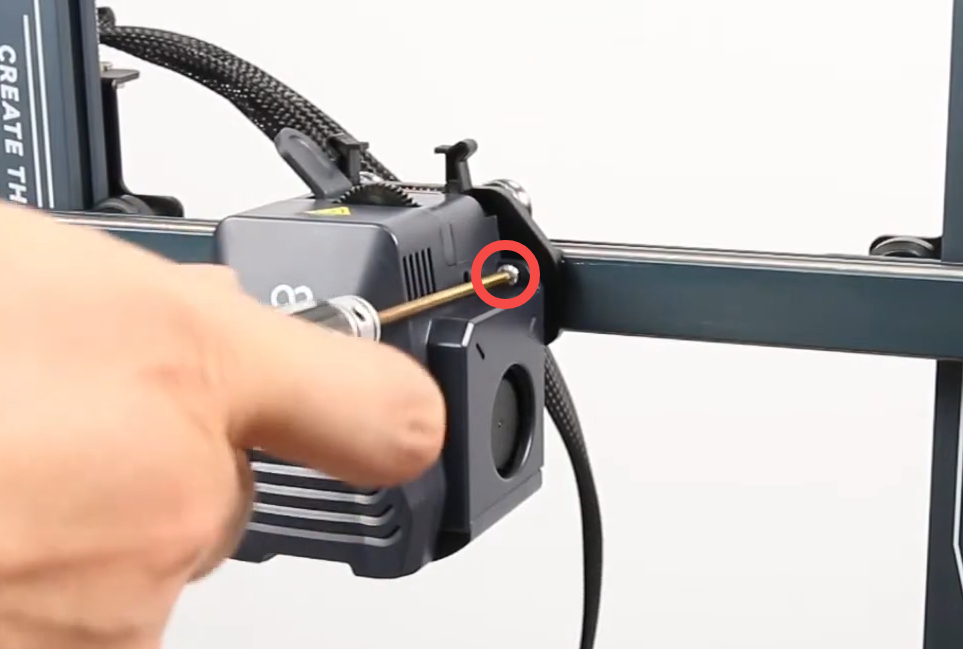

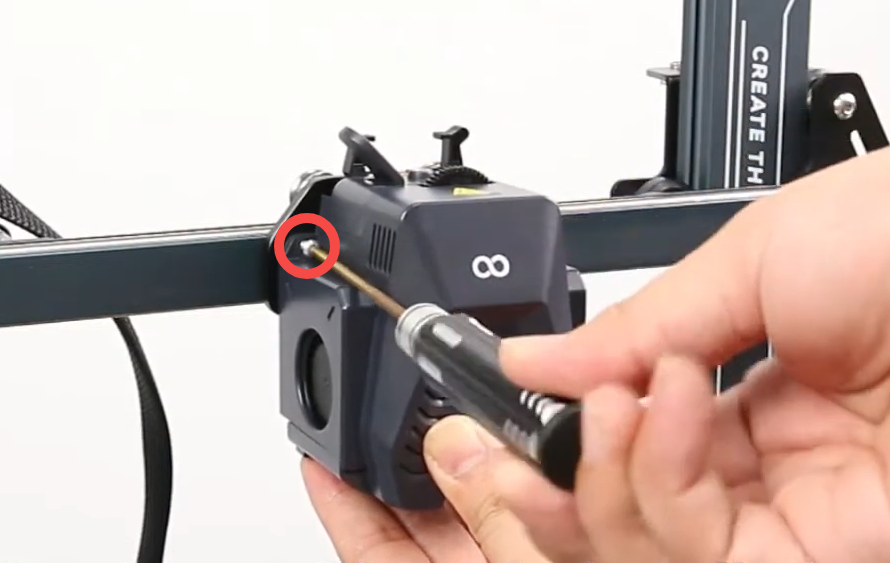

- Use a 2.0 mm hex wrench to remove the screws from both sides of the extruder.
Reminder: Support the extruder while removing the last screw to prevent it from falling.
.png)
.png)

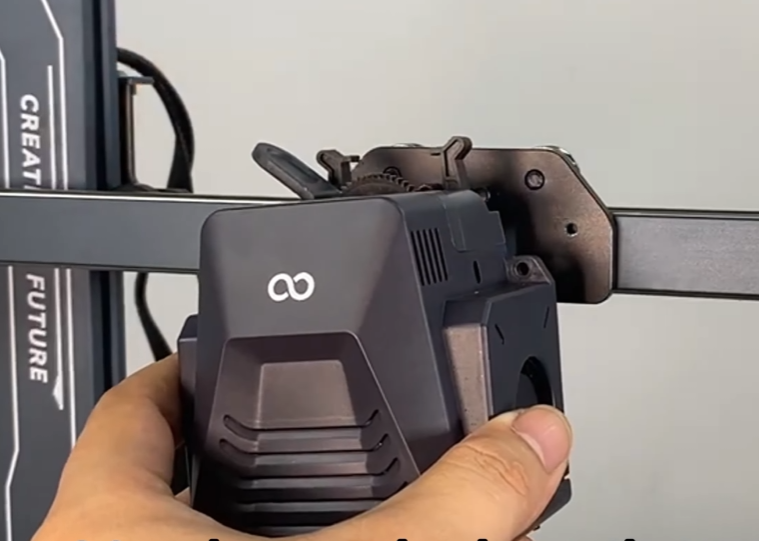

- Remove the extruder.
.png)
¶ Adjust the X-Axis Bearing Tightness

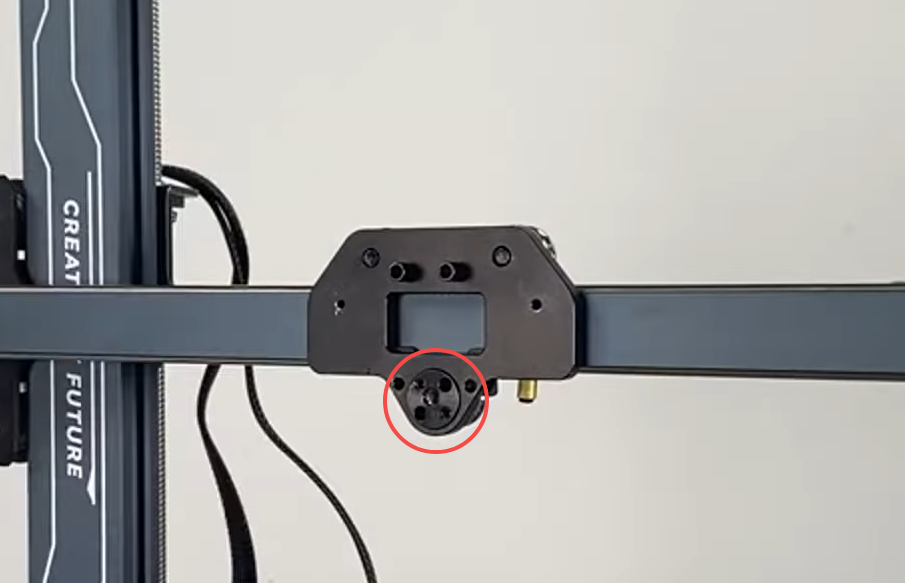

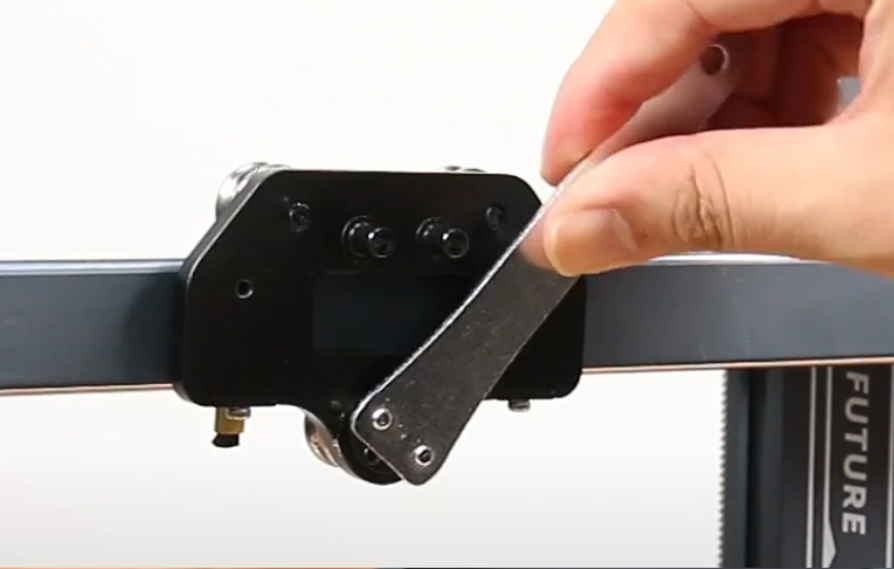

- Place the eccentric nut wrench in the position shown.
.png)
- Make small adjustments and check the X-axis carriage repeatedly.
Make sure that: ① The X-axis carriage does not wobble. ②The X-axis carriage moves smoothly when moved by hand.
.png)
¶ Reinstall the Extruder

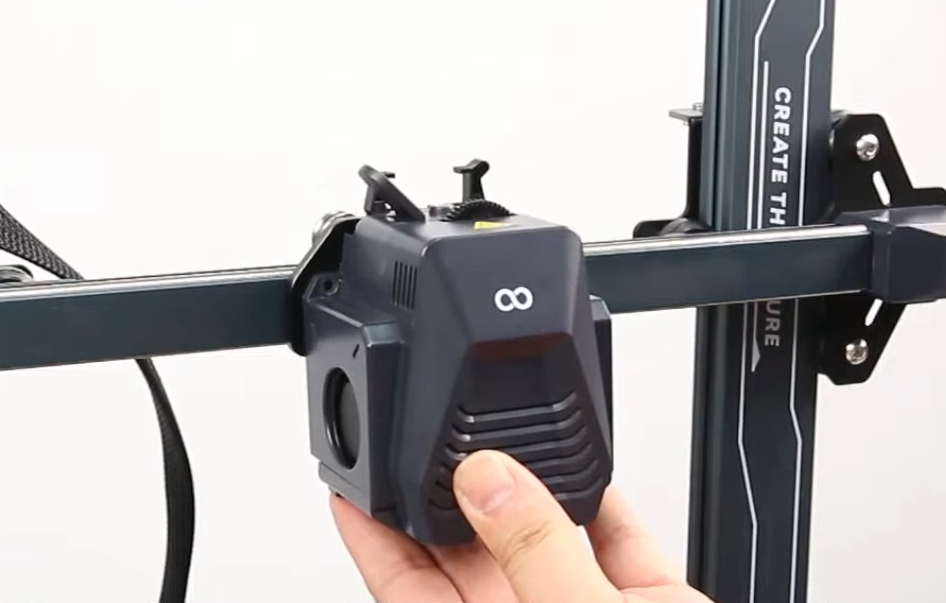

- Place the extruder back in its original position.
.png)

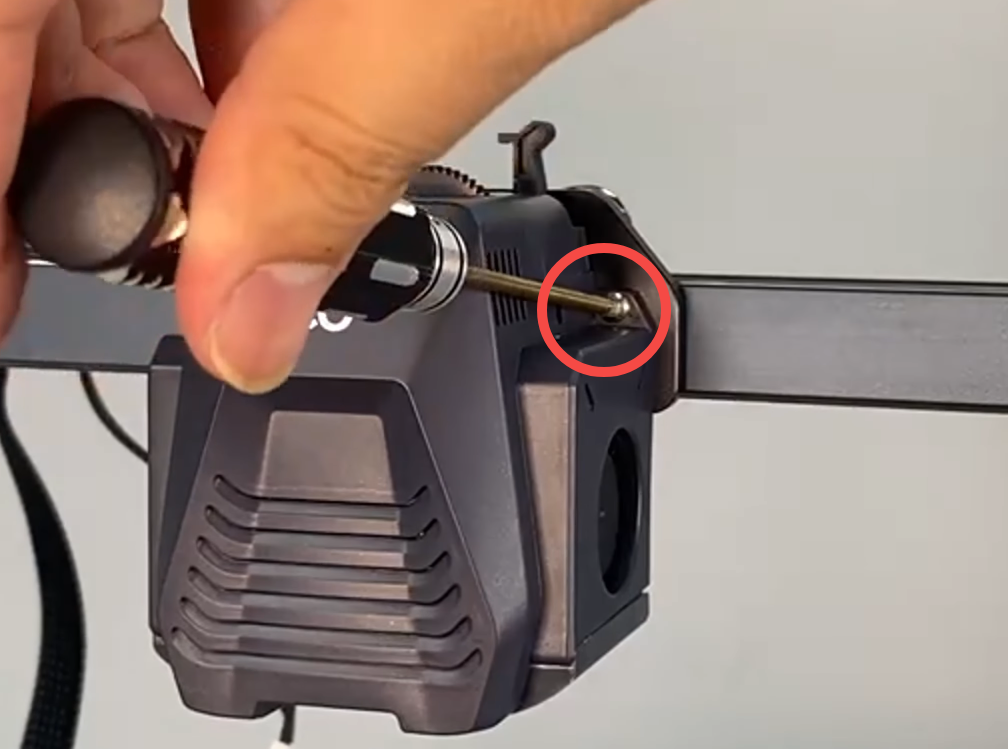

- Tighten the screws on both sides of the extruder.
.png)
.png)

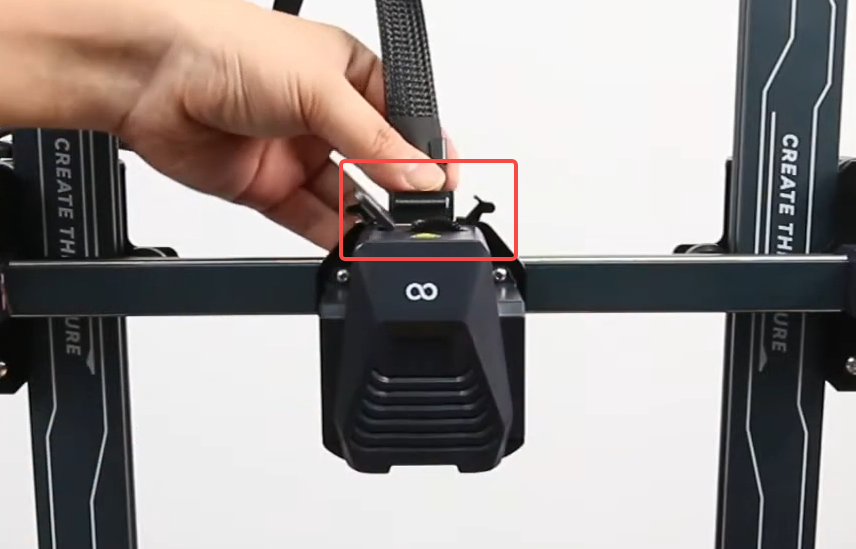

- Reconnect the extruder ribbon cable.
.png)
- Tighten the four screws on the rear of the extruder.
.png)
¶ Reinstall the Rear Fan
- Place the rear fan back in its original position.
.png)
- Tighten the three screws securing the rear fan.
.png)
- Reconnect the rear fan cable. The X-axis bearing tightness adjustment is complete.
.png)
