¶ Tools and Materials
A H2.0 Allen key
¶ Tutorial Video
¶ Precautions
Before operation, power off the printer.
¶ Note
ELEGOO Neptune 3 Series
¶ Instruction

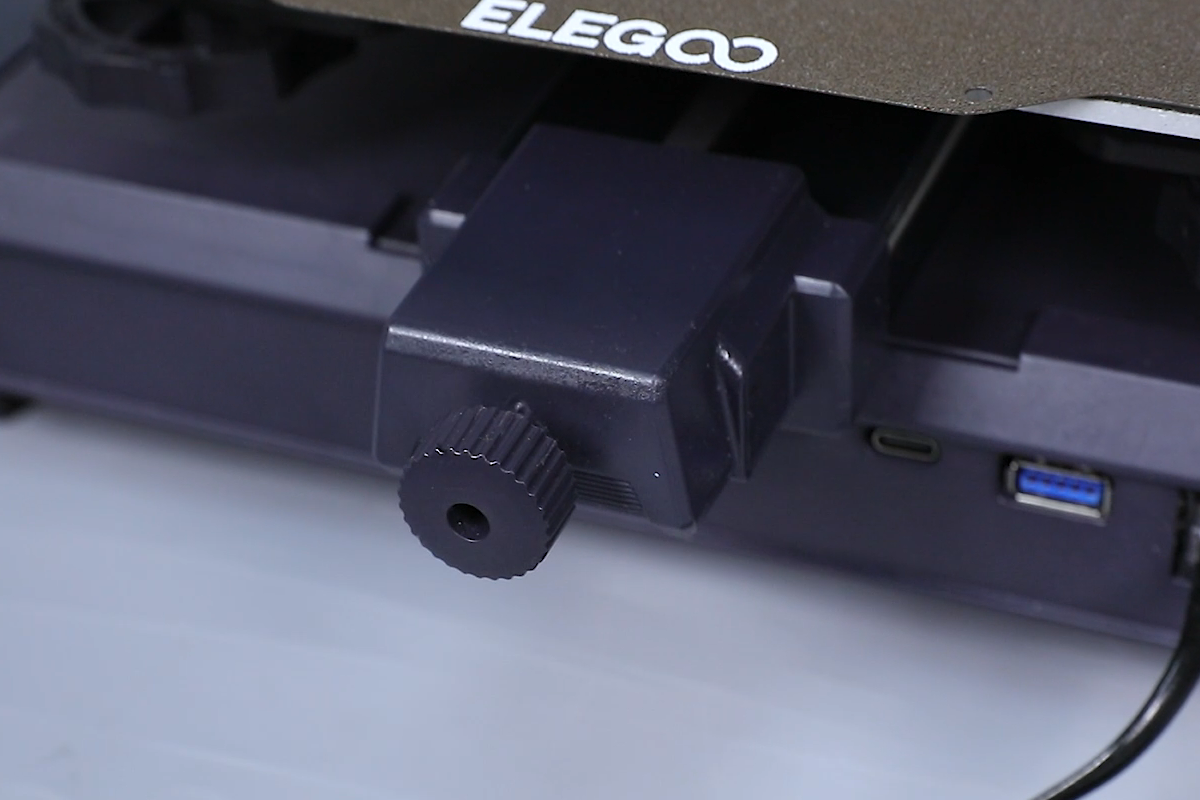

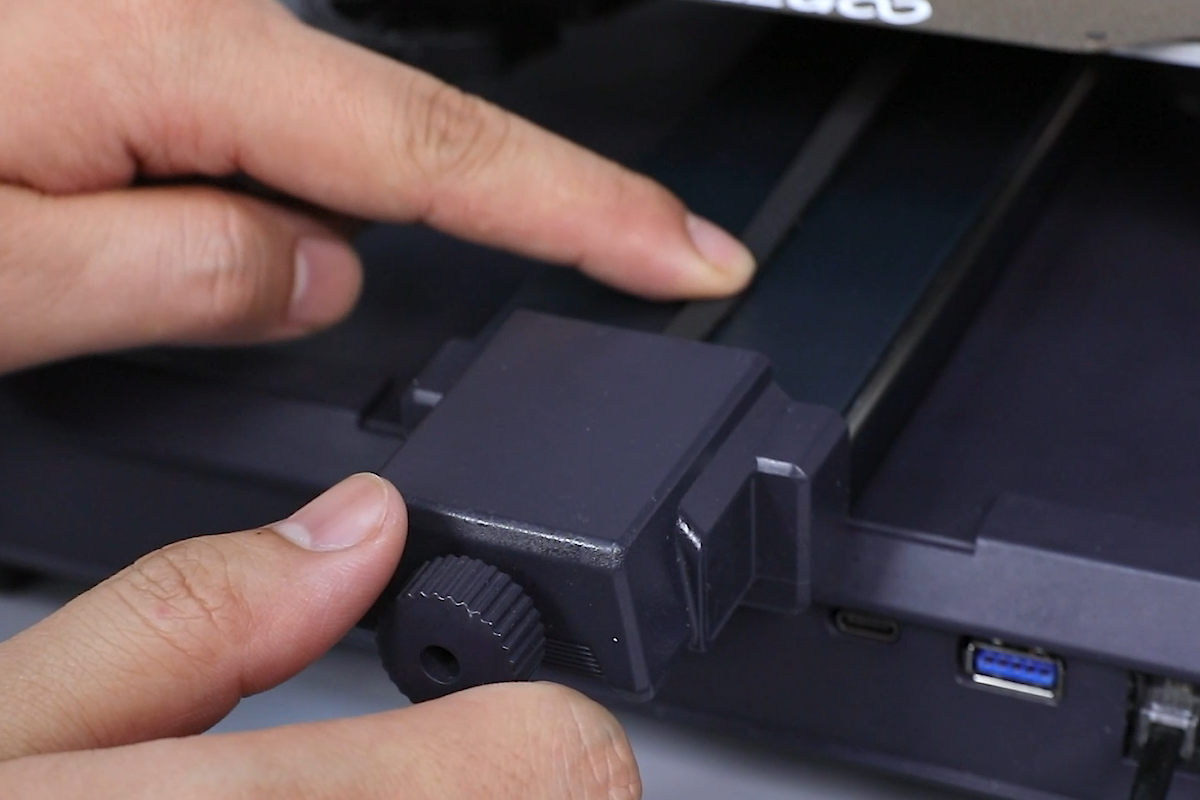

1、Loosen the hand screw nut of the Y-axis belt tensioner.

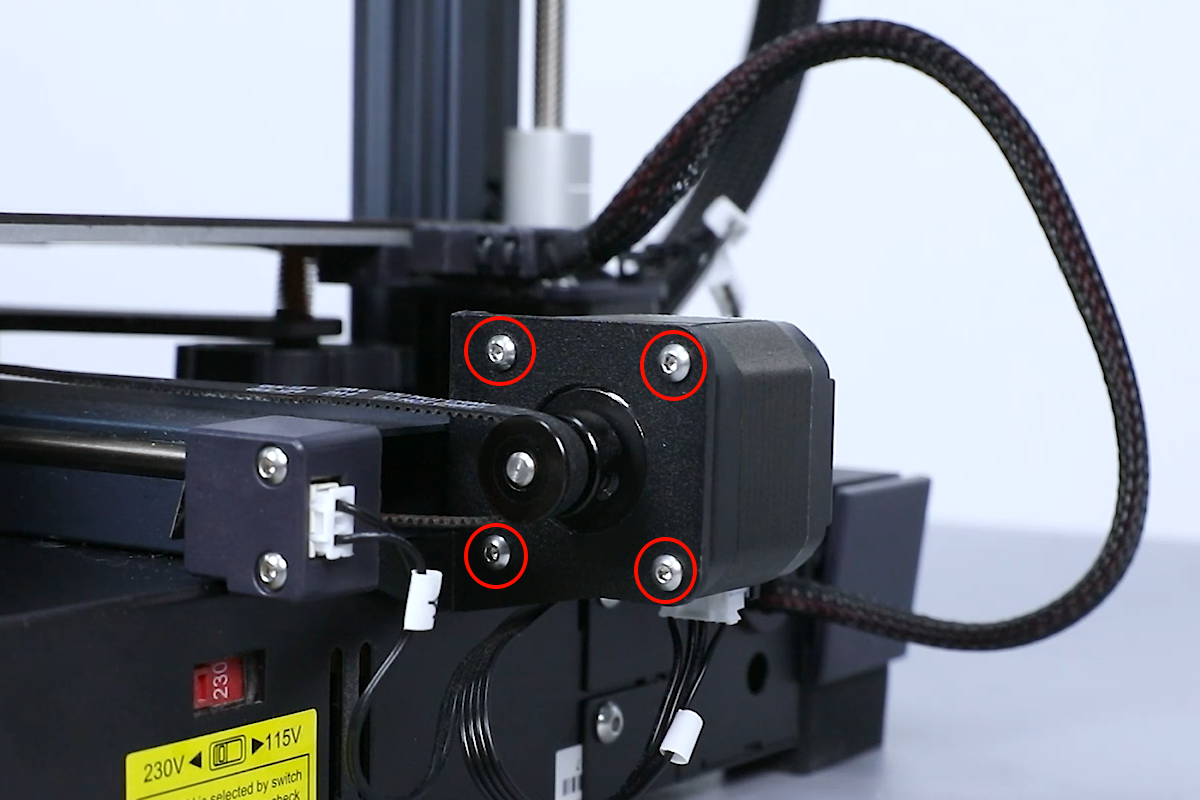

2、Loosen the 4 screws securing the Y-axis motor using a 2.5 mm Allen key.

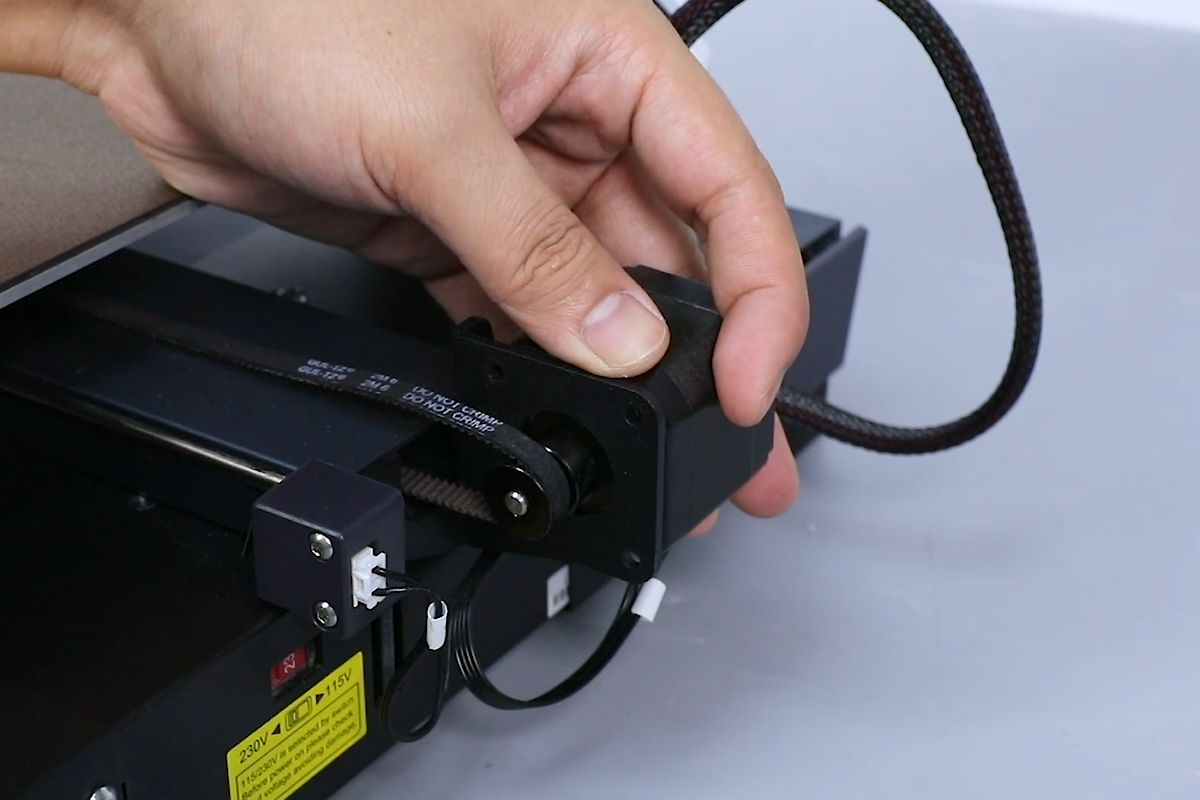

3、Remove the timing belt from the timing pulley. Take out the motor assembly from the Y-axis motor bracket, and unplug the Y-axis motor cable.

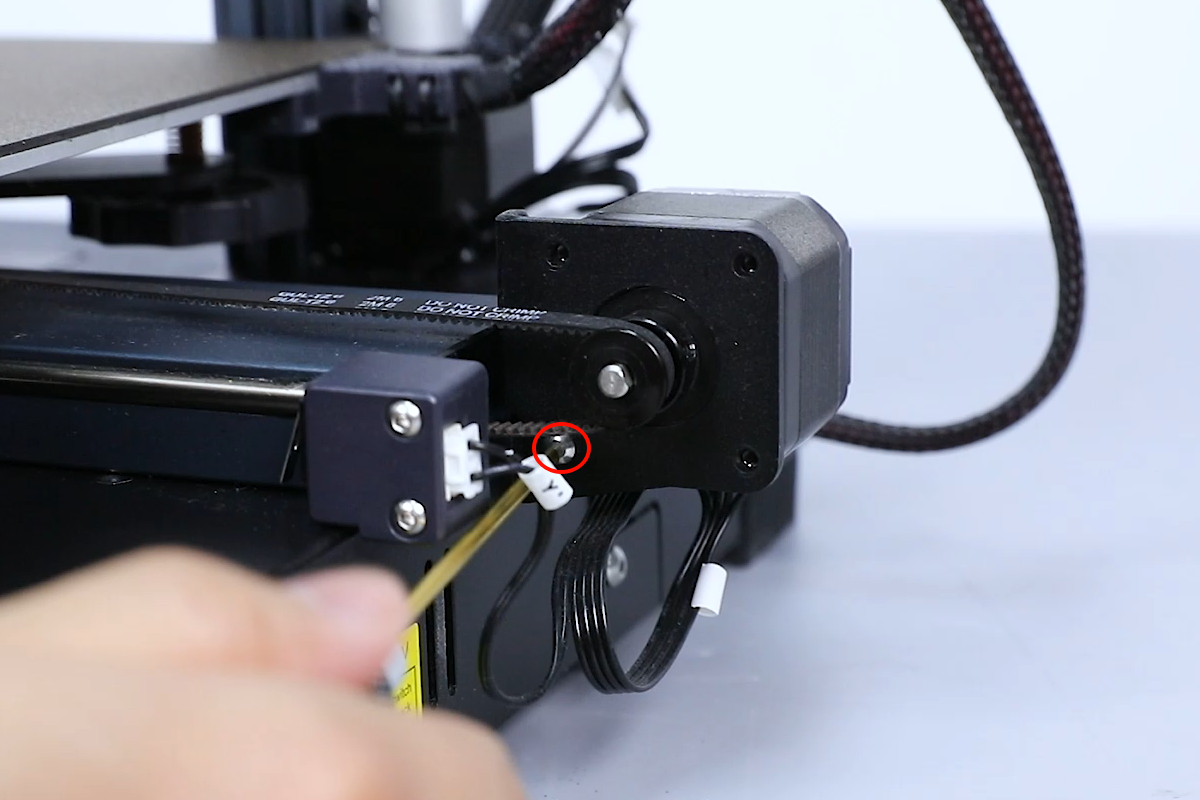

4、Loosen the 2 screws securing the timing pulley using a 2.0 mm Allen key. Remove the timing pulley.
5、Install the timing pulley in the mounting position of the motor pole of the new motor.

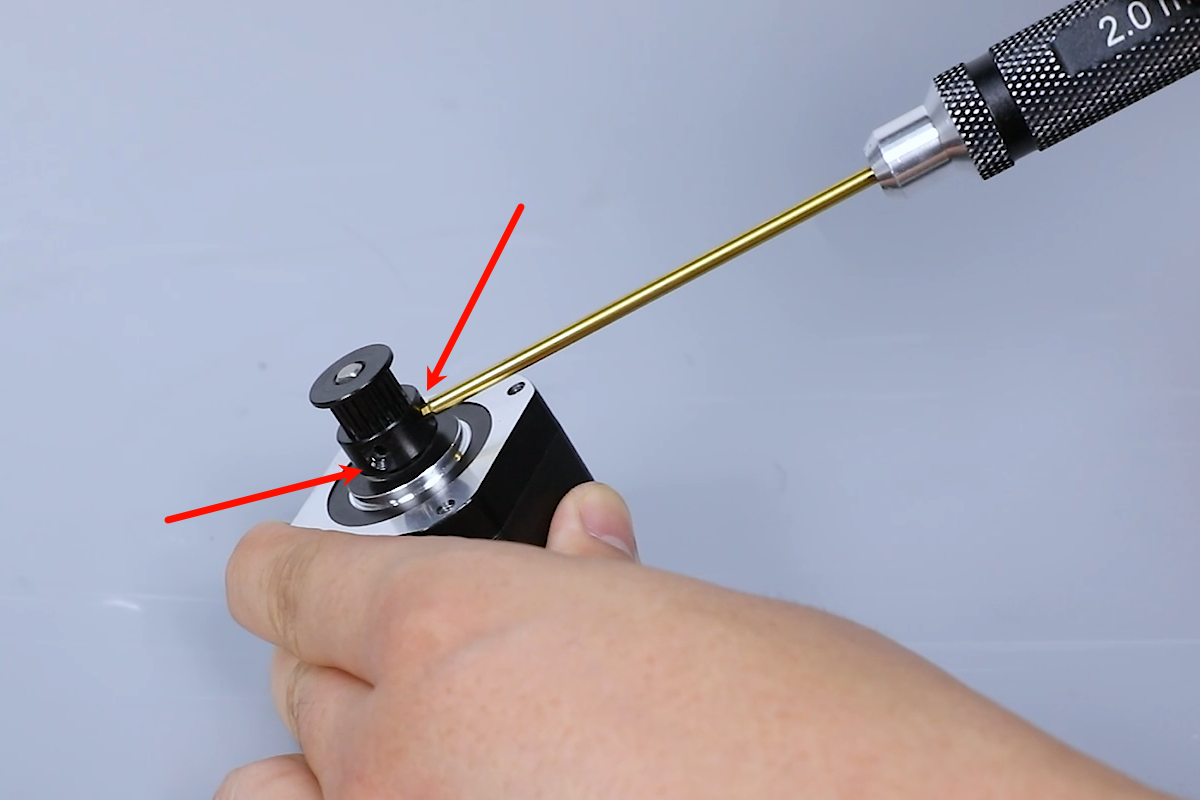

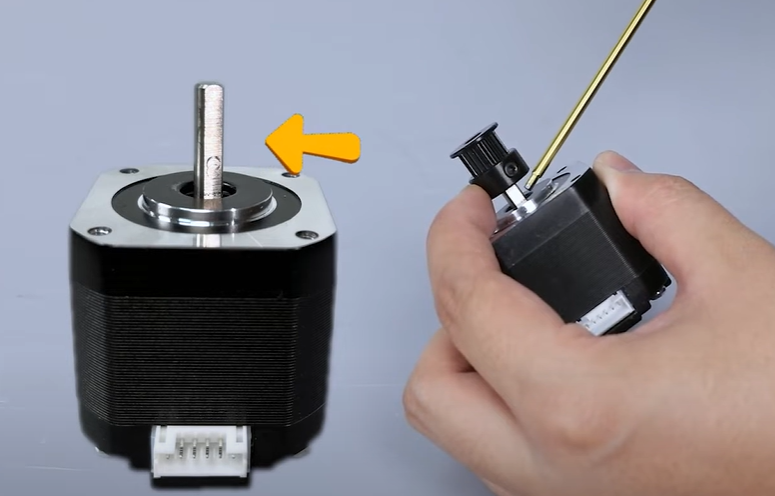

Note: One of the screws of the timing pulley should be fixed to the cross-section of the motor rod.

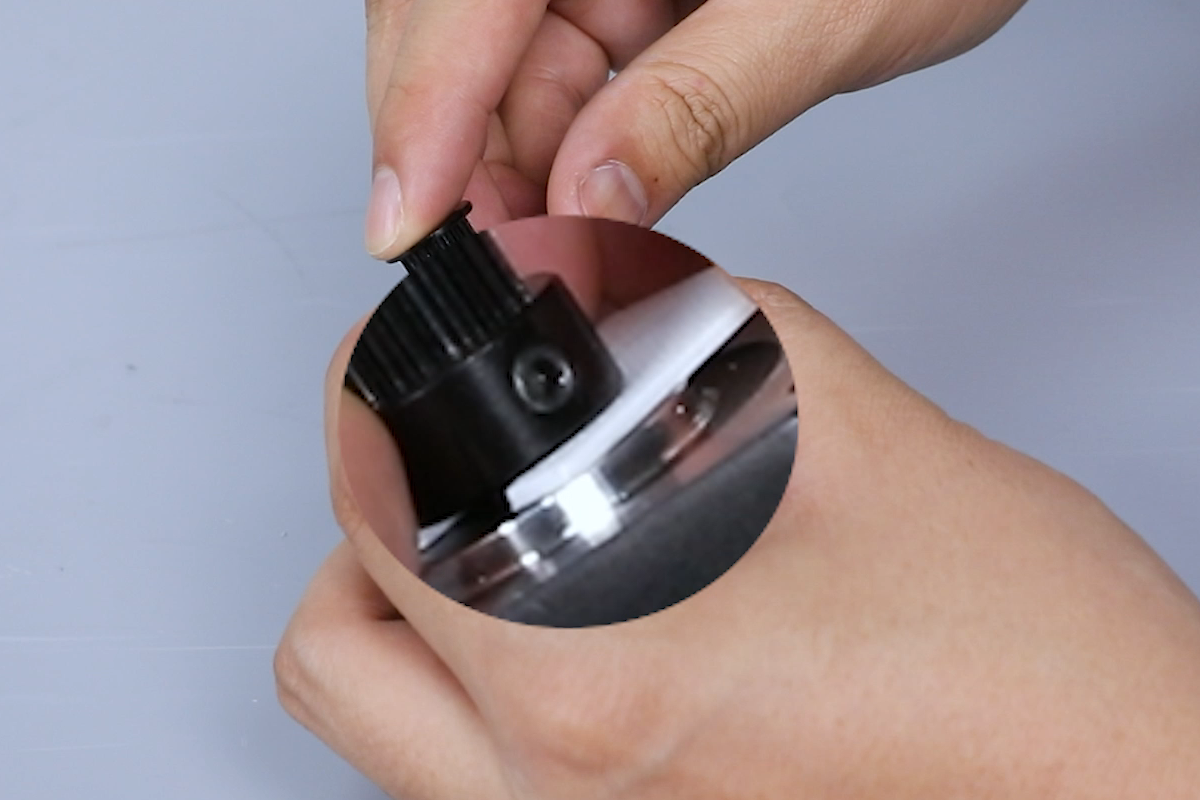

6、Prepare the spacer with a thickness of 1mm. Put it between the timing pulley and the motor. Tighten the two screws that hold the timing pulley using an H2.0 Allen key. Remove the spacer.

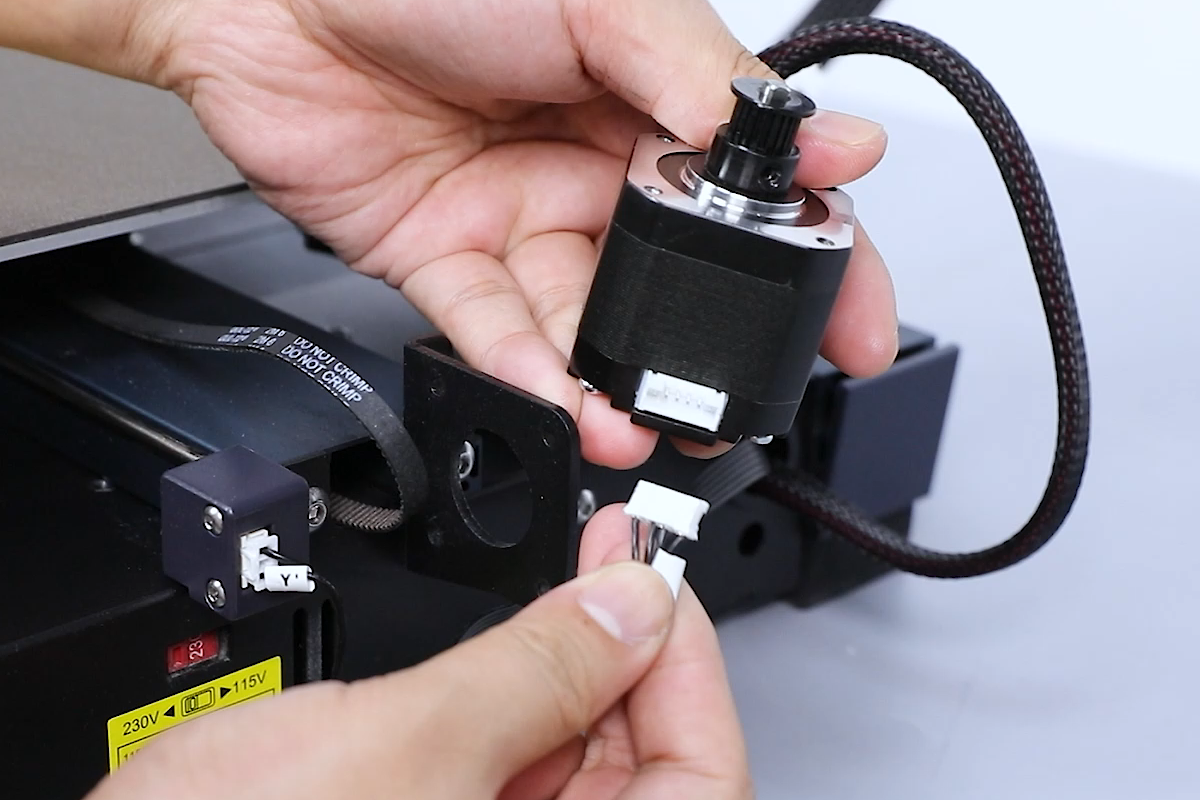

7、Insert the Y-axis motor cable into the motor port and put the Y-axis belt on the motor timing pulley.

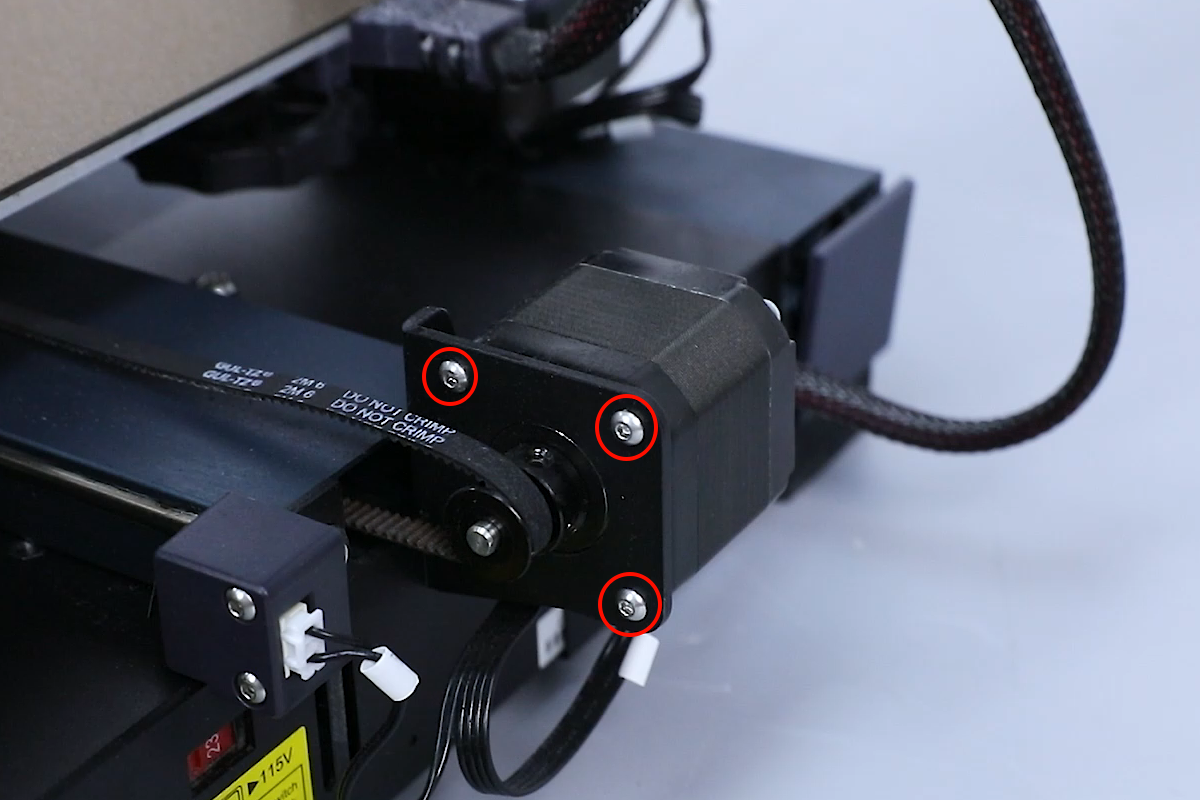

8、Tighten the 4 screws securing the motor using a 2.5 mm Allen key.
9、Rotate the Y-axis belt tensioner knob to adjust the belt tension to moderate, not too loose or too tight.
10、Power on the printer. After the homing process, the printer is ready for use.
