¶ Instruction
¶ Remove the old release film kit

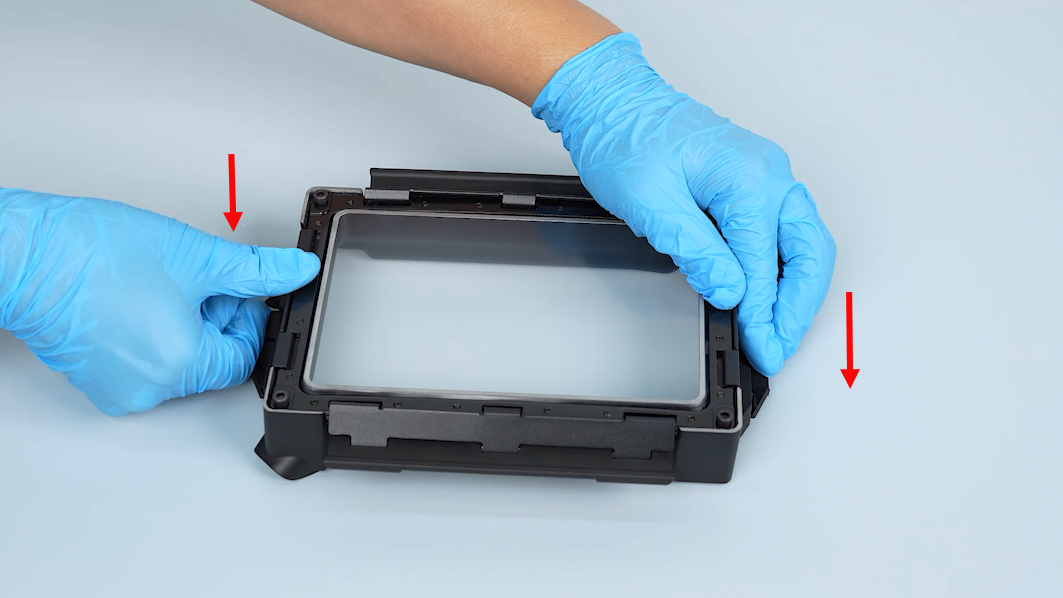

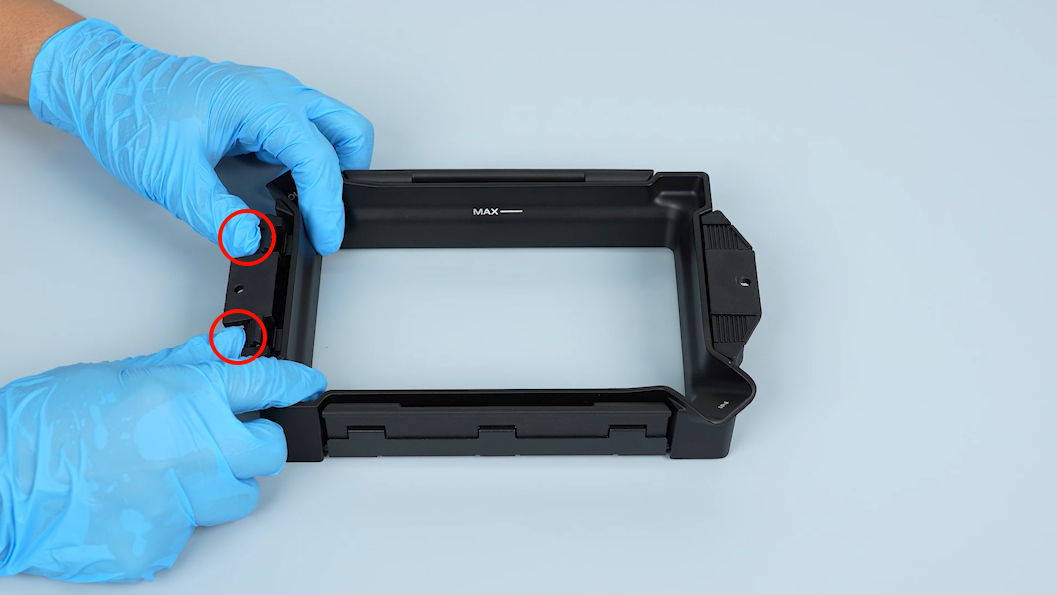

- Press down slightly the snaps on the left and right sides of the resin tank.
- Press down slightly the snaps on the other two sides.
- Turn up the bottom of the resin tank and detach the snaps.

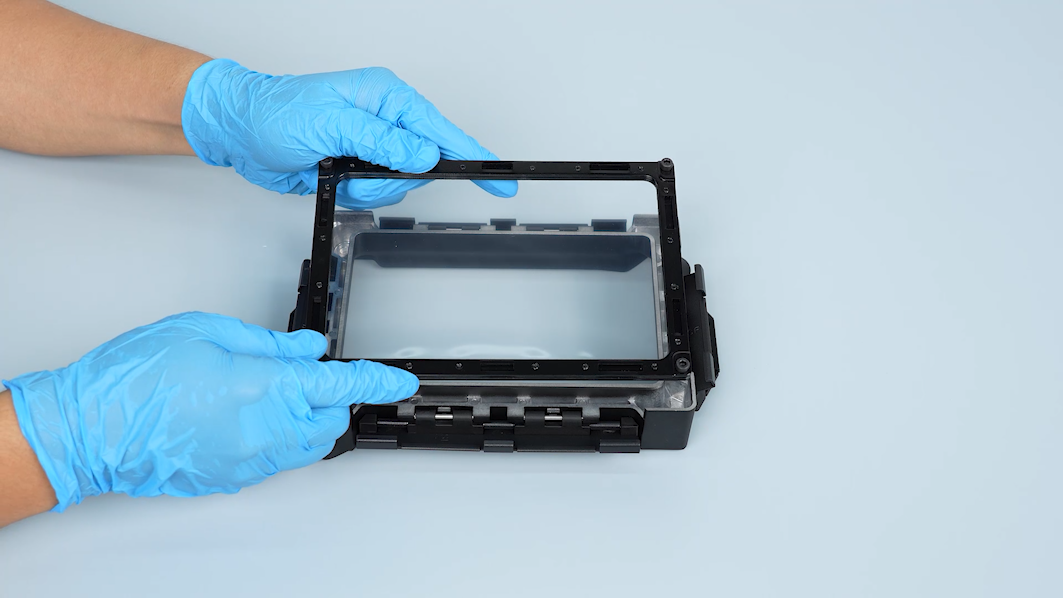

- Remove the old release film kit.
¶ Install the New Release Film Kit

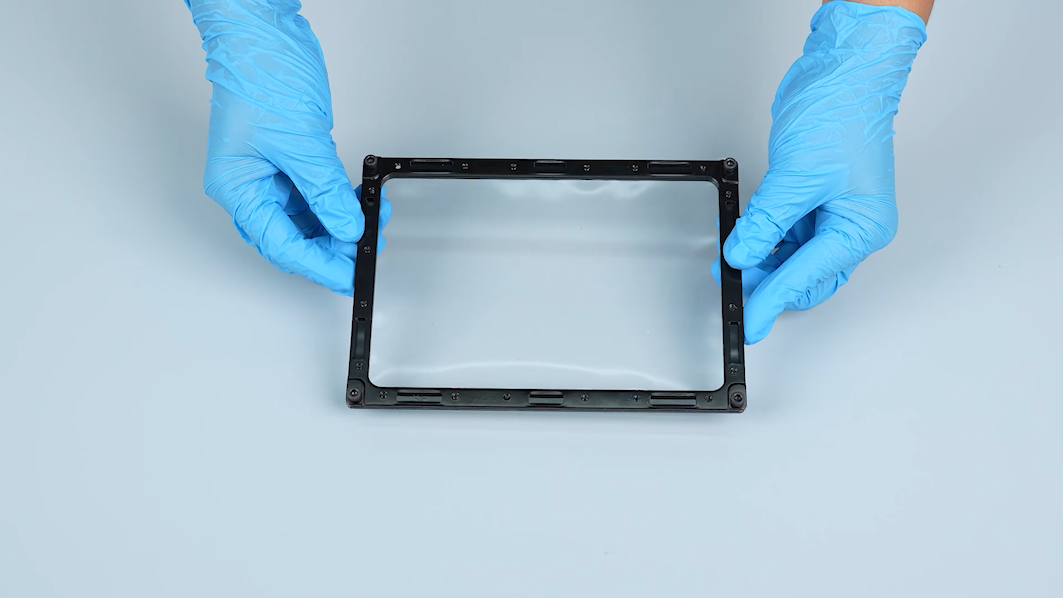

- Prepare the new release film kit.
- Face up the four locating screws. Align the new release film kit with the grooves and put it in the installation position.

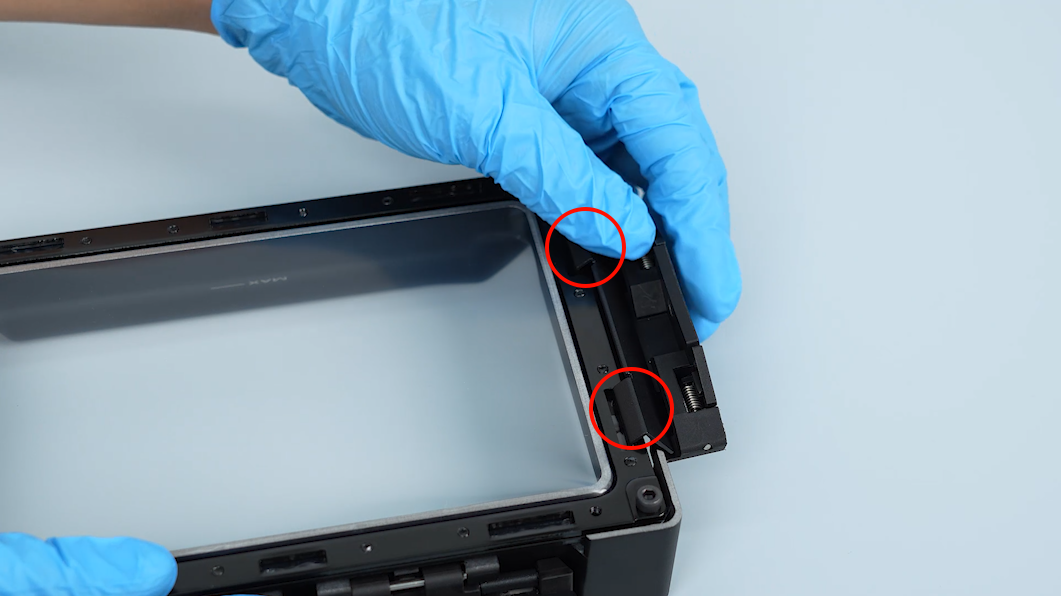

- Align the four snaps with the grooves around the bottom of the release film kit and put the resin tank in the installation position.
Note: It is easier to install by pressing down slightly the frame of the release film kit.

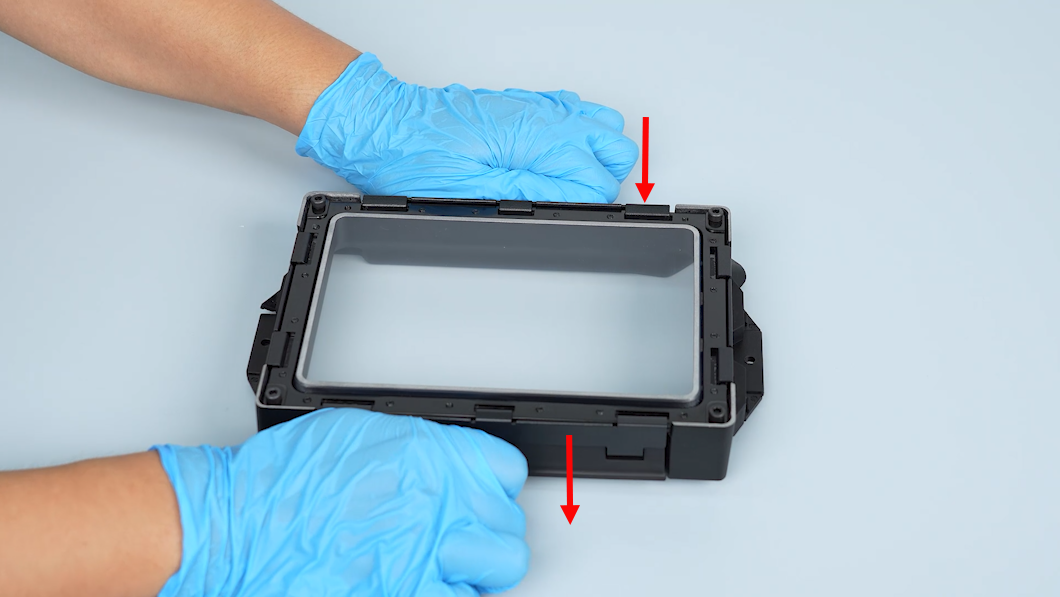

- Press down the four snaps to install the release film kit firmly.

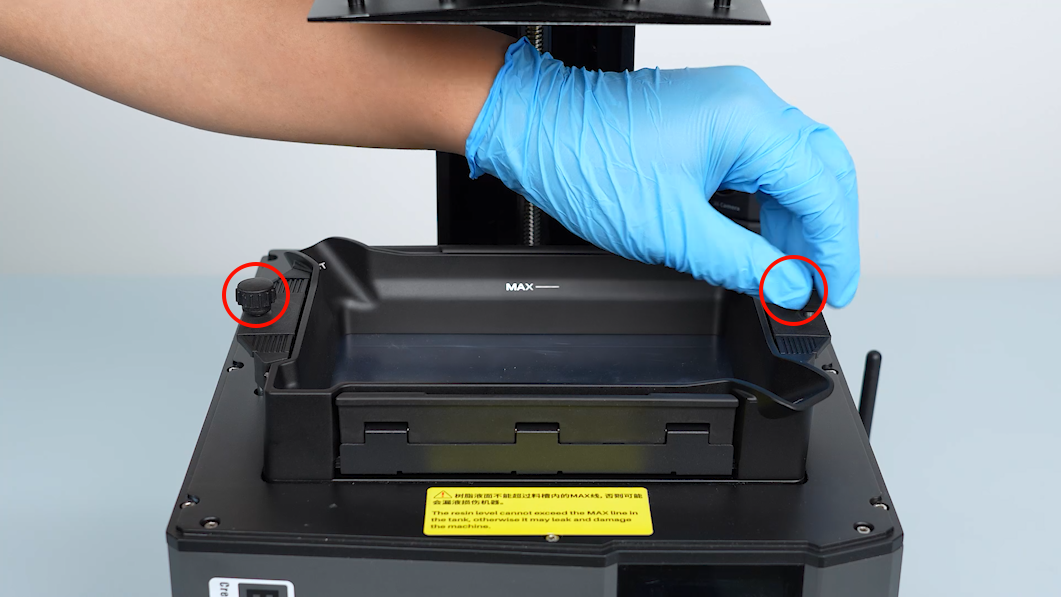

- Secure the resin tank using two thumb screws. The printer is ready for use.
