¶ Tools and Materials
- 2.5mm Allen key x 1
- A new cooling fan
¶ Tutorial Video
Coming soon.
¶ Instruction
- Power off the printer and unplug the power cord.

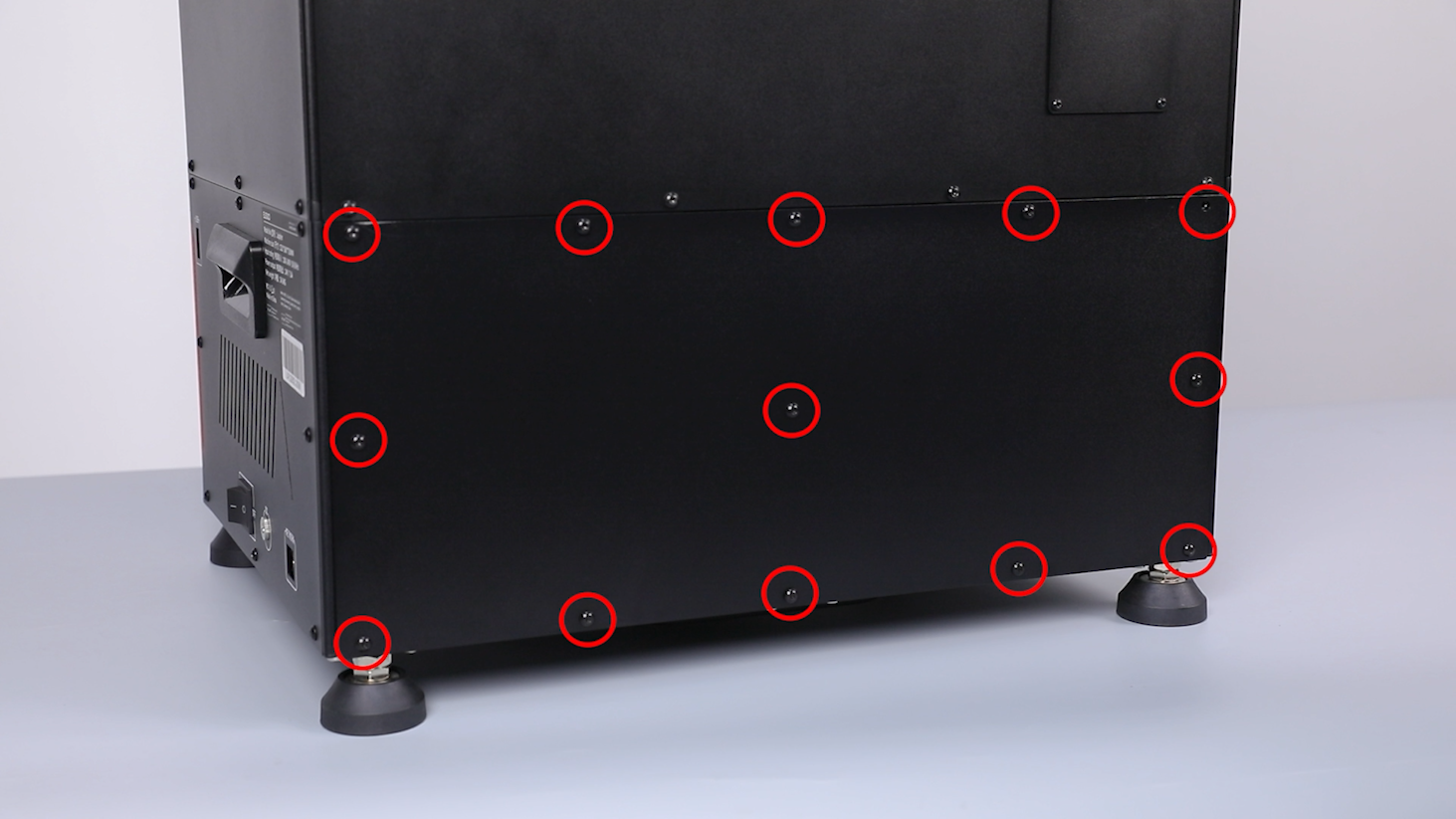

- Loosen the 13 screws securing the back cover using a 2.5 mm Allen key.

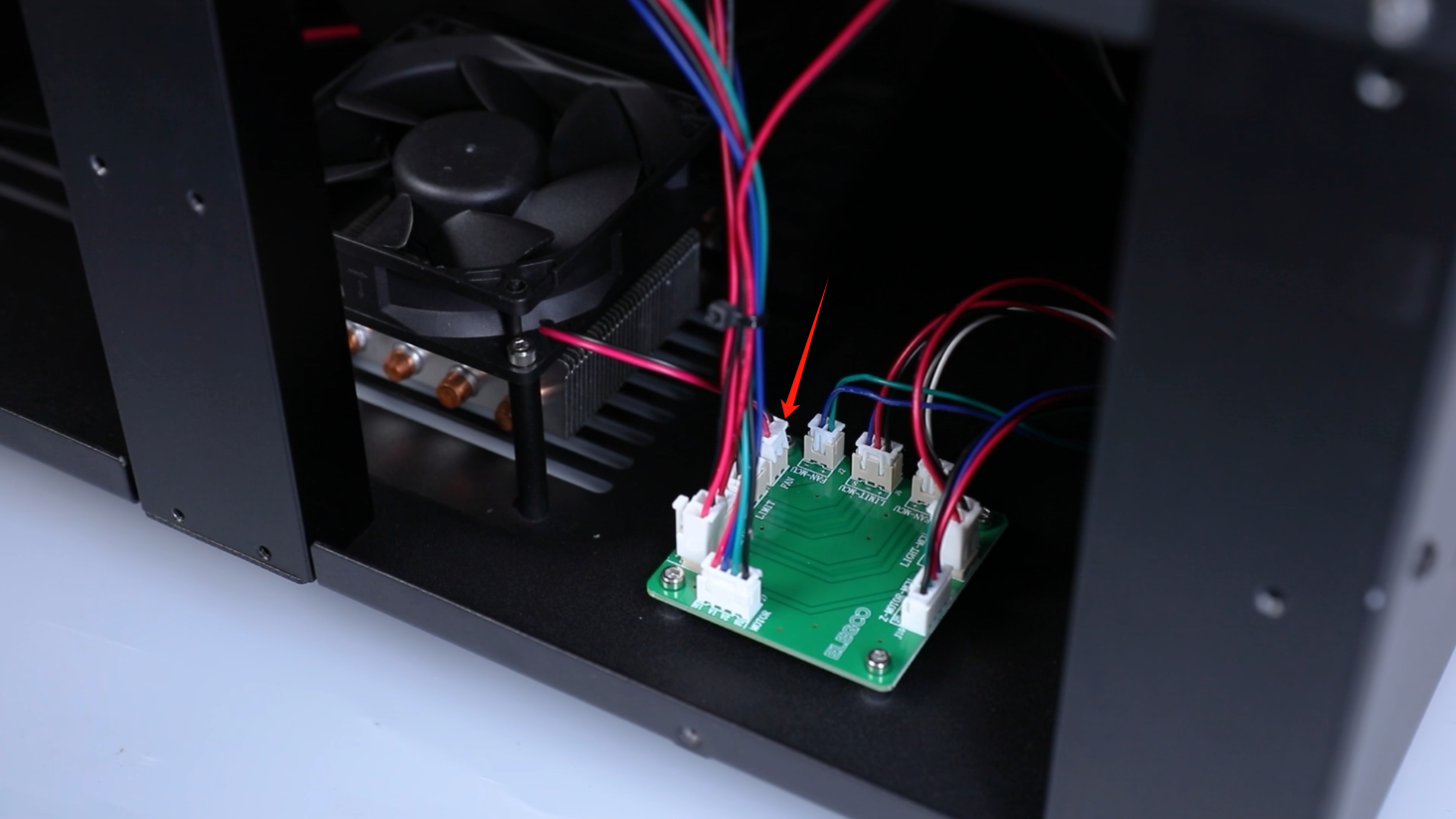

- Lay the back cover flat and remove it. Unplug the cable port of the cooling fan on the adapter board.

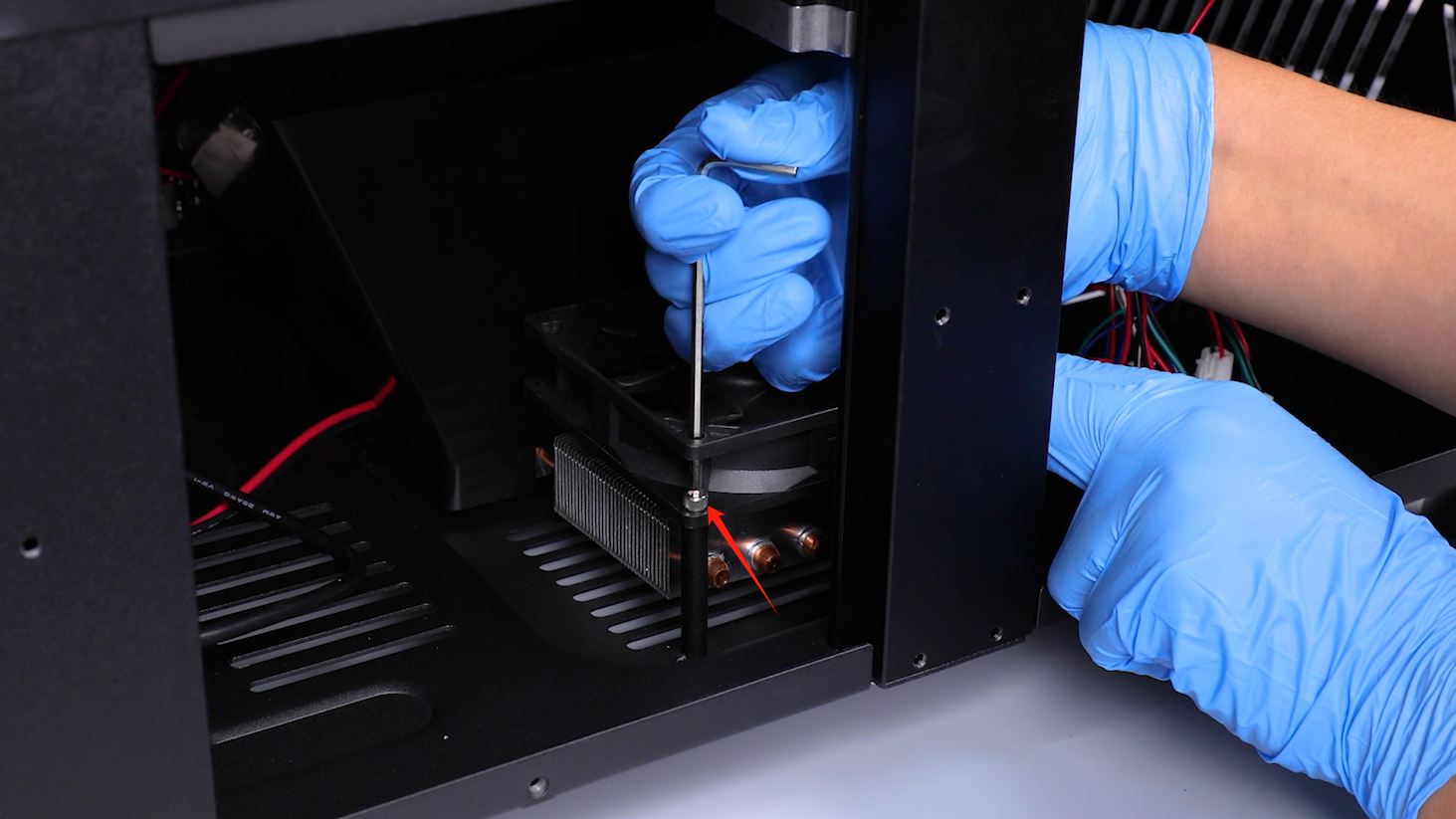

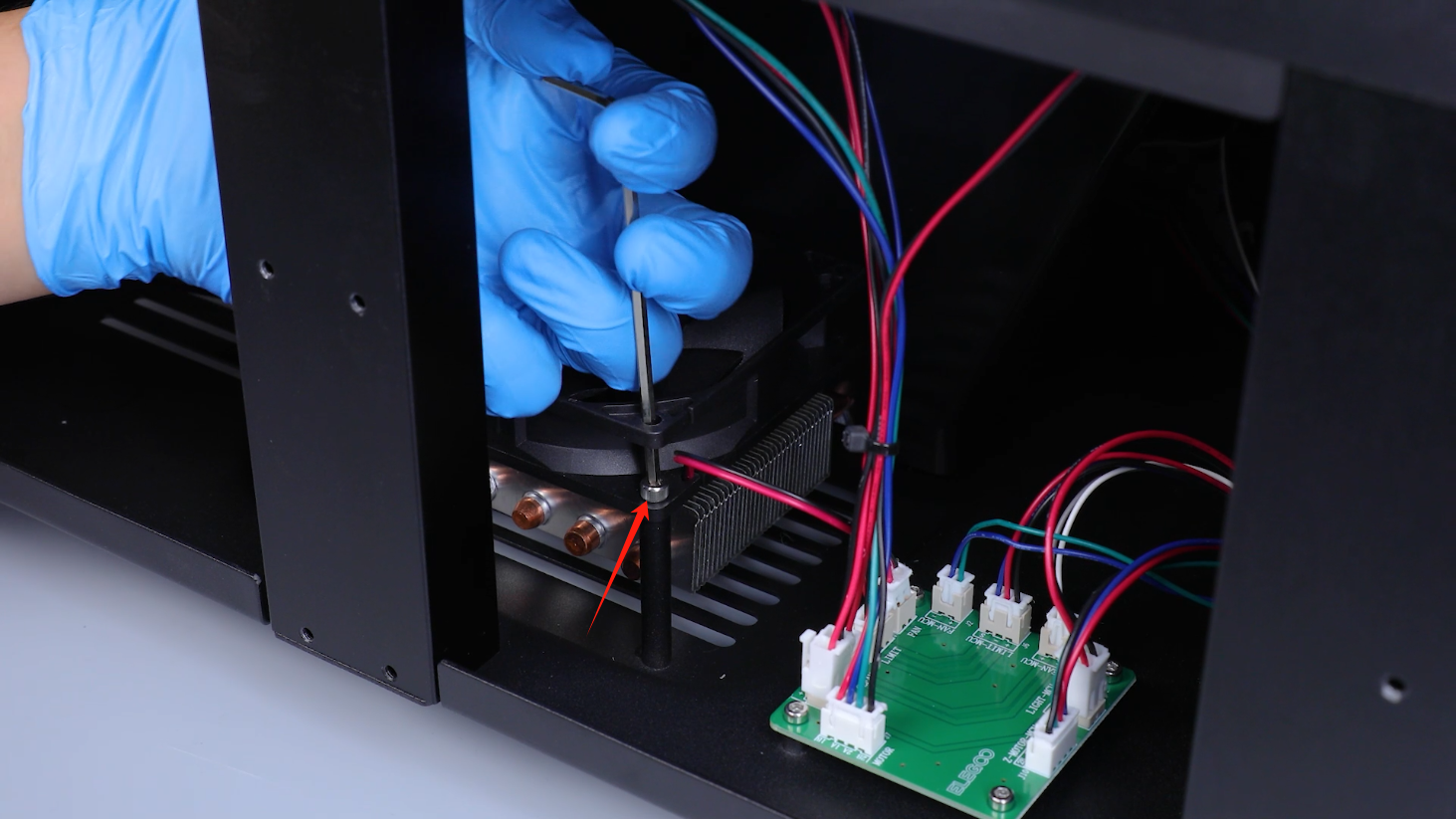

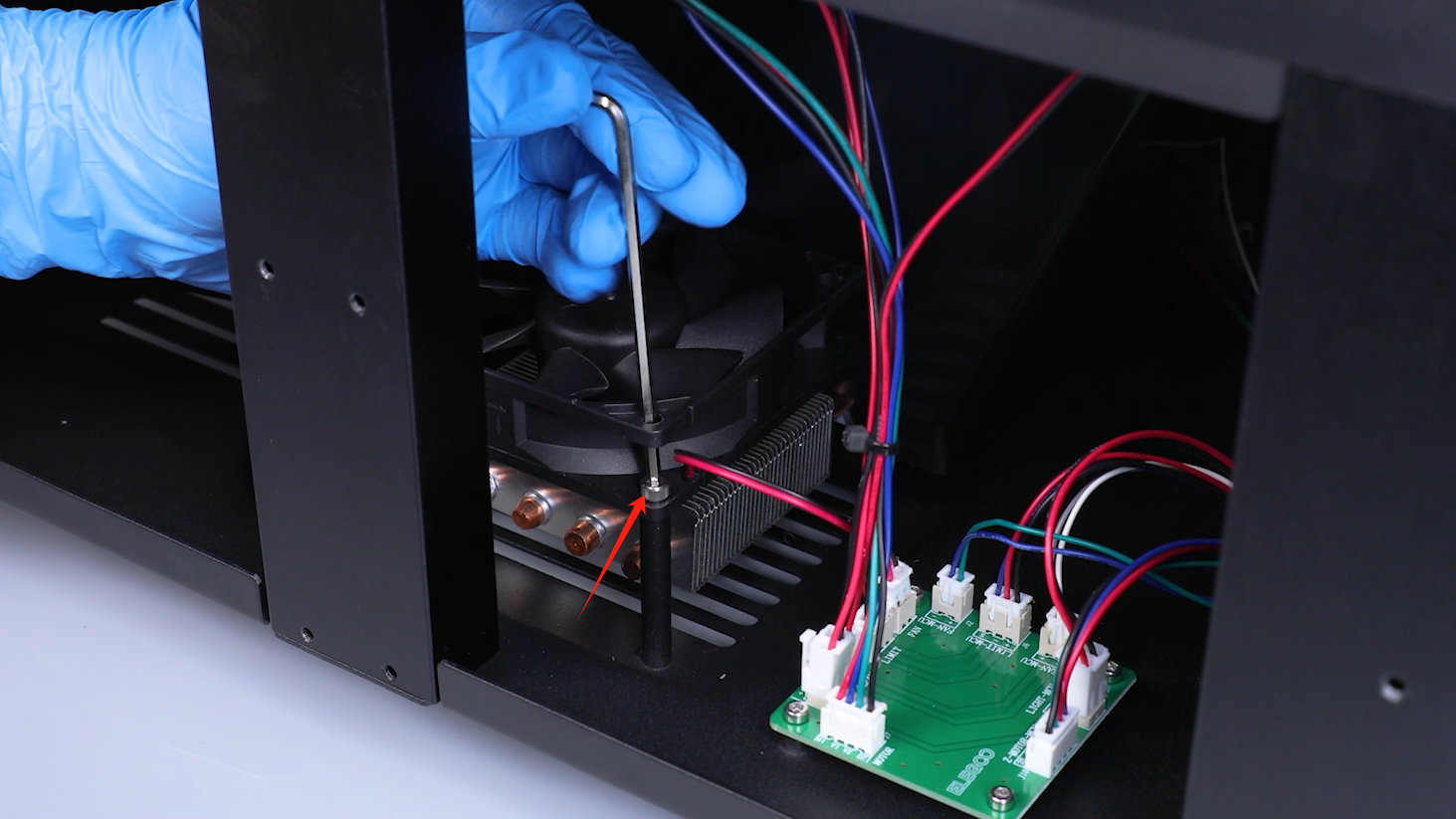

- Loosen the two screws securing the cooling fan assembly using a 3.0mm Allen key, then remove the old cooling fan.

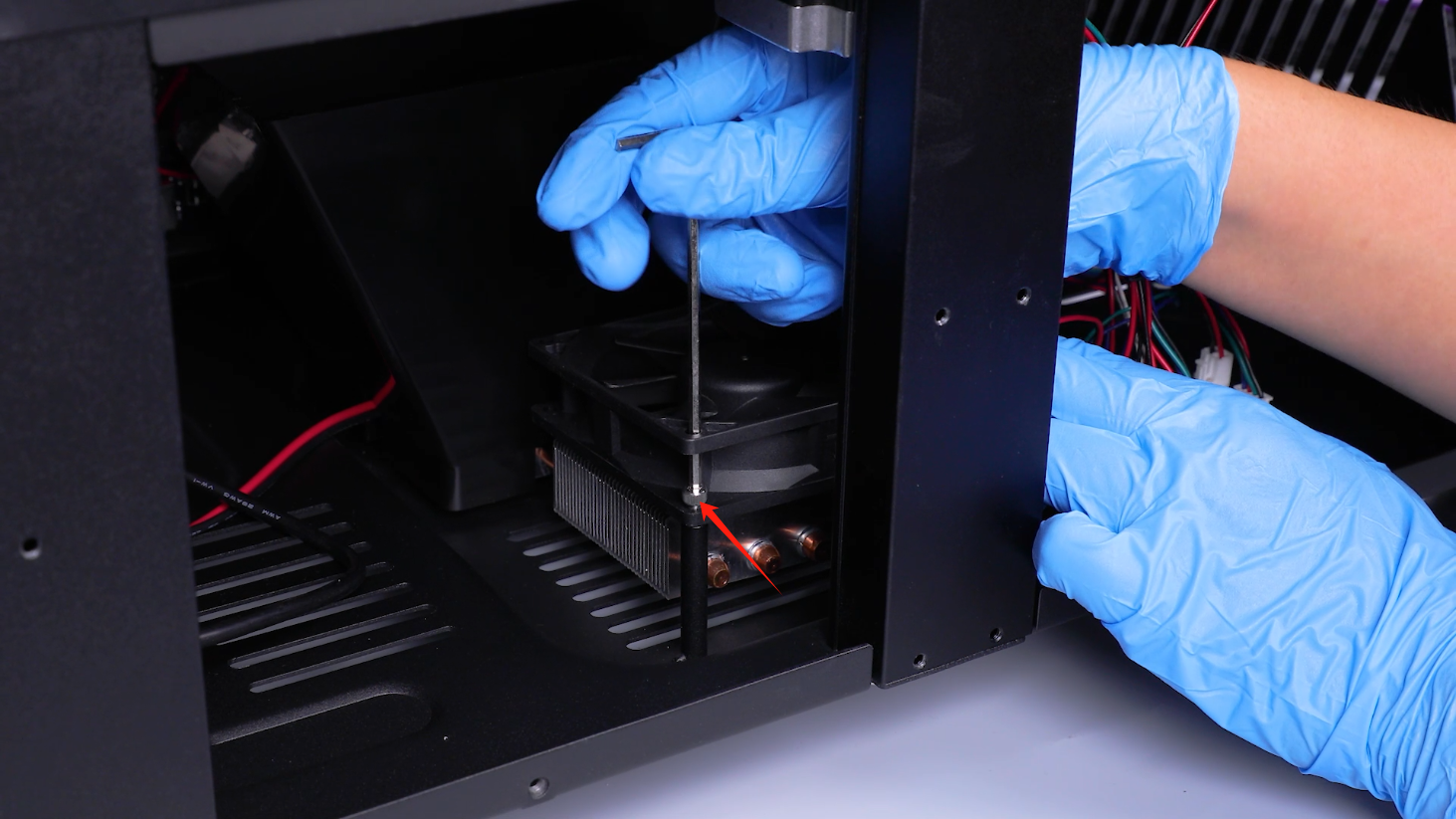

- Prepare the new cooling fan. Align it with the screw holes and put it in the installation position. Tighten the two screws using a 3.0 mm Allen key.

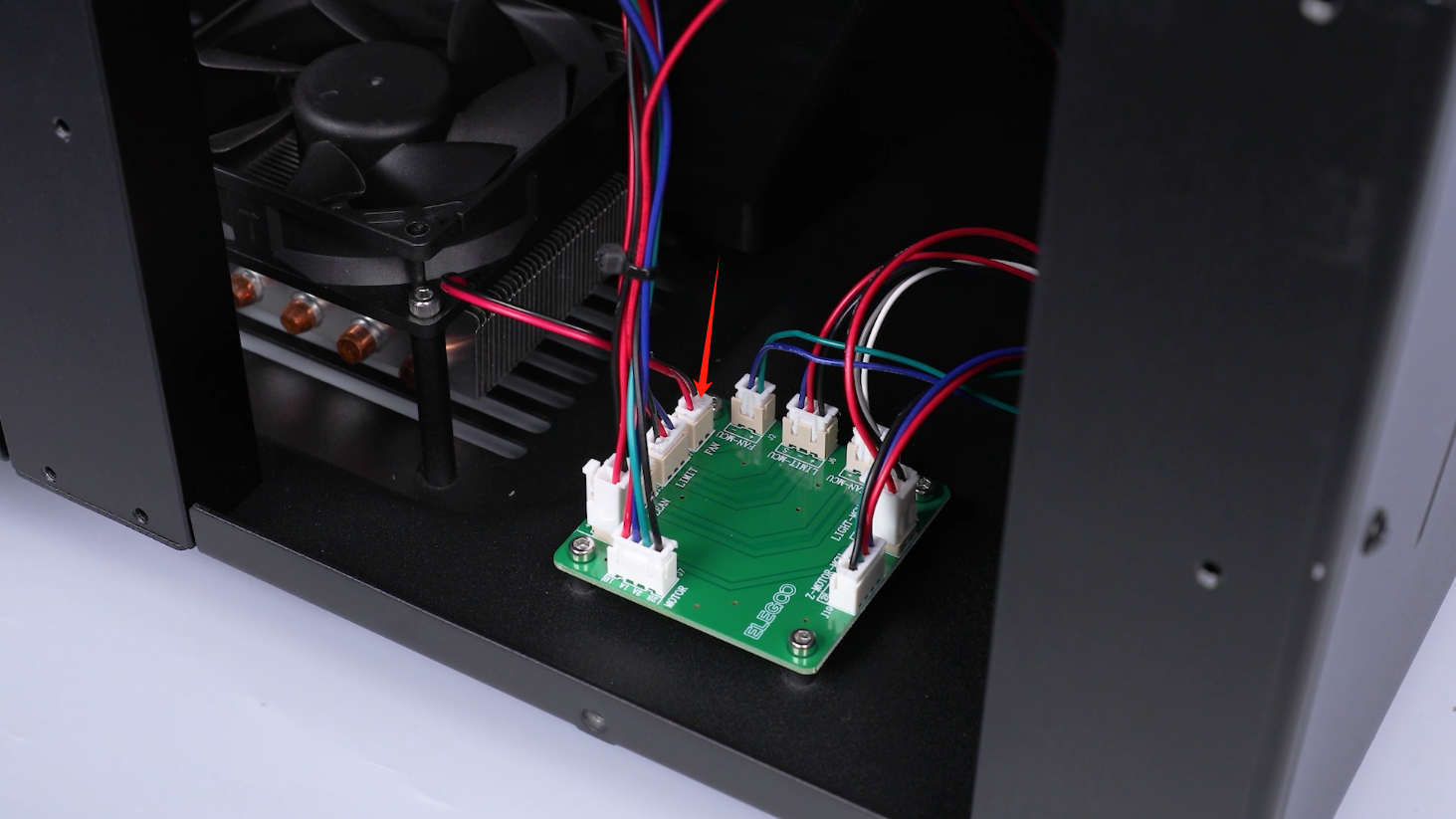

- Insert the cables of the cooling fan into the adapter board port.

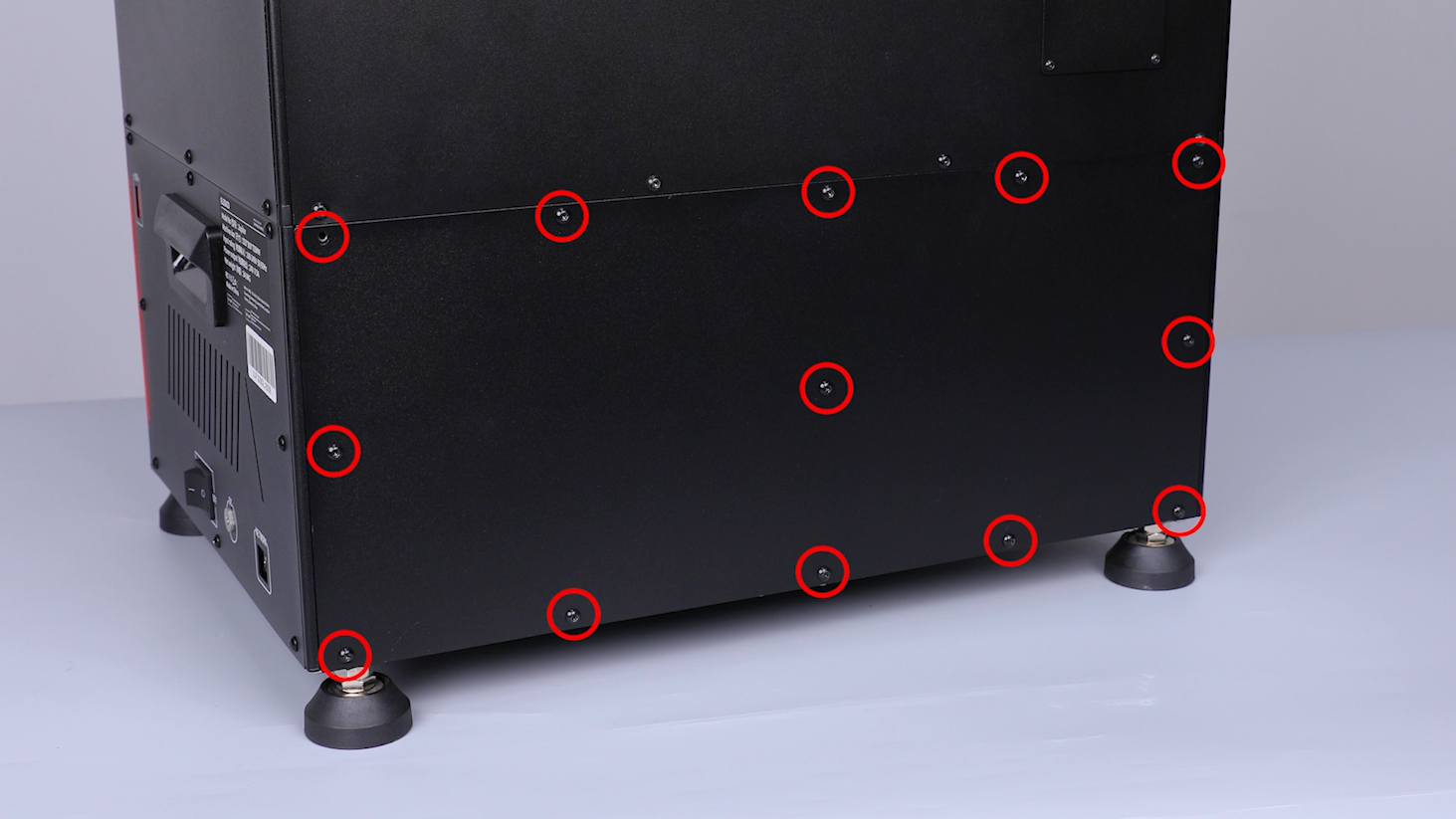

- Align the back cover with the screw holes and put it in the installation position. Tighten 13 screws using a 2.5 mm Allen key.

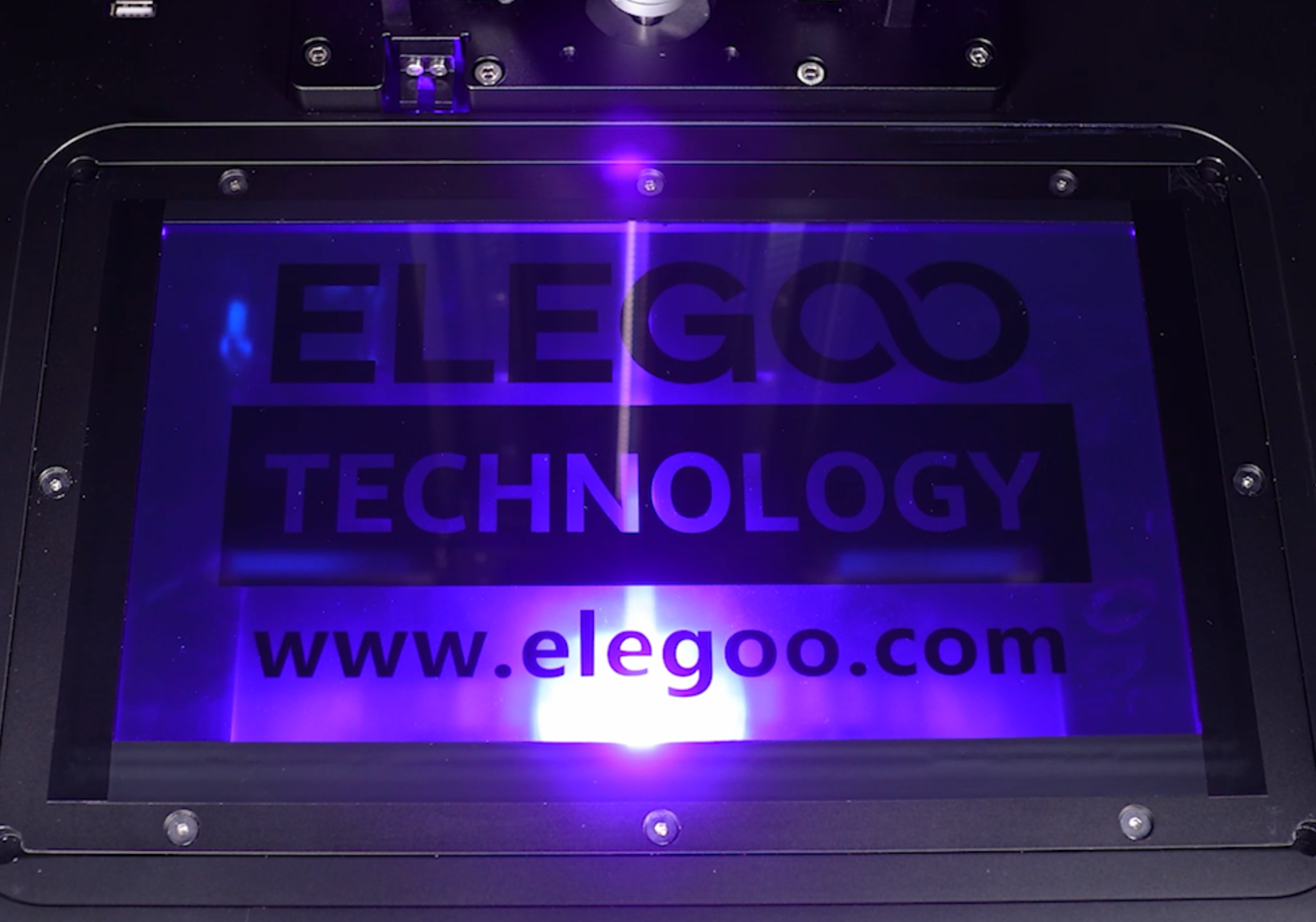

- Power on the printer. Select "Tools - Calibration - Next". The printer is ready for use if the fan rotates normally.
