¶ Possible Causes
- Power cord plug is loose
- Fuse is damaged
- Touchscreen ribbon cable is loose
- Motherboard power supply port is loose
- Power supply has no output voltage
¶ Required Tools
- 2.0mm hex screwdriver
- Multimeter
- Phillips screwdriver
¶ Troubleshooting Steps
¶ 1.Check the Power Cord Plug

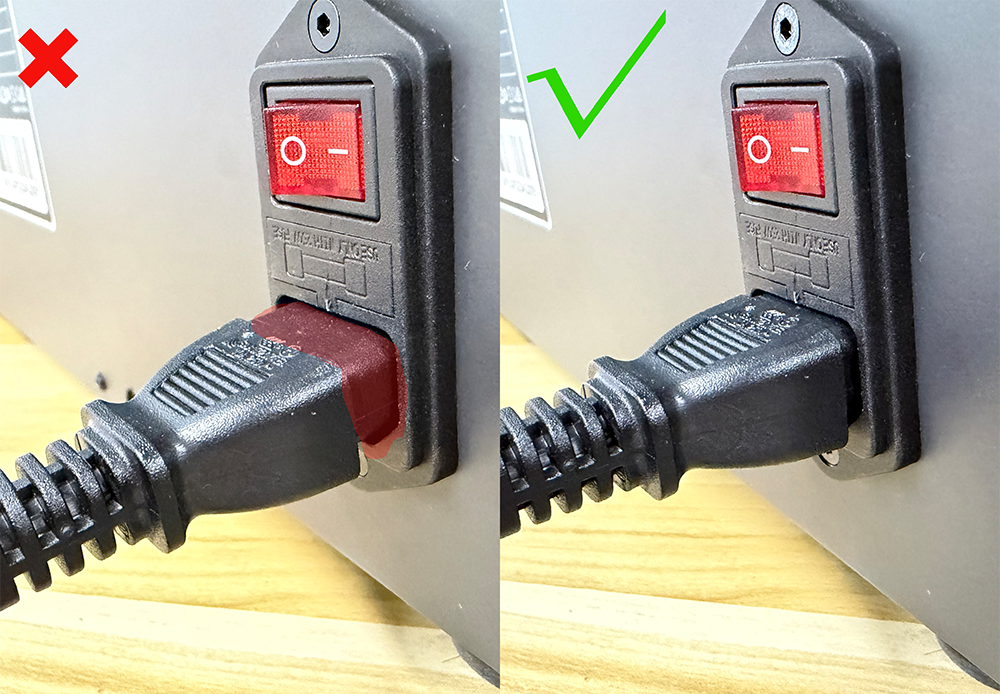

Inspect whether the power cord plug is loose and ensure it is fully inserted.
.png)
¶ 2.Check the Power Switch Indicator Light

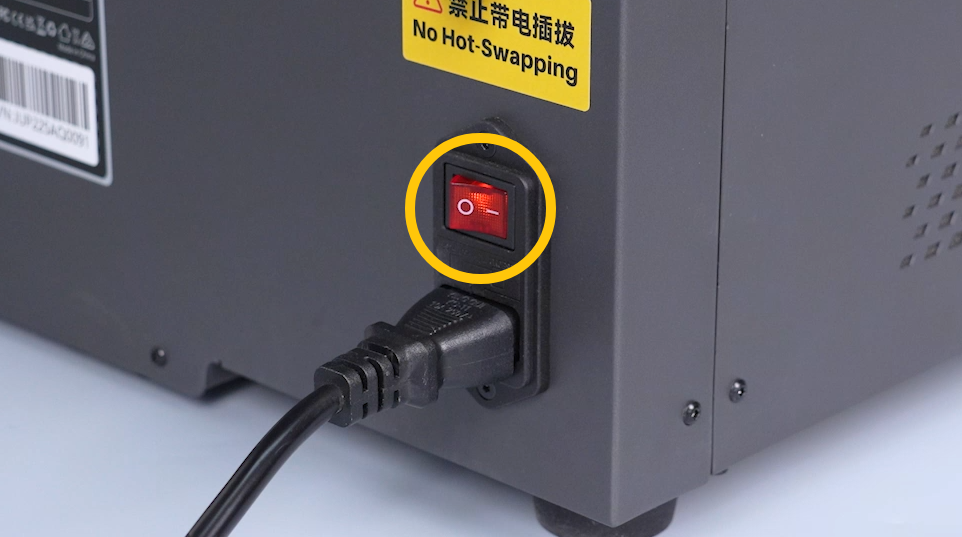

Check if the power switch indicator light is on.
.png)

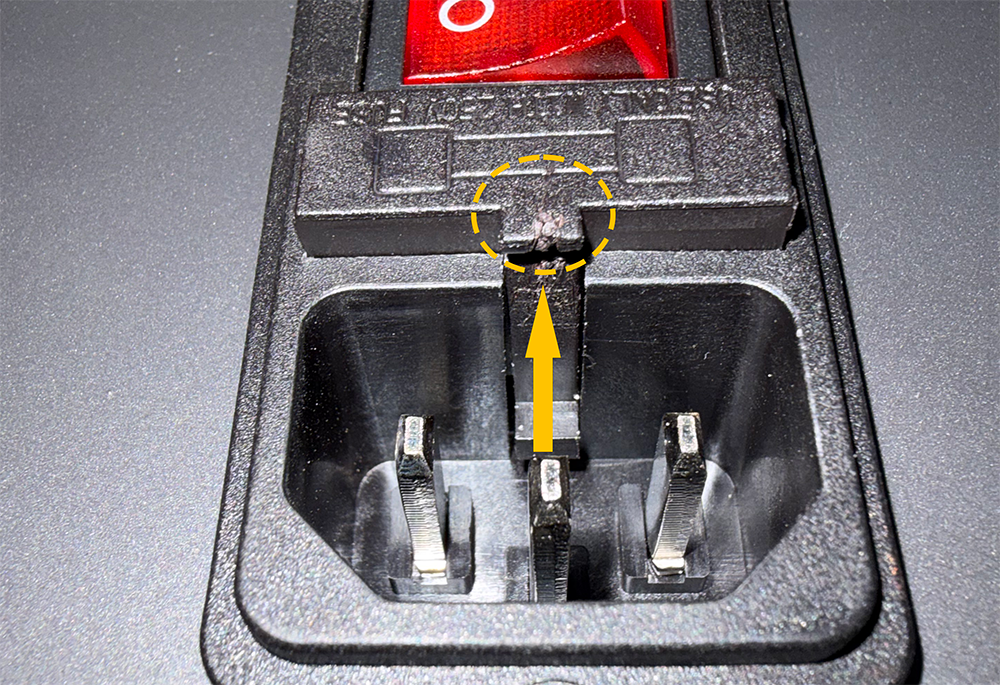

If the switch indicator light is not on, check whether the fuse is damaged. Slide the latch in the direction of the arrow to remove the fuse.
.png)

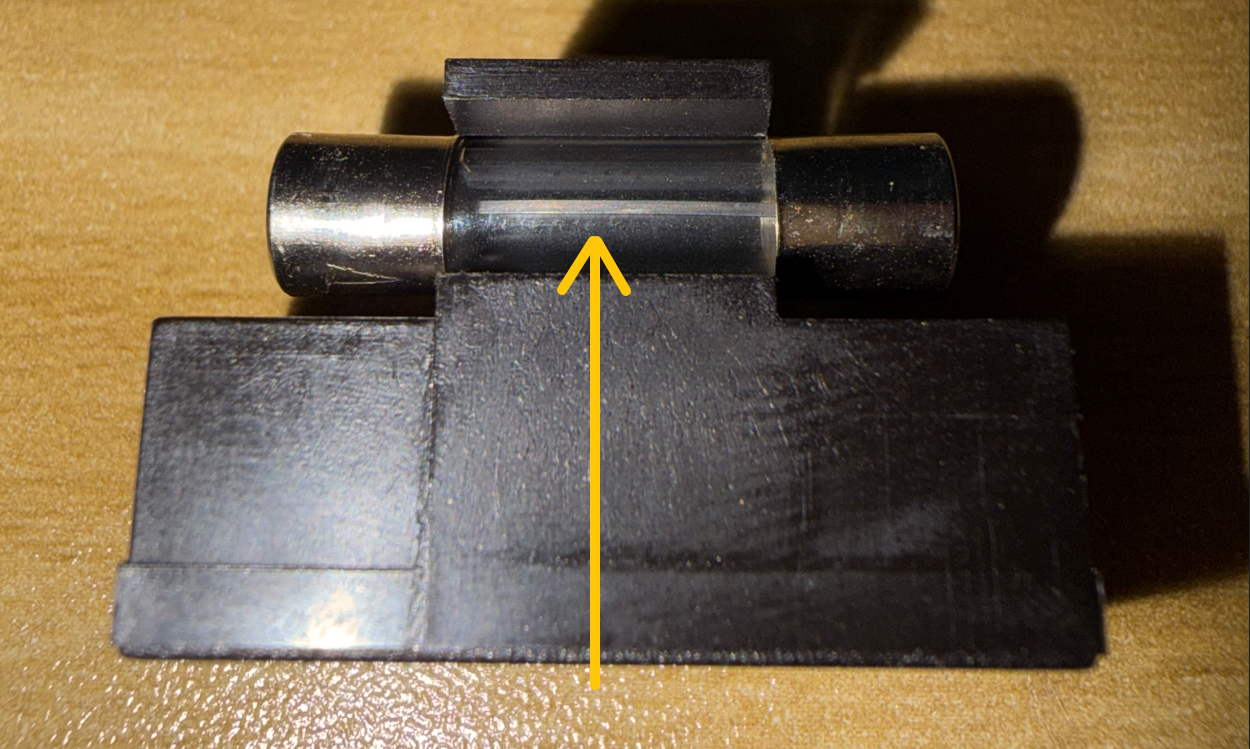

Check if the Fuse is Blown
.png)
The fuse specification for Jupiter 2 is 10A 250V 5×20mm. If the fuse is damaged, you can purchase a matching fuse from a hardware store and replace it.
If the switch indicator light is on, proceed with the following troubleshooting steps.
¶ 3.Check the Motherboard Indicator Lights

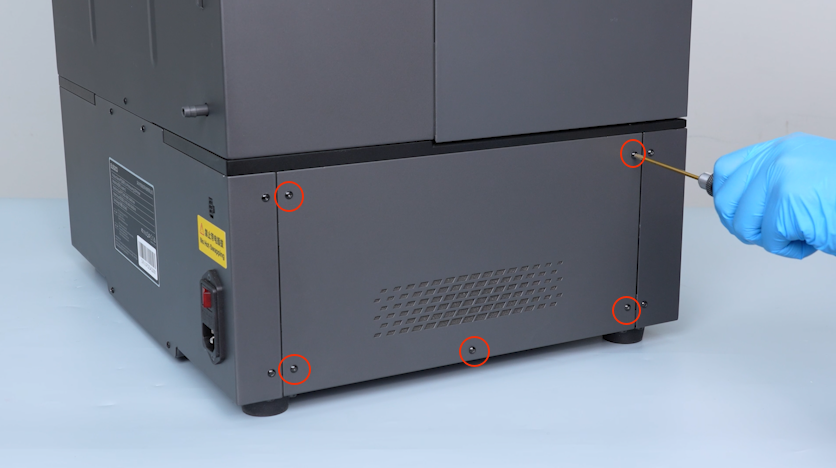

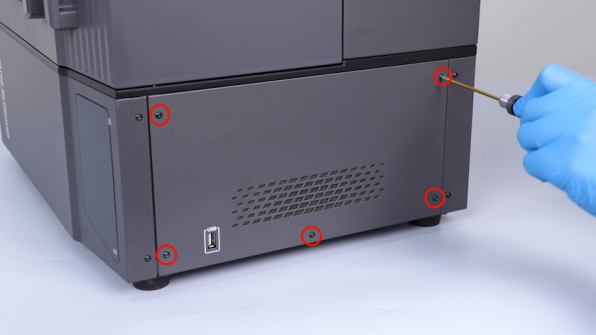

Use the 2.0mm hex screwdriver to remove the five screws securing the right side panel and remove the panel.
.png)

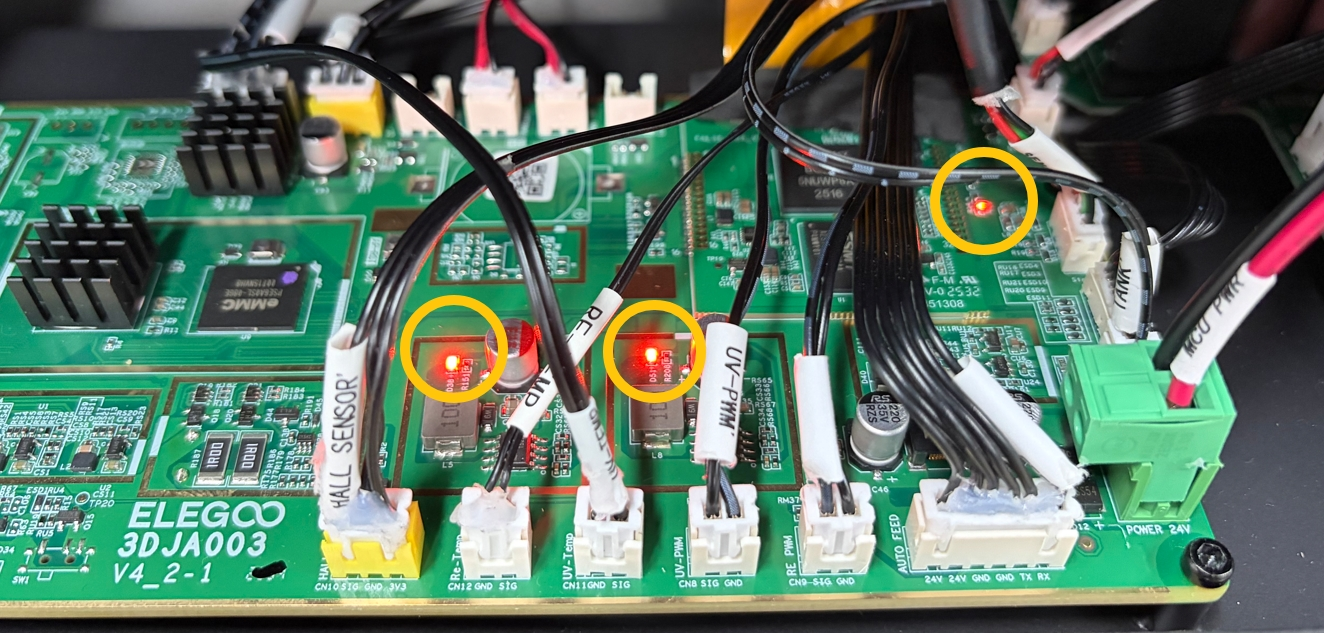

Check whether the three indicator lights on the motherboard are on after powering up.
.png)
- If all three motherboard indicator lights are on, check the touchscreen ribbon cable.
- If none of the three motherboard indicator lights are on, check the motherboard power supply port.
¶ 4.Check the Touchscreen Ribbon Cable

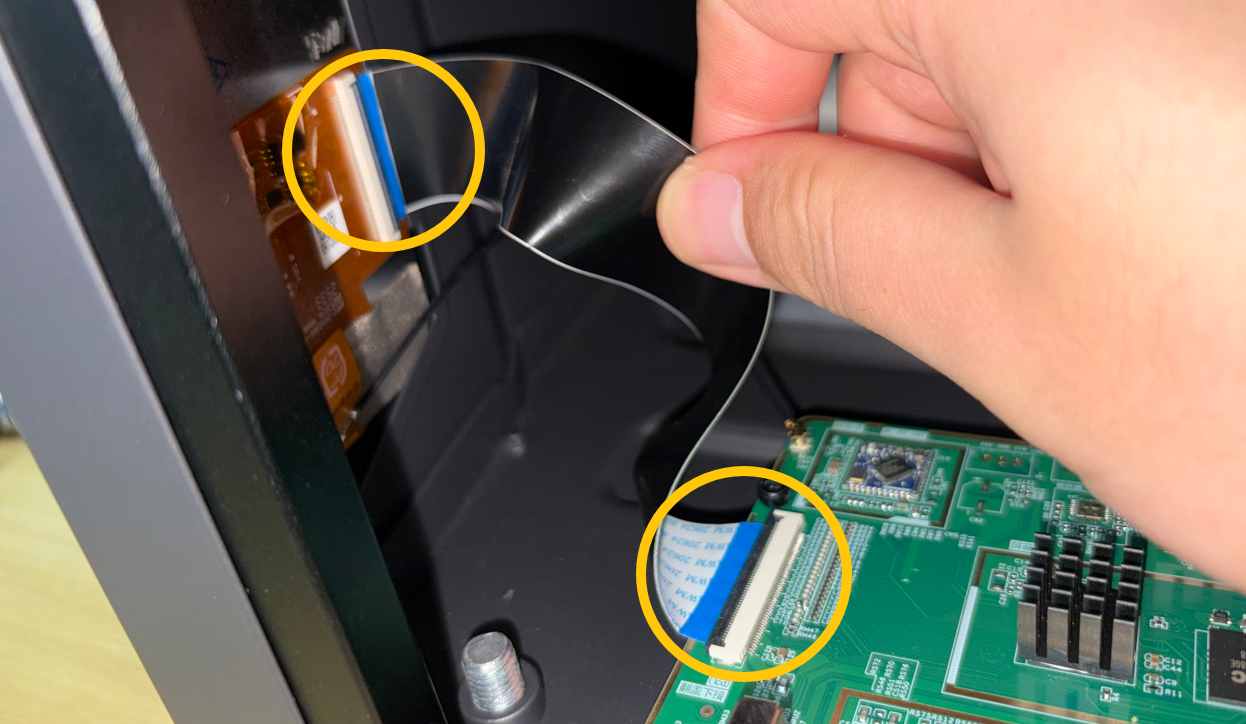

Remove the tape at both ends of the touchscreen ribbon cable. Check whether both ends are loose and try re-inserting the ribbon cable.
.png)

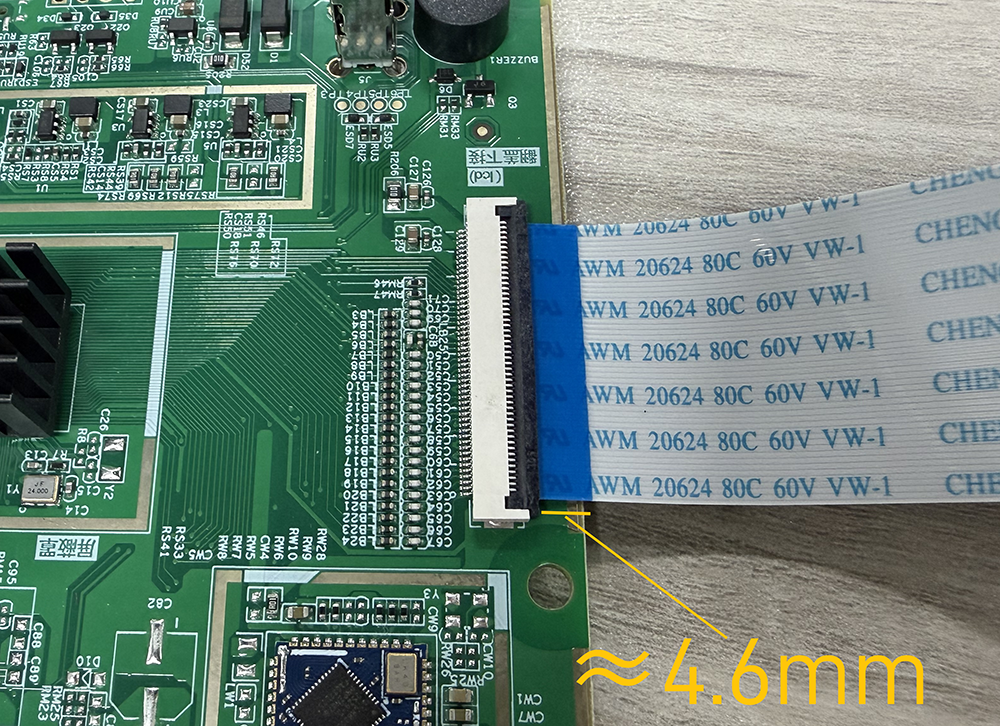

The blue side of the touchscreen ribbon cable must face upward.
The ribbon cable must be aligned with the connector and not inserted at an angle.
The ribbon cable must be fully inserted into the connector (the exposed blue portion should be approximately 4.6mm wide)
.png)
- If the touchscreen ribbon cable is properly connected and the three motherboard indicator lights are on, the touchscreen may be damaged and needs to be replaced.
¶ 5.Check the Motherboard Power Supply Port

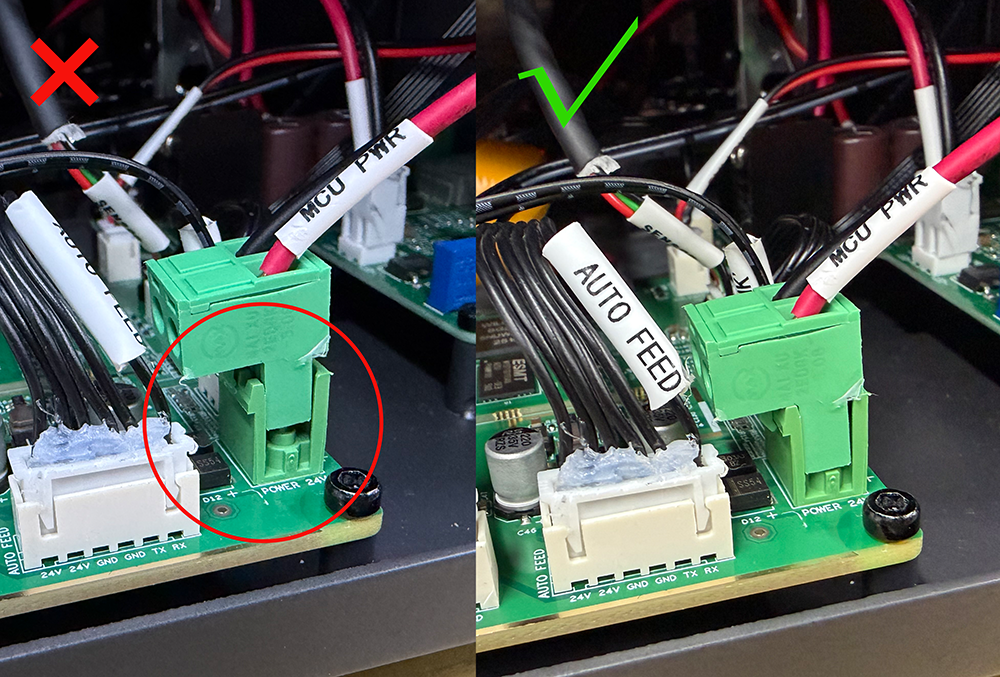

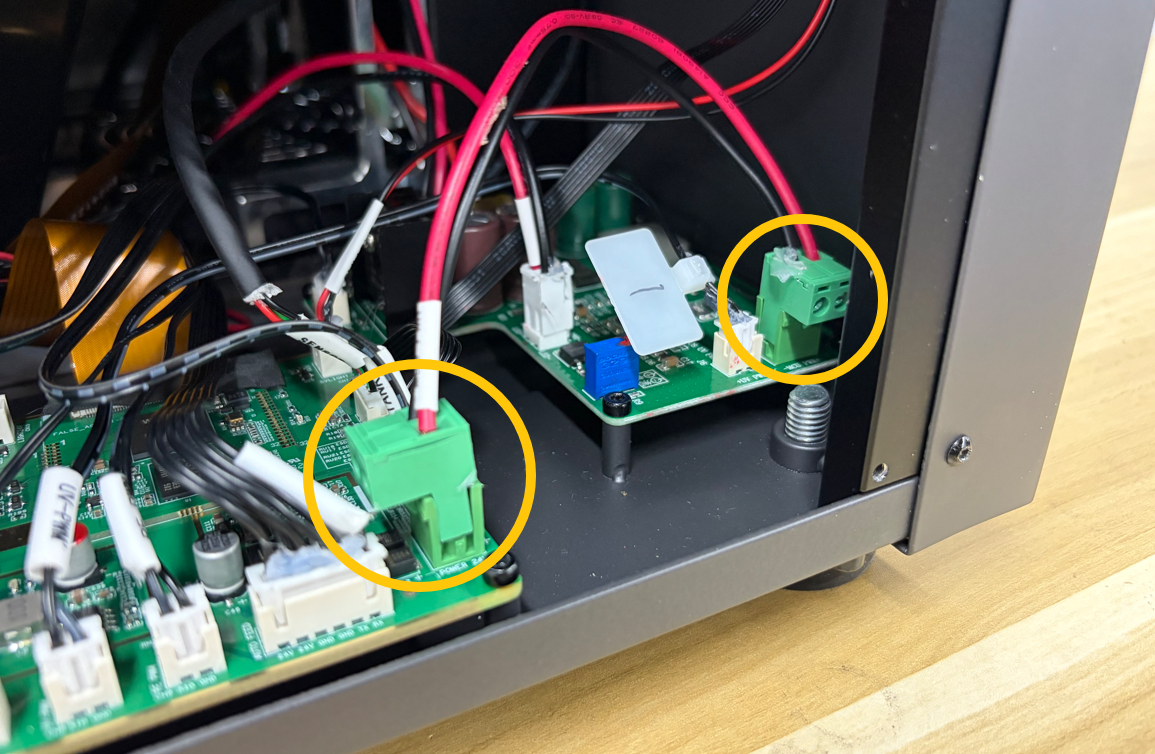

Turn off the power switch and unplug the power cord. Check whether the motherboard power supply terminal plug is loose.
.png)
.png)
¶ 6.Check Power Supply Output Voltage
Use the 2.0mm hex screwdriver to remove the five screws securing the left side panel.
.png)

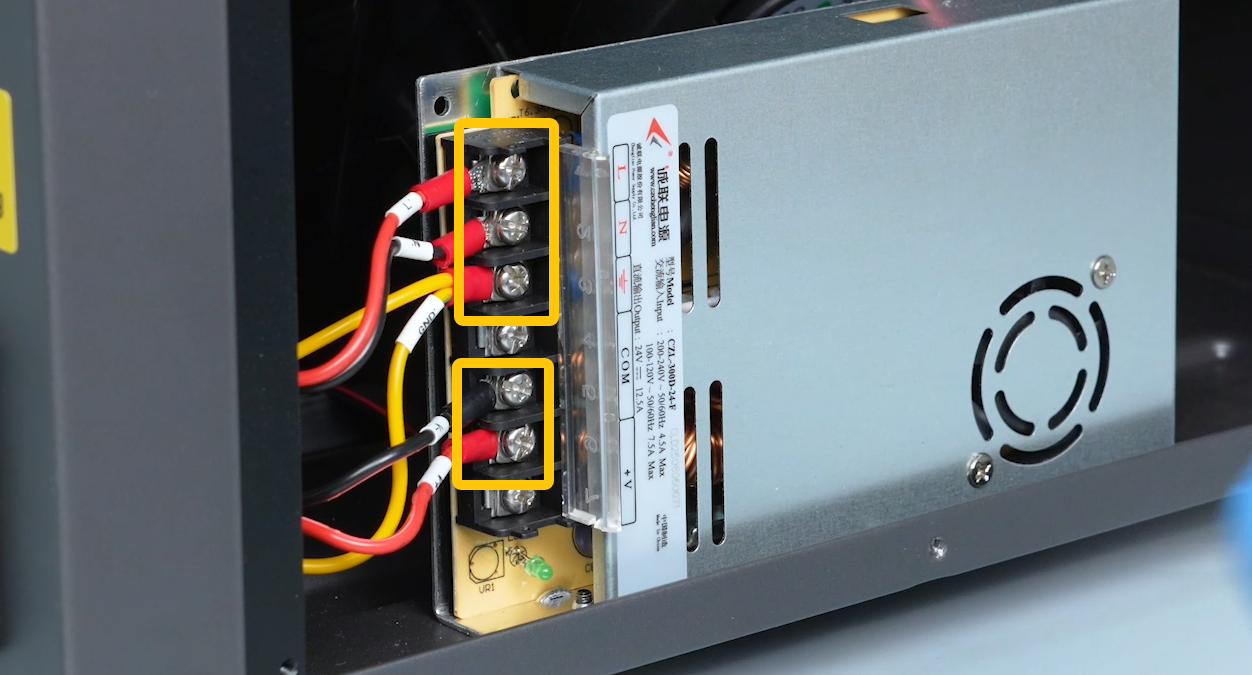

Check whether the wire terminals are loose. If the wire terminals are loose, turn off the printer power switch
, unplug the power cord, and use a Phillips screwdriver to tighten the screws securing the wire terminals.
.png)

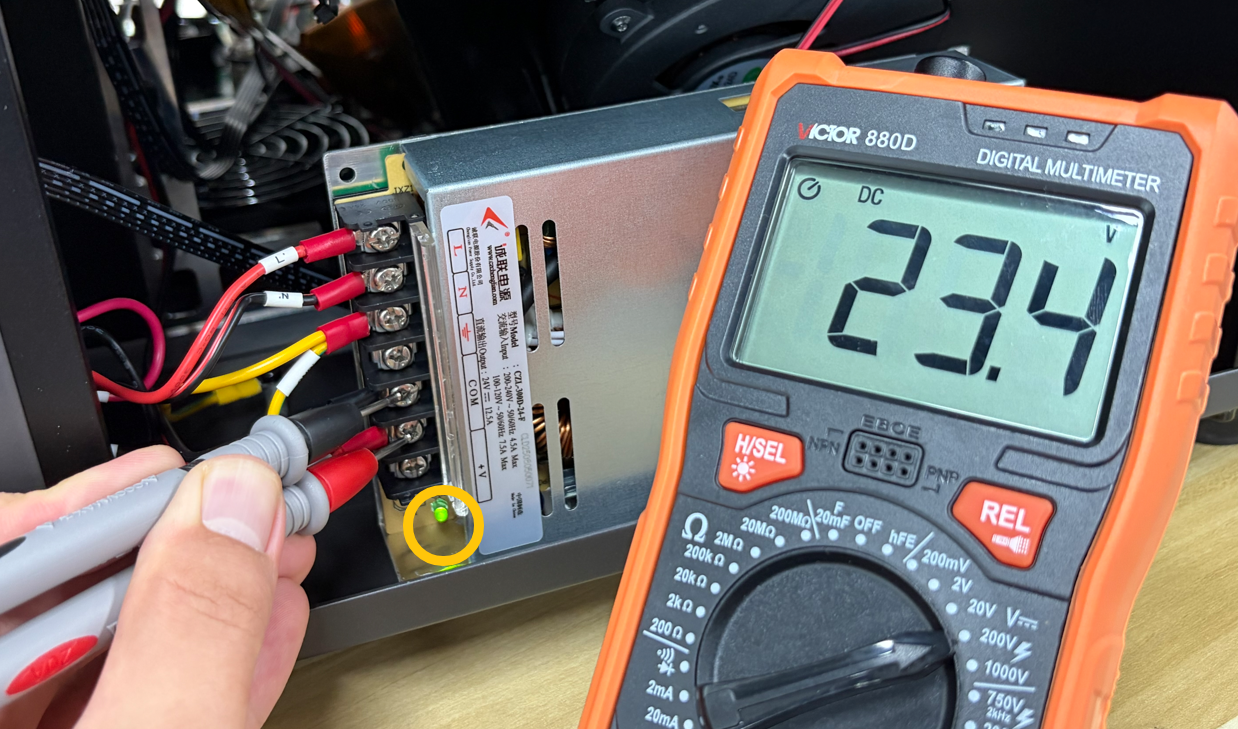

If the wire terminals are not loose, turn on the printer power switch. Use the multimeter in DC voltage mode to check whether the power supply has an output voltage of approximately 24V (if you do not have a multimeter, check whether the power supply indicator light is on).
.png)
- If there is 24V output at the power supply port, the motherboard or touchscreen may be damaged.
- If there is no 24V output at the power supply port / the power supply indicator light is off, the power supply may be damaged.
¶ Still Not Resolved?
If you are still unable to determine the cause of the fault, please reproduce the current issue where the device is not working properly and record a video (the video must clearly show the switch indicator light and touchscreen status). Contact technical support at: 3dp@elegoo.com
To help us diagnose the issue faster, please provide the following information in advance:
- Whether the power cord plug is loose
- Whether the switch indicator light is on / whether the fuse is damaged
- Whether all three motherboard indicator lights are on
- Whether the touchscreen ribbon cable is loose
- Whether the motherboard power supply port is loose
- Whether the power supply has output voltage / whether the power supply indicator light is on
