¶ Tools and Materials
-
A 3.0 mm Allen key
-
A 2.0 mm Allen key
-
A 80 × 80 × 5 mm foam cotton
-
A utility knife
-
A new release film
¶ Instruction
¶ Preparation
Turn the power switch OFF (symbol "〇") and unplug the power supply cable.
¶ Remove the old Release Film
-

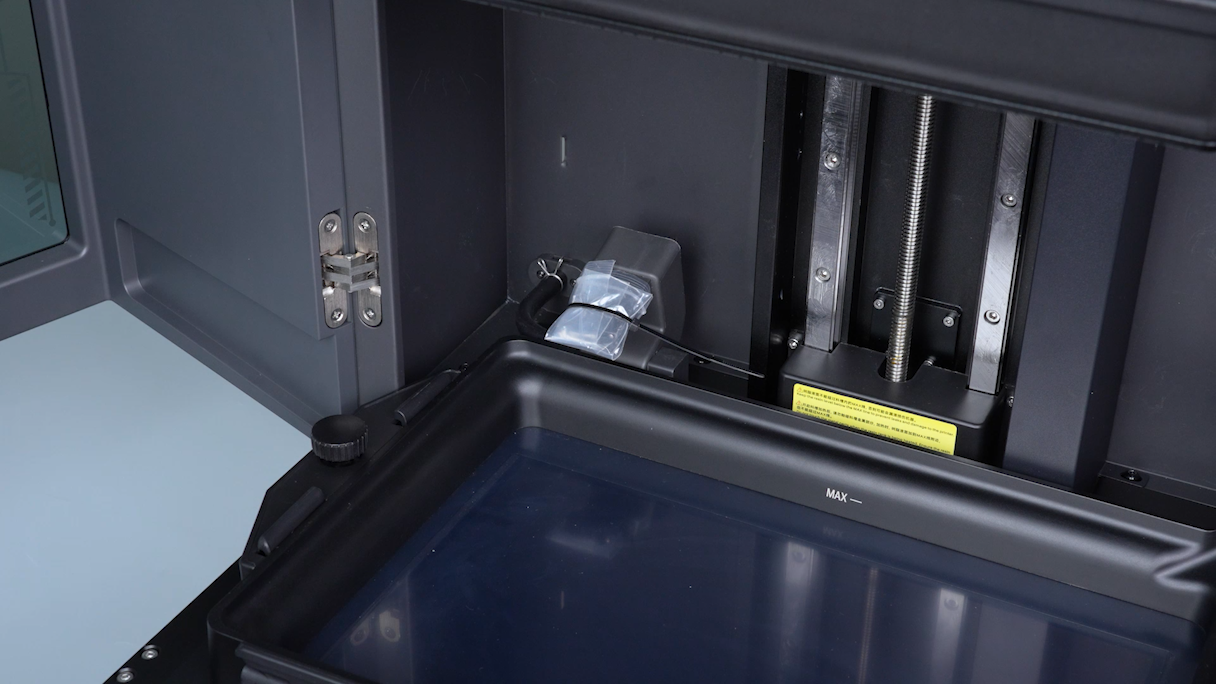

Lift the automatic resin feeding inlet.
-
Seal the inlet with a bag and a cable tie to prevent the resin from dripping.
-

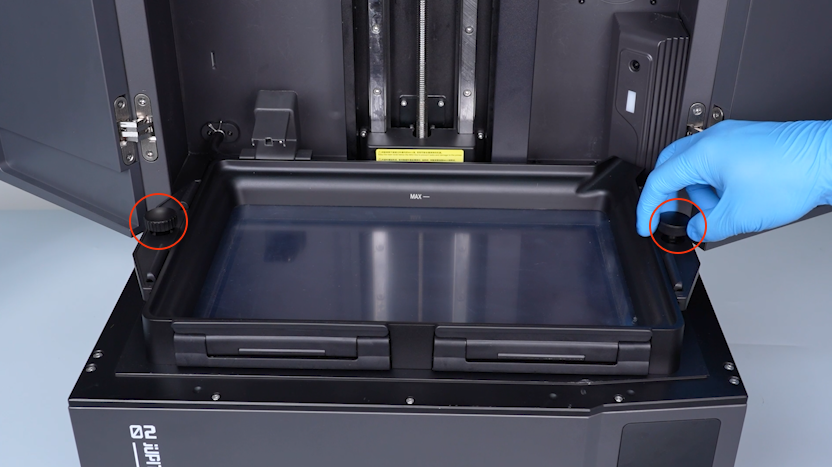

Remove the two knob screws.
-

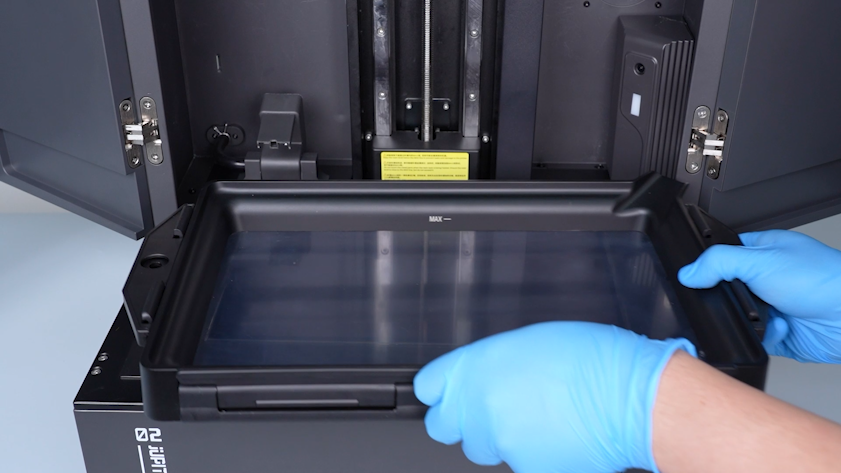

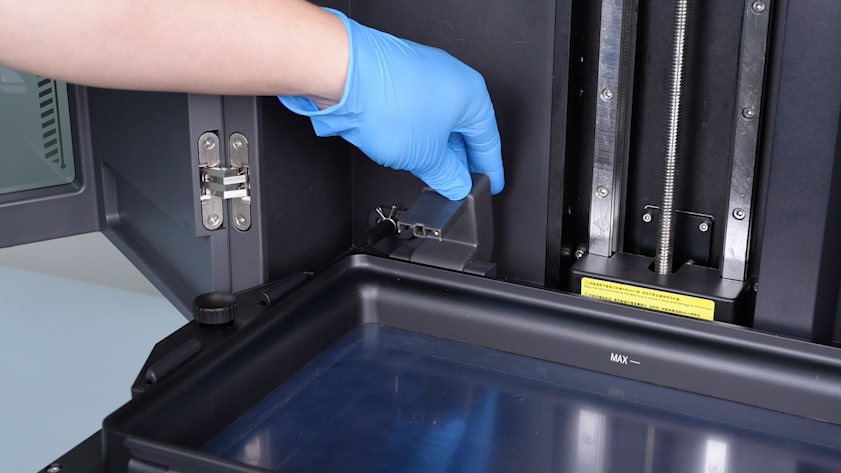

Remove the resin tank.
-

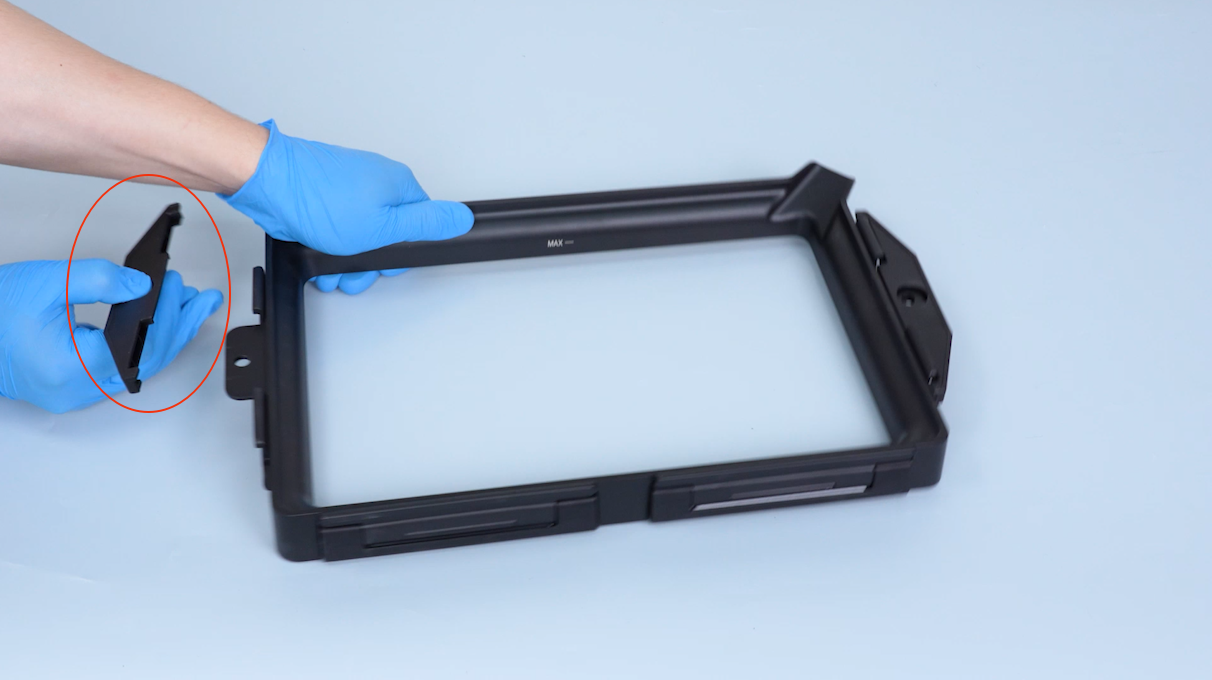

Remove the left handle of the resin tank.
-
Remove the handle on the other side in the same way.
-

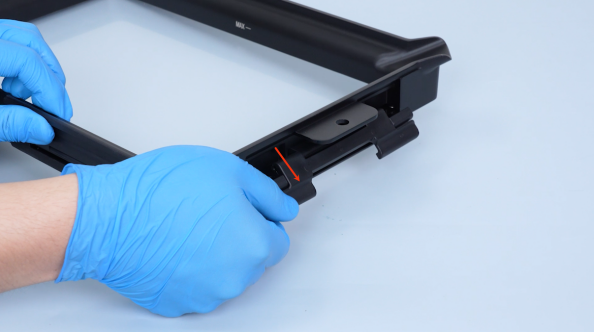

Unfasten the snaps on the front side of the resin tank.
-
Unfasten the snaps on left and right sides of the resin tank.
-
Hold the resin tank and turn the resin tank over.
-
Remove the snaps of the resin tank.
-
Remove the old release film kit.
-

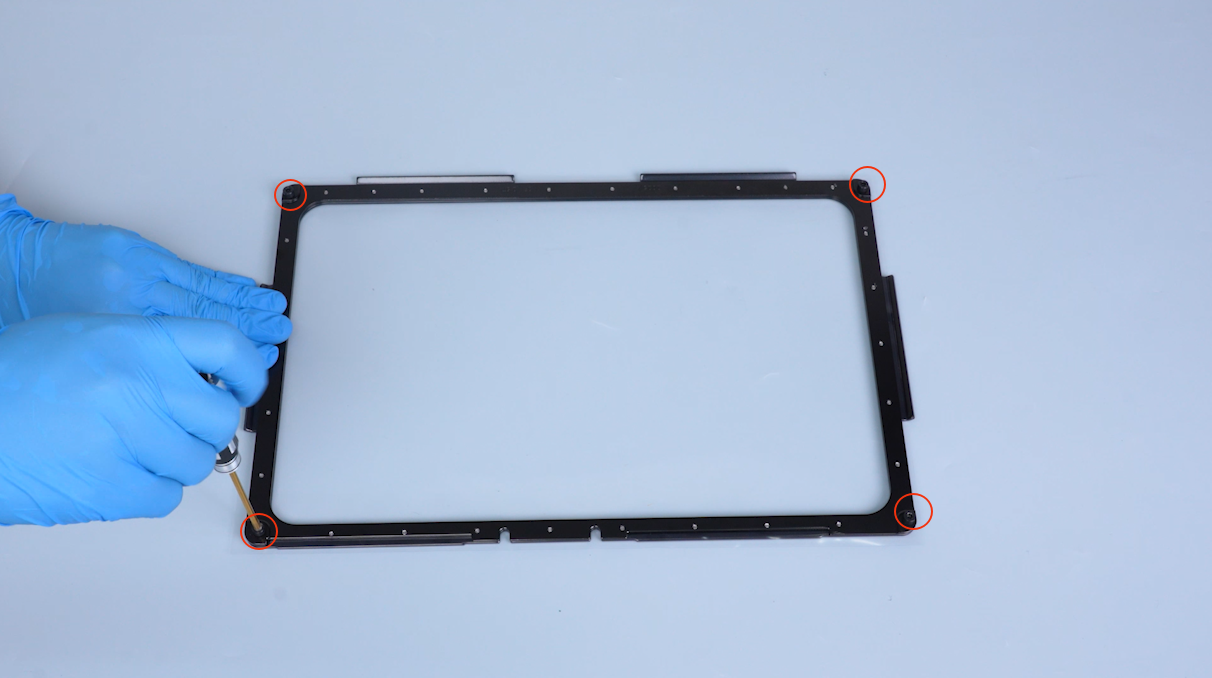

Remove the four positioning screws of the resin tank with a 3.0 mm Allen key.
-

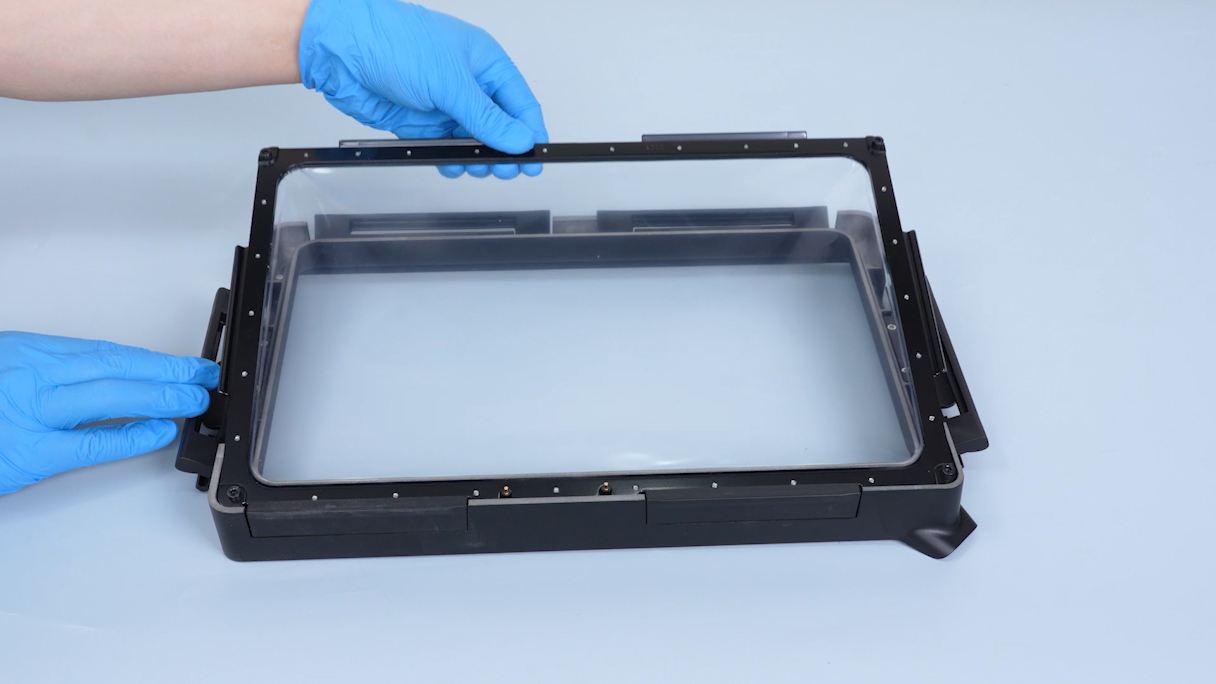

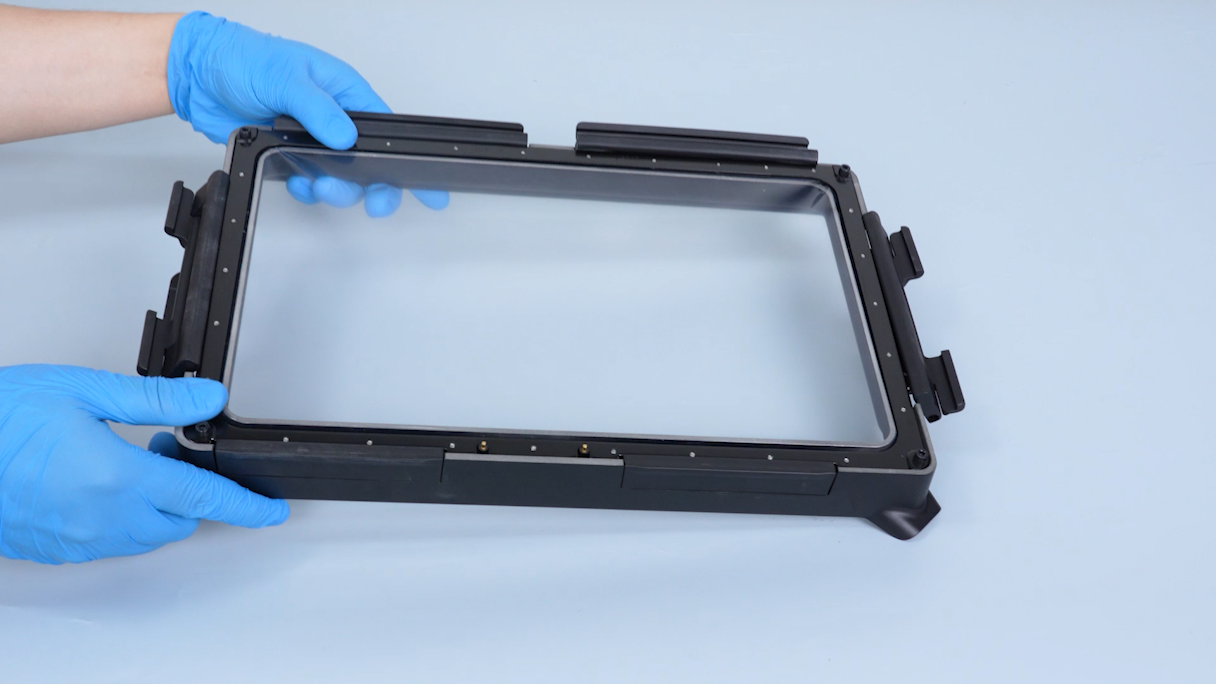

Flip the release film kit.
-

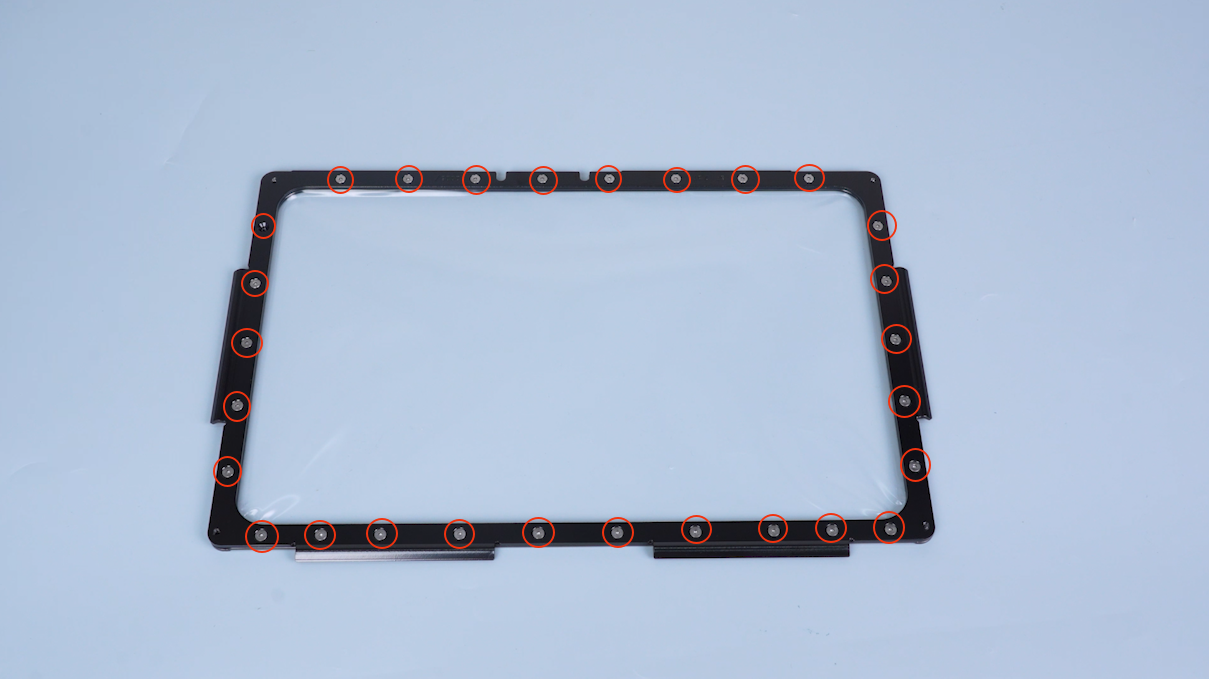

Remove the twenty-eight screws securing the resin tank pressing plate with a 2.0 mm Allen key.
-

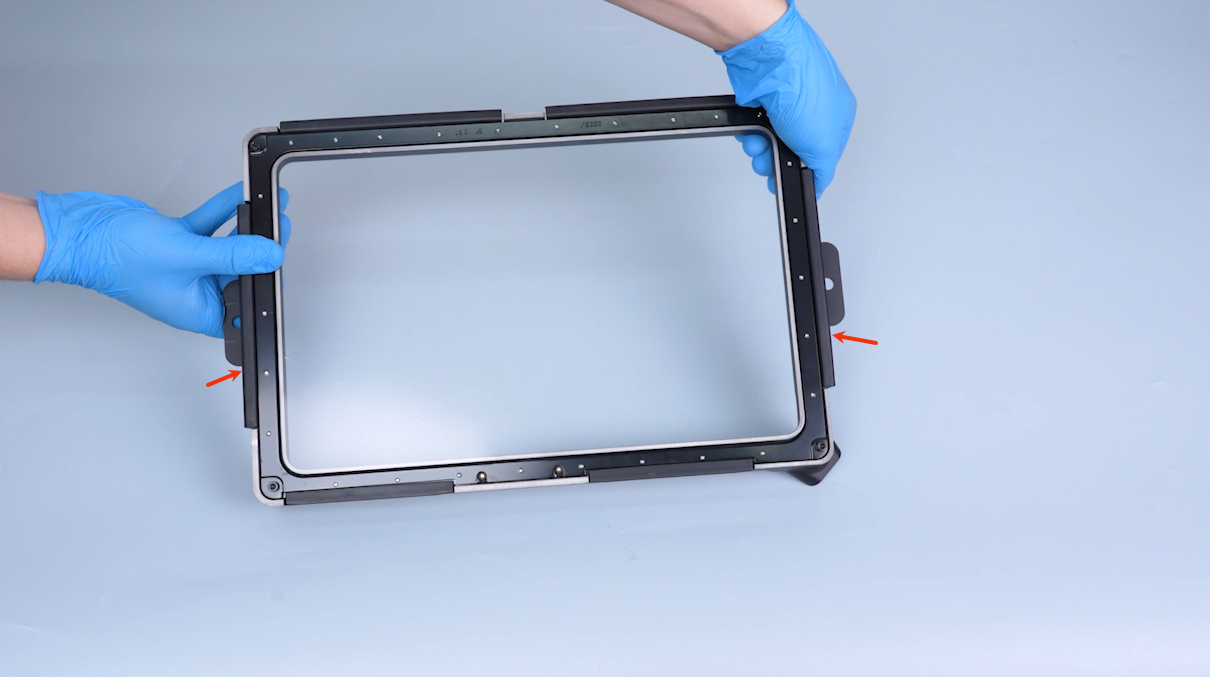

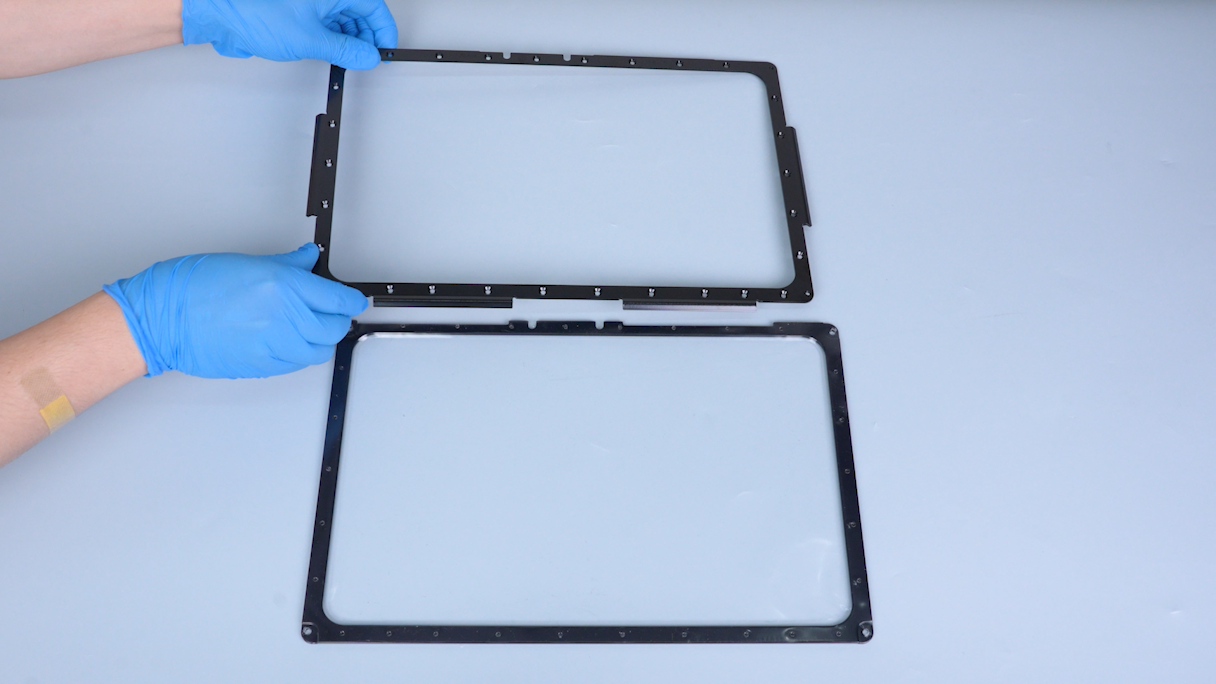

Remove the upper pressing plate.
-

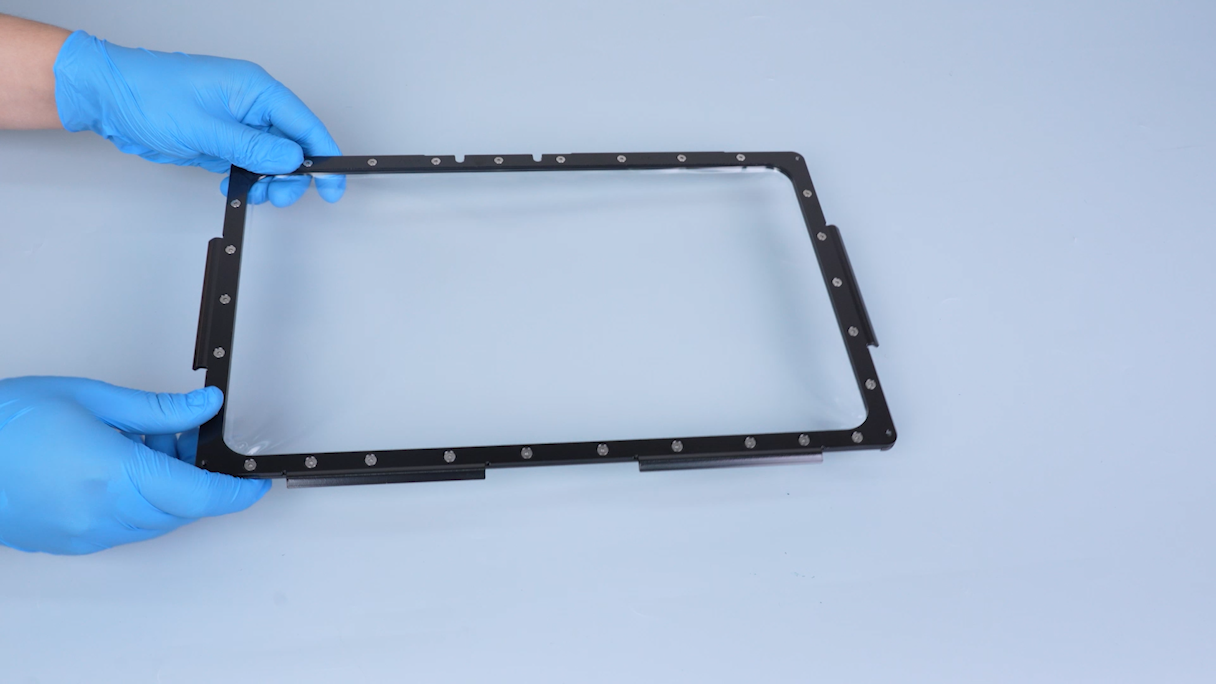

Remove the old release film.
¶ Install the new release film
-

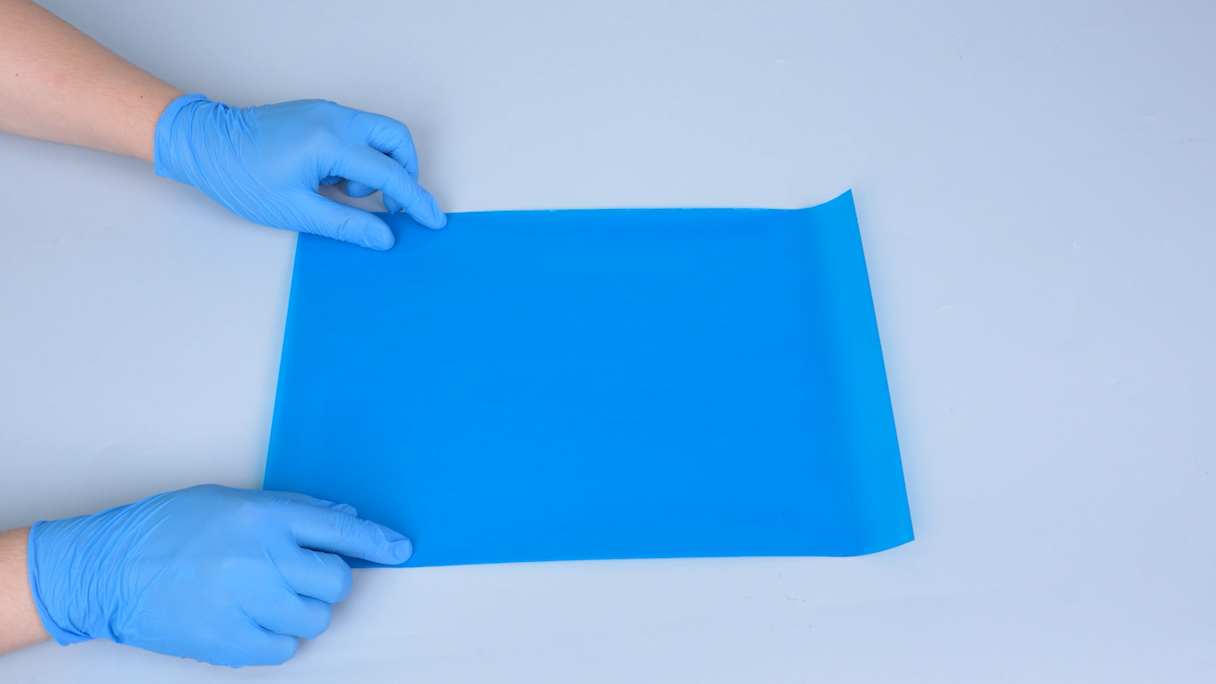

Get the new release film and place it temporarily on the table.
-

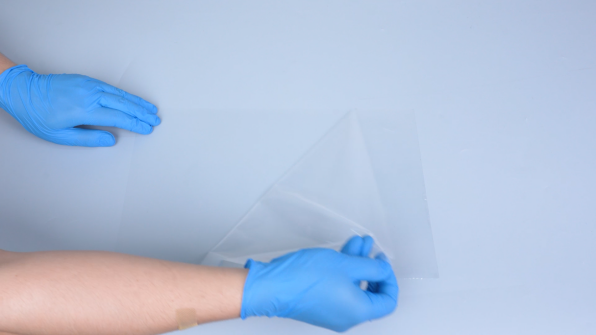

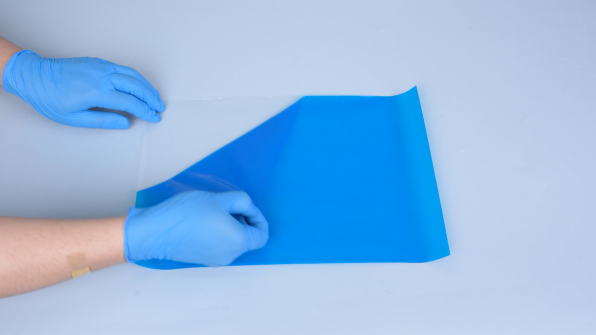

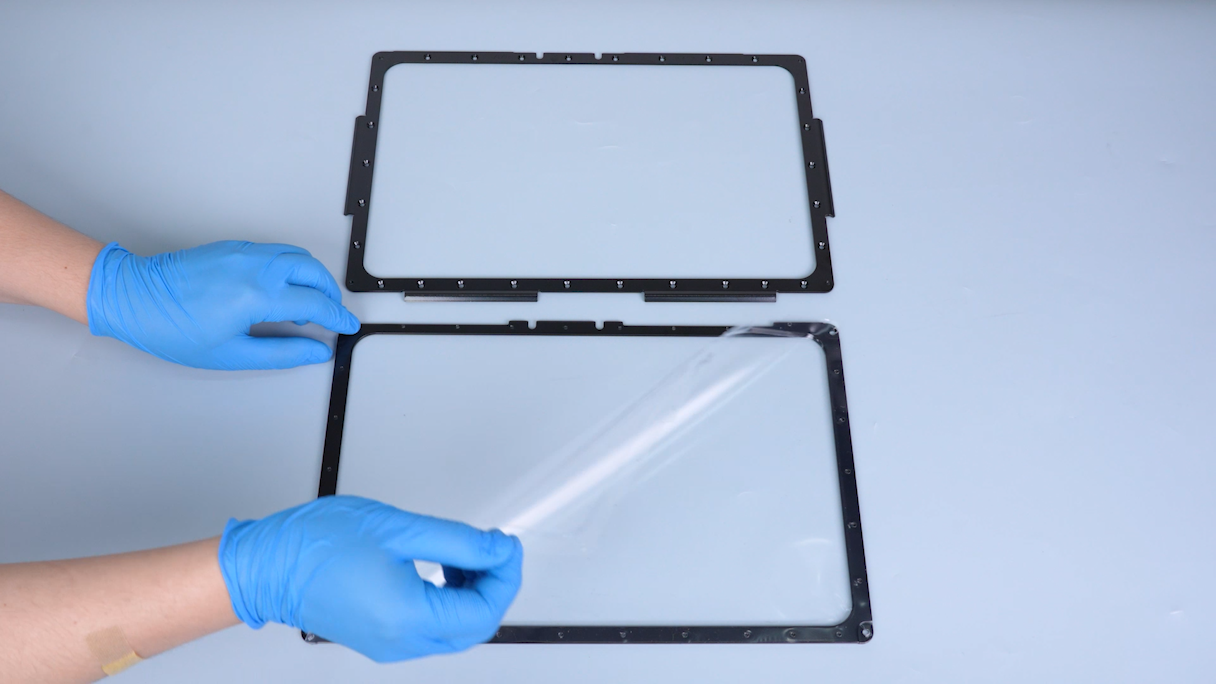

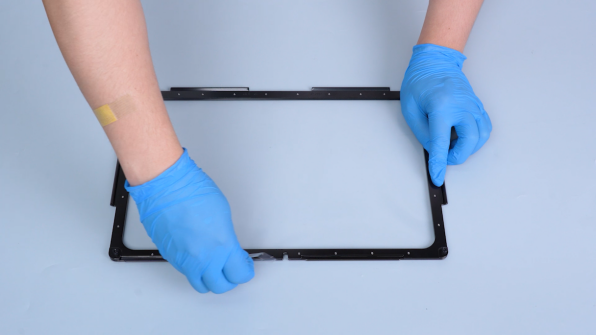

Peel off the protective film from both sides of the new release film.
-

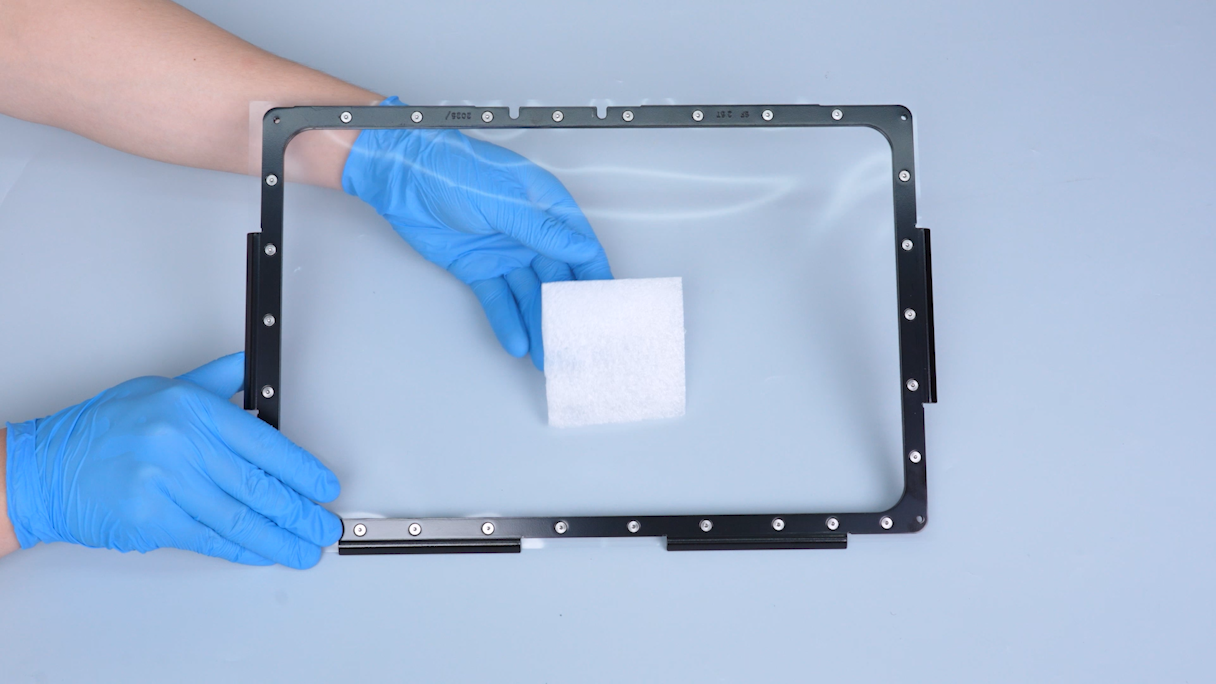

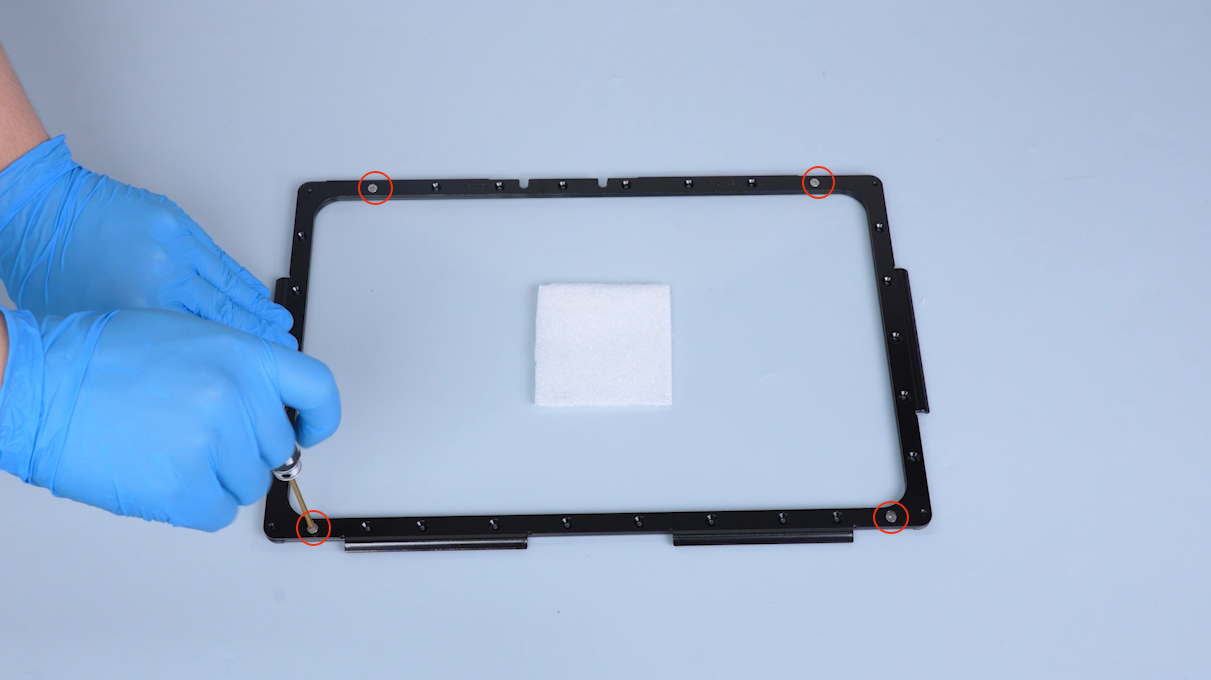

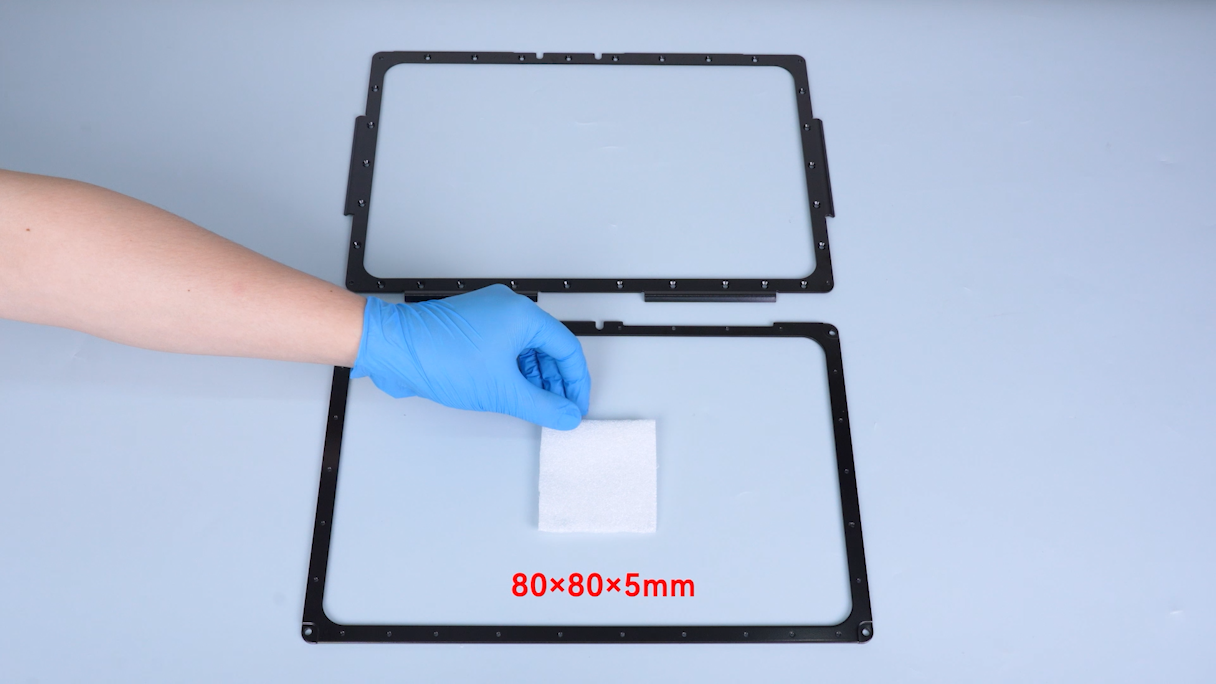

Place a piece of foam cotton measuring 80 × 80 × 5 mm in the center of the pressing plate.
-

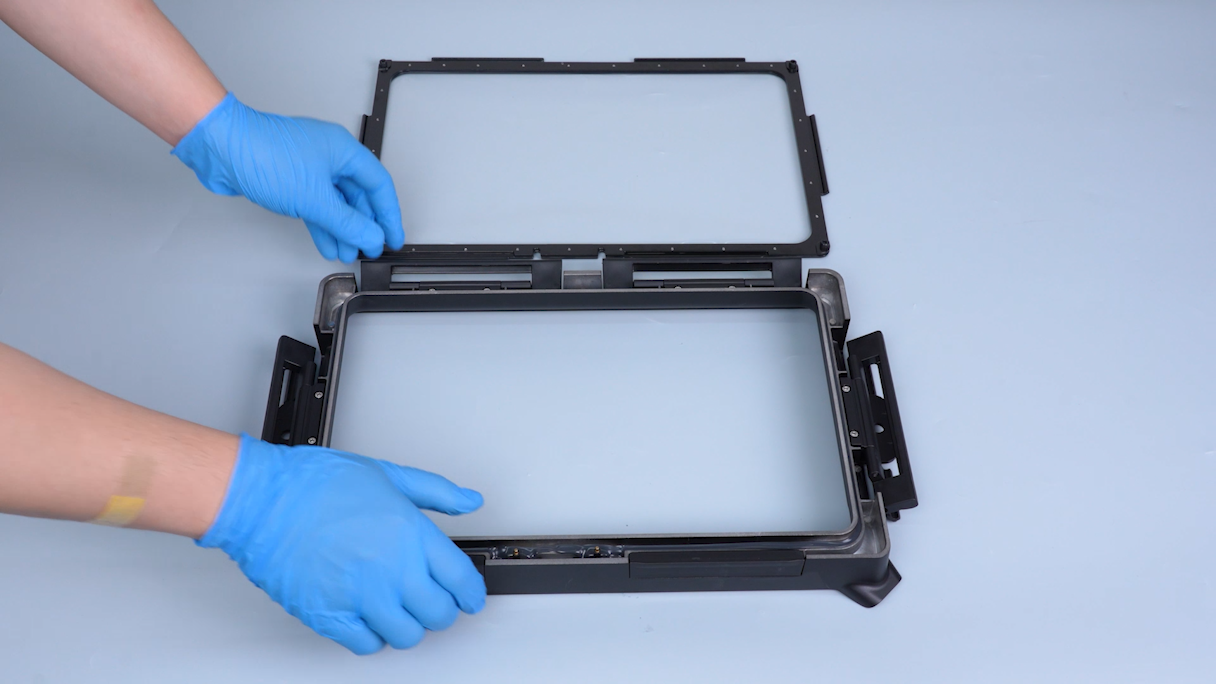

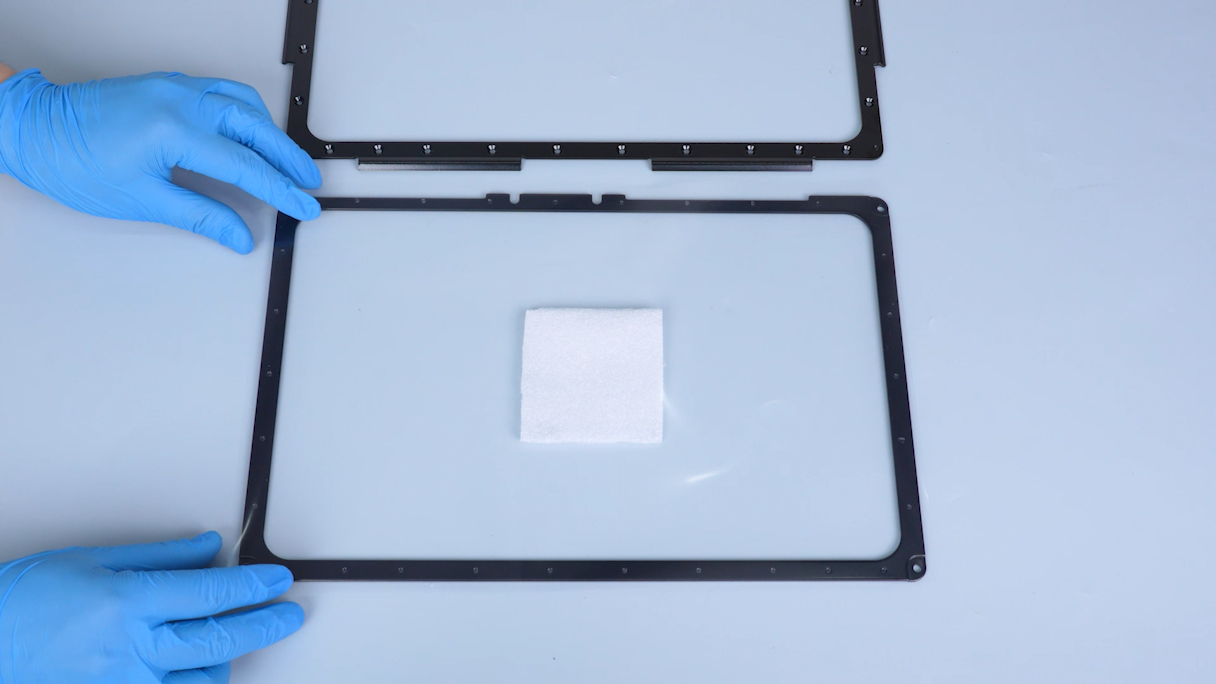

Place the new release film above the pressing plate.
-

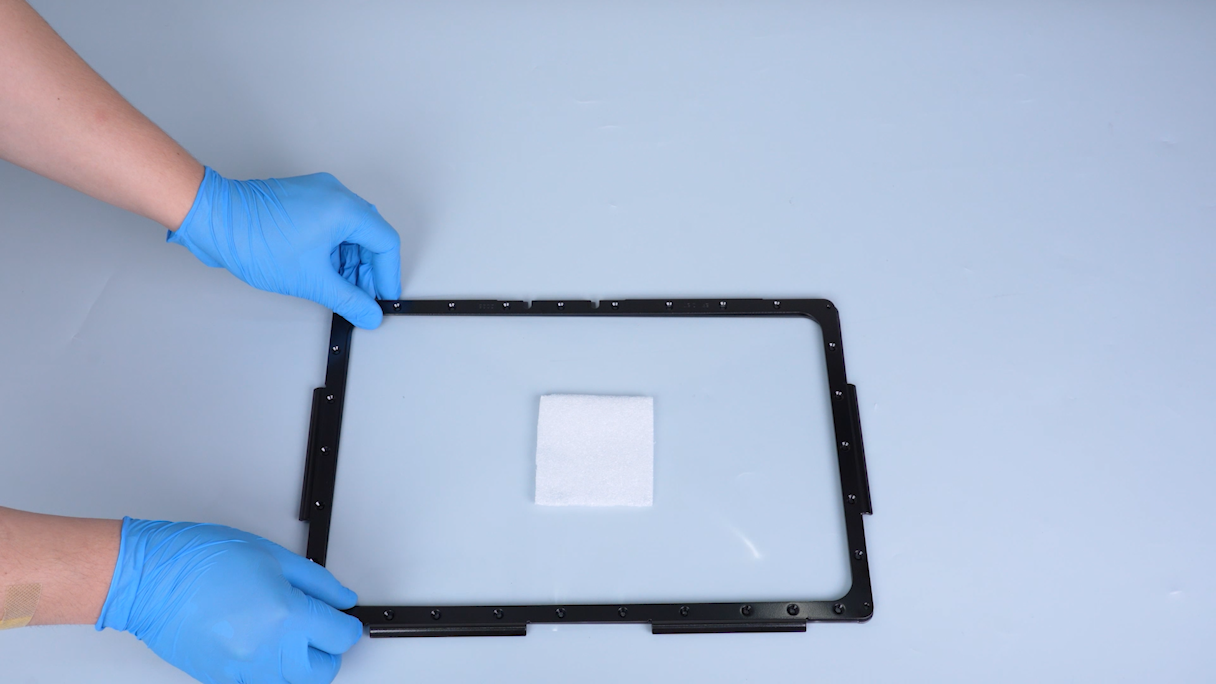

Put the upper pressing plate in place.
-

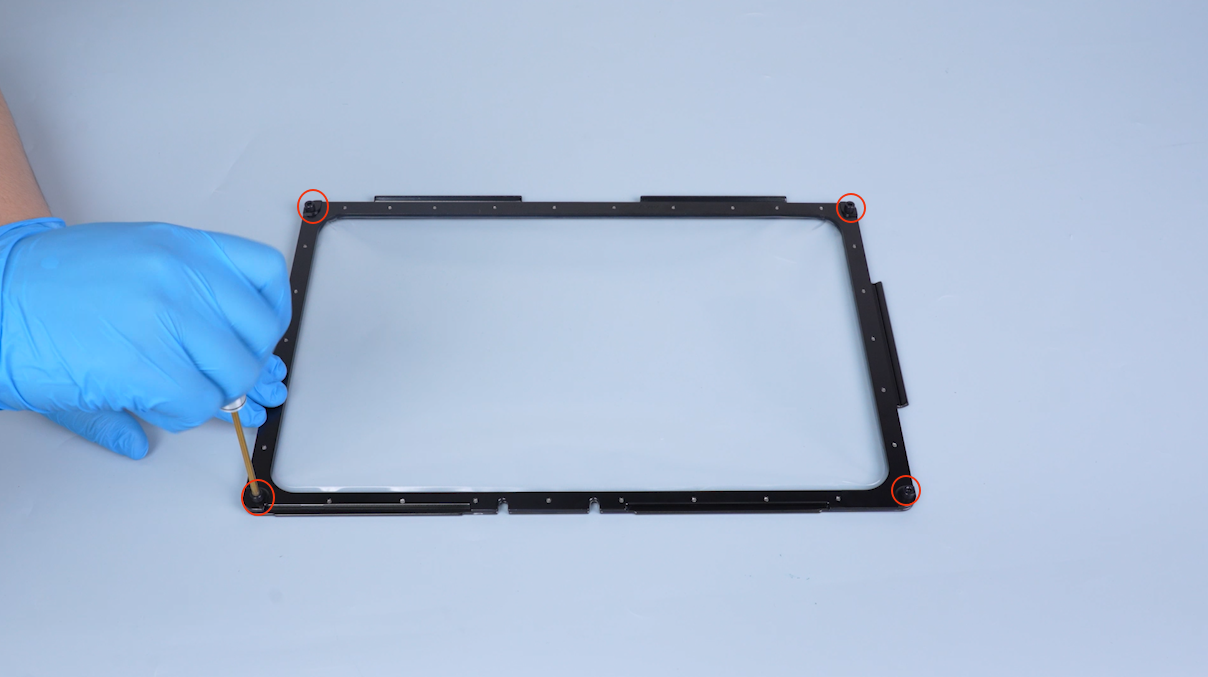

Press down on the pressing plate and tighten the four screws on the edge of the pressing plate.
-

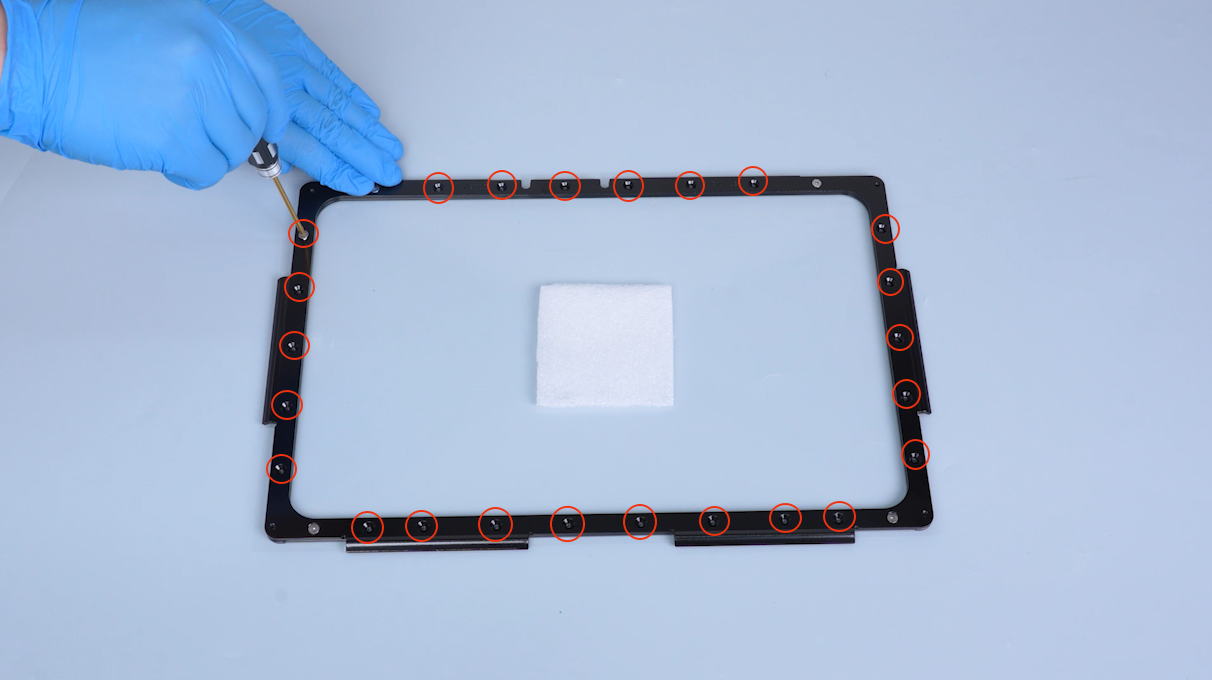

Tighten the other 24 screws securing the pressing plate.
-
Remove the cotton foam.
-

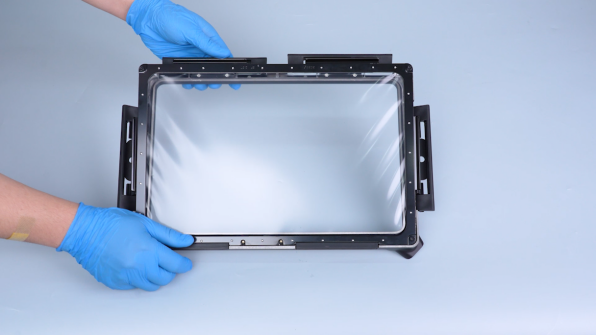

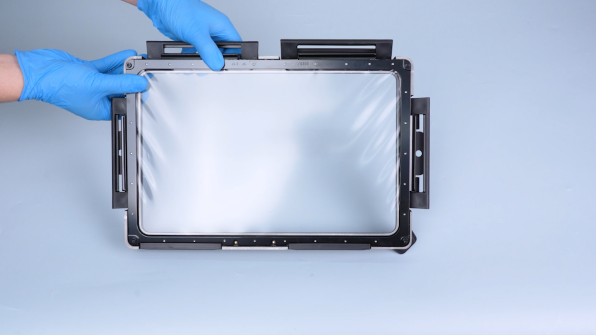

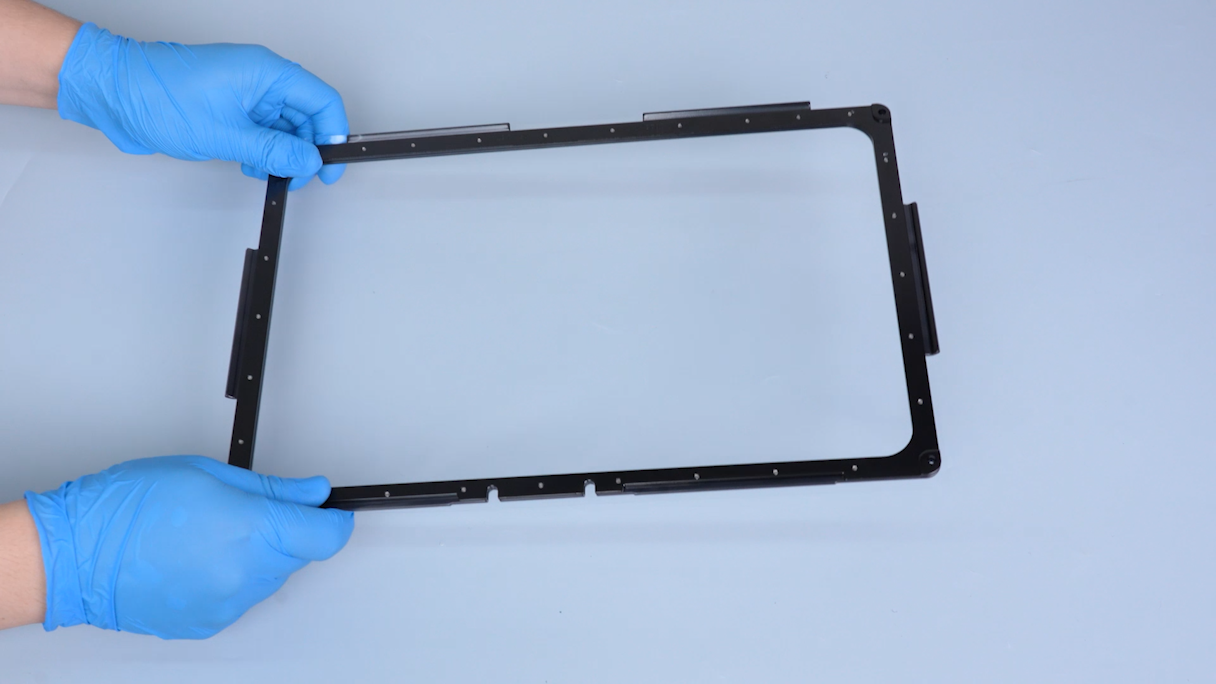

Turn the release film kit over.
-
Tighten the four positioning screws of the resin tank.
-

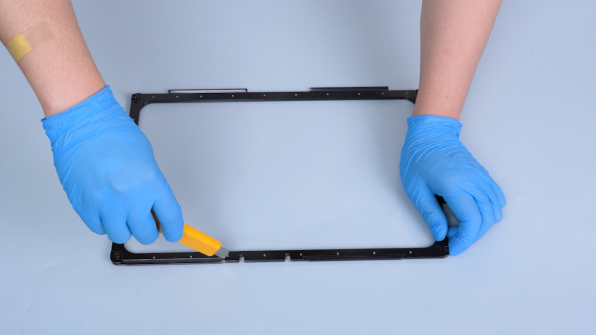

Cut off the release film around the edge of the pressing plate with a utility knife and remove the release film from the edges.
Note: The utility knife is sharp. Use it with care to avoid cutting your fingers.
-

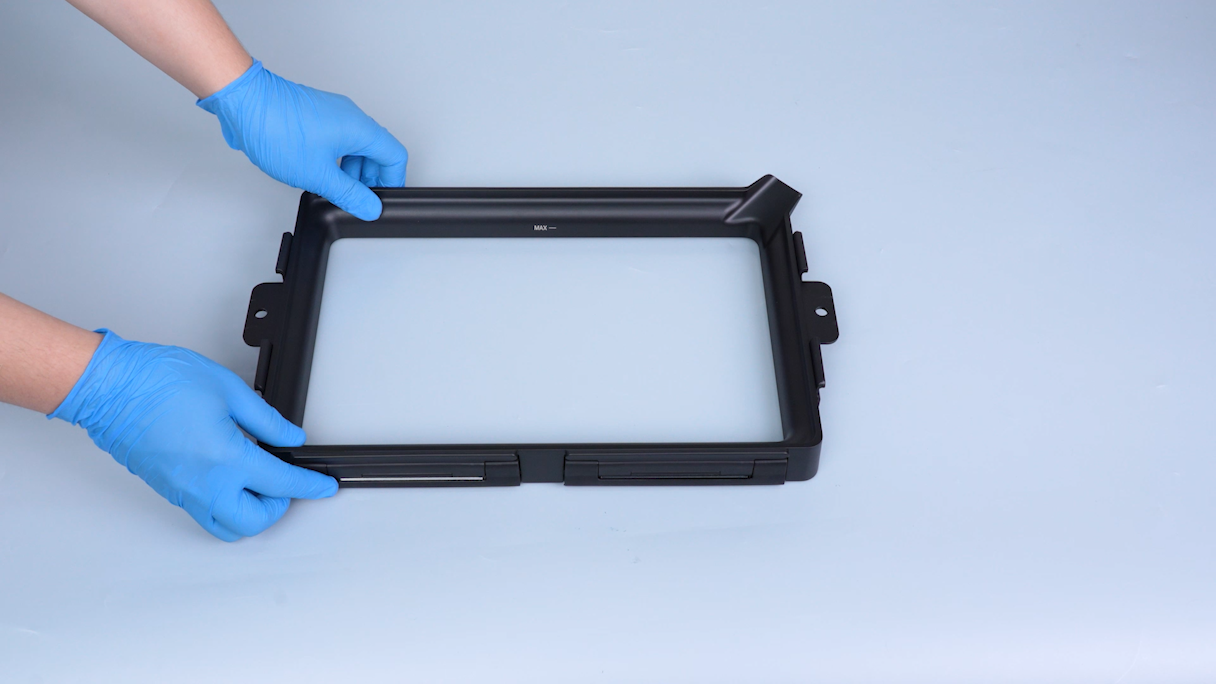

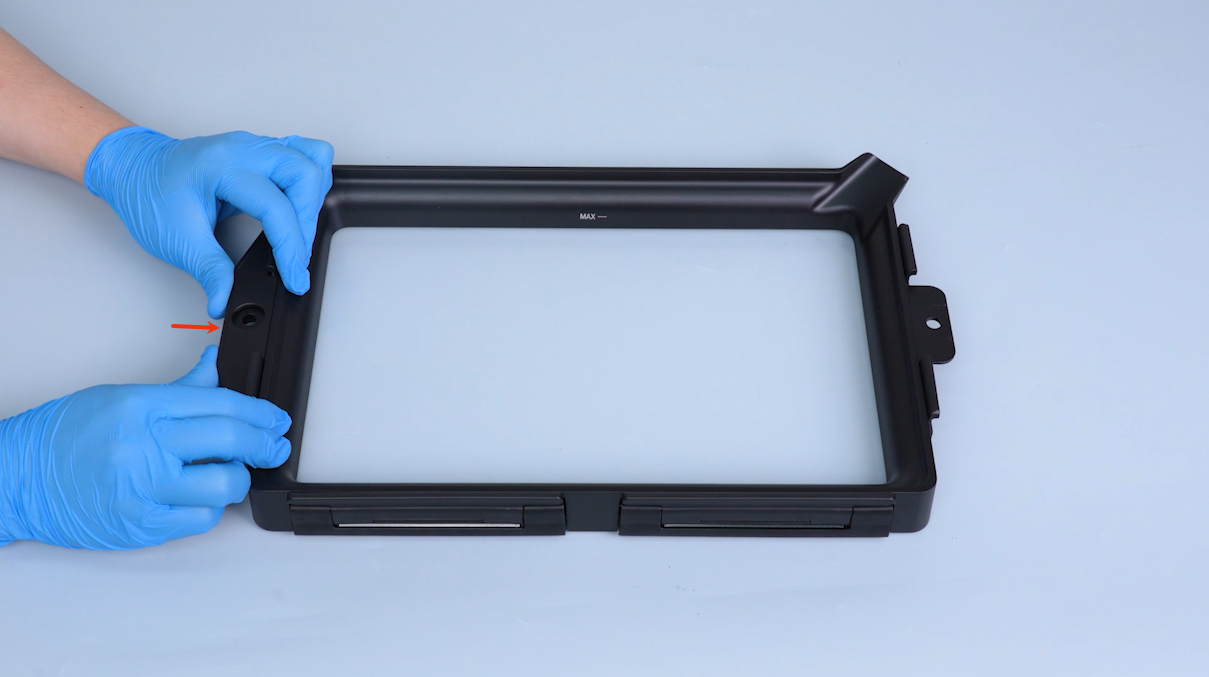

Get the resin tank frame and place it temporarily on the table.
-

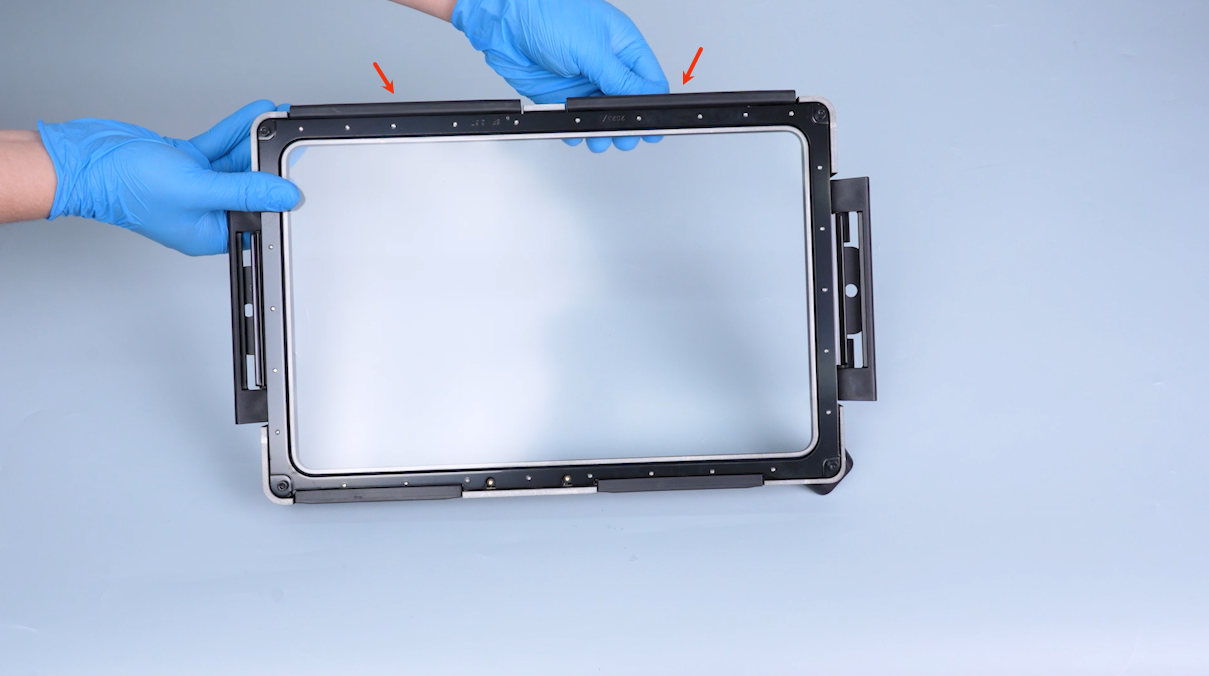

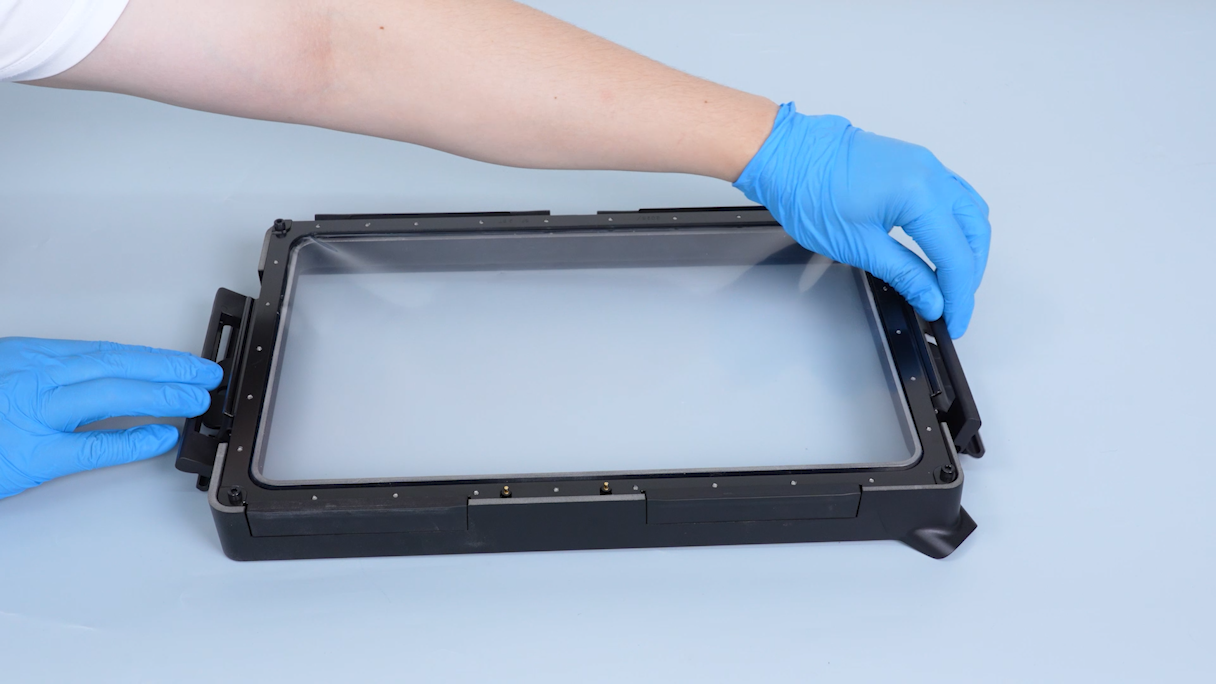

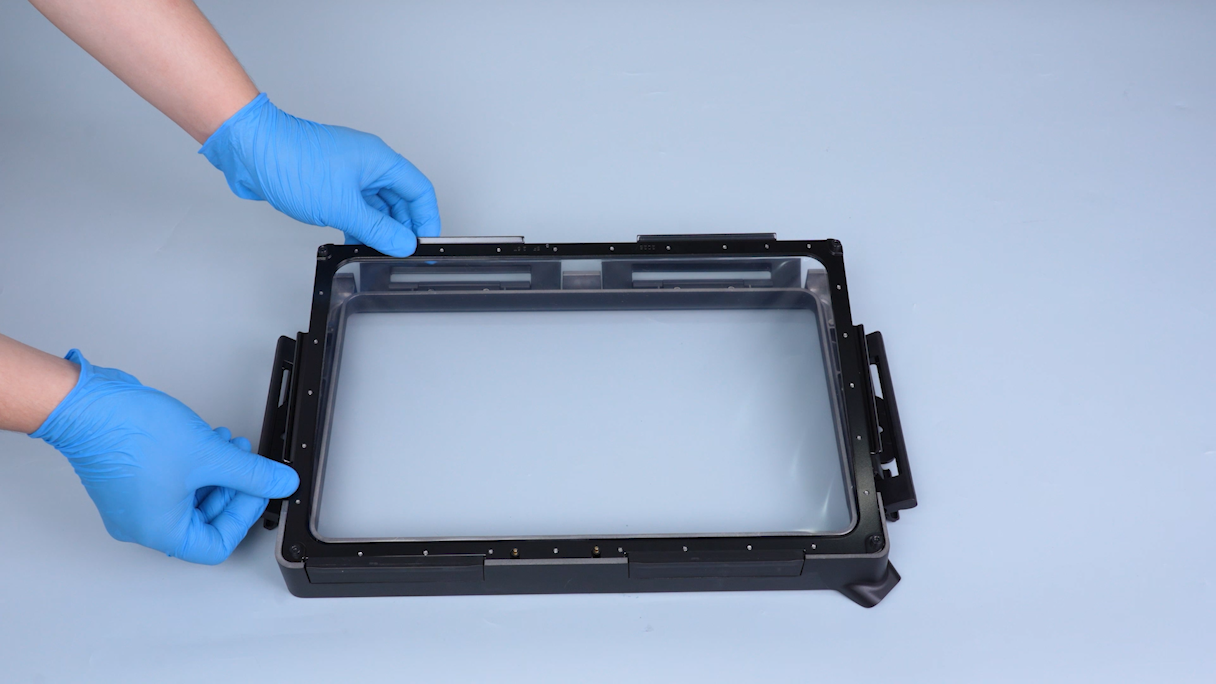

Align the groove of the release film kit with the resin tank and place it in position.
-
Lift the resin tank and press down on the release film kit.
-

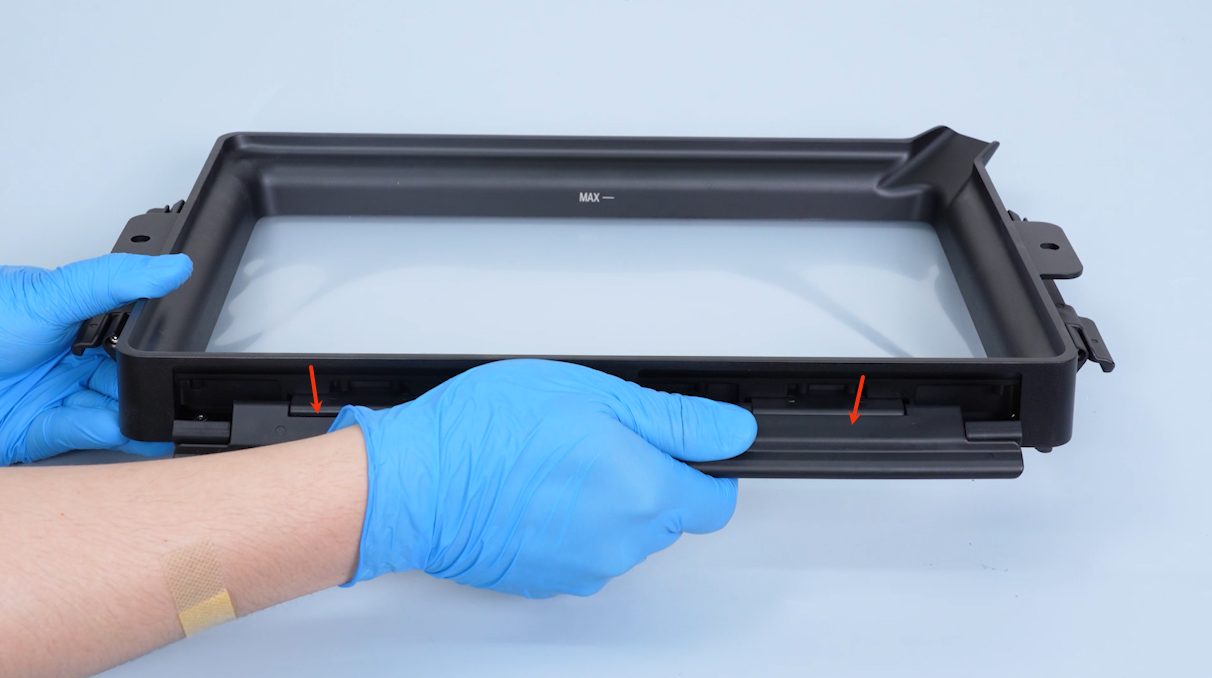

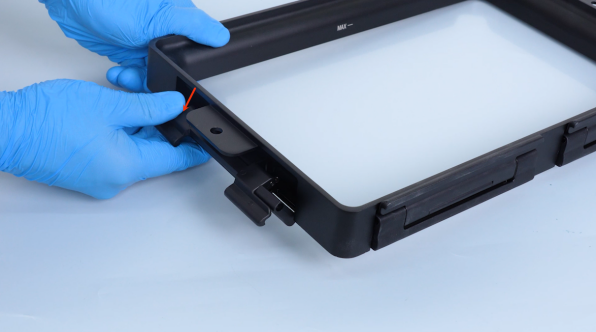

Fasten the upper snap.
-
Fasten the snaps on the right and left sides.
-
Turn the resin tank over.
-

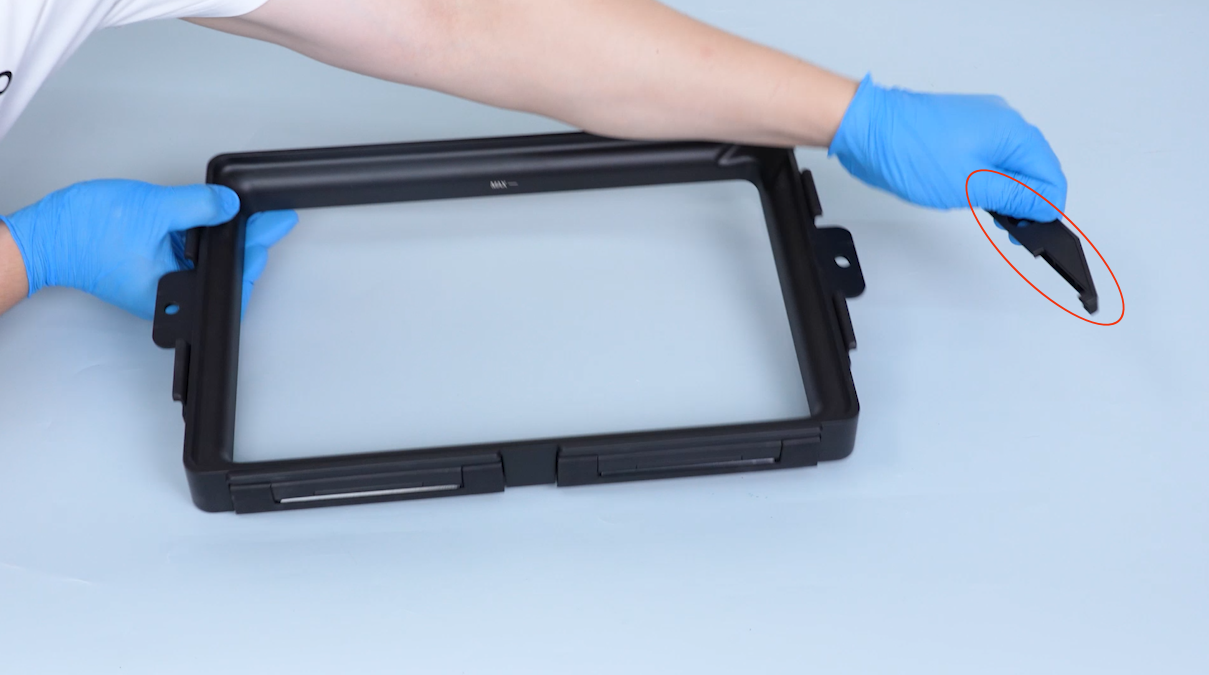

Install the left handle.
-
Install the right handle.
-
Place the resin tank back in position.
-
Tighten the two knob screws.
-
Remove the sealed bag.
-
Restore the automatic resin feeding inlet.
-
The release film is replaced successfully.
