A 3.0 mm Allen key
A 2.0 mm Allen key
A new PFA release liner film

Turn the power switch OFF (symbol "〇") and unplug the power supply cable.

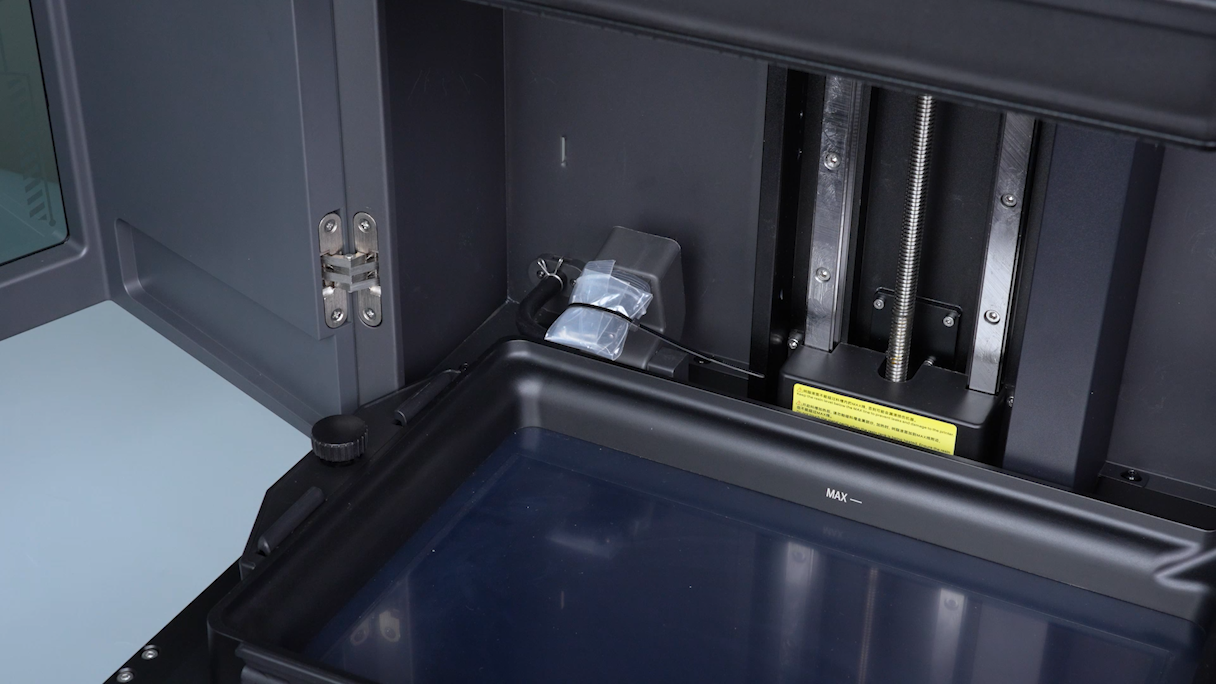

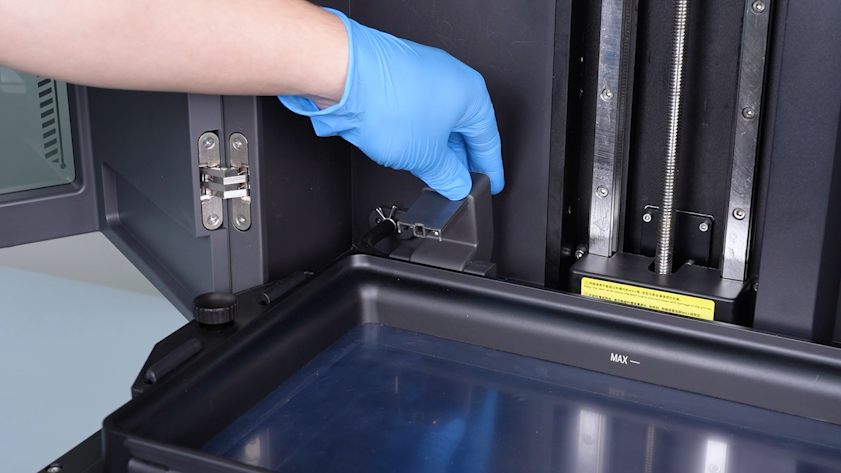

Lift the automatic resin feeding inlet.

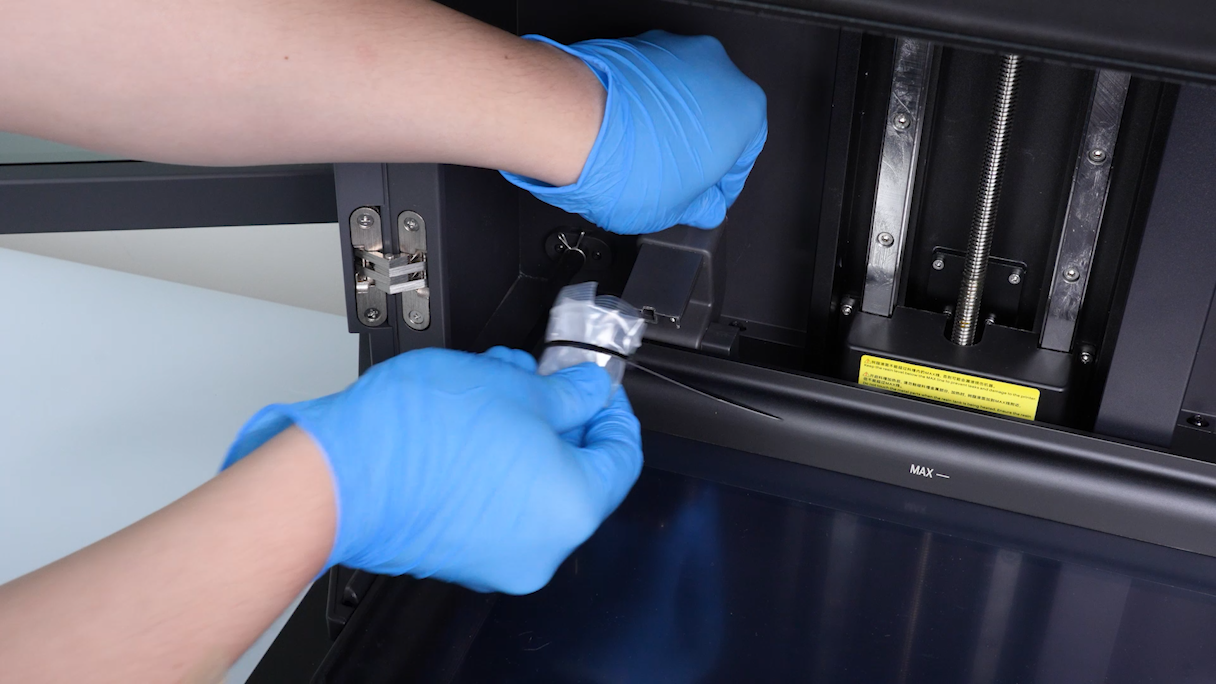

Seal the inlet with a bag and a cable tie to prevent the resin from dripping.

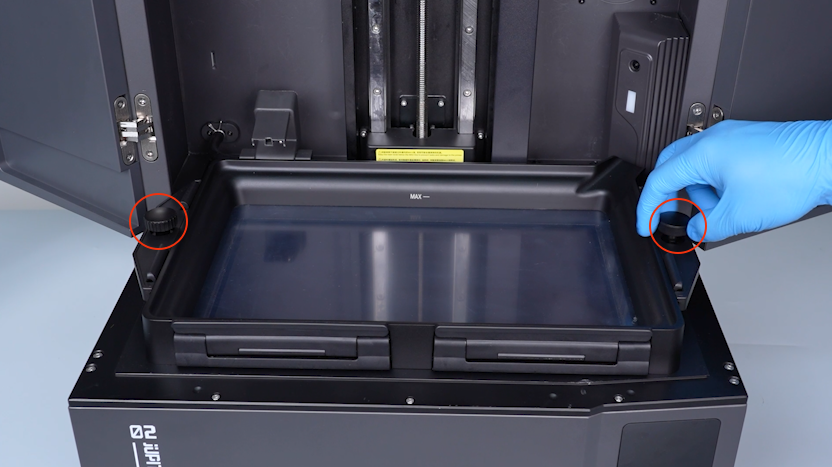

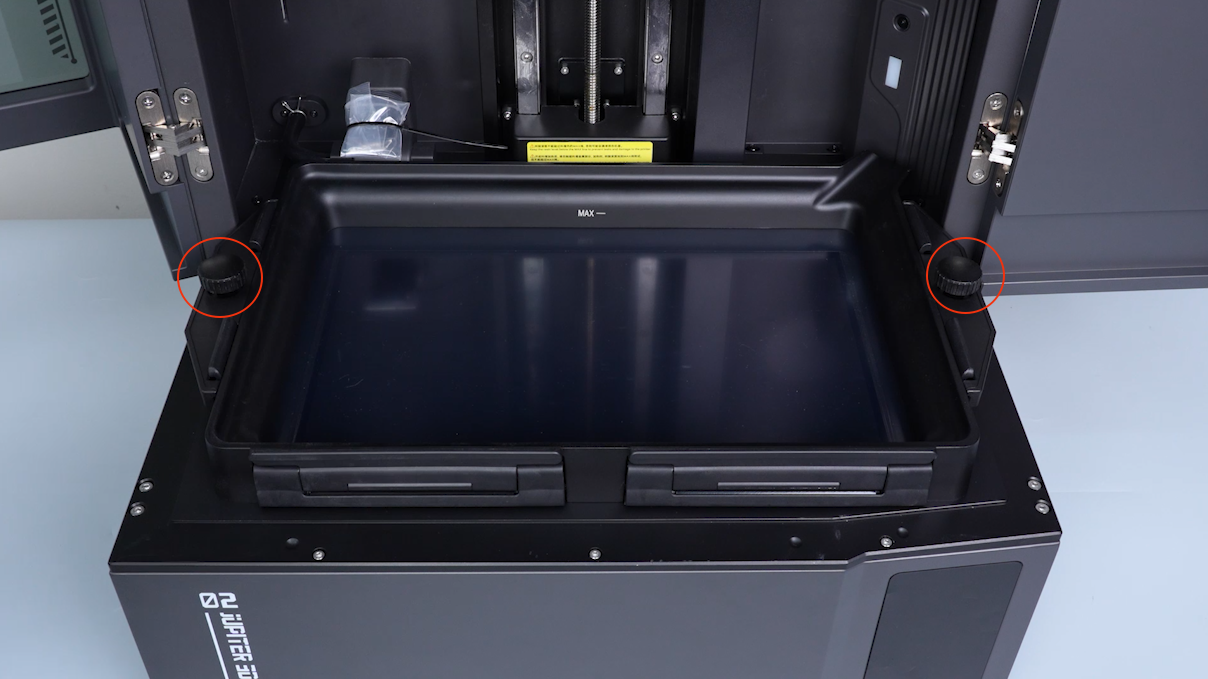

Remove the two knob screws.

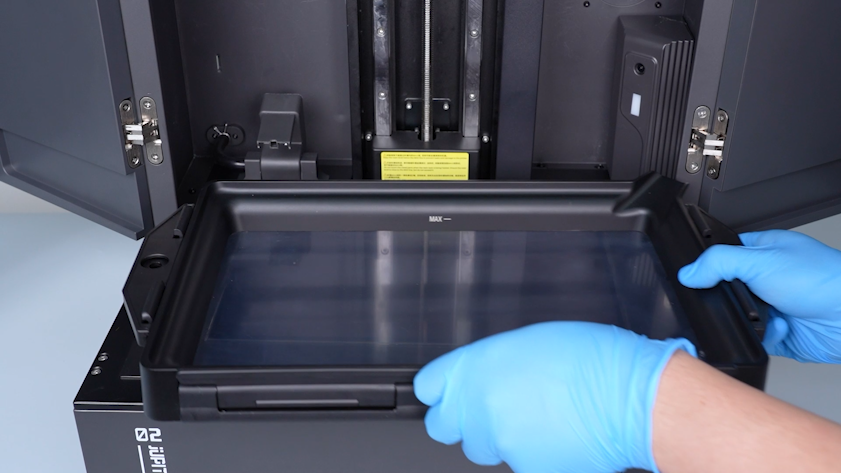

Remove the resin tank.

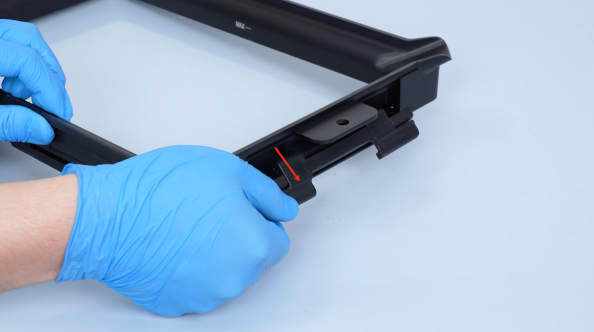

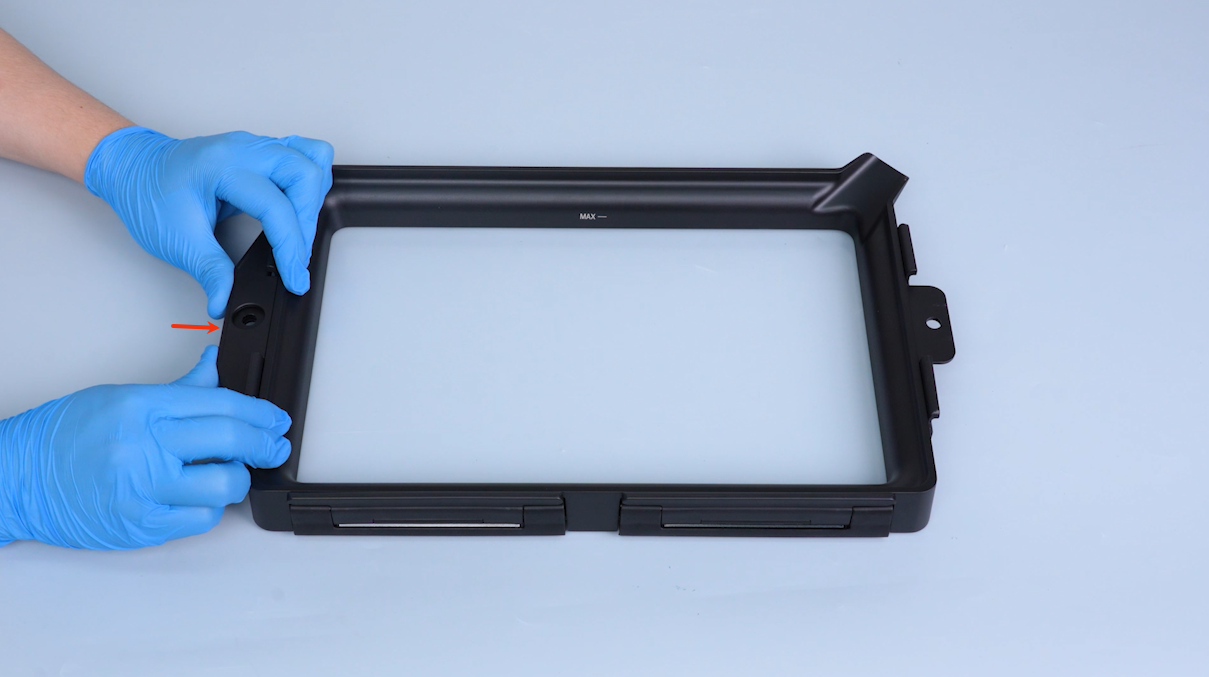

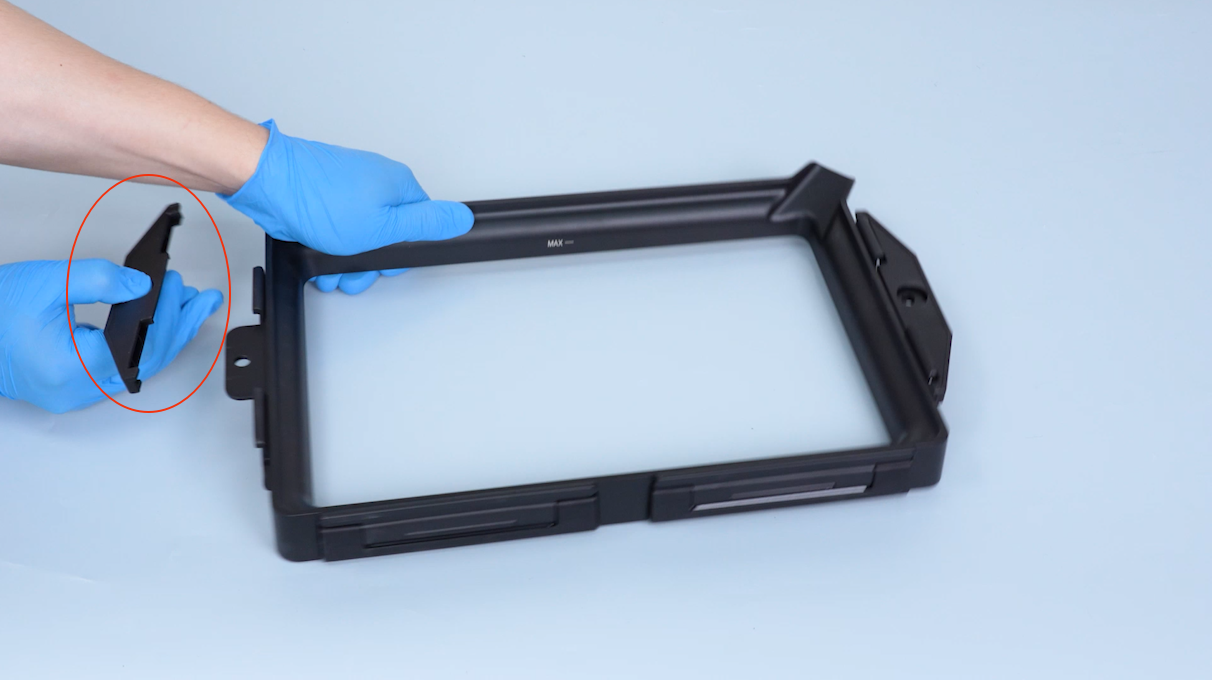

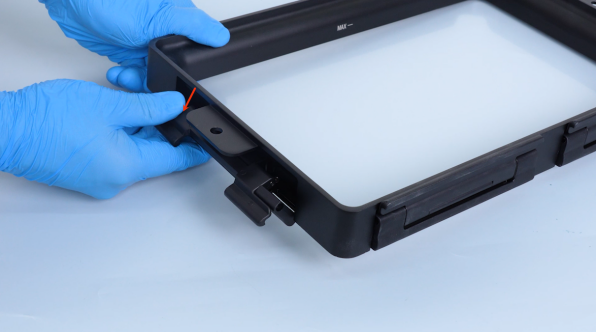

Remove the left handle of the resin tank.

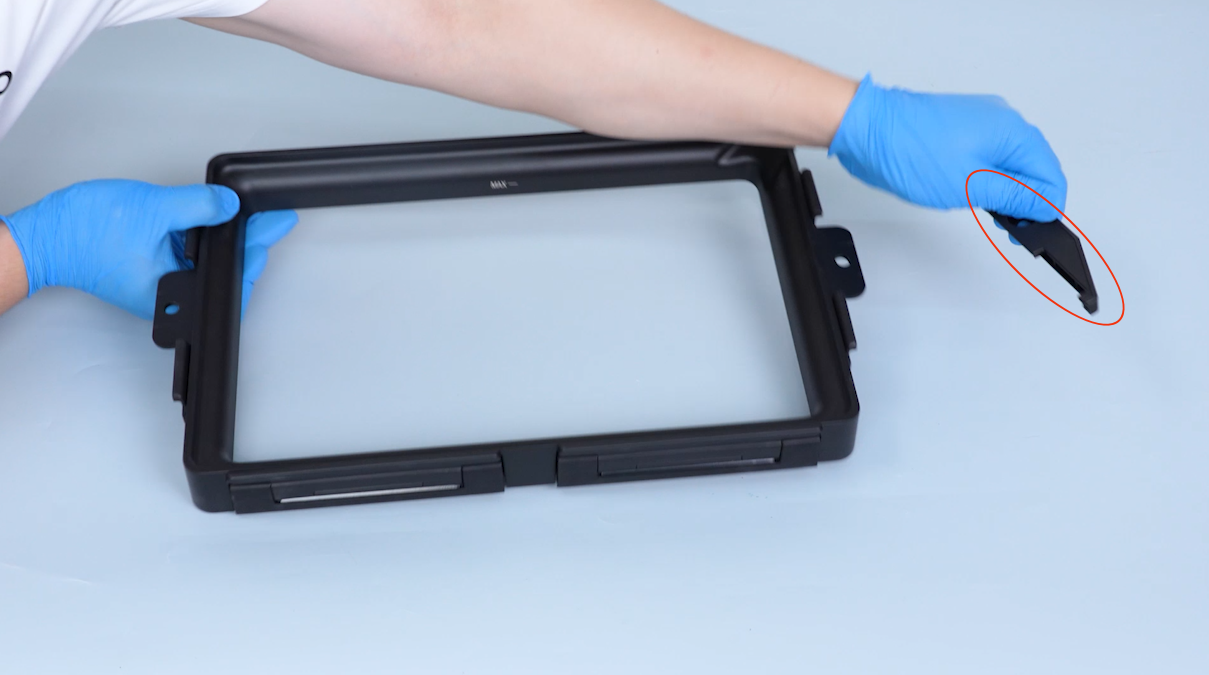

Remove the handle on the other side in the same way.

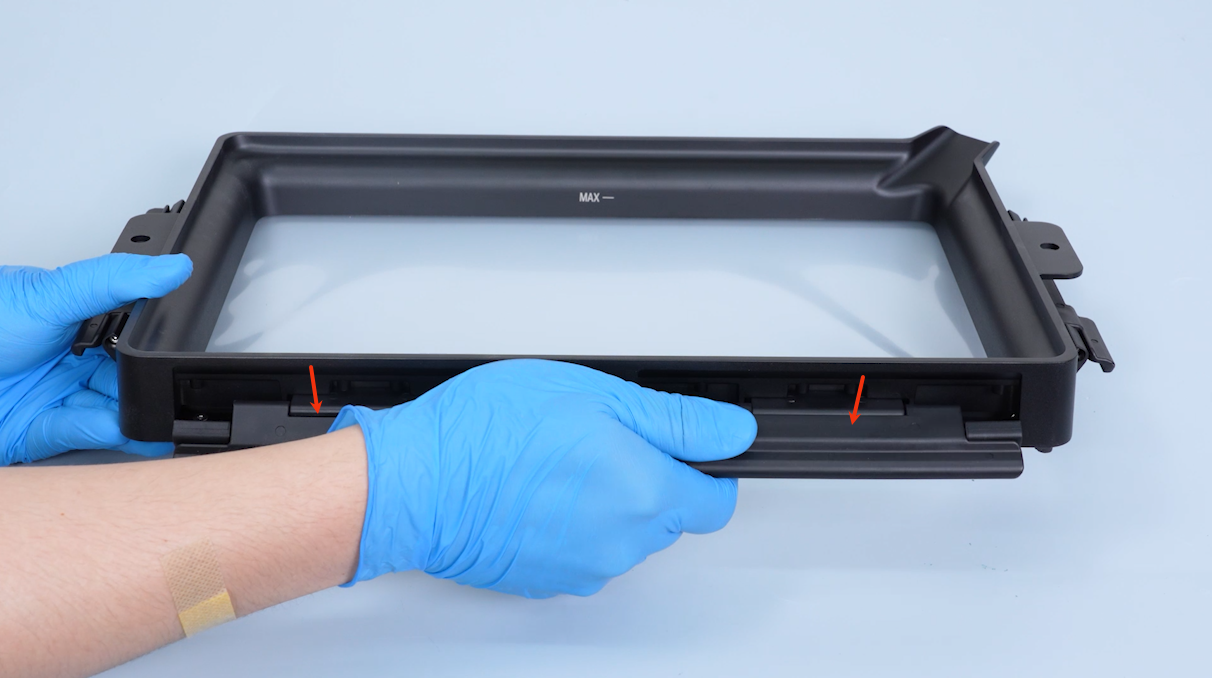

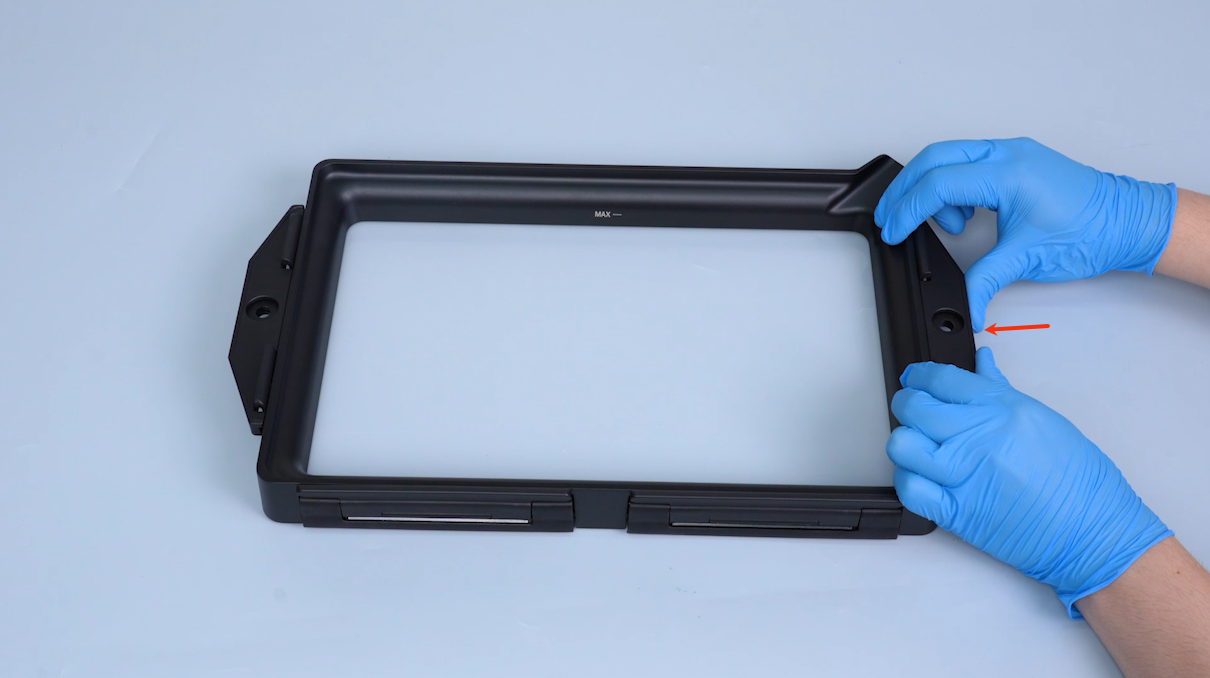

Unfasten the snaps on the front side of the resin tank.

Unfasten the snaps on left and right sides of the resin tank.

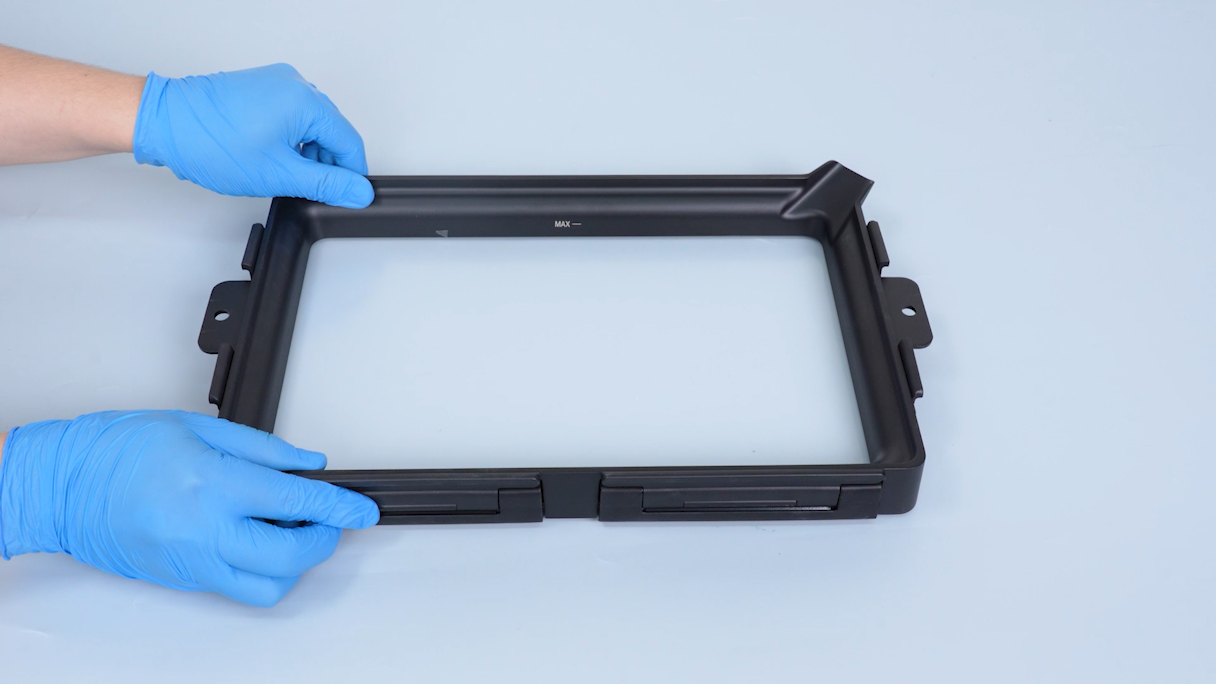

Hold the resin tank and turn the resin tank over.

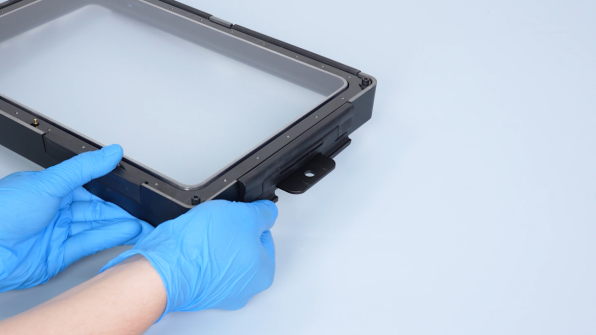

Remove the snaps of the resin tank.

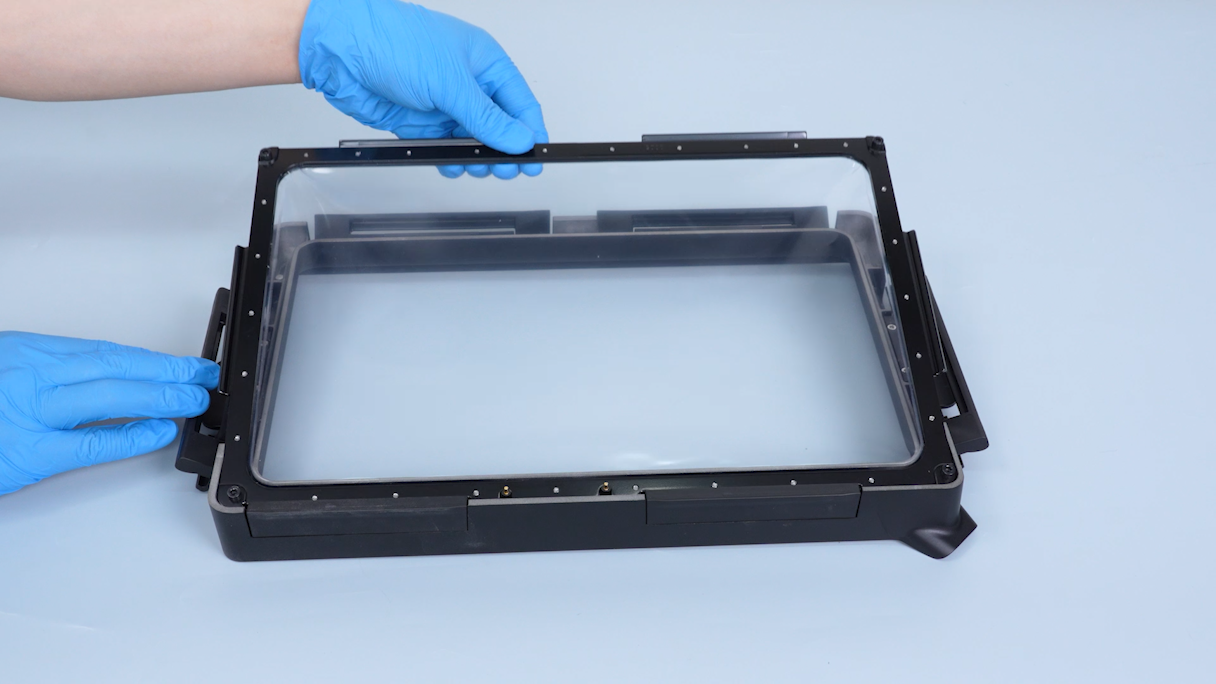

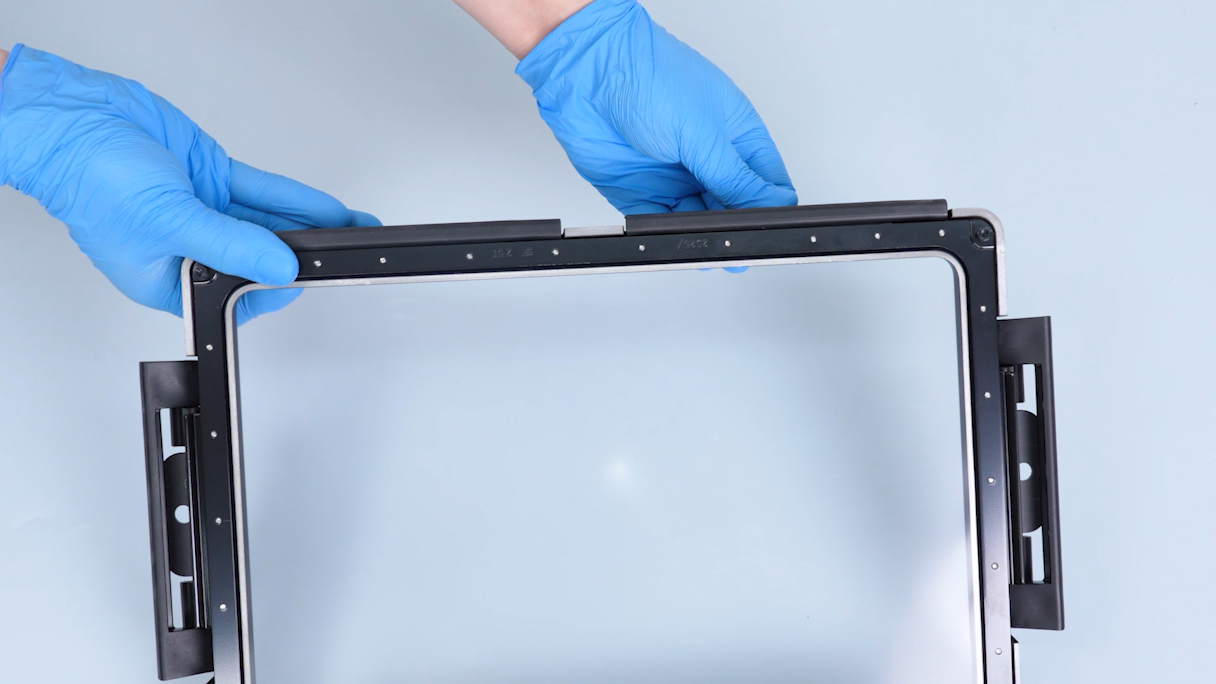

Remove the old release film kit.

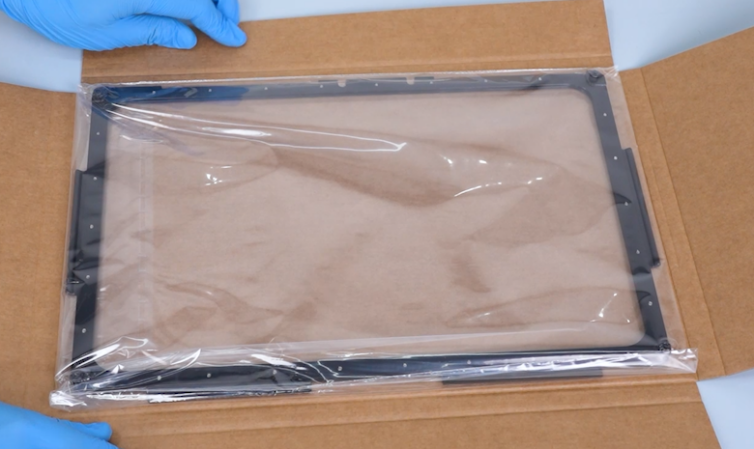

Get the new PFA release liner film and place it temporarily on the table.

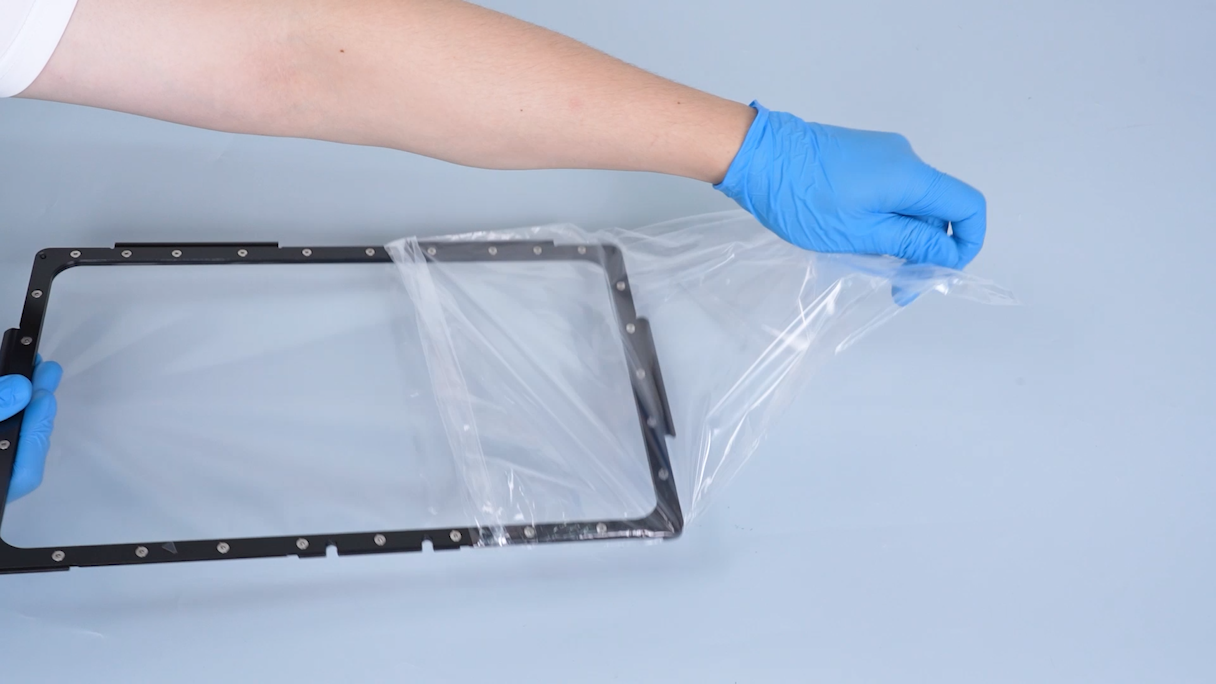

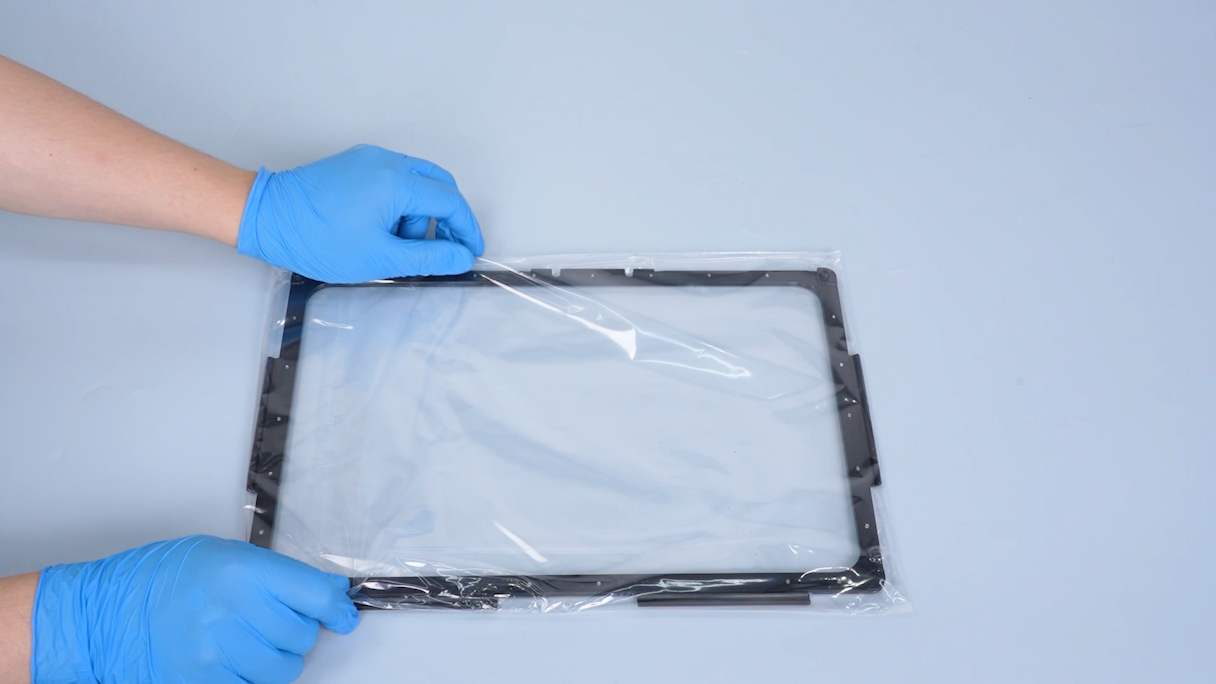

Take it out from the package.

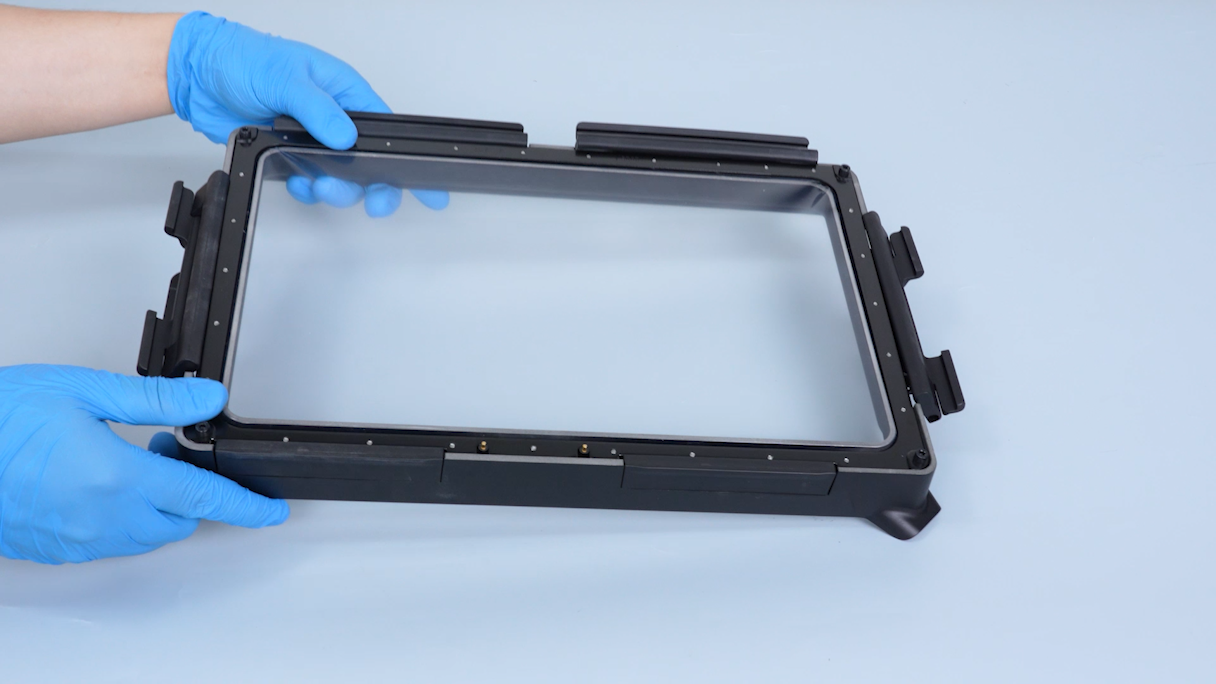

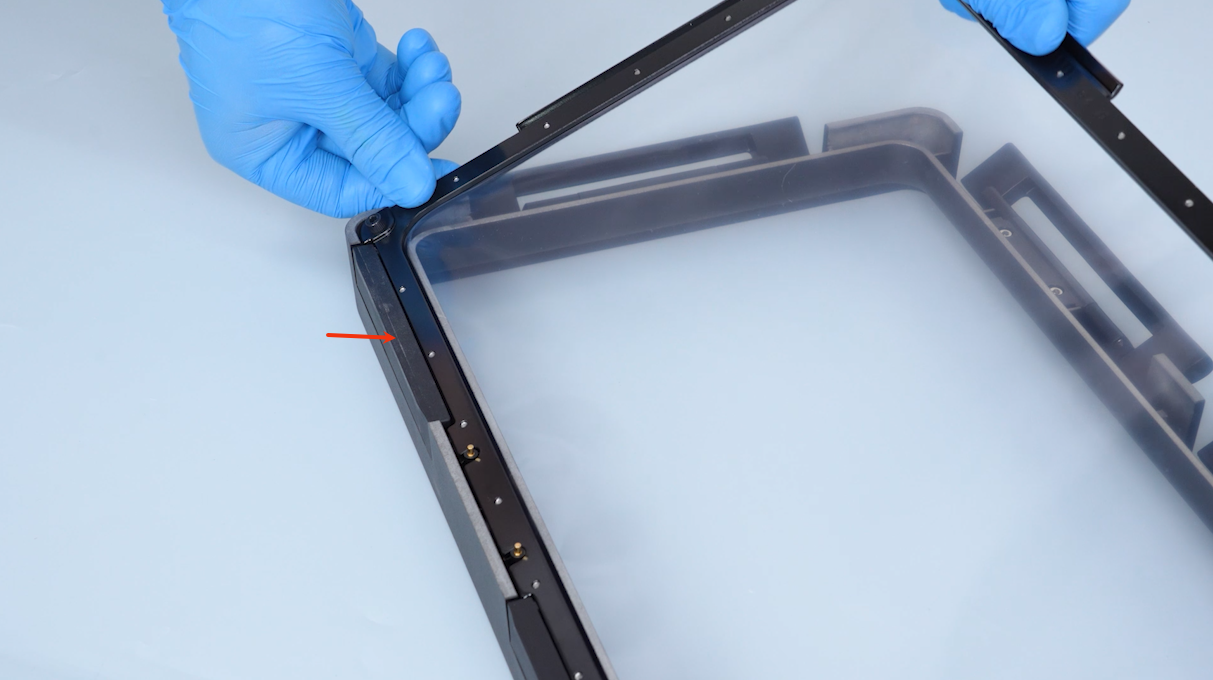

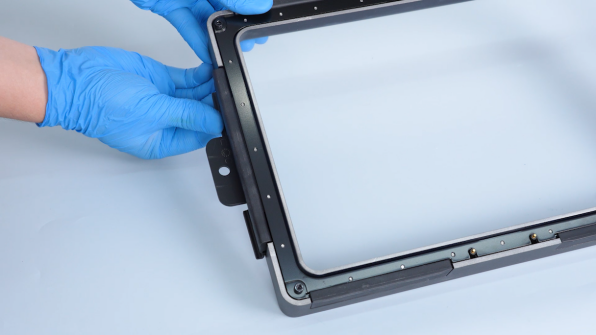

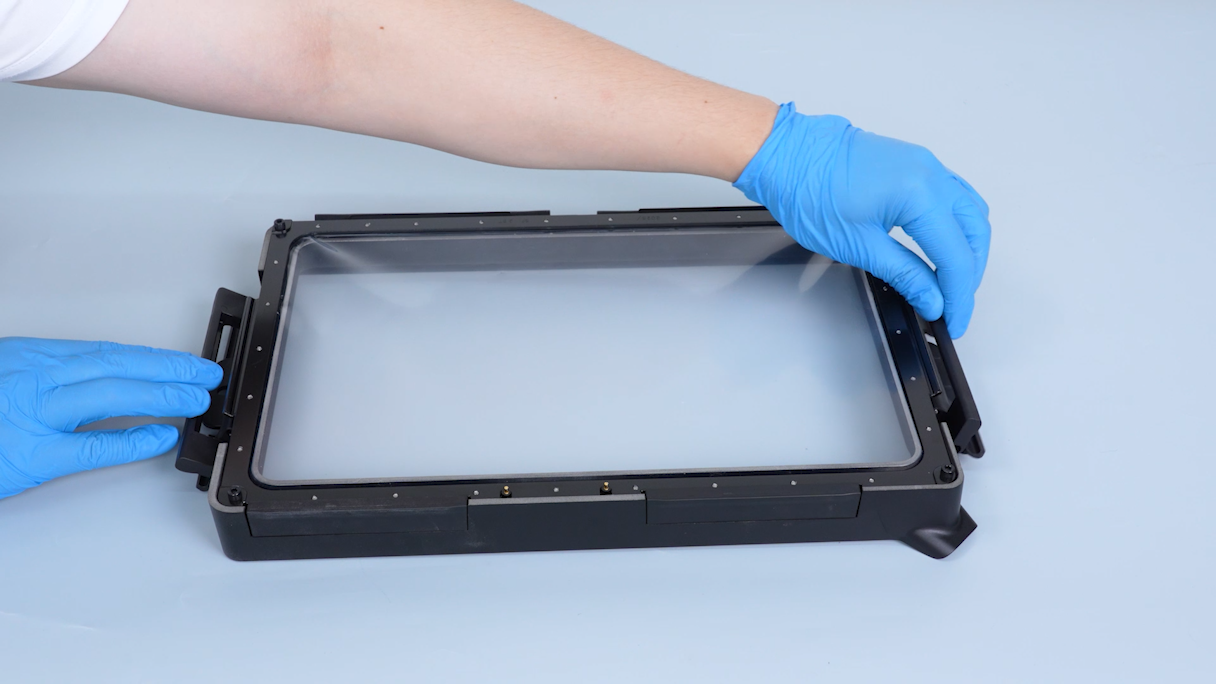

Align the groove of the release film kit with the resin tank and place it in position.

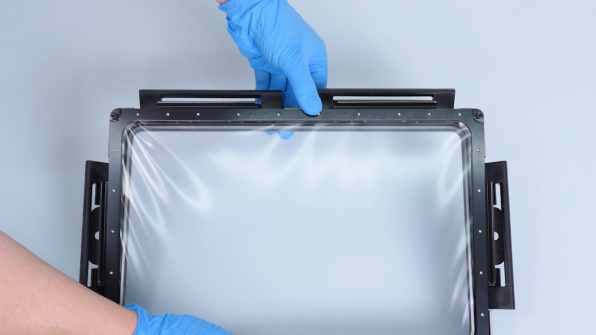

Lift the resin tank and press down on the release film kit.

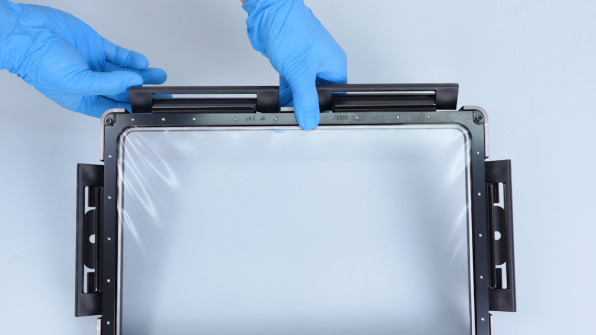

Fasten the upper snap.

Fasten the snaps on the right and left sides.


Turn the resin tank over.

Install the left handle.

Install the right handle.

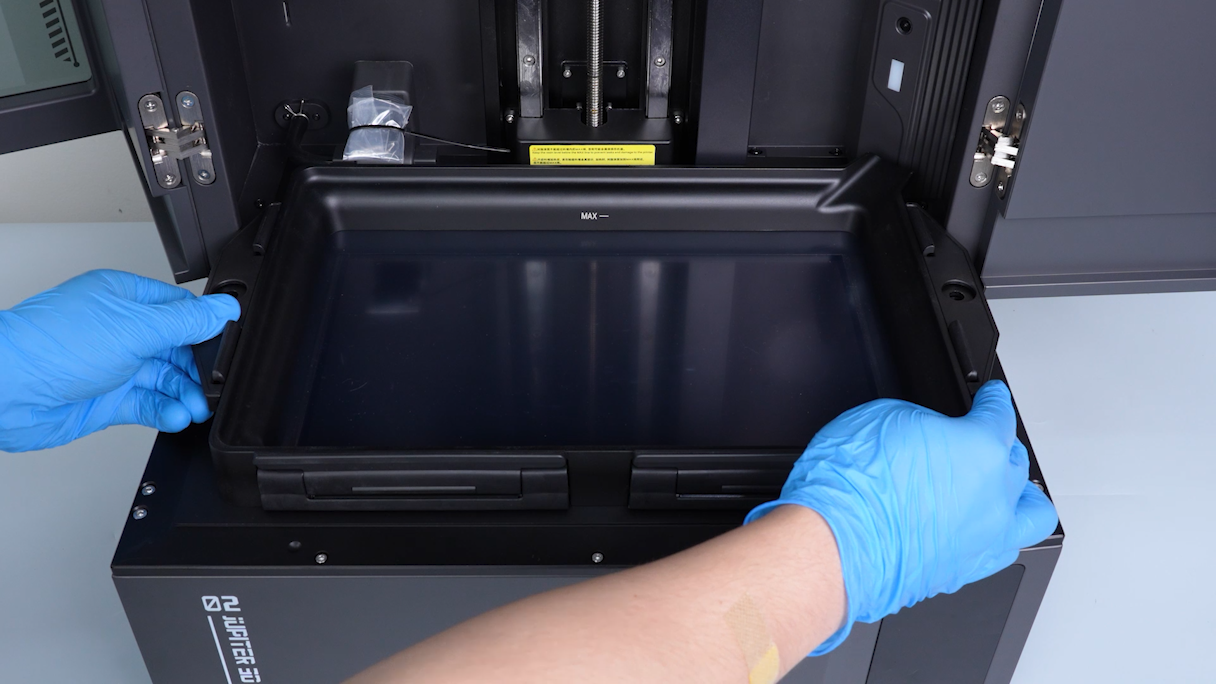

Place the resin tank back in position.

Tighten the two knob screws.

Remove the sealed bag.

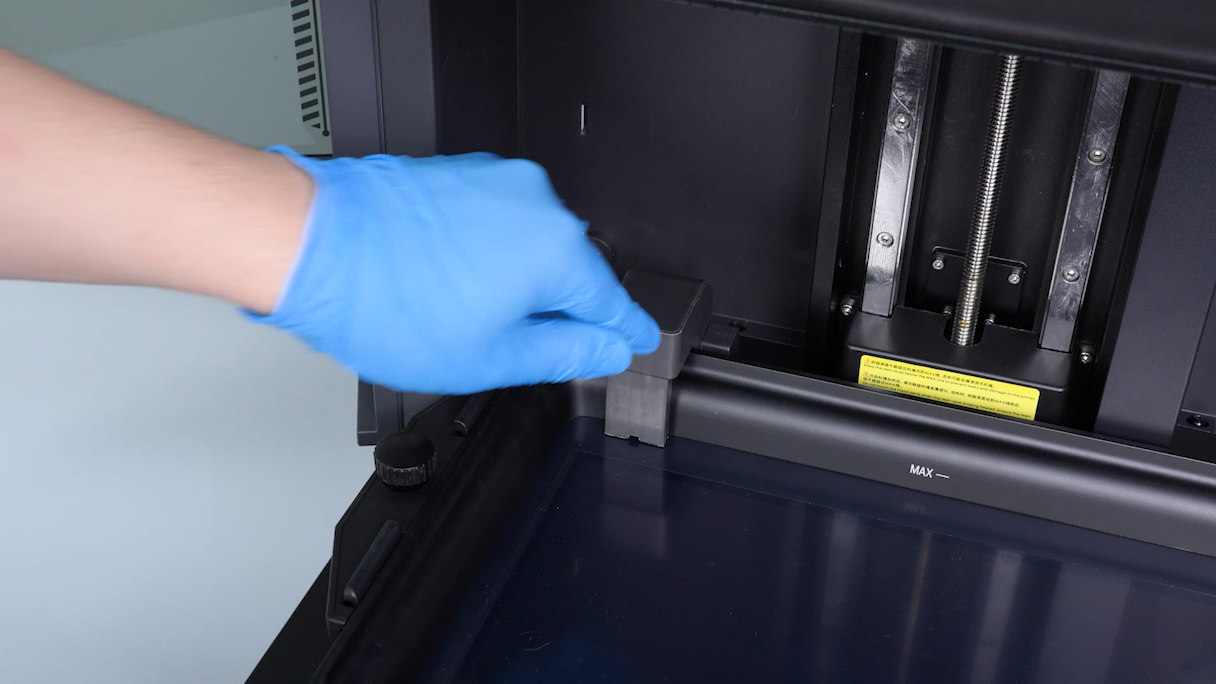

Restore the automatic resin feeding inlet.

The release film is replaced successfully.
