¶ Fault Symptom
After starting the print, the pump operating sound can be heard, but no resin flows into the resin vat.
¶ Possible Causes
- Loose cap on the automatic feed cartridge
- Loose pump tubing
¶ Tools Required
Phillips screwdriver
¶ Troubleshooting Steps
-

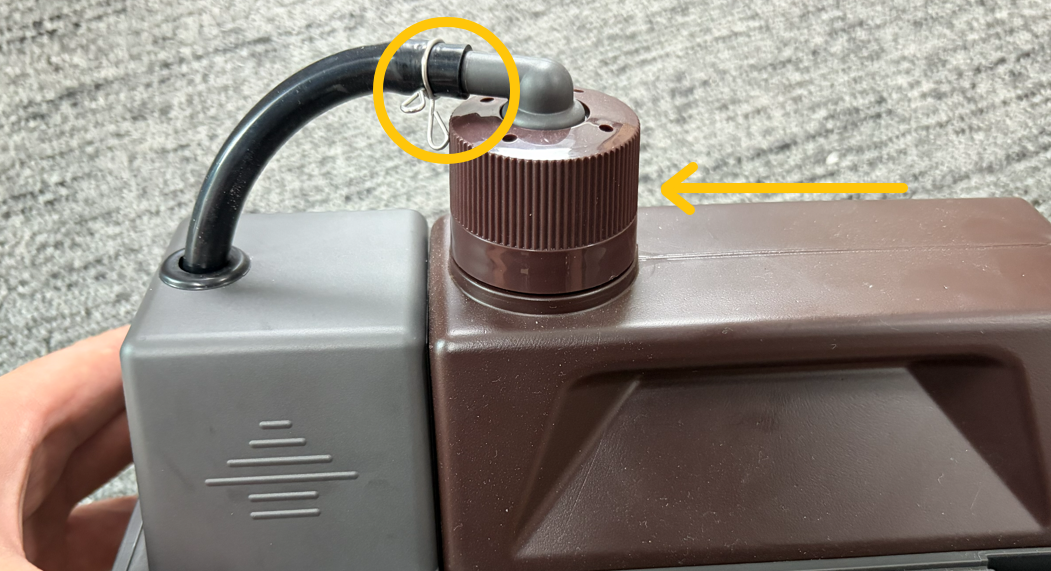

Check and tighten the cartridge cap Tighten the cap on the automatic feed cartridge and ensure the buckle is fully secured.
.png)
-
Inspect the pump tubing
a.Turn off the printer power switch and disconnect the power cord.

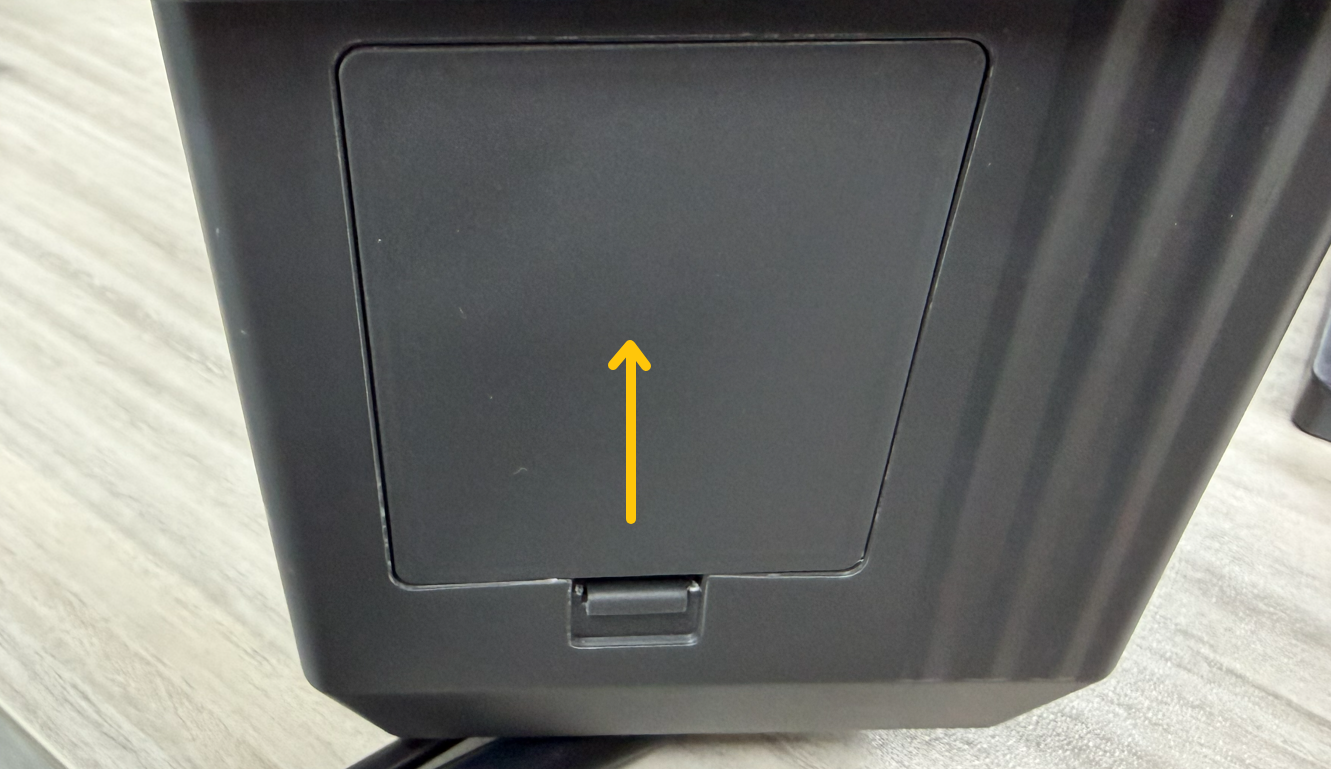

b.Lift open the side cover of the automatic feed cartridge upward.
.png)

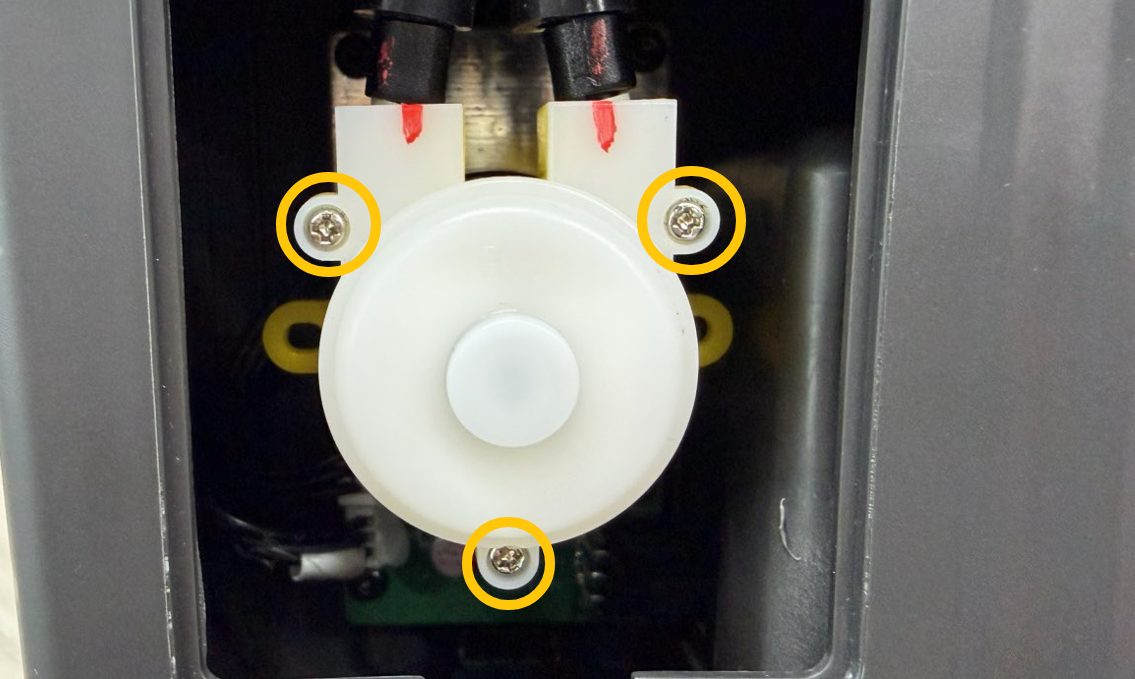

c.Use the Phillips screwdriver to remove the three screws securing the pump cover, then remove the pump cover.
.png)

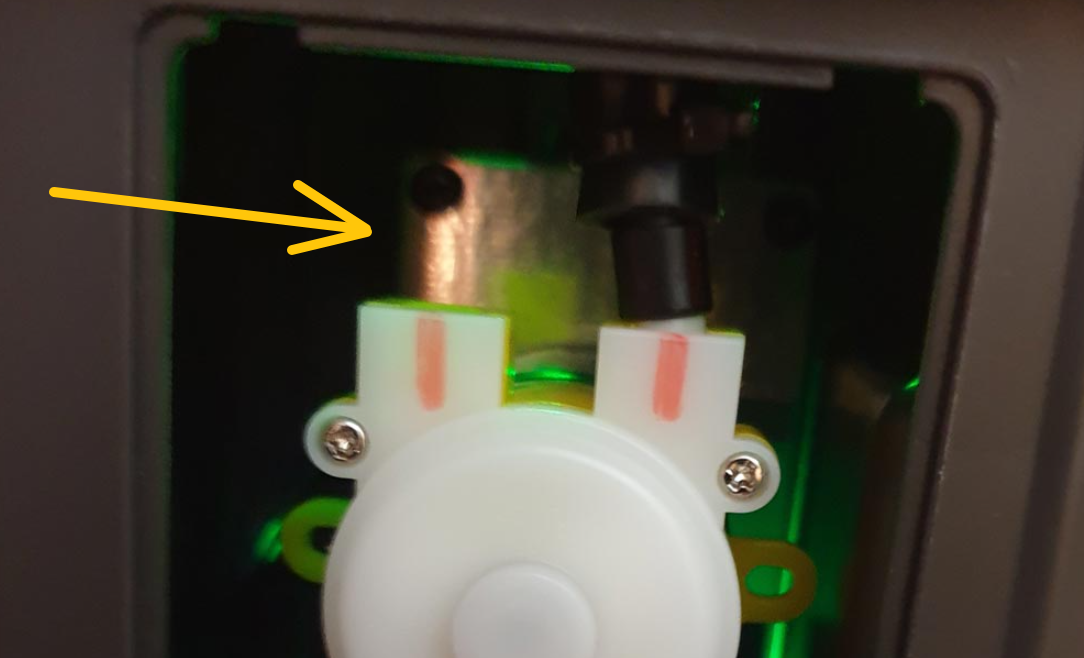

d.Check whether the left-side tube connector is loose. If loose, reinsert the tube firmly into its original position.
.png)

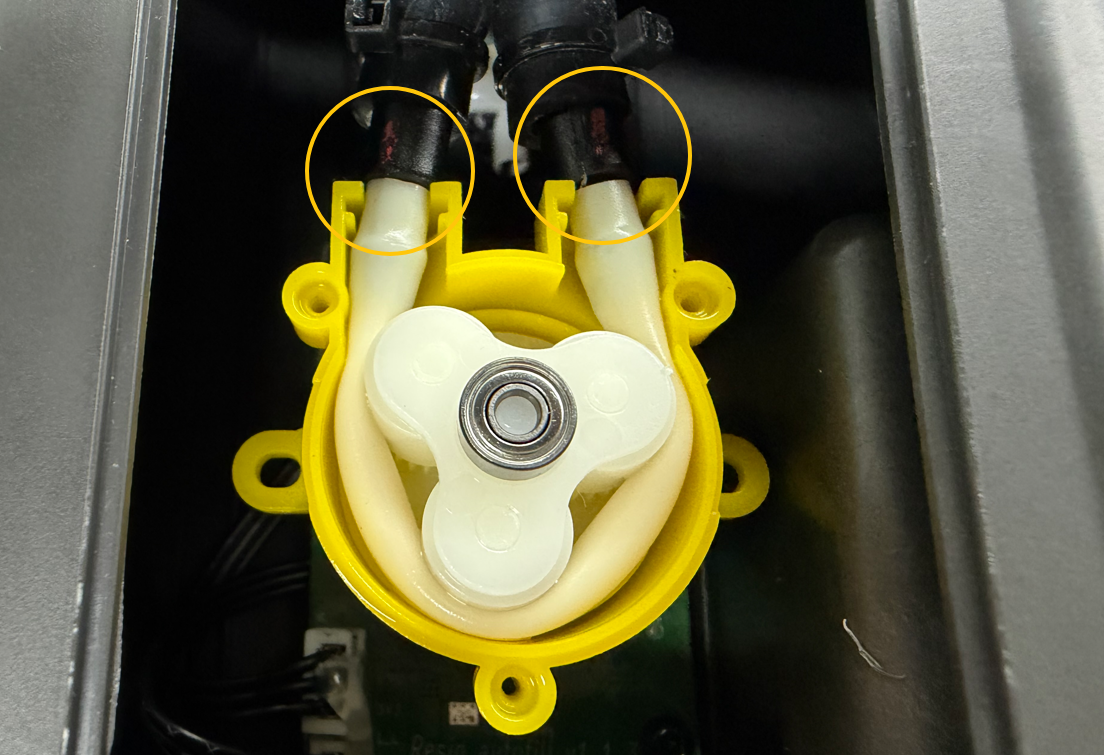

e.The image below shows the normal condition.
.png)
¶ Still not resolved?
Please contact the technical support team by email (3dp@elegoo.com).
