¶ Tools and Materials

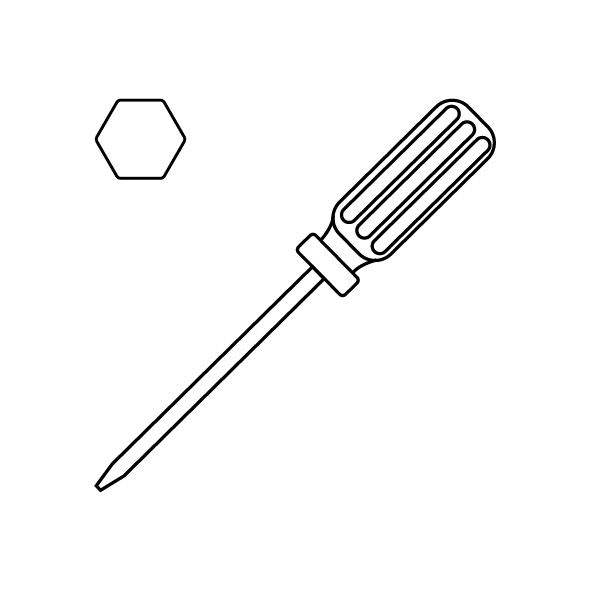

- 2.5mm Allen key x 1

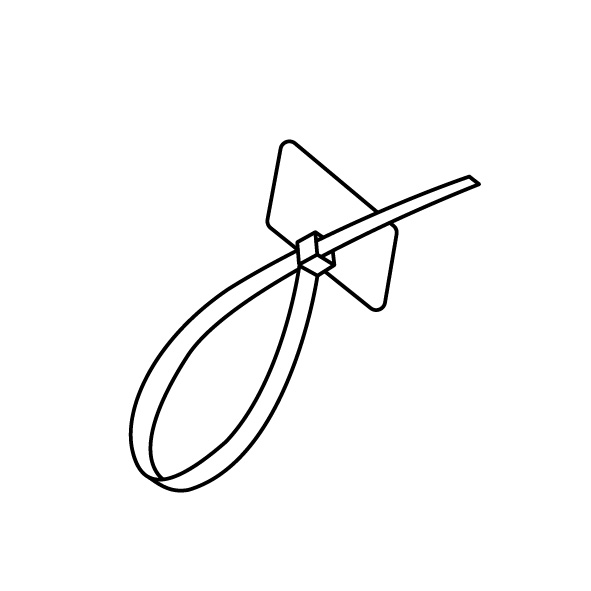

- Cable ties
- A new constant current board
¶ Tutorial Video
¶ Instruction
- Power off the printer and unplug the power cord.

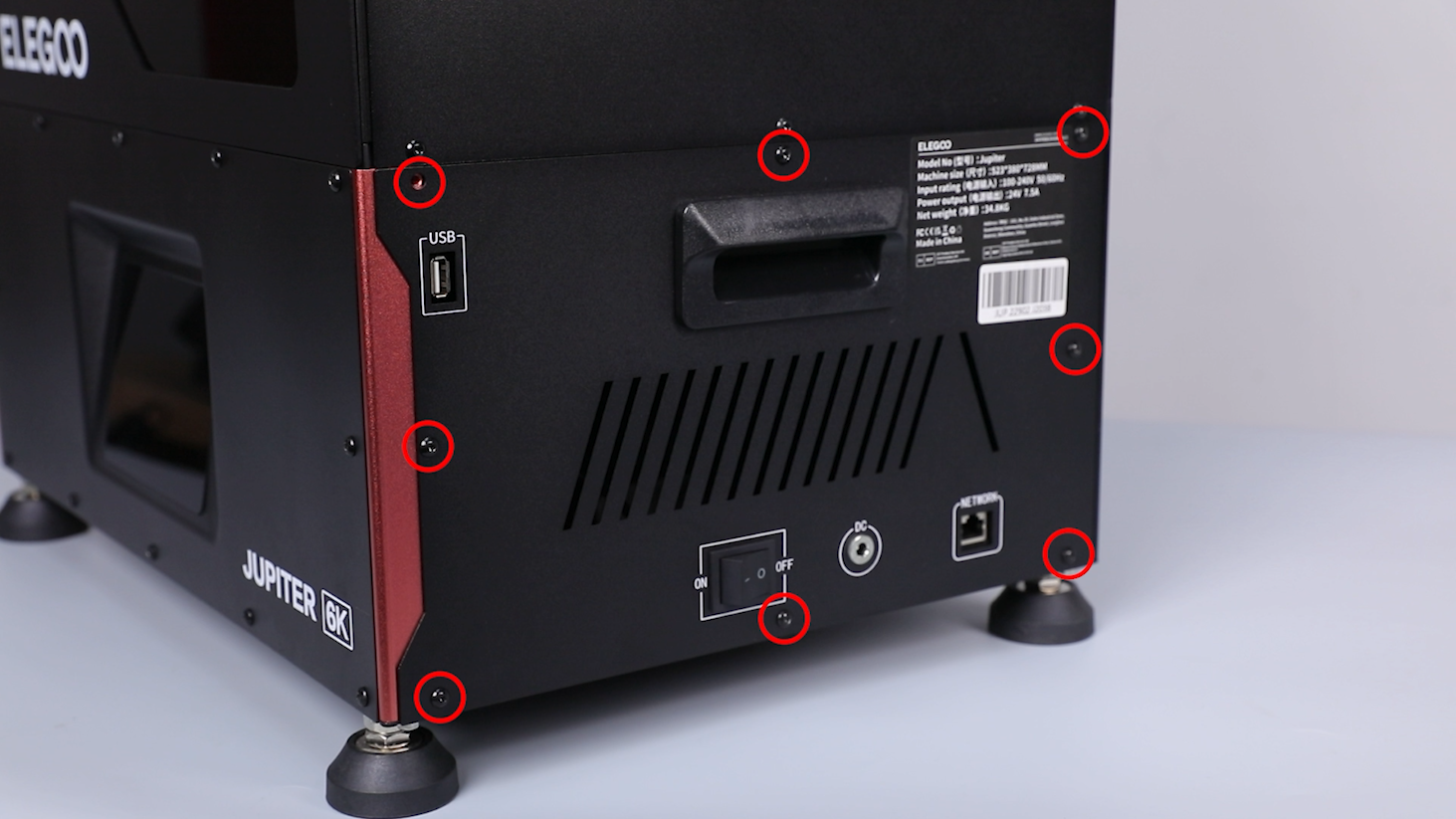

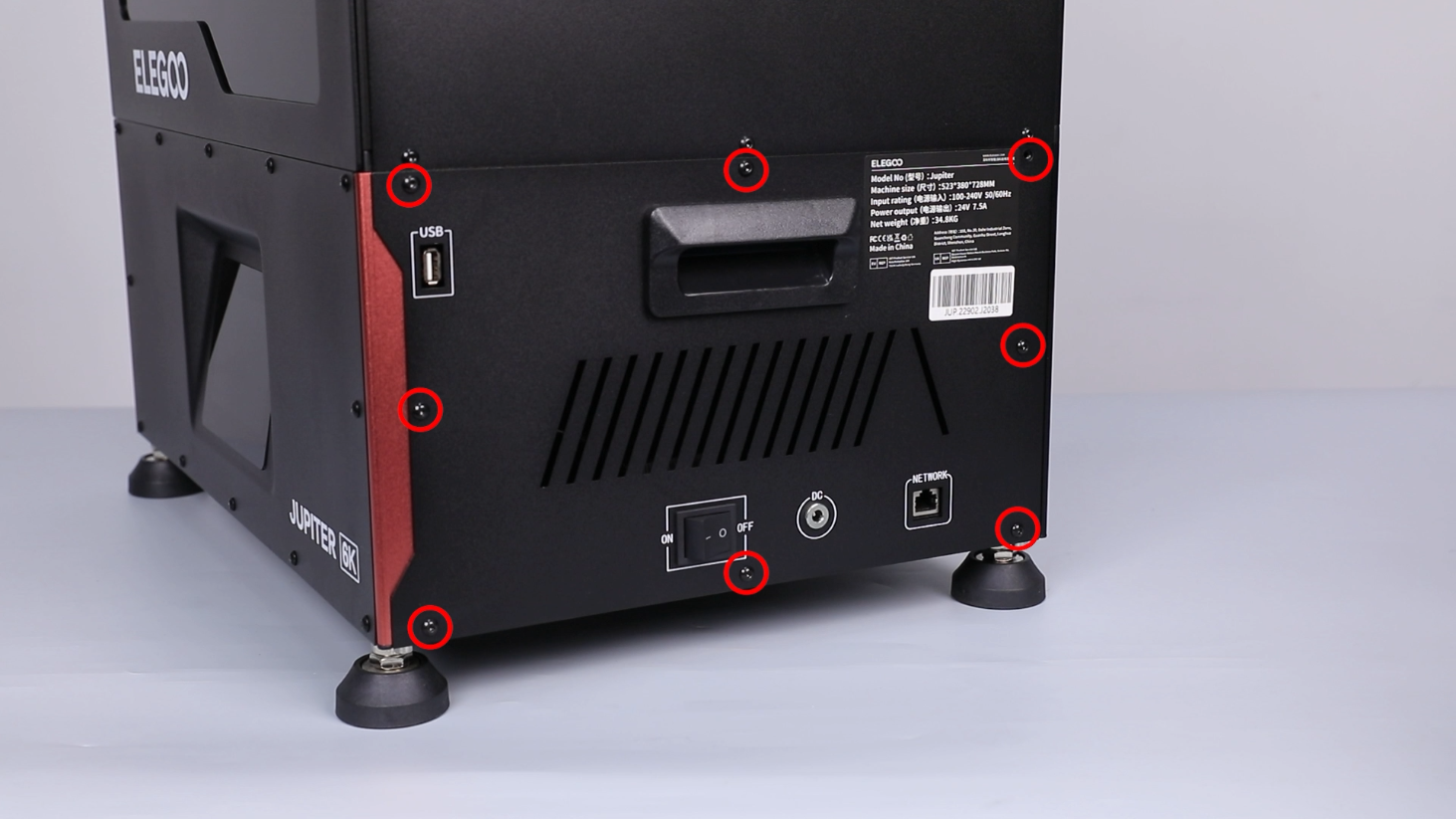

- Loosen the 8 screws securing the right-side cover using a 2.5mm Allen key.

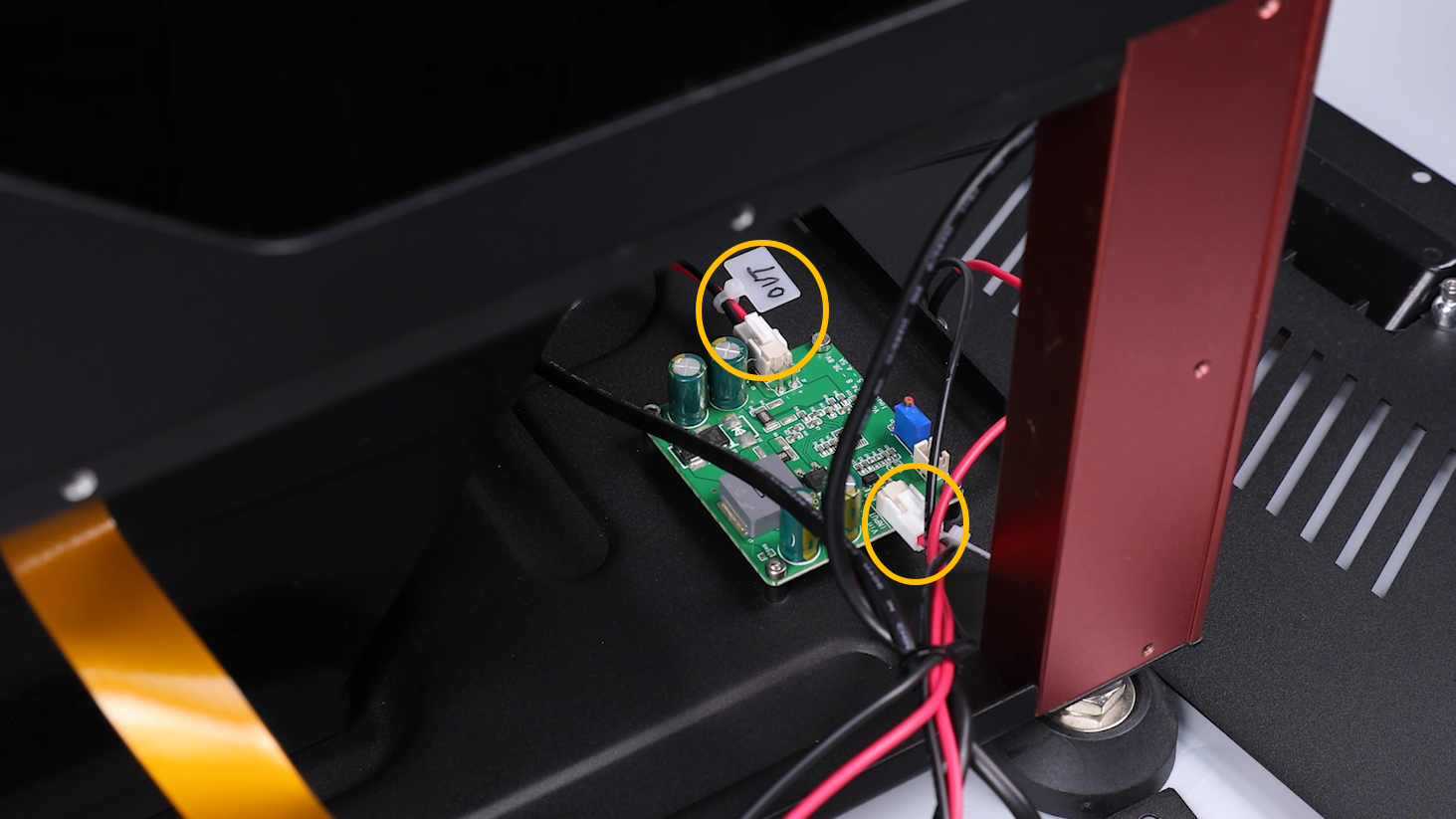

- Lay the right cover flat. Using labels or label ties, mark the cables on the constant current board.

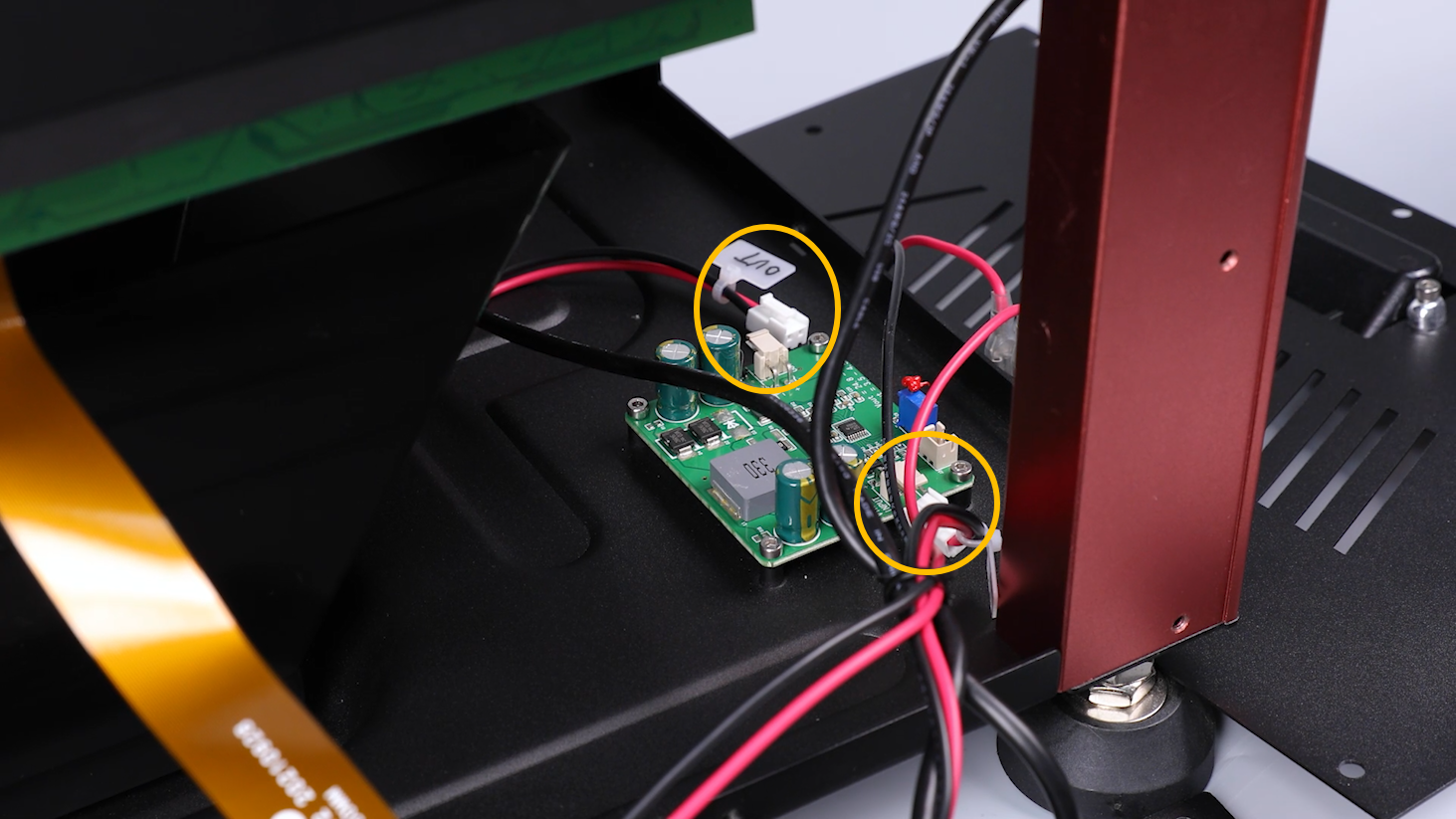

- Disconnect the cables from all the ports on the constant current board.

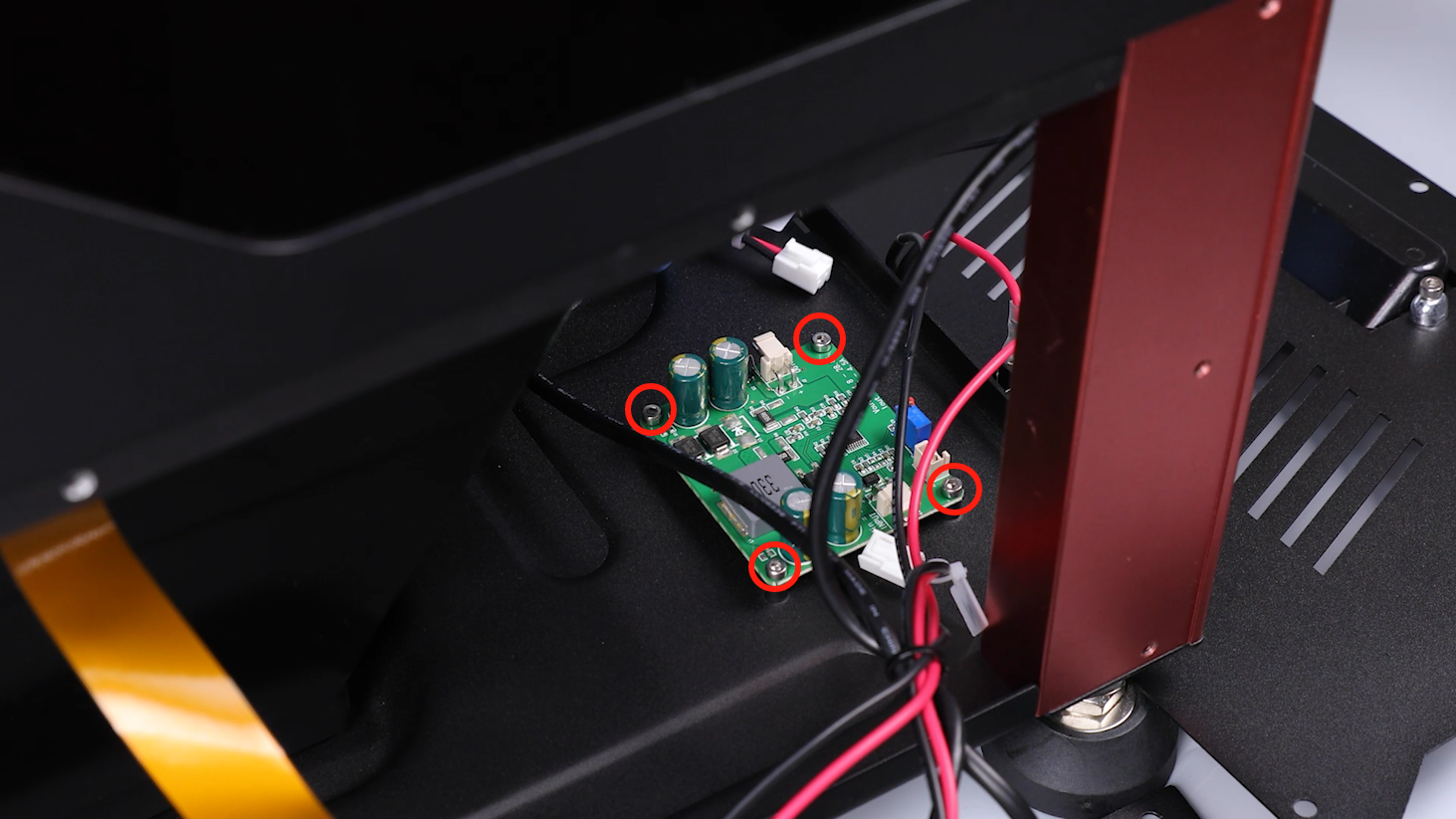

- Loosen the 4 screws holding the constant current board using an 2.5 mm Allen key. Remove the old constant current board.

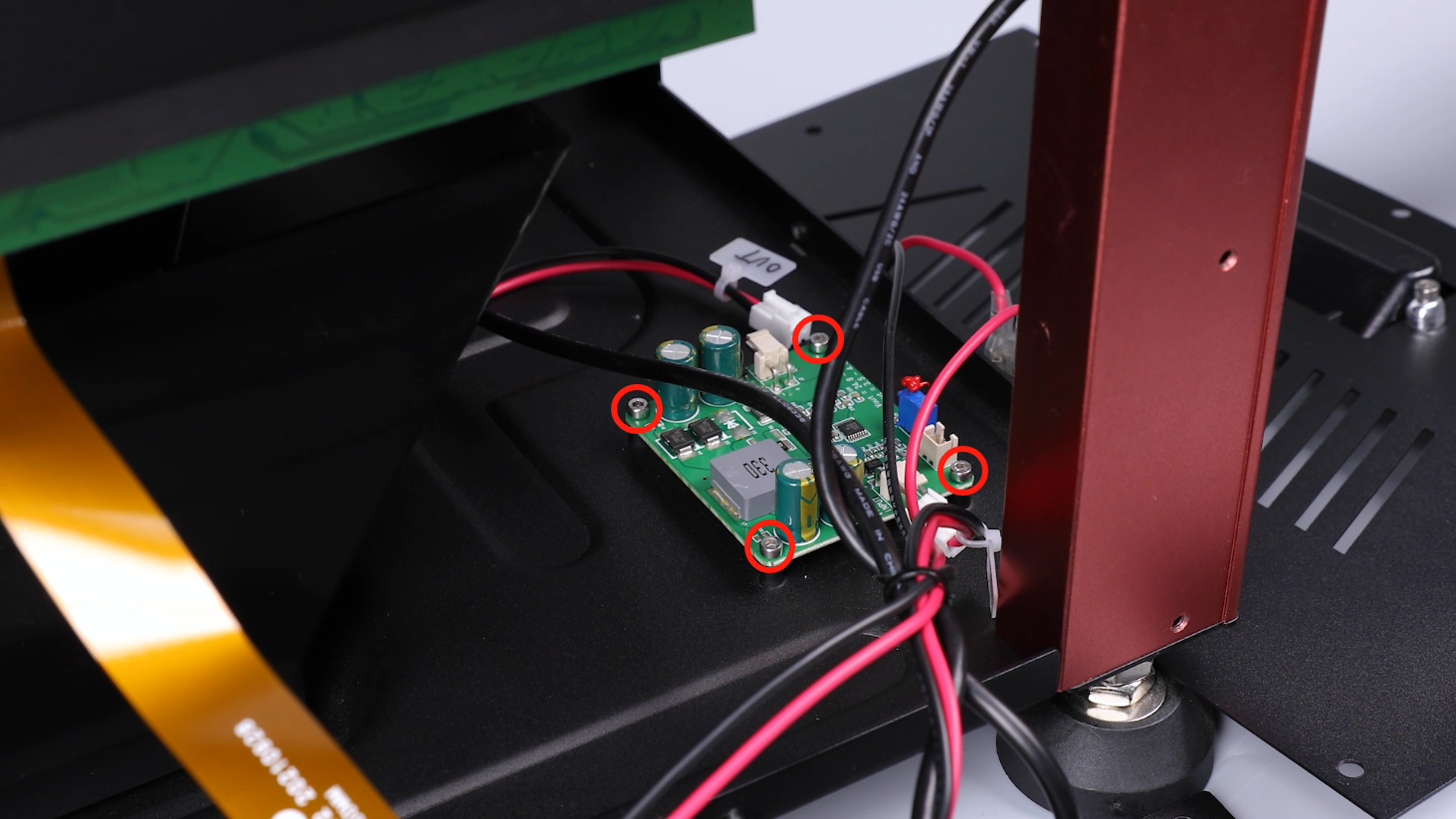

- Prepare the new constant current board. Align it with the screw holes and put it in the installation position. Tighten the four screws using a 2.5 mm Allen key.

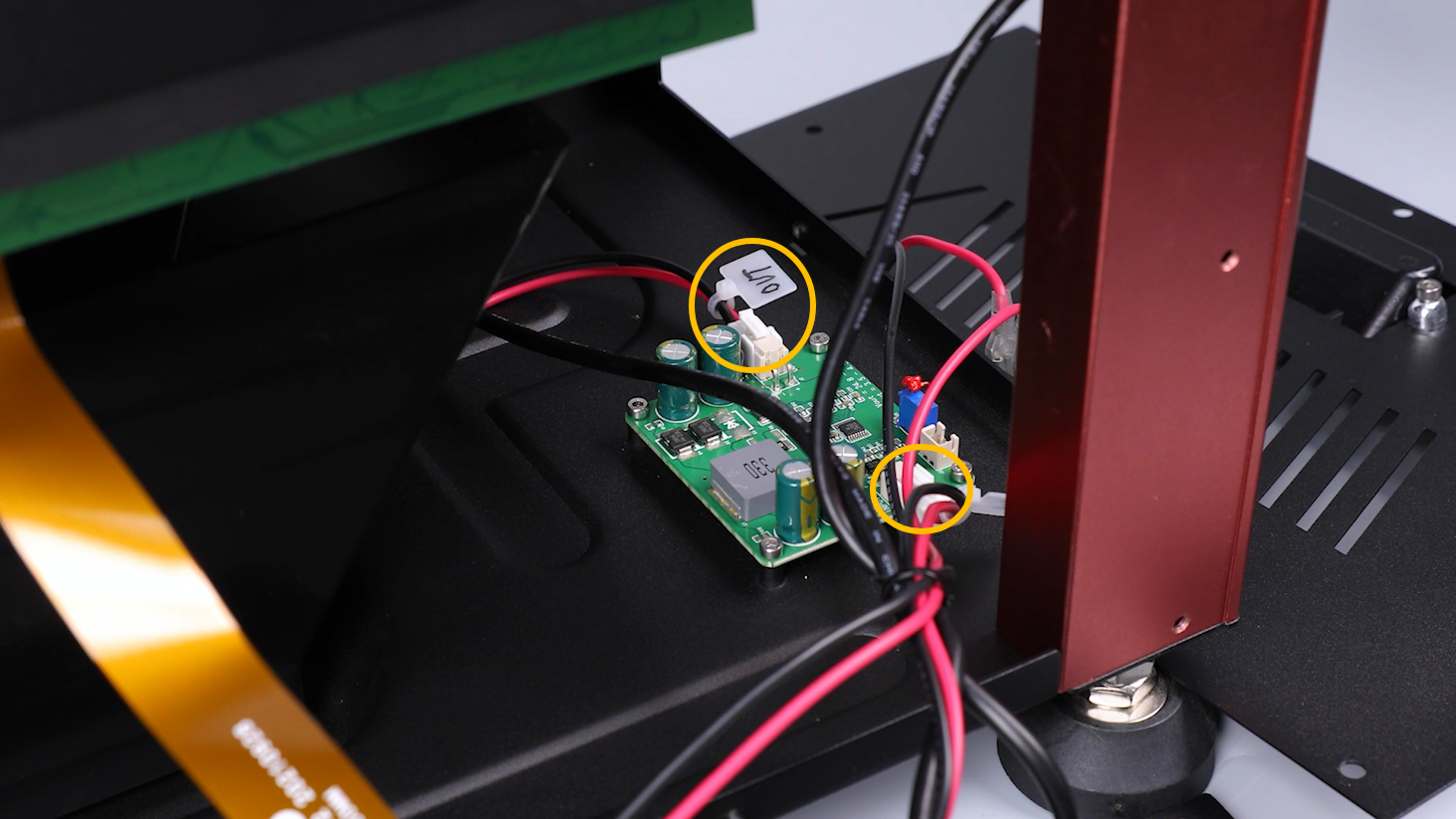

- Insert the cables into the ports on the constant current board according to the lable information.
- Align the right cover with the screw holes and put it in the installation position. Tighten eight screws using a 2.5 mm Allen key.

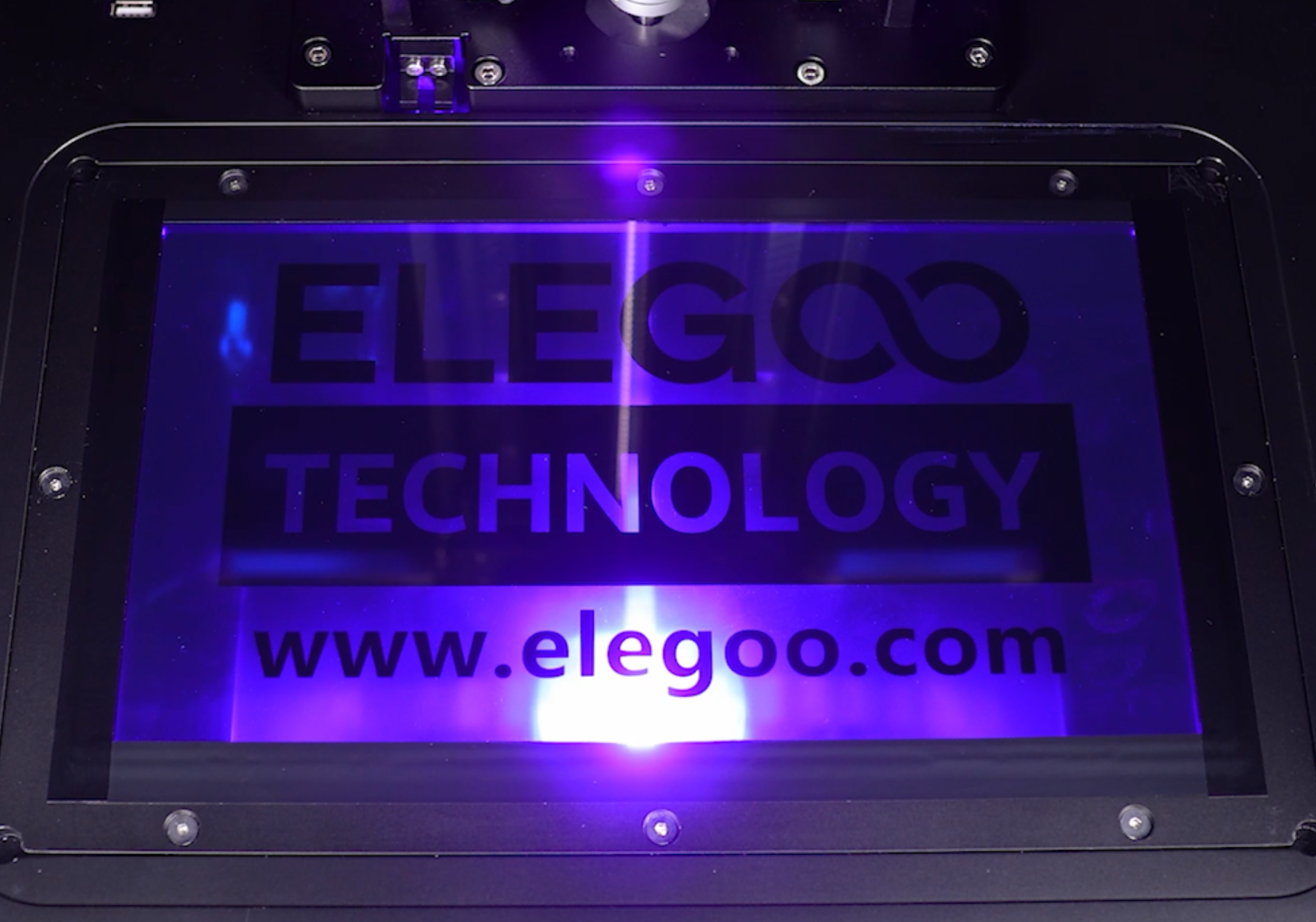

- Power on the printer. Select Tool - Calibration - Next. The printer is ready for use if the LCD screen displays ELEGOO logo.
