¶ Fault Phenomena:
- Motor does not rotate – When controlling the motor movement via the touchscreen or initiating a print, the motor does not respond and remains stationary.
- Motor stuttering – During rotation, the motor experiences intermittent pauses or stuttering, failing to achieve smooth continuous operation.
- Abnormal noise – Unusual sounds such as "piercing screeching," "dull rumbling," or "metal grinding" occur during operation, clearly distinct from the slight, uniform noise of normal operation.
¶ Fault Causes:
- Poor power connection
- Driver board signal failure
- Resin leakage or curing inside the motor
- Motor burnout
- Anti-backlash nut too tight
¶ Tools Required for Troubleshooting:
- 2.0mm hex screwdriver
- Lint-free cloth
- Lithium-based white grease
¶ Troubleshooting Steps:
¶ 1. Check for cured resin around the motor
a. Turn off the power switch and unplug the adapter.

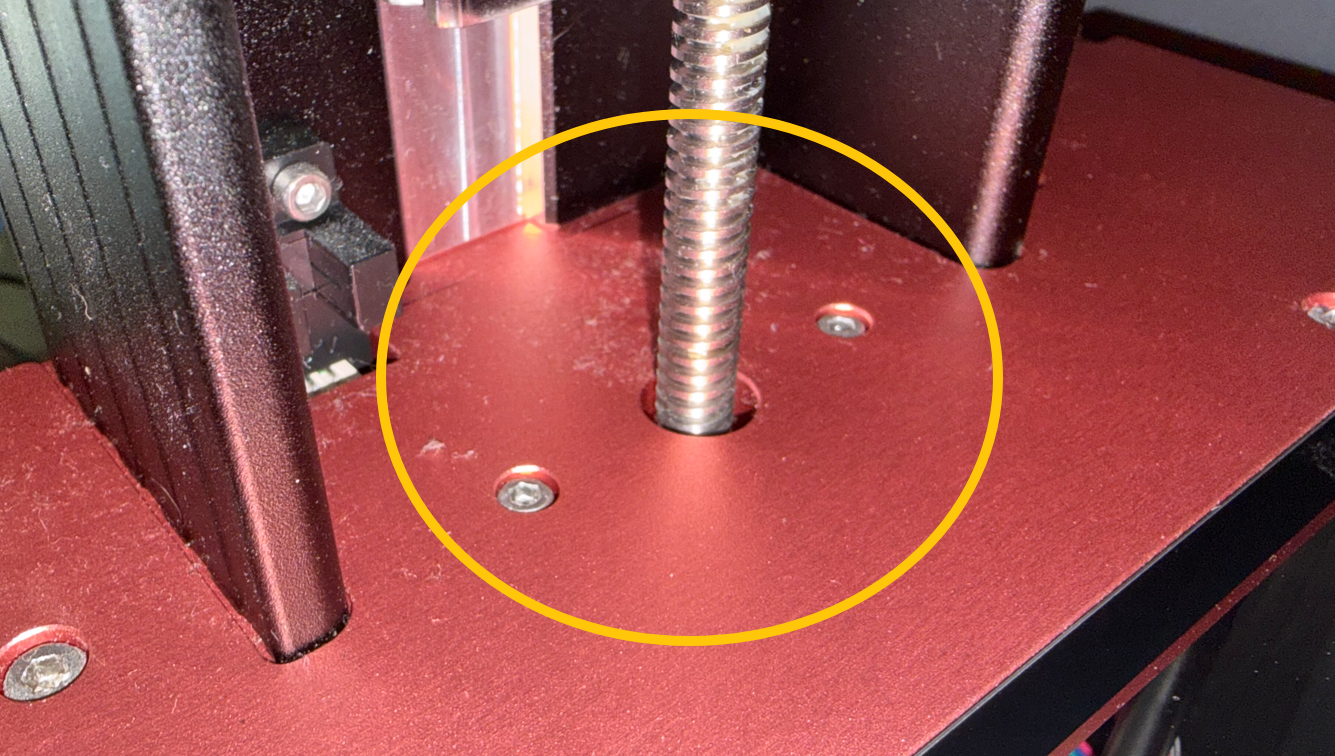

- If resin is present in the motor area, clean it and try again.
- If no resin is present in the motor area, proceed to Step 2 for further troubleshooting.
.png)
¶ 2. Check the motor connector
a. Turn off the power switch and unplug the adapter.

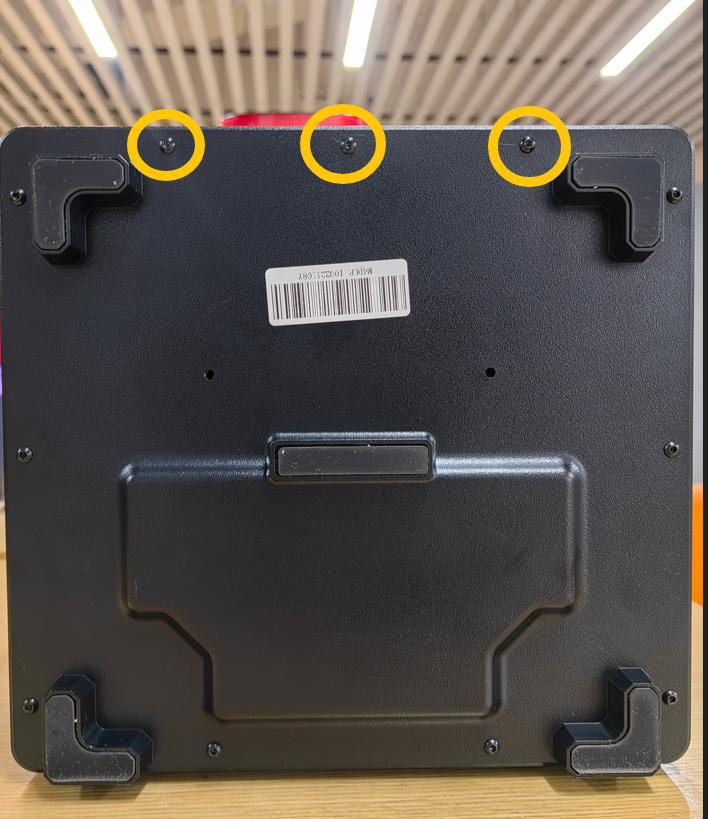

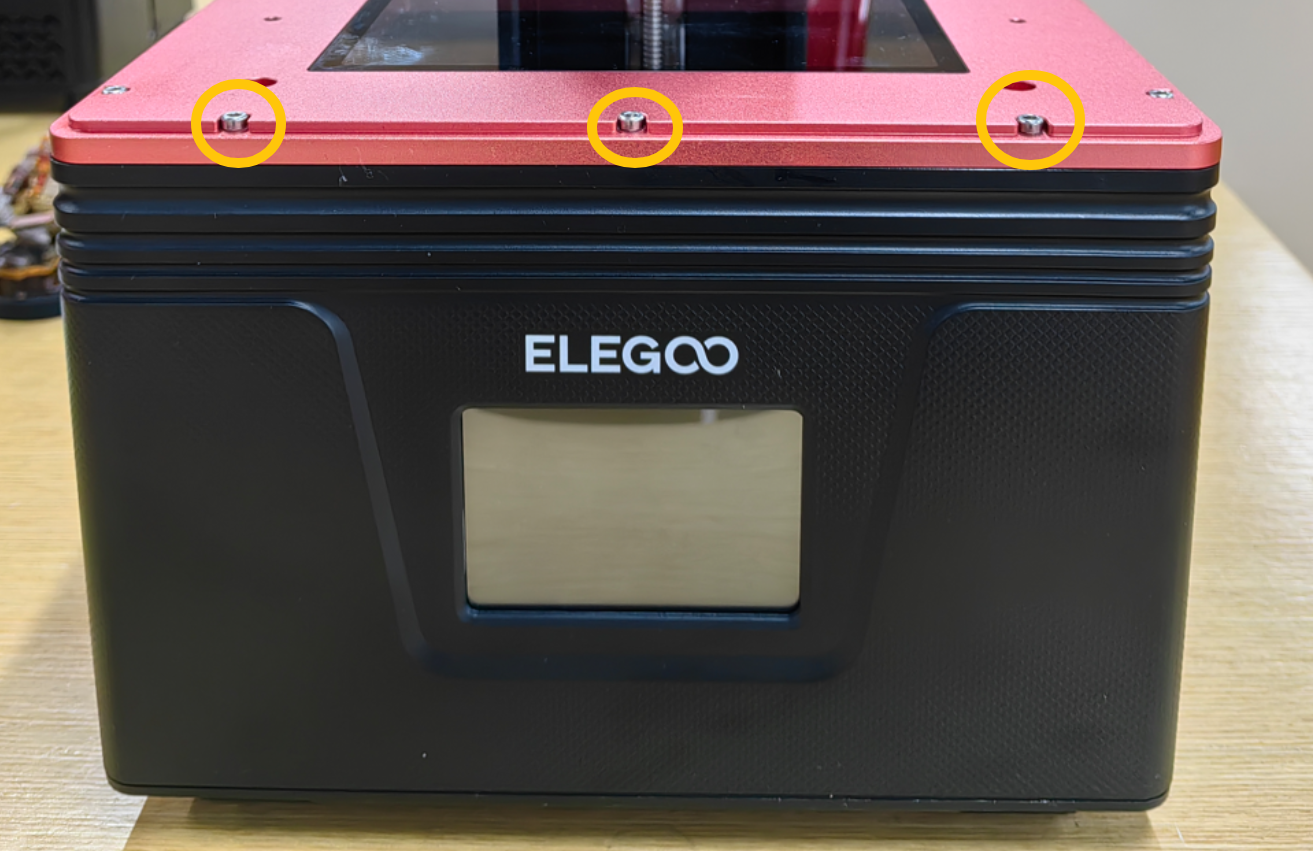

b. Use a 2.0mm hex screwdriver to remove the screws securing the outer casing, then remove the casing.
.png)
.png)

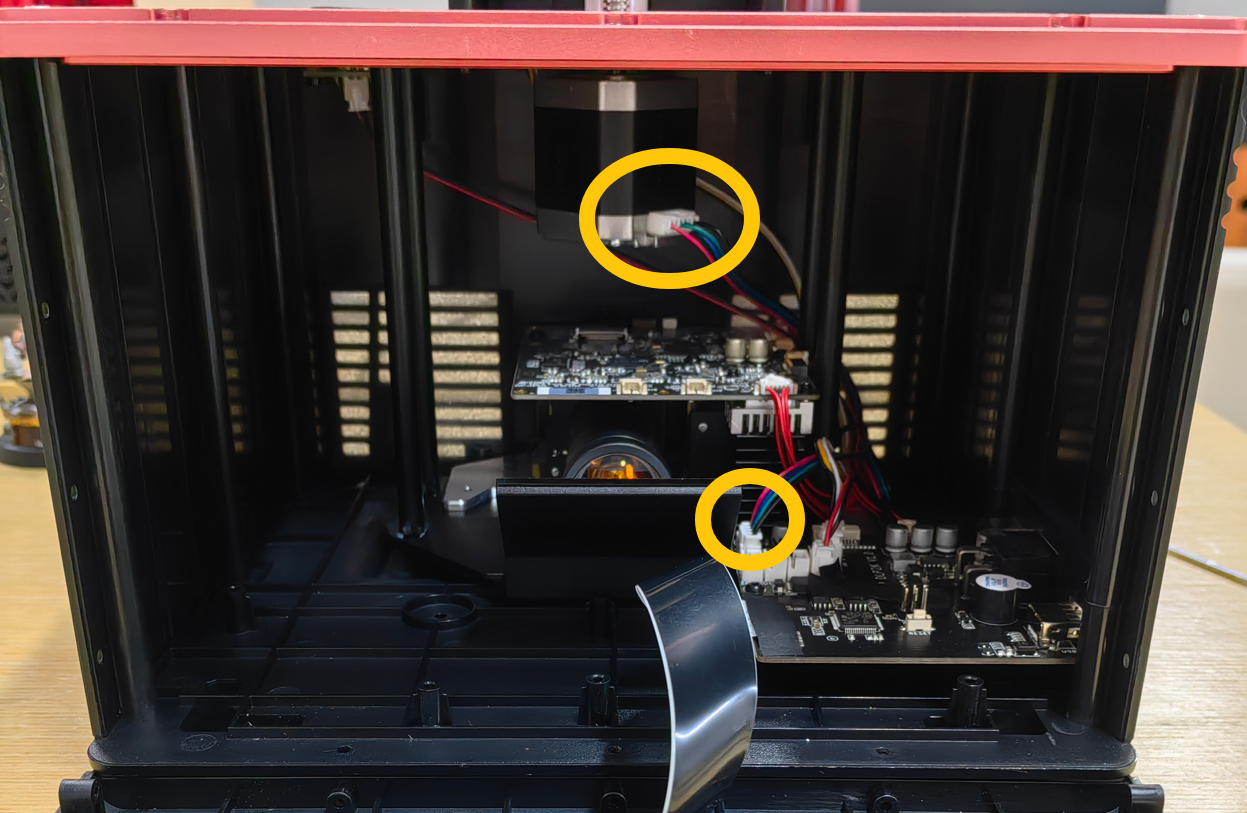

c. Check whether the motor connector is loose, and reconnect the motor connector.
.png)
¶ 3. Lubricate the lead screw and guide rails
a. Turn off the printer power switch and unplug the adapter.
b. Remove the build plate.

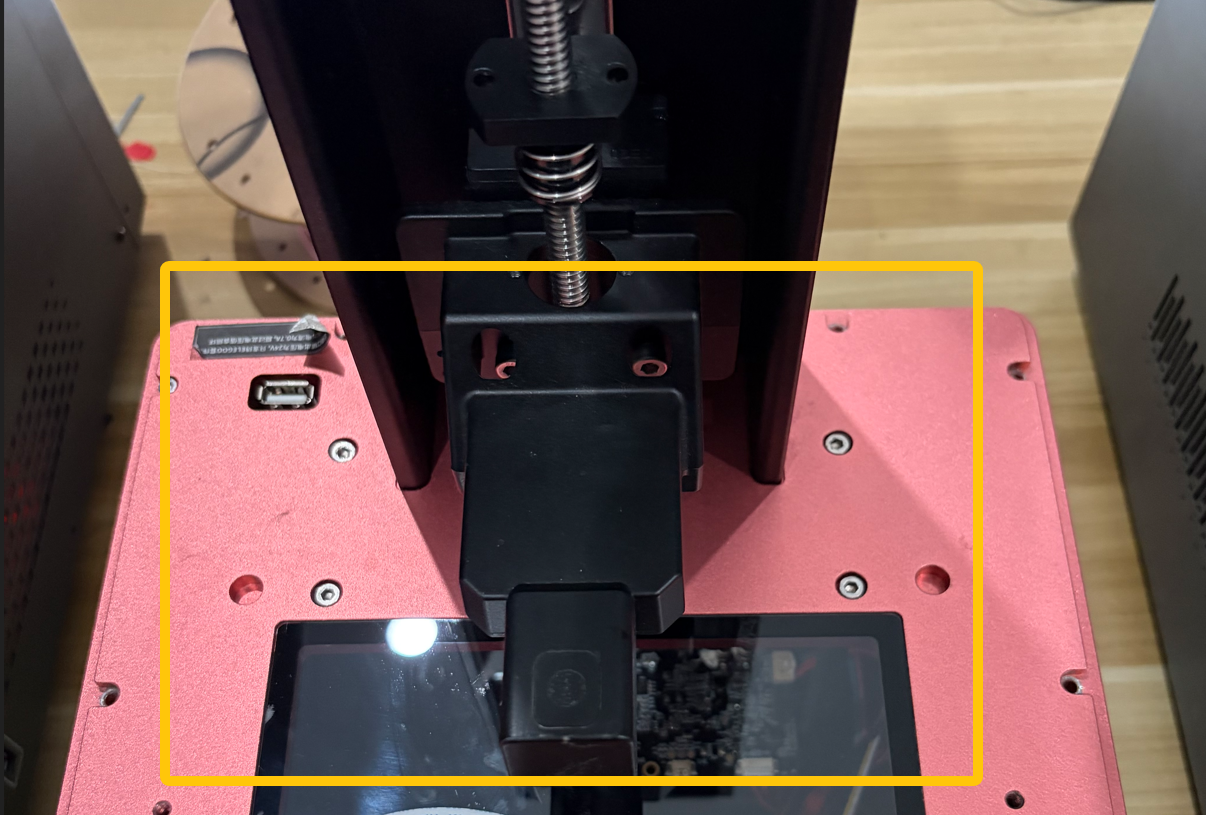

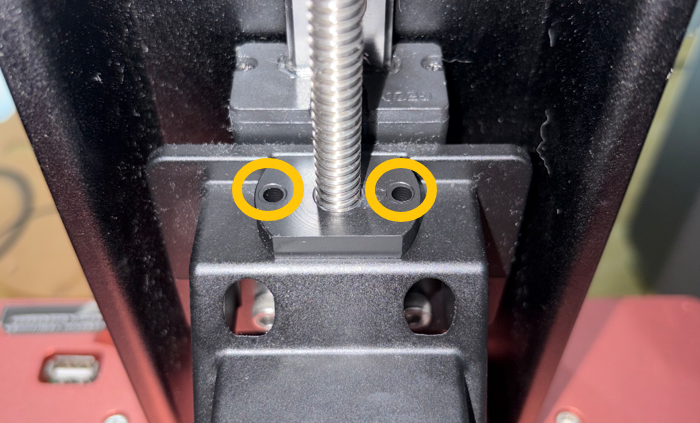

c. Use a 2.0mm hex screwdriver to remove the two screws securing the cantilever arm, and support the cantilever arm with your hand while placing it temporarily at the bottom.
.png)
.png)
d. Plug in the adapter and turn on the printer power switch.
e. Check whether the Z motor can rotate normally at this point.
- If the Z motor cannot rotate, then one of the following components may be damaged: Z motor / Z motor cable / motherboard. It is recommended to replace all three components simultaneously.

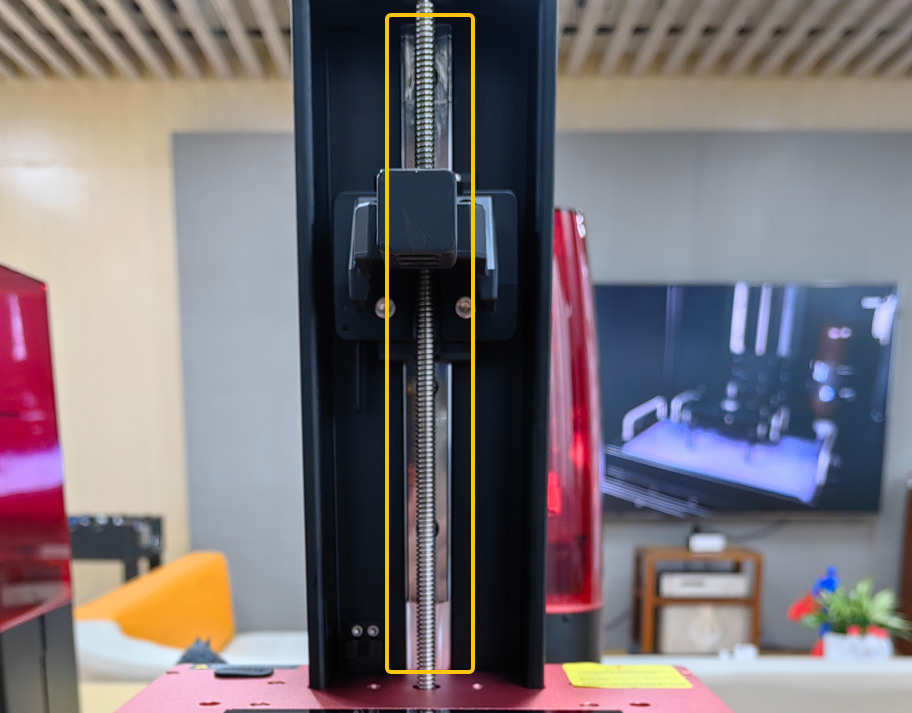

- If the Z motor can rotate normally, then use a lint-free cloth to clean oil and dust from the surfaces of the lead screw and guide rails. Apply lithium-based white grease to the surfaces of the lead screw and guide rails.
.png)
- If the Z motor can rotate normally without the anti-backlash nut installed, and cleaning/lubricating the lead screw and guide rails has been completed, but the motor still cannot rotate normally after reinstalling the anti-backlash nut in its original position, then the anti-backlash nut is faulty and needs to be replaced.
