¶ Fault Phenomena:
- The actual travel distance of the motor is less than or greater than the set value.
- Noise occurs during motor operation (e.g., "piercing screeching," "dull rumbling," "metal grinding sound"
¶ Fault Causes:
- An incorrect version of firmware has been updated.
- The Z motor parameters in the firmware have been modified incorrectly.
- Lead screw wear.
¶ Tools Required for Troubleshooting:
- 2.0mm hex screwdriver
¶ Troubleshooting Steps:
¶ 1. Check for play between the Z-axis lead screw and the anti-backlash nut
a. Turn off the power switch and unplug the adapter.

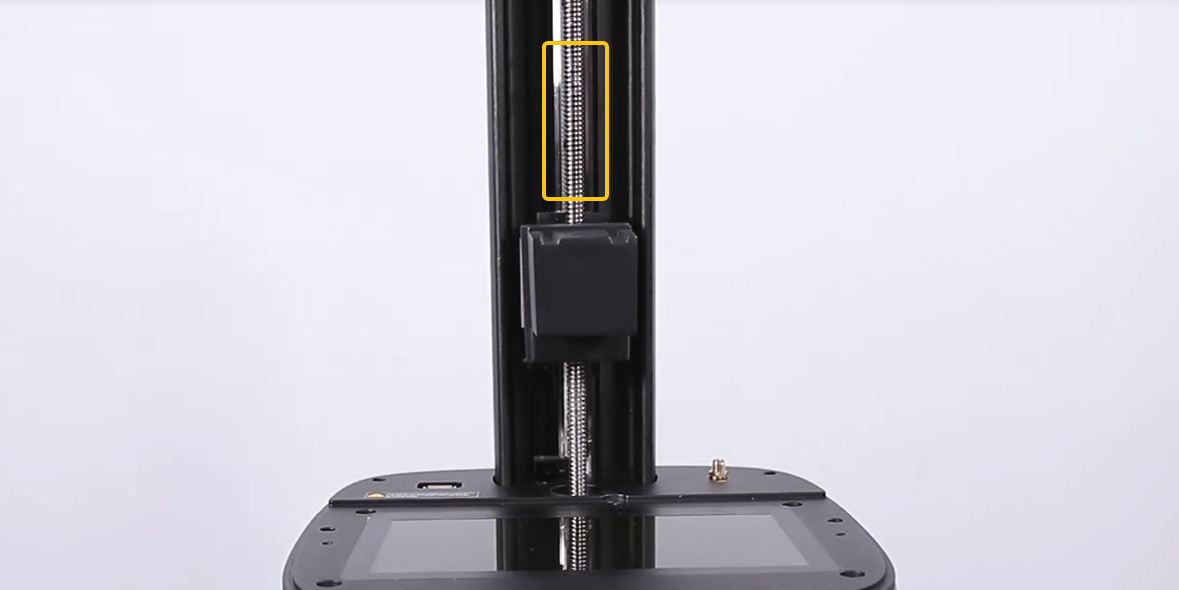

b. Manually shake the lead screw to check if it wobbles.
.png)
-

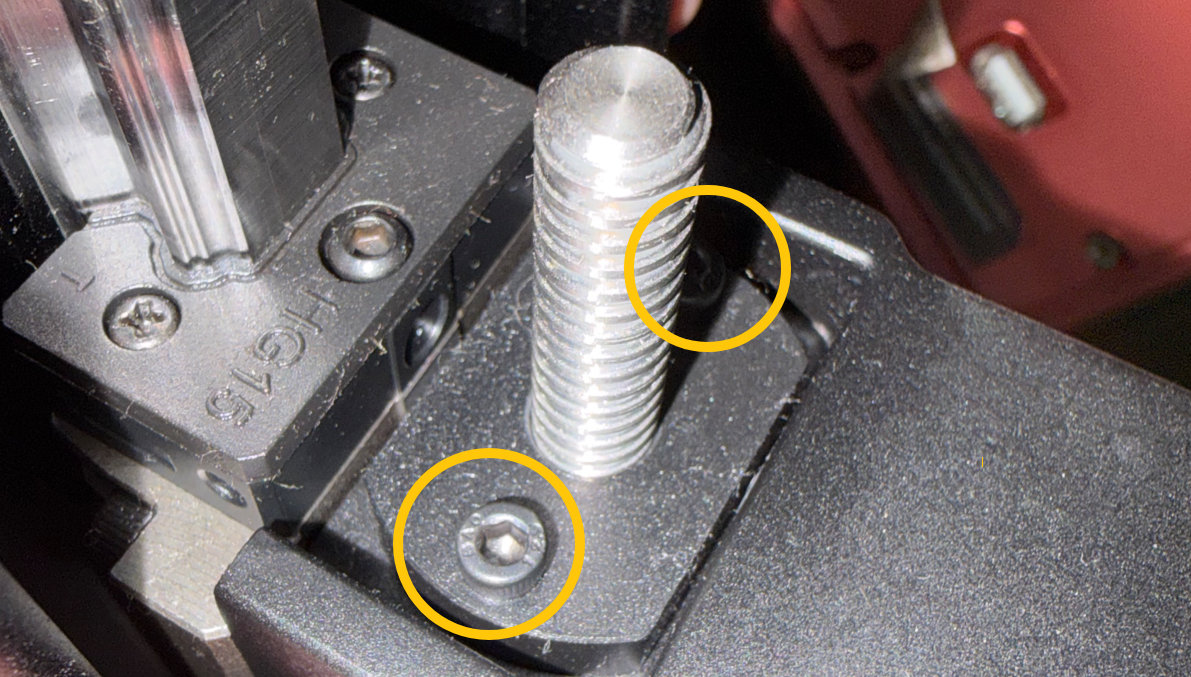

If the lead screw wobbles, tighten the screws securing the anti-backlash nut and the lead screw motor.

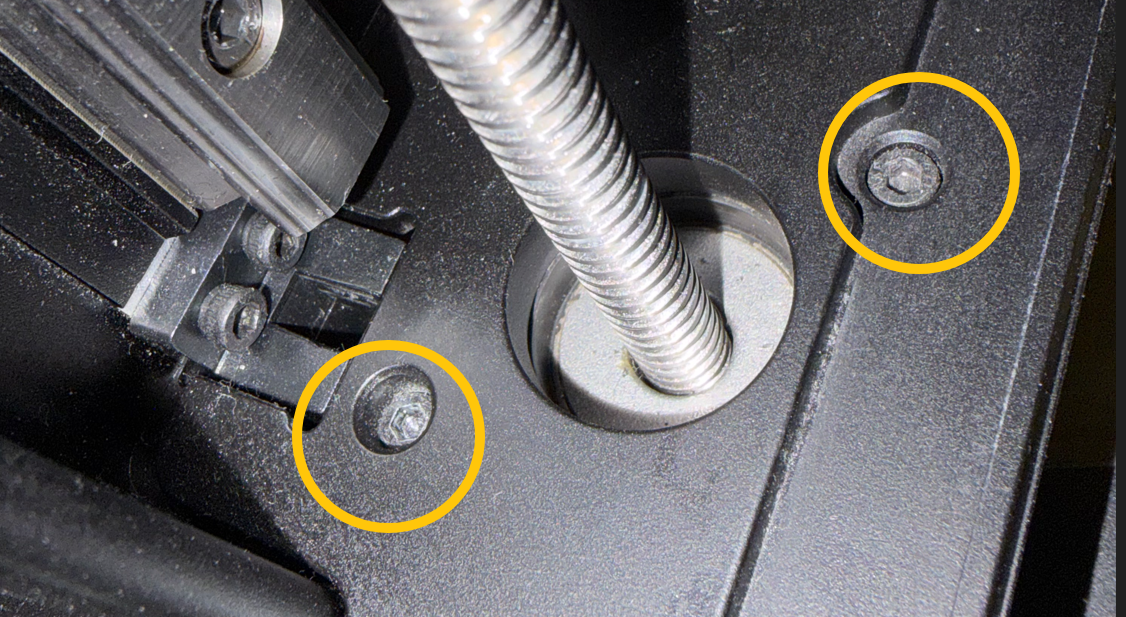

.png)
.png)
-
If the lead screw still wobbles after tightening the screws, then the anti-backlash nut and lead screw motor need to be replaced.
¶ 2. Check whether the motor has a deviation
a. Plug in the adapter and turn on the printer power switch.
b. Remove the build plate and resin vat.

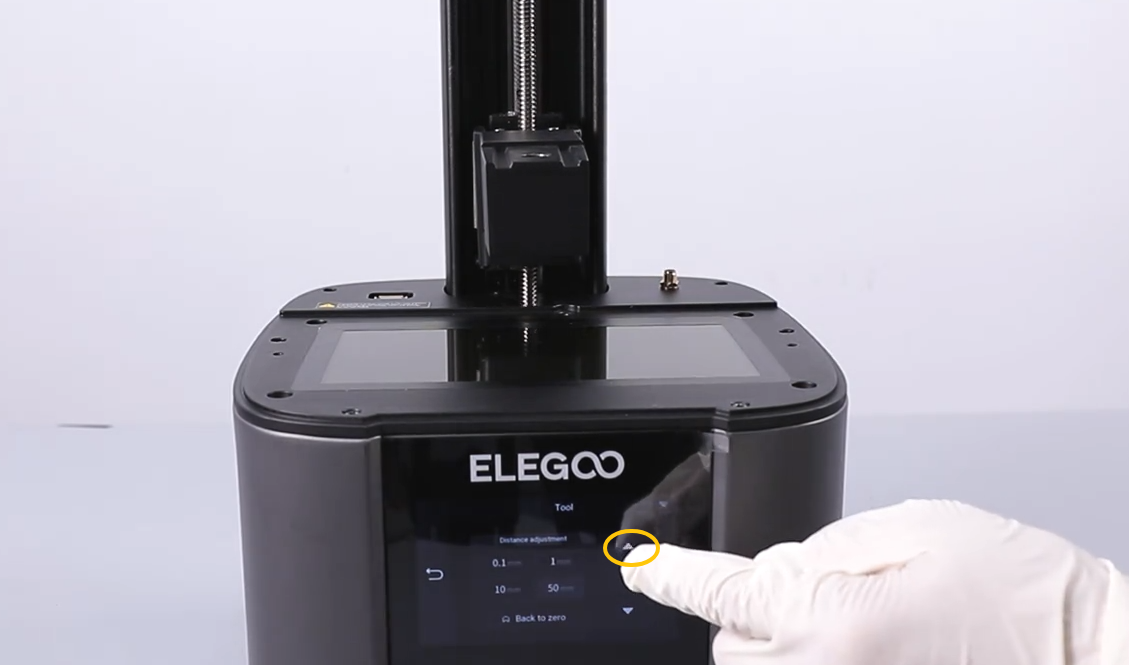

c. Use the touchscreen to control the Z-axis to move 50mm, and check whether there is a deviation in the actual travel distance of the printer.
.png)
- If there is a deviation between the actual travel distance and the set distance of the Z-axis, then the firmware needs to be re-updated.
Firmware download link:
https://elegoo-supportcenter.oss-us-west-1.aliyuncs.com/Mars 4 Ultra-firmware.rar
How to update the firmware (the firmware update procedure is the same for the Saturn 3 Ultra and Mars 4 Ultra):
https://www.youtube.com/watch?v=GaJQeIjX3CY
