Technical Specifications and Button Guide

M1 Ultra
Light Source	34 Blue Crossed Laser Lines	7 Blue Parallel Laser Lines	Single Blue Laser Line	NIR (Infrared Binocular Structured Light)
Accuracy¹	Up to 0.02 mm	Up to 0.05 mm
Volumetric Accuracy	0.02 mm + 0.06 mm/m × L	0.05 mm + 0.1 mm/m
Scanning Rate	2,040,000 points/s	840,000 points/s	120,000 points/s	6,451,200 points/s
Scanning Speed (Wired PC Connection)	Up to 80 fps (1920 × 1200) Up to 100 fps (1520 × 1200)	Up to 30 fps
Scanning Speed (Wireless PC Connection)	Up to 50 fps (1920 × 1200) Up to 60 fps (1520 × 1200)
3D Resolution	0.05-2 mm	0.1-2 mm
Minimum Scan Volume	5 × 5 × 5 mm	150 × 150 × 150 mm
Single Scan Range	144 × 128 mm at 160 mm 219 × 160 mm at 200 mm 452 × 320 mm at 400 mm 621 × 480 mm at 600 mm	162 × 136 mm at 170 mm 955 × 800 mm at 1000 mm 1121 × 960 mm at 1200 mm
Working Distance	200–600 mm	160–400 mm	200–600 mm	170–1200 mm
Color Mapping	Supported
Tracking Method	Marker / Global Marker / Marker-free	Geometry / Texture
RGB Fill Light	8 White LEDs
Outdoor Scanning	≤110,000 lux	≤110,000 lux	≤100,000 lux	≤80,000 lux (with filter)
Marker Recognition Enhancement	8 Blue/White LEDs + 4 Infrared LEDs
Laser Safety	Class II (Eye-Safe)	Class I (Eye-Safe)	Class II (Eye-Safe)	Class I (Eye-Safe)
Calibration Board	High-Precision Glass Calibration Board
NIR Filter	/	Yes
Processor	8-Core CPU (2.0 GHz)
Display	3-inch HD Touchscreen
Battery Capacity	4,800 mAh (includes a backup battery) Approx. 1 hr 26 min to charge to 80%
Interface	USB Type-C / USB 3.1
Input Voltage/Current	5 V / 3 A
Wireless Scanning	Supported
Wi-Fi	Wi-Fi 6
Operating System	Windows / macOS
Recommended PC Requirement	Windows	Windows 10/11 (64-bit) CPU: Intel Core i7 (13th Gen) or higher Dedicated GPU: NVIDIA GeForce RTX 4060 or higher (8 GB VRAM) RAM: ≥32 GB
macOS	macOS 14 or later CPU: Apple M4 or later RAM: ≥32 GB
Minimum PC Requirement	Windows	Windows 10/11 (64-bit) CPU: Intel Core i7 (7th Gen) Dedicated GPU: NVIDIA GPU (6 GB VRAM) RAM: ≥16 GB
macOS	macOS 14 or later CPU: Apple M2 RAM: ≥16 GB
Device Weight	511 g (battery included)
Dimensions	191 × 50 × 76 mm
Output Format	STL, OBJ, PLY, ASC
Operating Temperature	−10 °C to 40 °C
Operating Humidity	10–90% RH
Certifications	CE, RoHS, REACH, WEEE, FDA, FCC, UL, IC, RCM, KC, TELEC
Note 1: Accuracy is evaluated under laboratory conditions using a pair of 100 mm spheres. Actual results may vary depending on the operating environment, including temperature, vibration, and other factors.

Name	Button	Guide

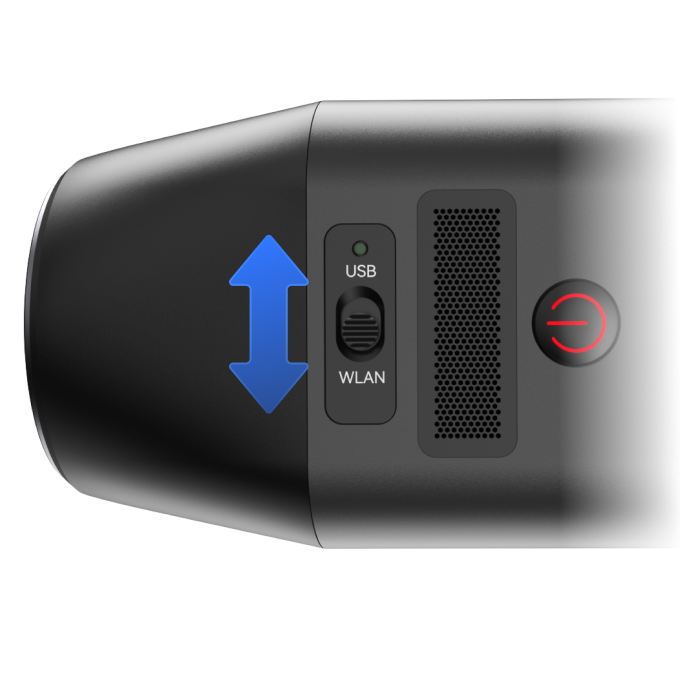

USB/Wi-Fi Mode Switch		Slide the switch to USB. The device will switch to wired mode after restarting. Slide the switch to WLAN. The device will switch to wireless mode after restarting.

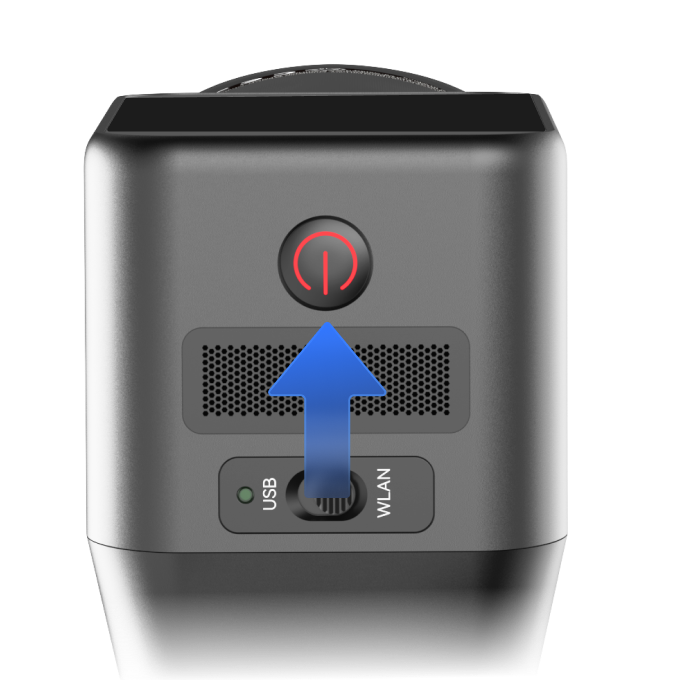

Power Button		Press and hold for at least 2 seconds to turn the device on or off. Press briefly to wake the screen or turn it off.

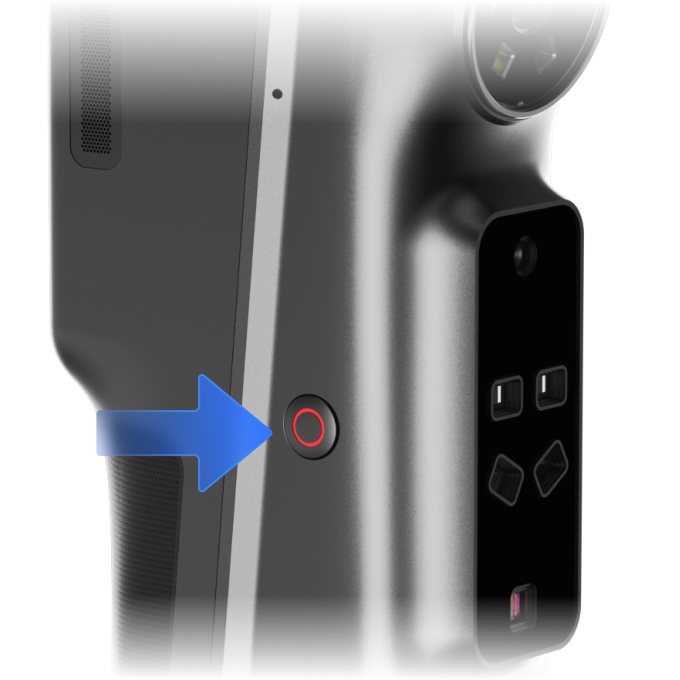

Start/Stop Button		Short press: Preview, start, or pause a scan. Press and hold for at least 2 seconds: End the scan. Double press: Switch between 34-line crossed laser, 7-line parallel laser, and single-line laser.

Button	Icon	Function
Start/Stop Button		Short press: Preview, start, or pause a scan Press and hold (≥2s): End the scan Double press: Switch between the 34 Cross Lines, 7 Parallel Lines, and Single Line scanning modes
Exposure +/−		Tap + or − to increase or decrease exposure by one level
Zoom +/−		Tap + or − to zoom in or out by one level

Solid Blue Light	The device is powered on.
Breathing Green Light	The device is powered on, the system is operating normally, and preview mode is inactive.
Solid Red Light	The device has an abnormal condition, such as a power supply fault or hardware error (e.g., a camera malfunction).
Solid Yellow Light	The device is in standby mode or some functions are limited.
Flashing Yellow Light	The device is updating its firmware.

¶ Specifications

¶ Physical Button Guide

¶ Indicator Light Guide

¶ Touch Screen Button Guide

¶ Help us improve

M1 Ultra
Scanning Mode	High-Speed Scanning	Detailed Scanning	Deep-Hole Scanning	NIR Markerless Scanning
Light Source	34 Blue Crossed Laser Lines	7 Blue Parallel Laser Lines	Single Blue Laser Line	NIR (Infrared Binocular Structured Light)
Accuracy¹	Up to 0.02 mm			Up to 0.05 mm
Volumetric Accuracy	0.02 mm + 0.06 mm/m × L			0.05 mm + 0.1 mm/m
Scanning Rate	2,040,000 points/s	840,000 points/s	120,000 points/s	6,451,200 points/s
Scanning Speed (Wired PC Connection)	Up to 80 fps (1920 × 1200) Up to 100 fps (1520 × 1200)			Up to 30 fps
Scanning Speed (Wireless PC Connection)	Up to 50 fps (1920 × 1200) Up to 60 fps (1520 × 1200)			Up to 30 fps
3D Resolution	0.05-2 mm			0.1-2 mm
Minimum Scan Volume	5 × 5 × 5 mm			150 × 150 × 150 mm
Single Scan Range	144 × 128 mm at 160 mm 219 × 160 mm at 200 mm 452 × 320 mm at 400 mm 621 × 480 mm at 600 mm			162 × 136 mm at 170 mm 955 × 800 mm at 1000 mm 1121 × 960 mm at 1200 mm
Working Distance	200–600 mm	160–400 mm	200–600 mm	170–1200 mm
Color Mapping	Supported
Tracking Method	Marker / Global Marker / Marker-free			Geometry / Texture
RGB Fill Light	8 White LEDs
Outdoor Scanning	≤110,000 lux	≤110,000 lux	≤100,000 lux	≤80,000 lux (with filter)
Marker Recognition Enhancement	8 Blue/White LEDs + 4 Infrared LEDs
Laser Safety	Class II (Eye-Safe)	Class I (Eye-Safe)	Class II (Eye-Safe)	Class I (Eye-Safe)
Calibration Board	High-Precision Glass Calibration Board
NIR Filter	/			Yes
Processor	8-Core CPU (2.0 GHz)
Display	3-inch HD Touchscreen
Battery Capacity	4,800 mAh (includes a backup battery) Approx. 1 hr 26 min to charge to 80%
Interface	USB Type-C / USB 3.1
Input Voltage/Current	5 V / 3 A
Wireless Scanning	Supported
Wi-Fi	Wi-Fi 6
Operating System	Windows / macOS
Recommended PC Requirement	Windows	Windows 10/11 (64-bit) CPU: Intel Core i7 (13th Gen) or higher Dedicated GPU: NVIDIA GeForce RTX 4060 or higher (8 GB VRAM) RAM: ≥32 GB
Recommended PC Requirement	macOS	macOS 14 or later CPU: Apple M4 or later RAM: ≥32 GB
Minimum PC Requirement	Windows	Windows 10/11 (64-bit) CPU: Intel Core i7 (7th Gen) Dedicated GPU: NVIDIA GPU (6 GB VRAM) RAM: ≥16 GB
Minimum PC Requirement	macOS	macOS 14 or later CPU: Apple M2 RAM: ≥16 GB
Device Weight	511 g (battery included)
Dimensions	191 × 50 × 76 mm
Output Format	STL, OBJ, PLY, ASC
Operating Temperature	−10 °C to 40 °C
Operating Humidity	10–90% RH
Certifications	CE, RoHS, REACH, WEEE, FDA, FCC, UL, IC, RCM, KC, TELEC
Note 1: Accuracy is evaluated under laboratory conditions using a pair of 100 mm spheres. Actual results may vary depending on the operating environment, including temperature, vibration, and other factors.
