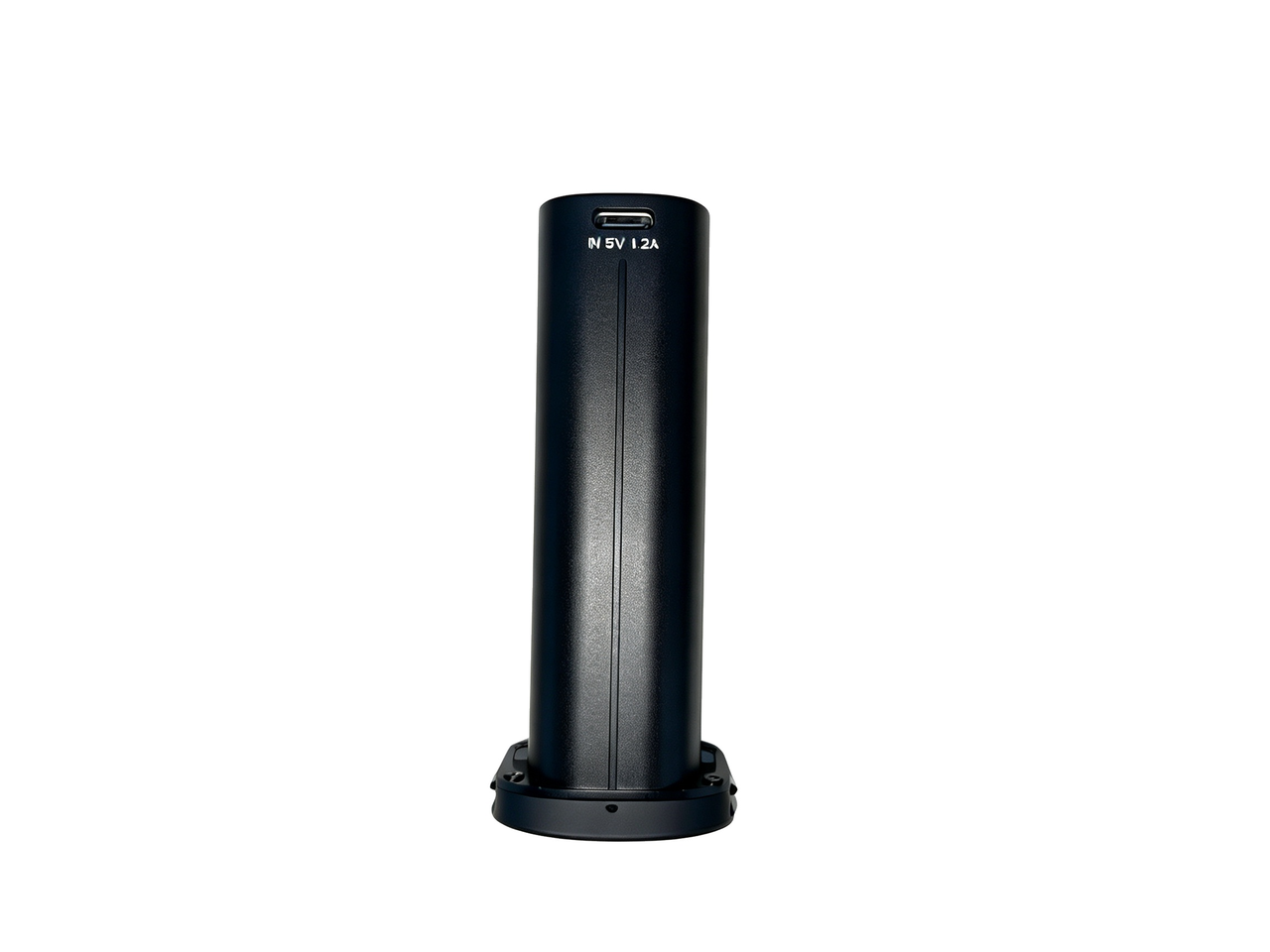

The removable lithium-ion battery powers the scanner, enabling wireless scanning.
¶ Proper Charging
- Do not use high-voltage fast chargers (9 V/12 V).
- Disconnect the charger promptly once the battery is fully charged. Do not leave the battery charging overnight or connected to the charger for extended periods.
¶ Daily Use
- The operating temperature range is 0–45°C. Keep the battery away from direct sunlight, moisture, and extreme cold.
- Recharge the battery when the remaining charge reaches 20–30%. Avoid fully discharging the battery.
- If the battery swells, leaks, or becomes abnormally hot, stop using the scanner immediately, remove the battery if it is safe to do so, and discontinue use of the battery.
¶ Long-Term Storage (More Than 1 Month)
- Maintain the battery charge level at 40–60%. Do not store the battery fully charged or fully discharged.
- Store the battery in a cool, dry place at 10–25°C.
- Recharge the battery to approximately 50% every 3 months to prevent over-discharge and potential battery failure.
¶ Frequently Asked Questions
- Short battery life or inaccurate battery level readings: Perform battery calibration according to the applicable instructions. If the issue persists, the battery cells may have reached the end of their service life. Replace the battery with an original battery of the same model.
¶ Safety Warnings
- Do not expose the battery to fire or incinerate it.
- Do not immerse the battery in water.
- Do not disassemble, crush, or puncture the battery.
- Do not use 9 V/12 V high-voltage fast chargers.
- Do not fully discharge the battery or leave it connected to the charger overnight.
- Do not store the battery in a sealed, high-temperature environment, such as a hot vehicle.
- Do not continue using a damaged battery.
¶ Replacement and Recycling
The battery has an approximate service life of 2–3 years under normal use. Replace it with an original battery of the same model if its runtime noticeably decreases.
Lithium-ion batteries require appropriate disposal. Dispose of the battery through an authorized battery recycling or hazardous waste collection program. Do not discard it with household waste.
