¶ Operation Steps for Each Model
The steps below are based on Centauri Carbon 2 Combo. For other models, skip the steps related to parts that are not installed.
| Model | Action | Steps to Skip |
|---|---|---|
| Centauri Carbon 2 Combo | Follow all steps | None |
| Centauri Carbon 2 | Skip enclosure-related steps |
|
| Centauri 2 Combo | Skip enclosure-related steps |
|
| Centauri 2 | Skip enclosure-related steps |
|
If your printer has optional accessories installed, such as CANVAS or an enclosure, follow the steps related to those parts.
¶ Tools needed for troubleshooting
-
A 2.0 mm Allen key
-
A Phillips screwdriver
-
A pair of tweezers
-
A new motherboard
¶ Tutorial Video
¶ Instructions
¶ Preparation
Turn the power switch OFF (symbol "〇") and unplug the power supply cable.
¶ Remove the Bottom Cover and Disconnect the Components
-
Remove the lid.
-
Release and remove the ten screws securing the bottom cover with a 2.0 mm Allen key. Remove the bottom cover.
¶ Disconnect the Touch Screen Ribbon Cable
-
Remove the tape securing the touch screen ribbon cable. Keep the tape at hand as it will be reused later.
-
Lift the clip securing the touch screen ribbon cable with a pair of tweezers.
-
Unplug the touch screen ribbon cable.
¶ Disconnect the Motherboard Cables
-
Unplug the Wi-Fi antenna with a pair of tweezers.
-
Unplug the cable.
Note:
-
The cable connected to the motherboard has a clip.
-
If the clip cannot be removed easily, you can lift the clip with a pair of tweezers.
-
Unplugging the cable forcibly without lifting the clip may damage the port on the motherboard.
- Loosen the screws securing the power supply cables with a Phillips screwdriver. Unplug the power supply cables.
¶ Remove the Old Motherboard
- Release and remove the four screws securing the motherboard with a 2.0 mm Allen key. Remove the old motherboard.
¶ Install the New Motherboard
- Tighten the four screws securing the new motherboard with a 2.0 mm Allen key.
¶ Connect the Motherboard Cables
-
Plug in the touch screen ribbon cable. Press the clip to secure the ribbon cable.
-
Insert the Wi-Fi antenna and secure it with a pair of tweezers.
-
Loosen the screws securing the power supply cable of the motherboard. Insert the power supply cable. Secure the power supply cable with a Phillips screwdriver.
-
Plug in the cables on the motherboard.
¶ Install the Bottom Cover
- Tighten the ten screws securing the bottom cover with a 2.0 mm Allen key.
¶ Restart the Printer
-
Plug in the power supply cable. Turn the power switch ON (symbol "|").
-

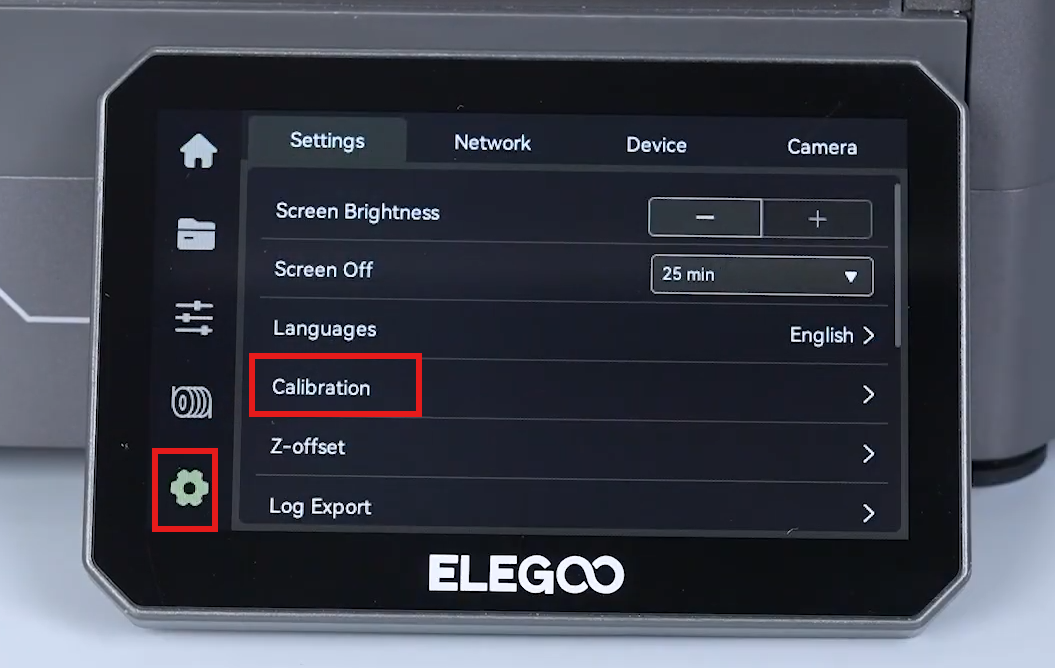

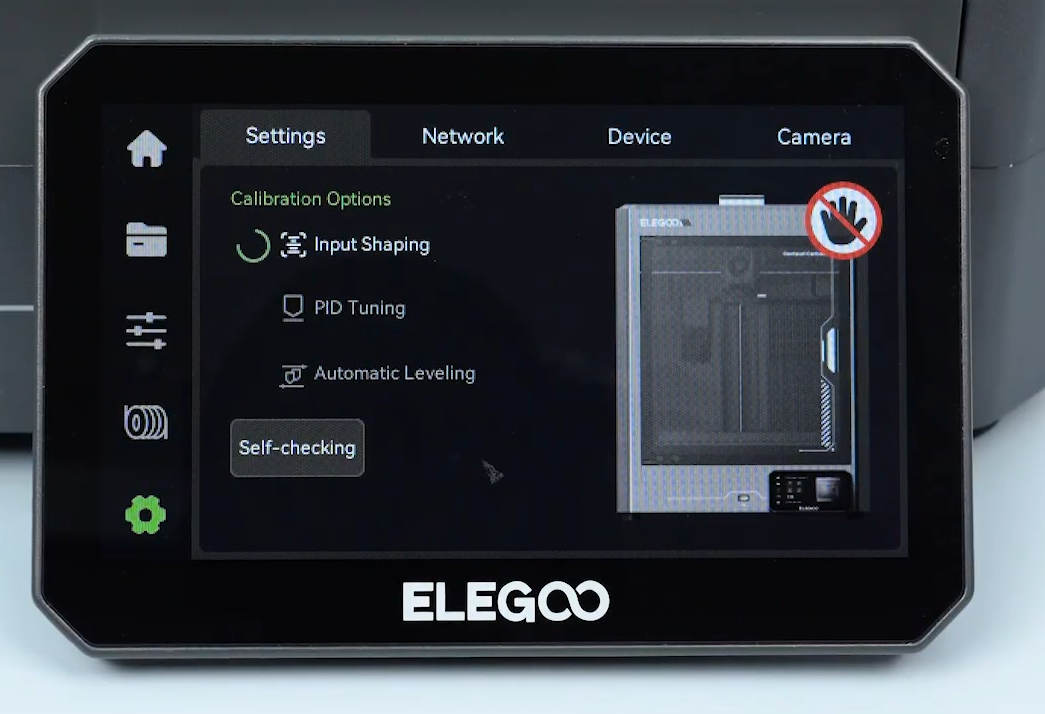

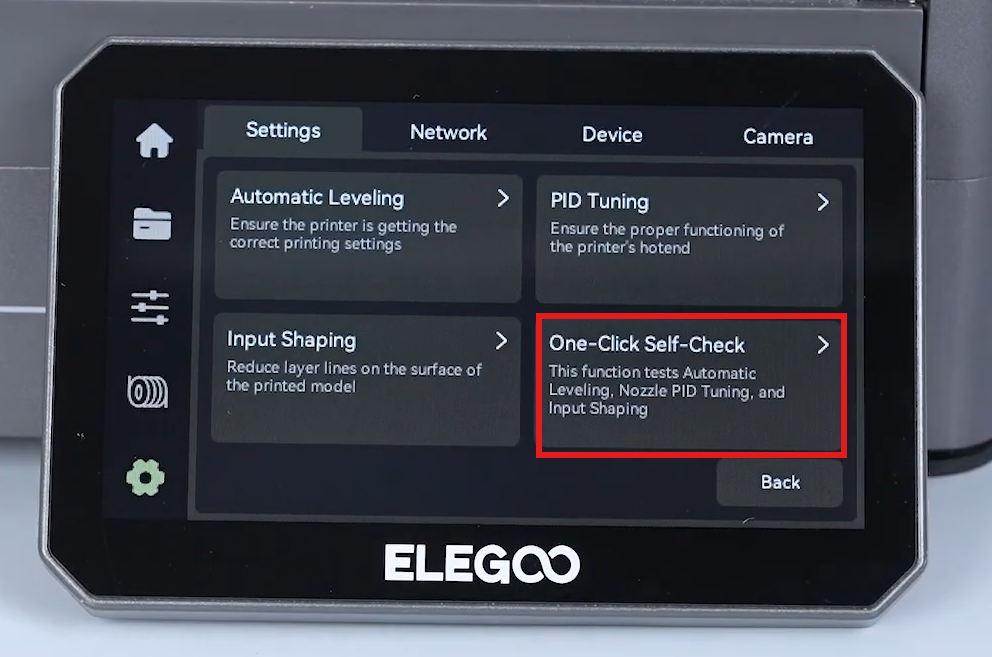

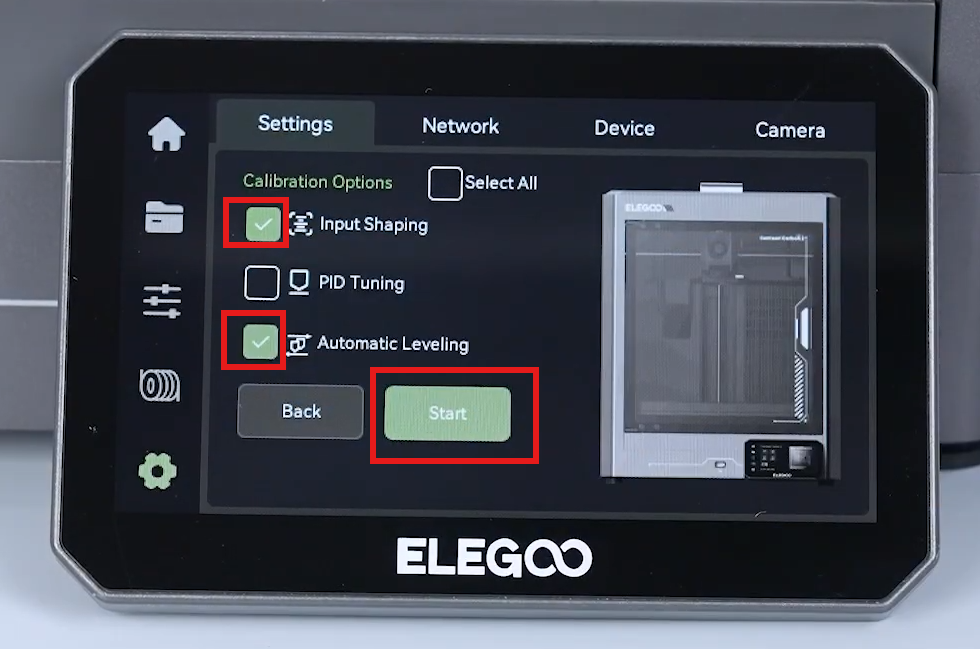

On the touch screen, select Settings - Calibration - One-Click Self-Check - Select All - Start. The printer is ready for use after the self check.
