¶ Issue Description
The touch screen displays error code 706.
¶ Reasons
-
The chamber cooling fan cable has poor contact.
-
The chamber cooling fan or the motherboard is damaged.
¶ Troubleshooting Steps
¶ Tools needed for troubleshooting
- A 2.0 mm Allen key
¶ Step 1 Re-plug the chamber cooling fan adapter cable.

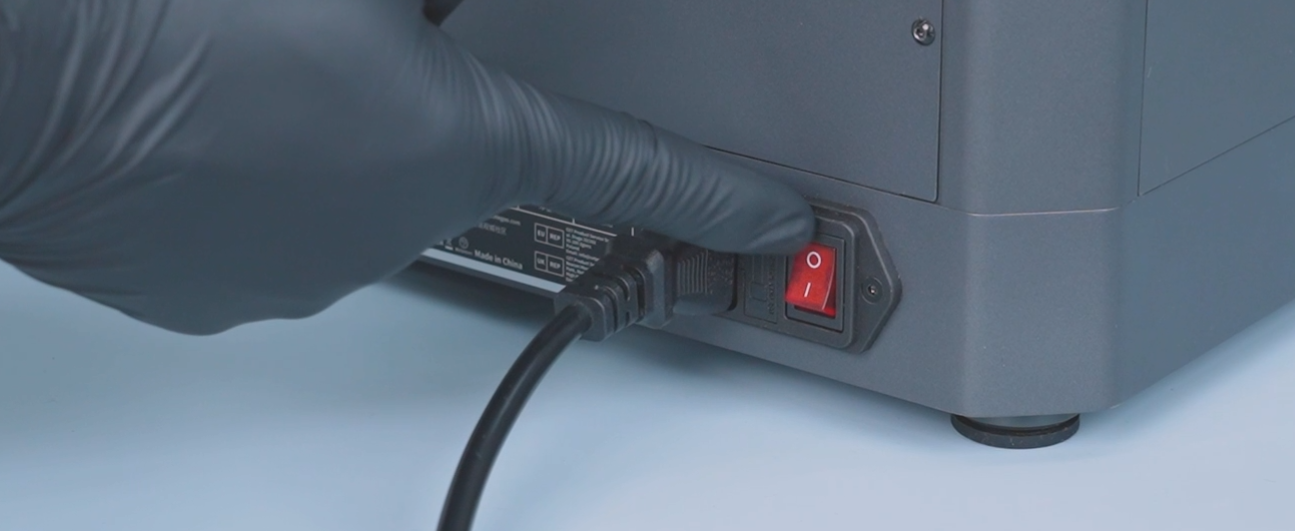

- Turn the power switch OFF (symbol "〇") and unplug the power supply cable.

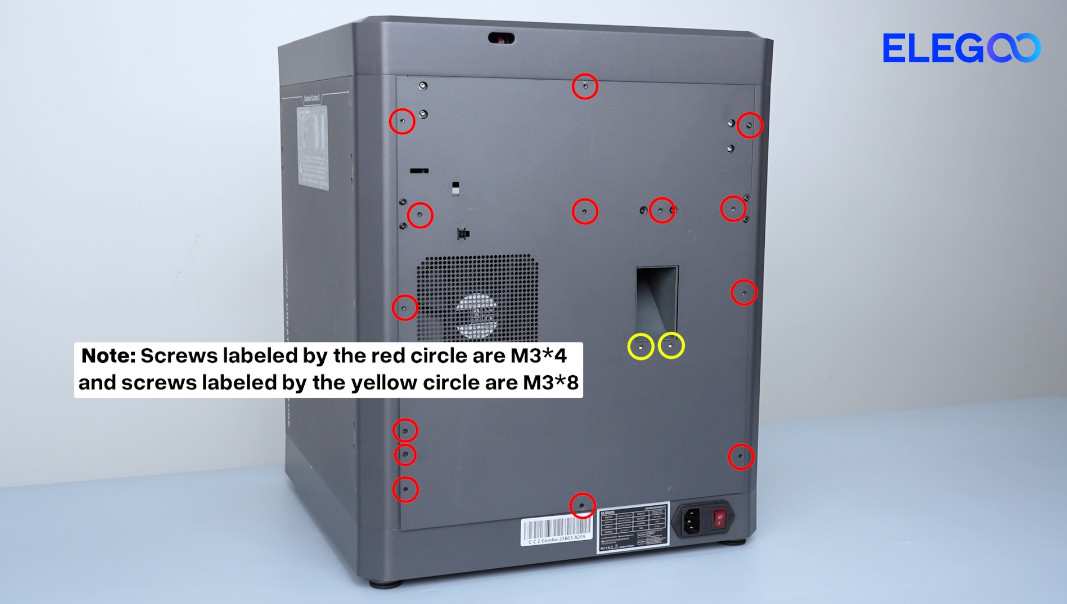

- Remove the sixteen screws securing the back cover.

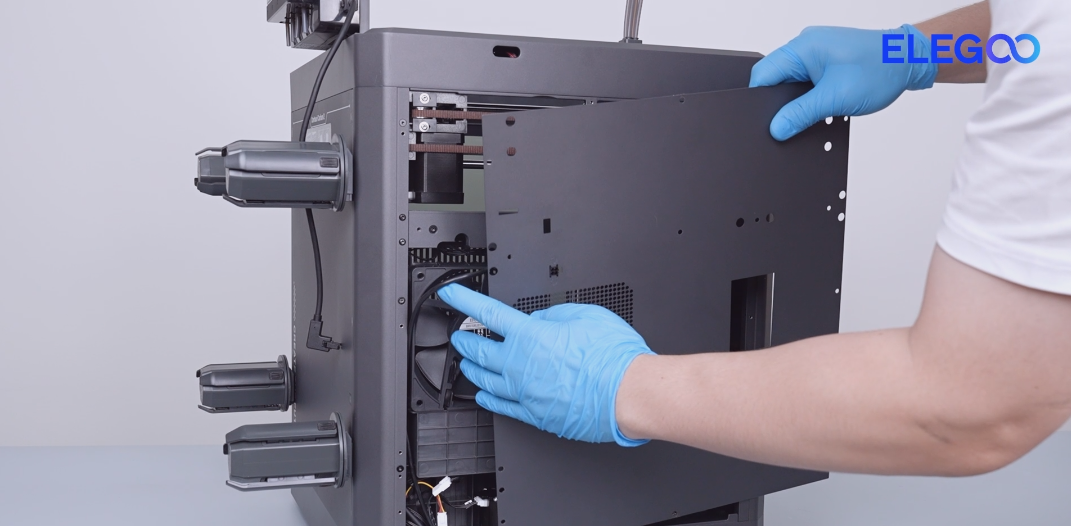

- Pull the CANVAS extension cable out through the gap on the side of the chamber cooling fan and lay the back cover flat on the table temporarily.

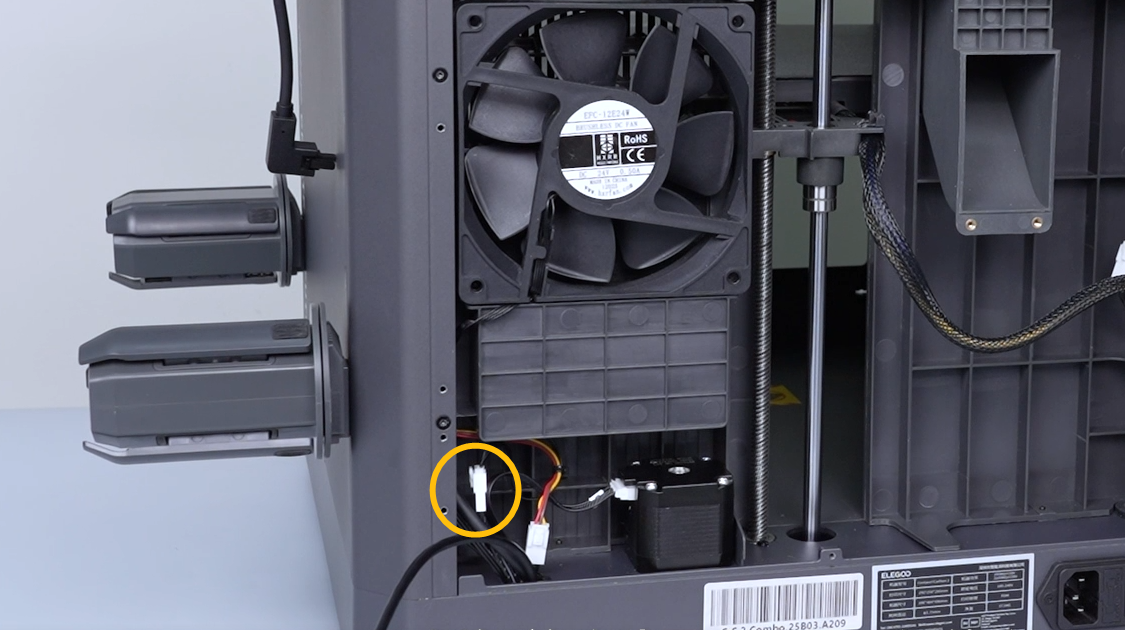

- Re-plug the chamber cooling fan adapter cable.
¶ Step 2 Re-plug the chamber cooling fan cable.
-
Turn the power switch OFF (symbol "〇") and unplug the power supply cable.
-

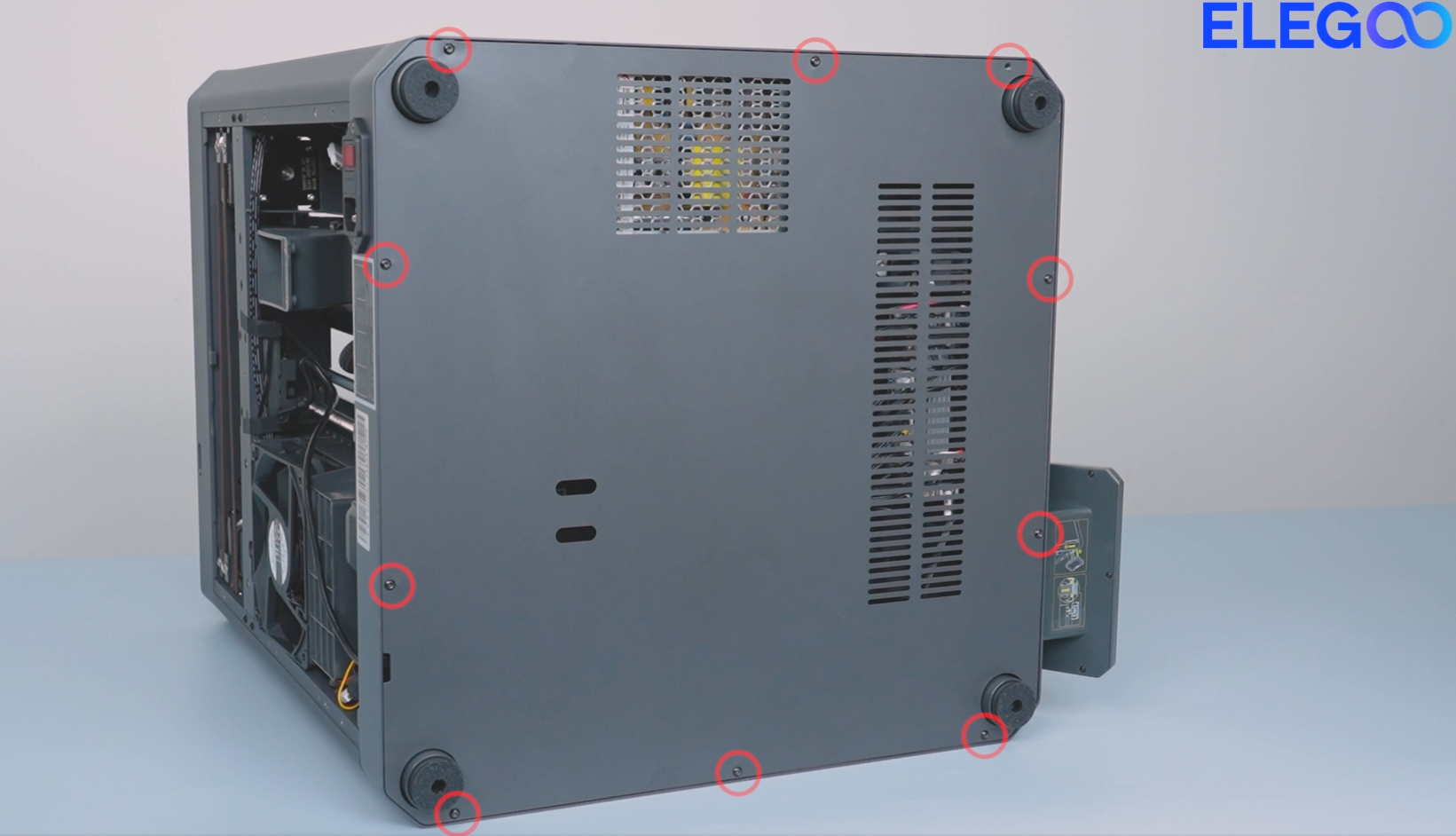

Remove the ten screws securing the bottom cover with a 2.0 mm Allen key.

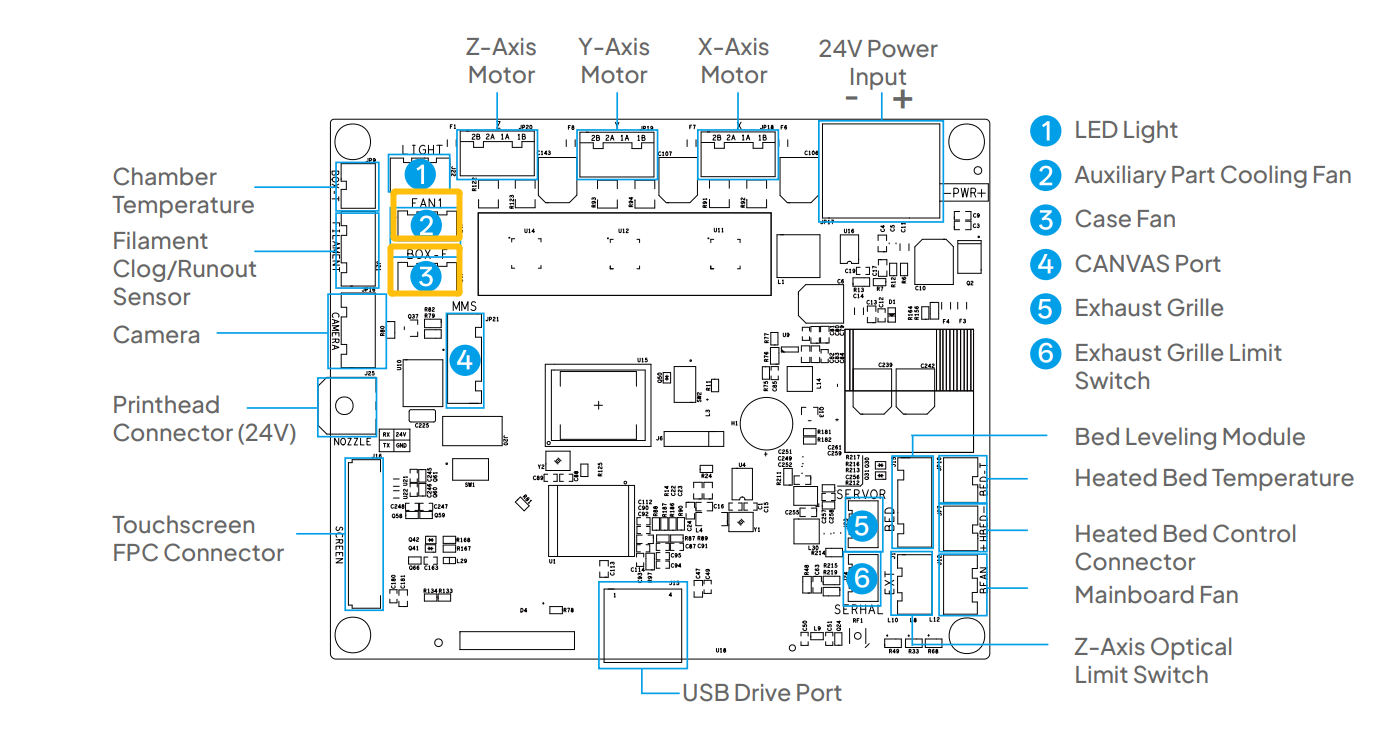

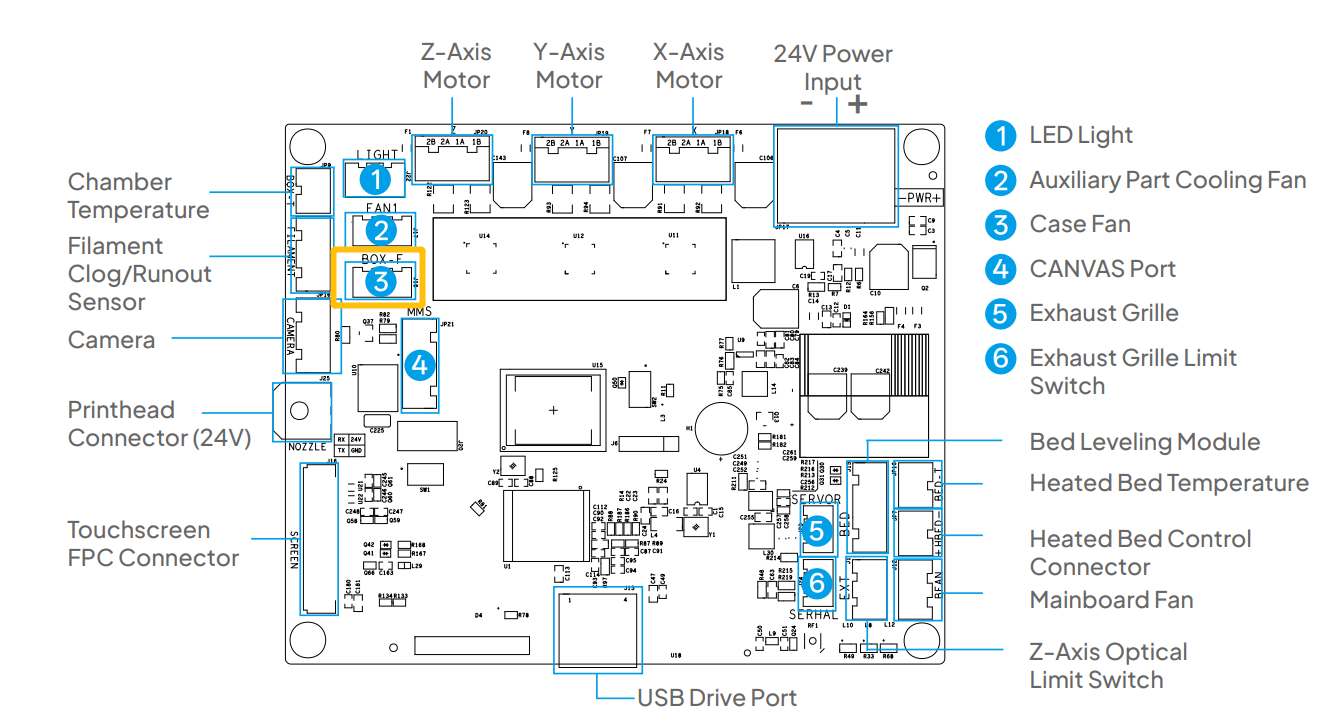

- Re-plug the chamber cooling fan cable on the motherboard.
¶ Step 3 Interchange the chamber cooling fan cable and the auxiliary cooling fan cable for testing.
-
Turn the power switch OFF (symbol "〇") and unplug the power supply cable.
-
Interchange the chamber cooling fan cable and the auxiliary cooling fan cable.
-

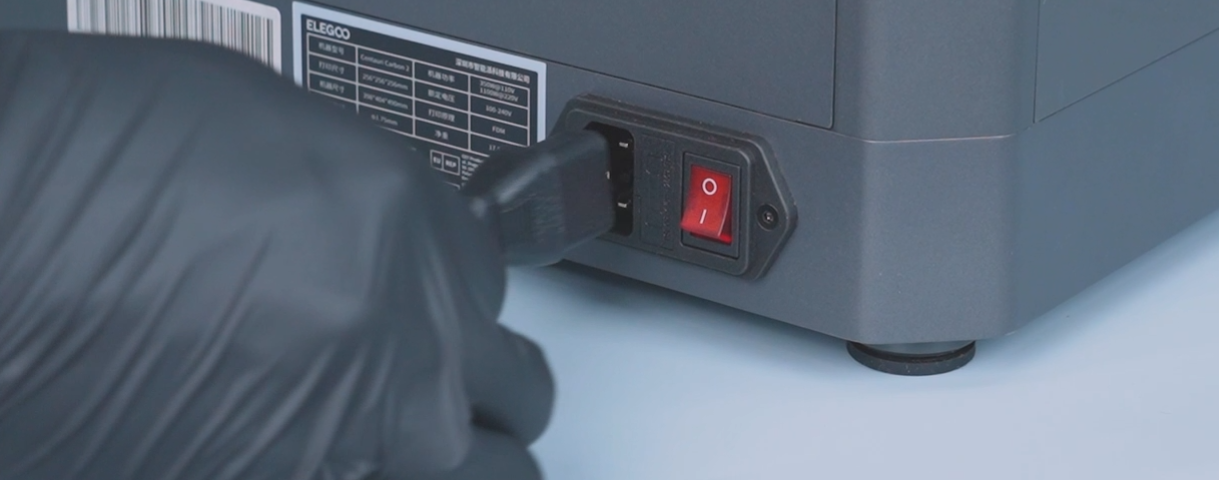

Plug in the power supply cable and turn the power switch ON (symbol "|").
-

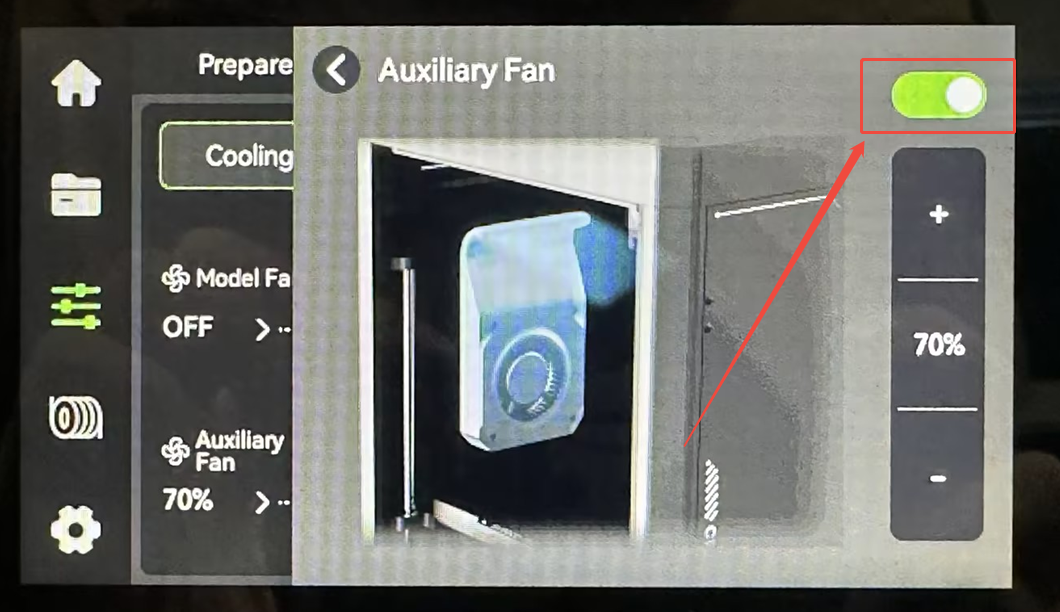

On the touch screen, turn the auxiliary cooling fan on.
-
If the chamber cooling fan fails to rotate normally, it indicates that the chamber cooling fan needs to be replaced.
-
If the chamber cooling fan rotates normally, it indicates that the auxiliary cooling fan needs to be replaced.
