¶ Issue Description
The touch screen displays error code 1251.
¶ Reasons
-
The filament diameter is small and the gears cannot mesh successfully.
-
The filament is broken in the PTFE tube.
-
The filament sensor board in the tool head is triggered abnormally or is damaged.
-
The filament runout board in the CANVAS is triggered abnormally or is damaged.
-
The gears of the canvas are abnormally installed or worn.
¶ Troubleshooting Steps
¶ Tools needed for toubleshooting
-
A caliper
-
A 2.0 mm Allen key
-
A 2.5 mm Allen key
-
A pair of tweezers
¶ Step 1 Check whether the filament diameter remains stable.
If the filament diameter is excessively small, the gears cannot mesh properly, which may result in an error message. If a caliper is not available, you can use other filaments for testing.

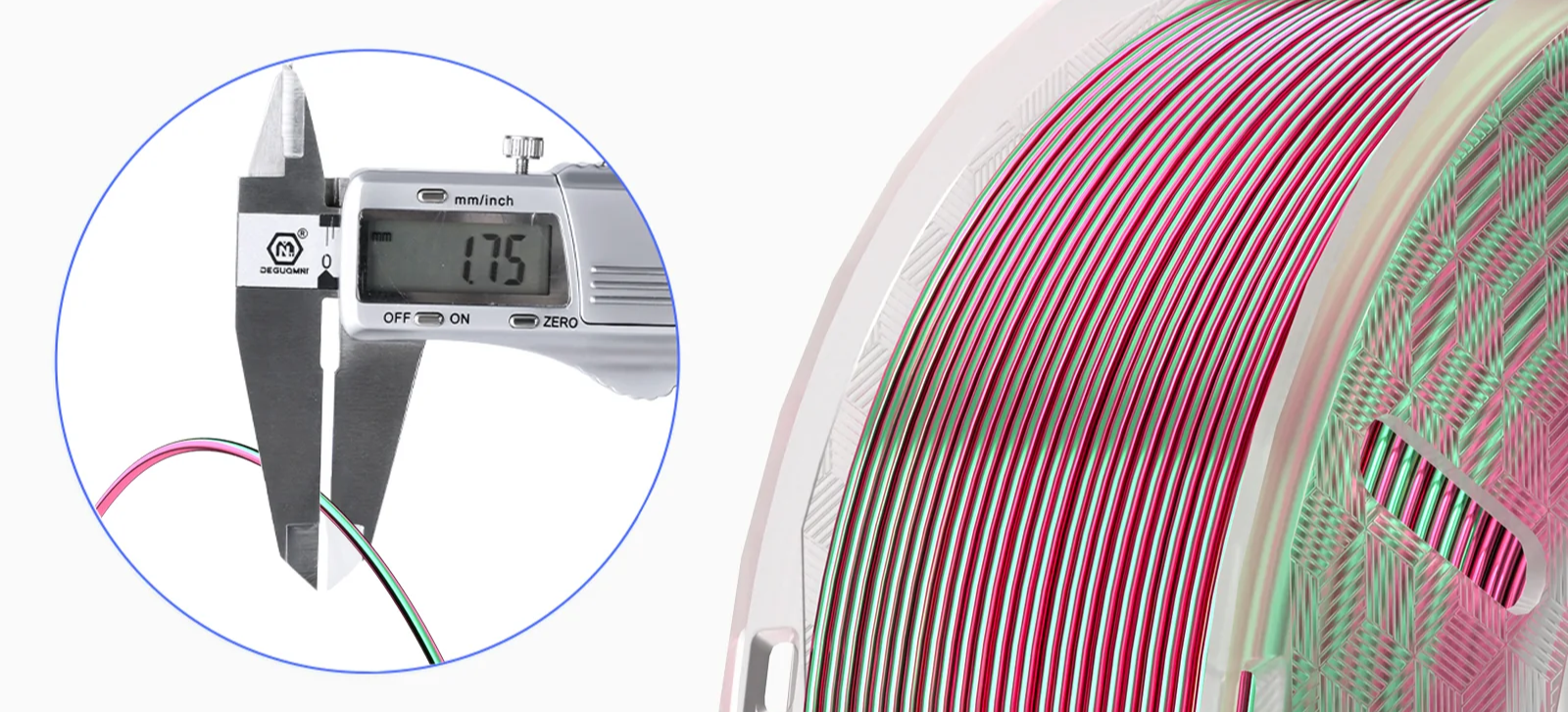

How to measure the filament diameter with a caliper:
-
Prepare one meter of filament and select five points on it.
-
Check whether the diameter at these points is within the normal tolerance range.
For example, the normal tolerance range of ELEGOO PLA is ± 0.02 mm.
¶ Step 2 Check whether the PTFE tube and the 4-in-1 hub have any residual filament.
-

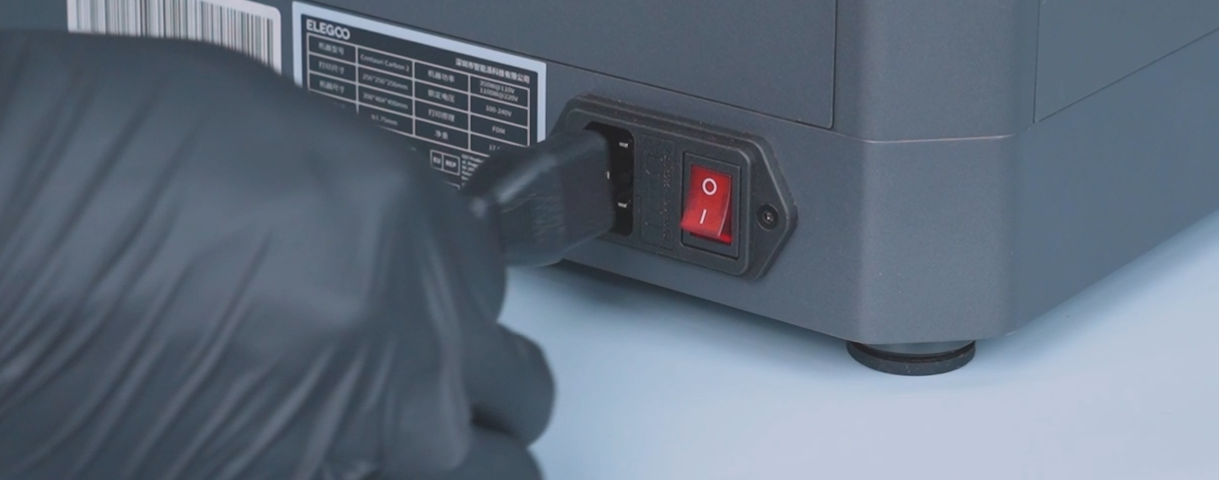

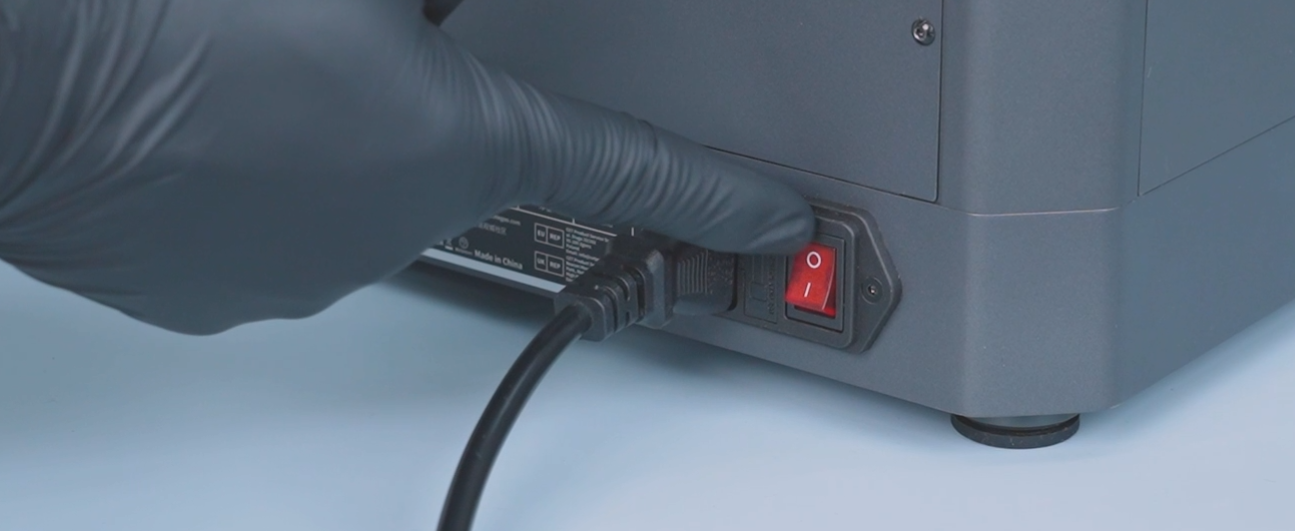

Turn the power switch OFF (symbol "〇") and unplug the power supply cable.
-

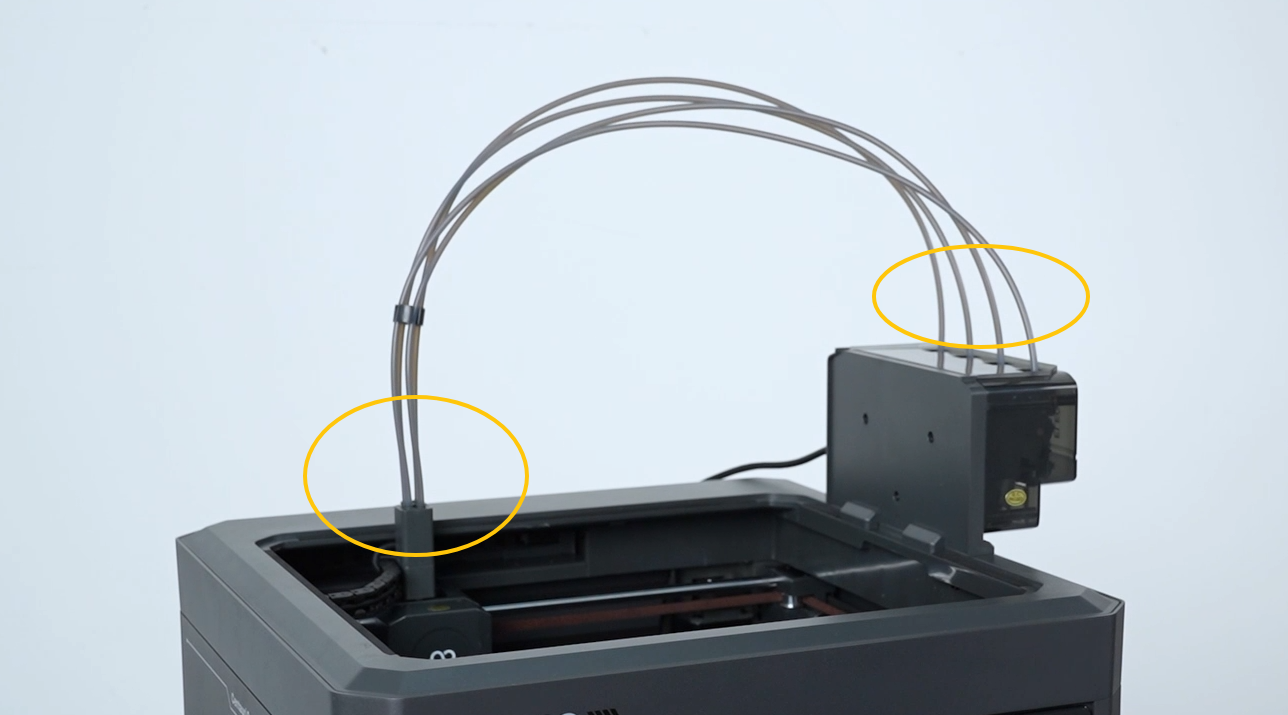

Check whether the PTFE tube has any residual filament.
- If the filament is broken in the PTFE tube on the CANVAS side:
-

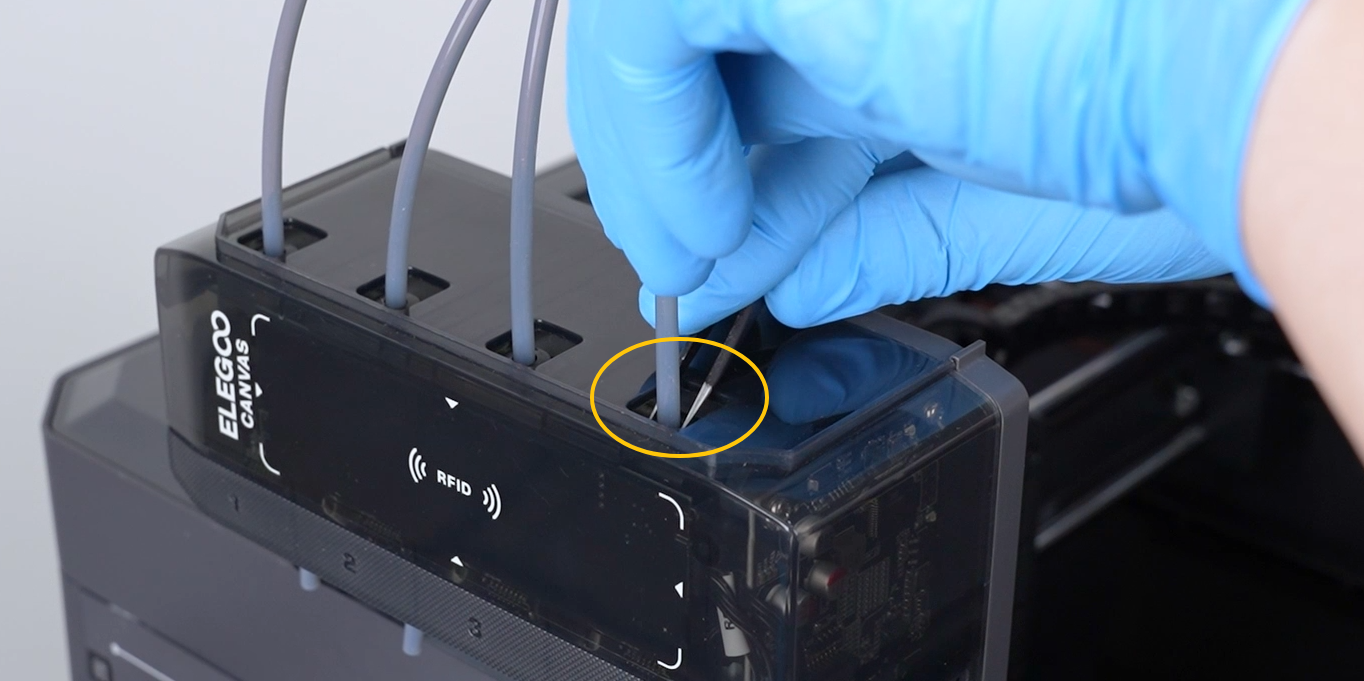

Press the end of the PTFE tube with a pair of tweezers and unplug the PTFE tube.
-
Remove the broken filament.

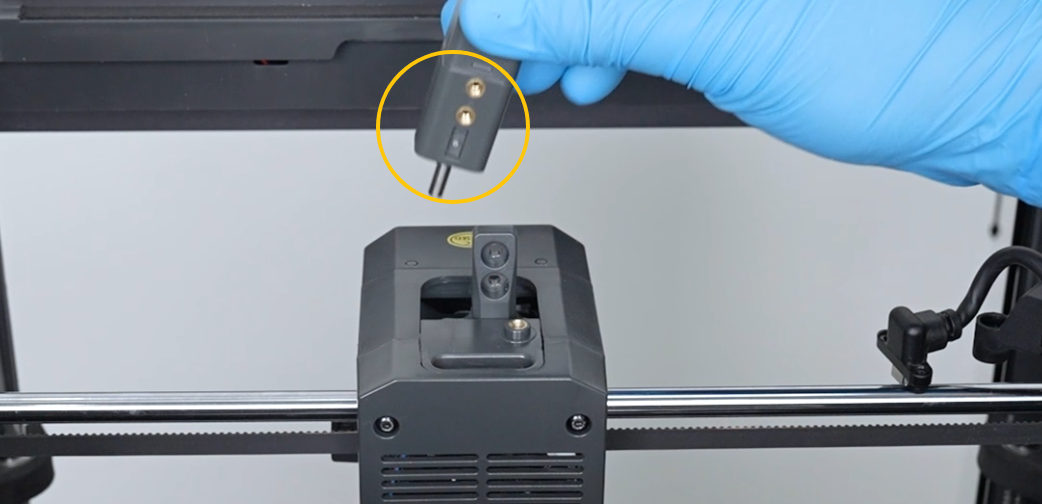

- If the filament is broken in the PTFE tube on the 4-in-1 hub side, refer to the steps below to remove the 4-in-1 hub and take out the broken filament:
-

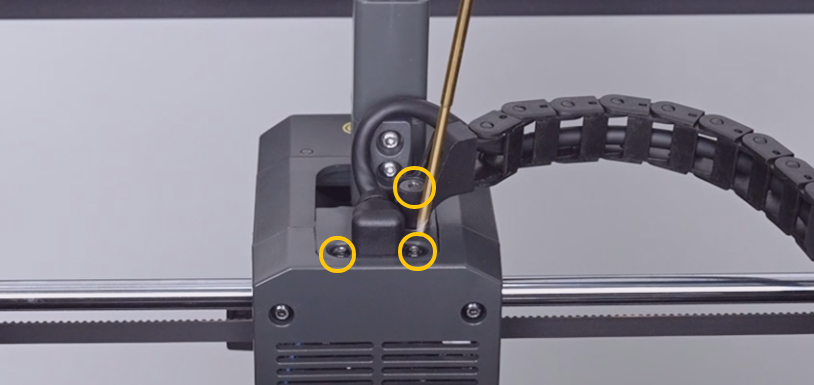

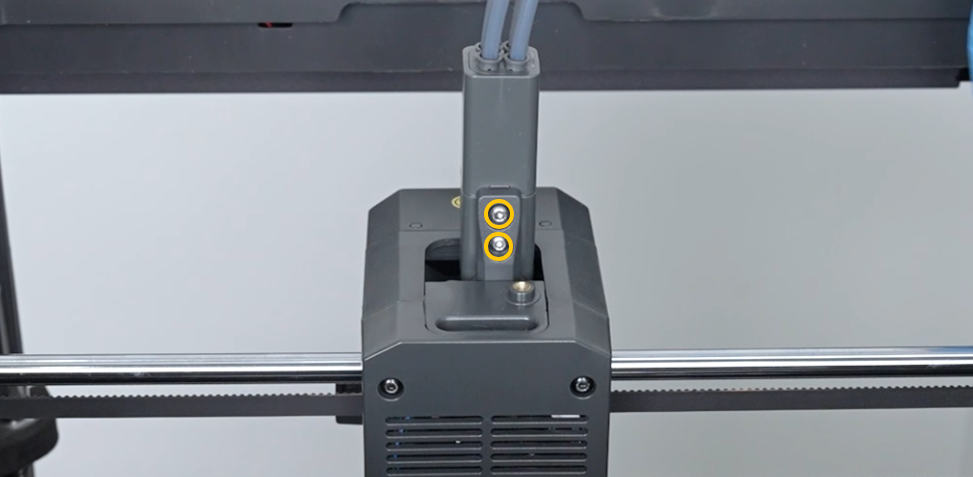

Release and remove the screws securing the CAN bus and the tank chain with a 2.0 mm Allen key.
-
Unplug the CAN bus and the tank chain.
-
Release and remove the two screws securing the 4-in-1 hub with a 2.0 mm Allen key.
-
Remove the 4-in-1 hub.
-

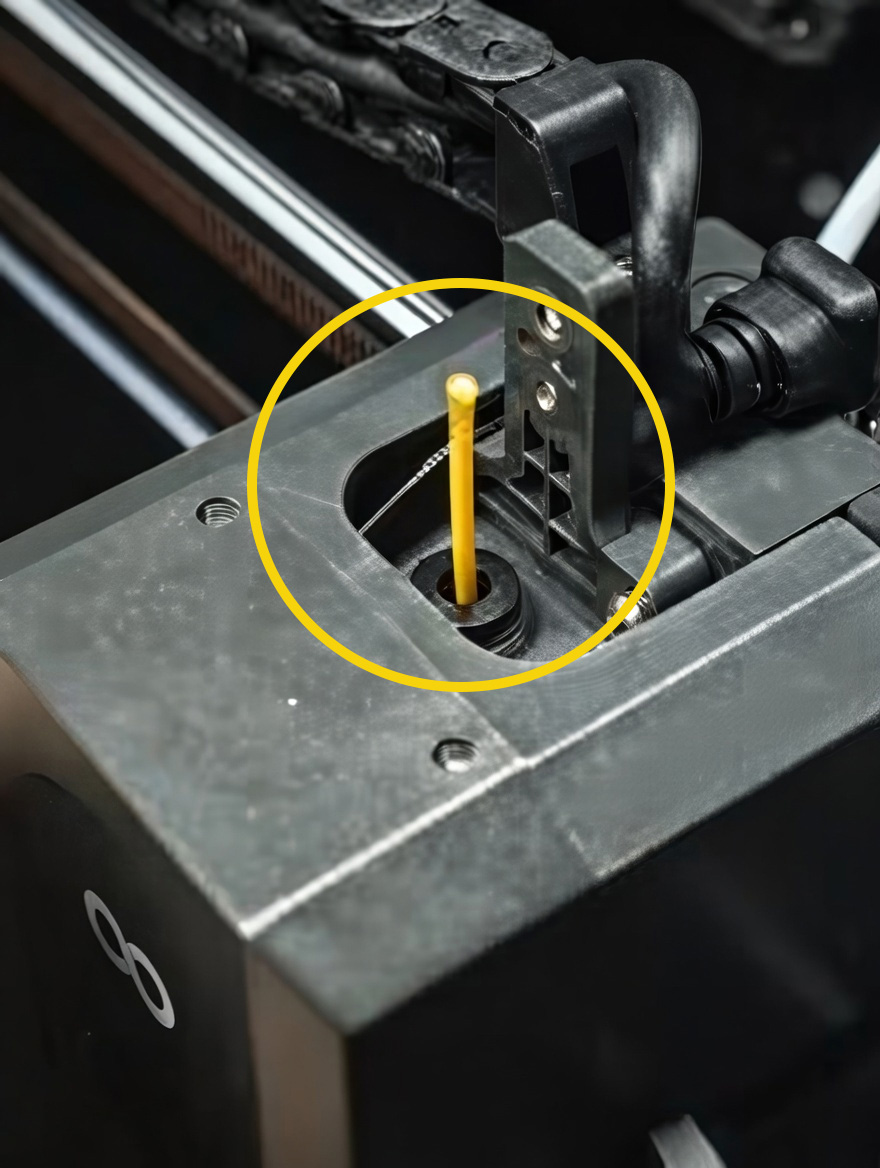

Check whether the 4-in-1 hub and the gearbox have any residual filament.
¶ Step 3 Check whether the gears of the CANVAS are worn.
-
Turn the power switch OFF (symbol "〇") and unplug the power supply cable.
-

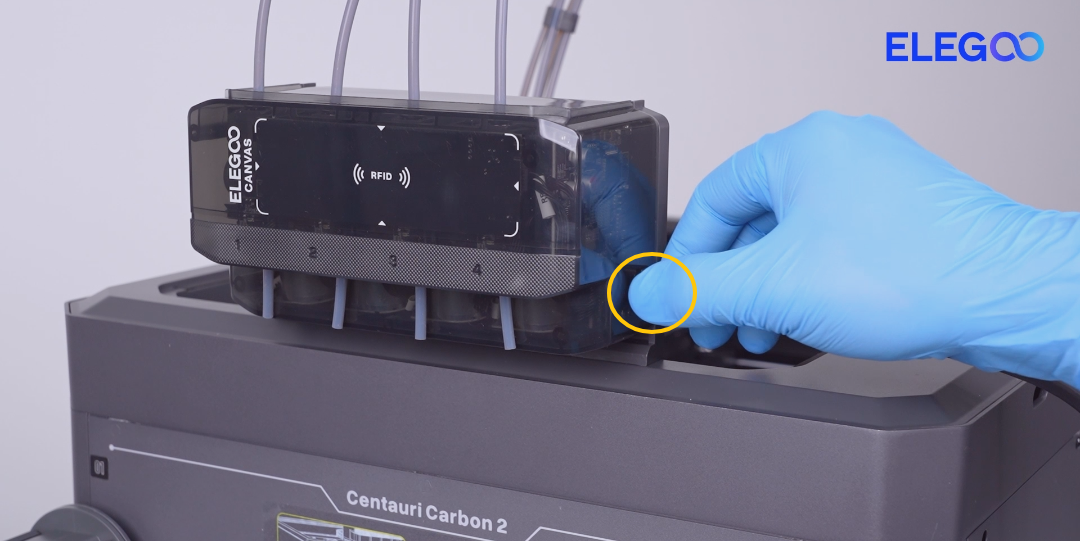

Unplug the CANVAS communication cable.
-

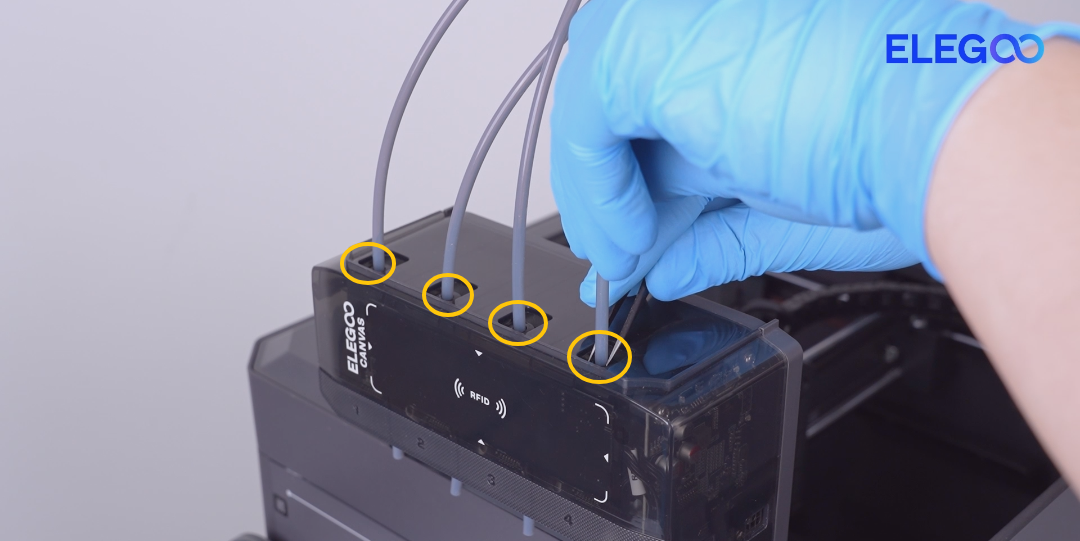

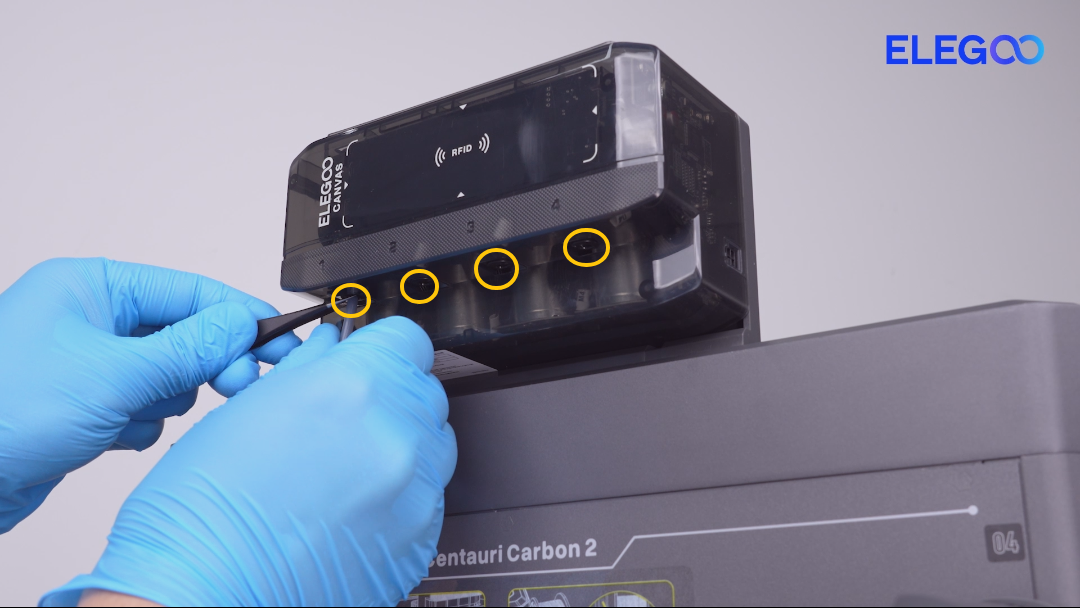

Unplug the PTFE tubes on the upper and lower sides of the CANVAS. Gently press the end of the PTFE tube with a pair of tweezers and unplug the PTFE tube.
-

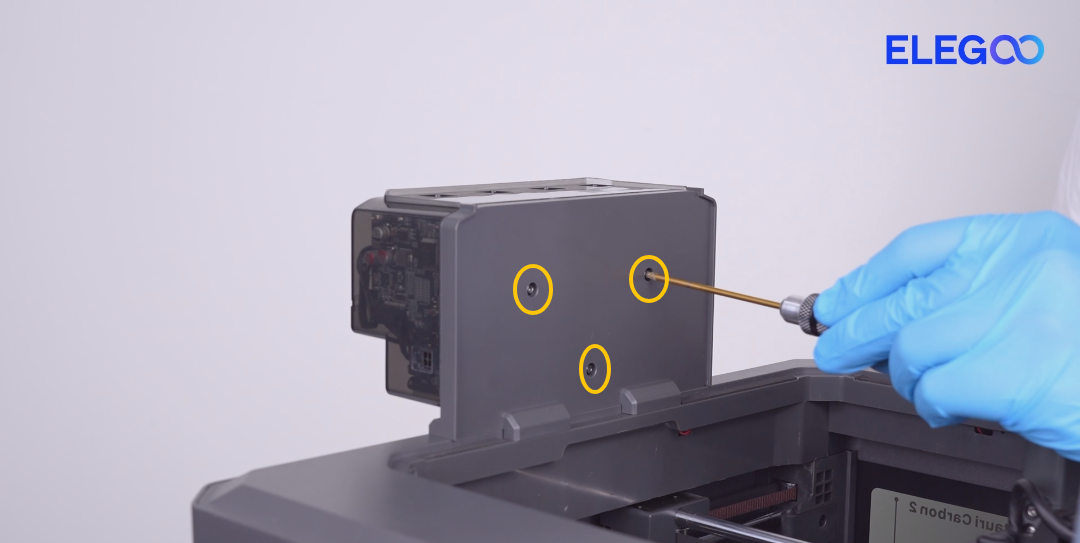

Release and remove the three screws securing the CANVAS holder. Hold the CANVAS when releasing the last screw. Remove the CANVAS.
-
Release and remove the six screws securing the CANVAS housing.

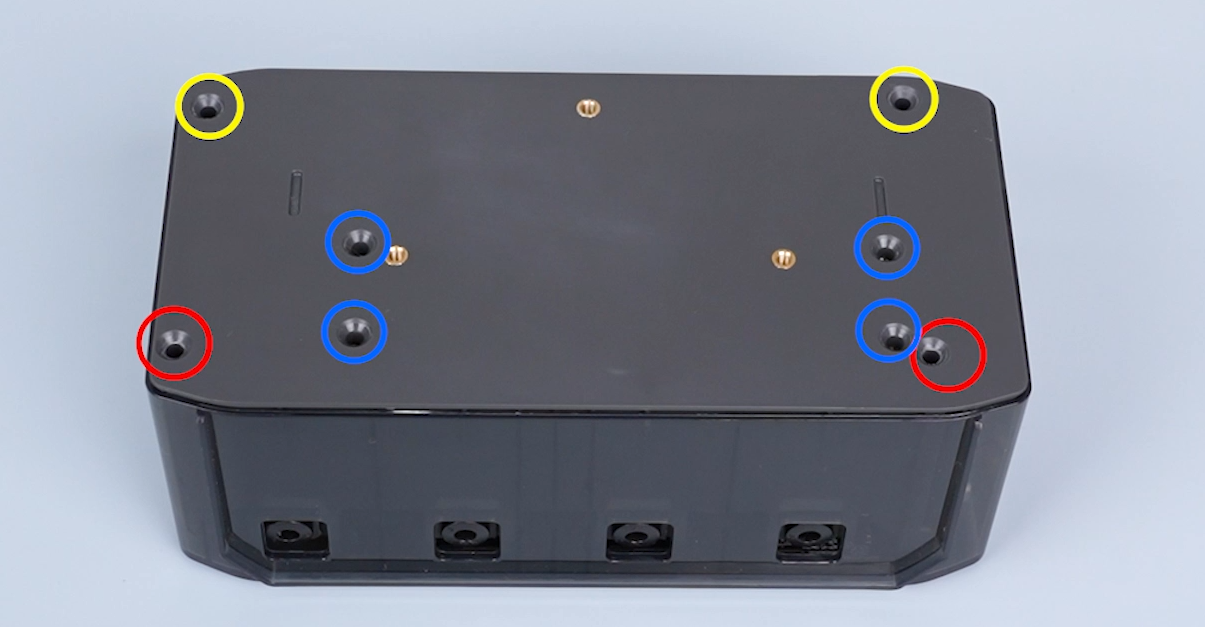

Note: Screws marked by yellow circle are M3 x 18.
Screws marked by blue circle are M3 x 8.
Screws marked by red circle are M3 x 45.
- Open the CANVAS housing and locate the gearbox of the feeder motor.

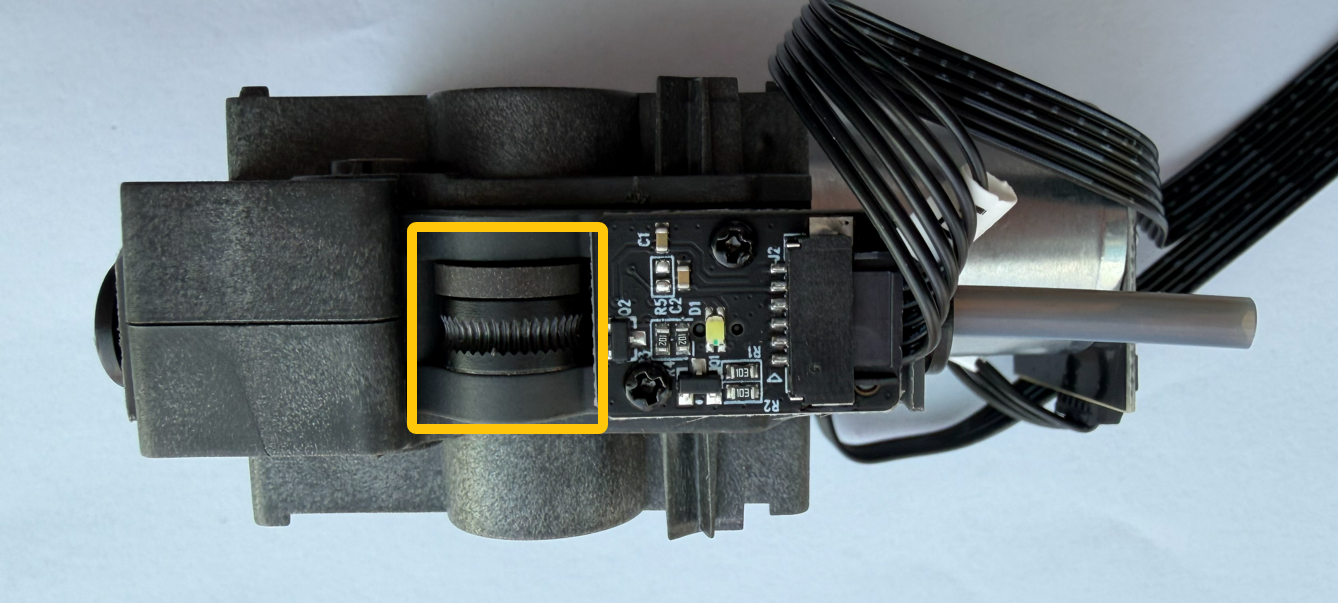

- Check whether the gears of the CANVAS is worn.
