¶ Issue Description
The filament fails to be loaded into the tool head.
¶ Reasons
-
The PTFE tube is not installed correctly.
-
The gears of the CANVAS are slipping.
¶ Troubleshooting Steps
¶ Step 1 Check whether the PTFE tube is installed correctly.
-
Turn the power switch OFF (symbol "|").
-

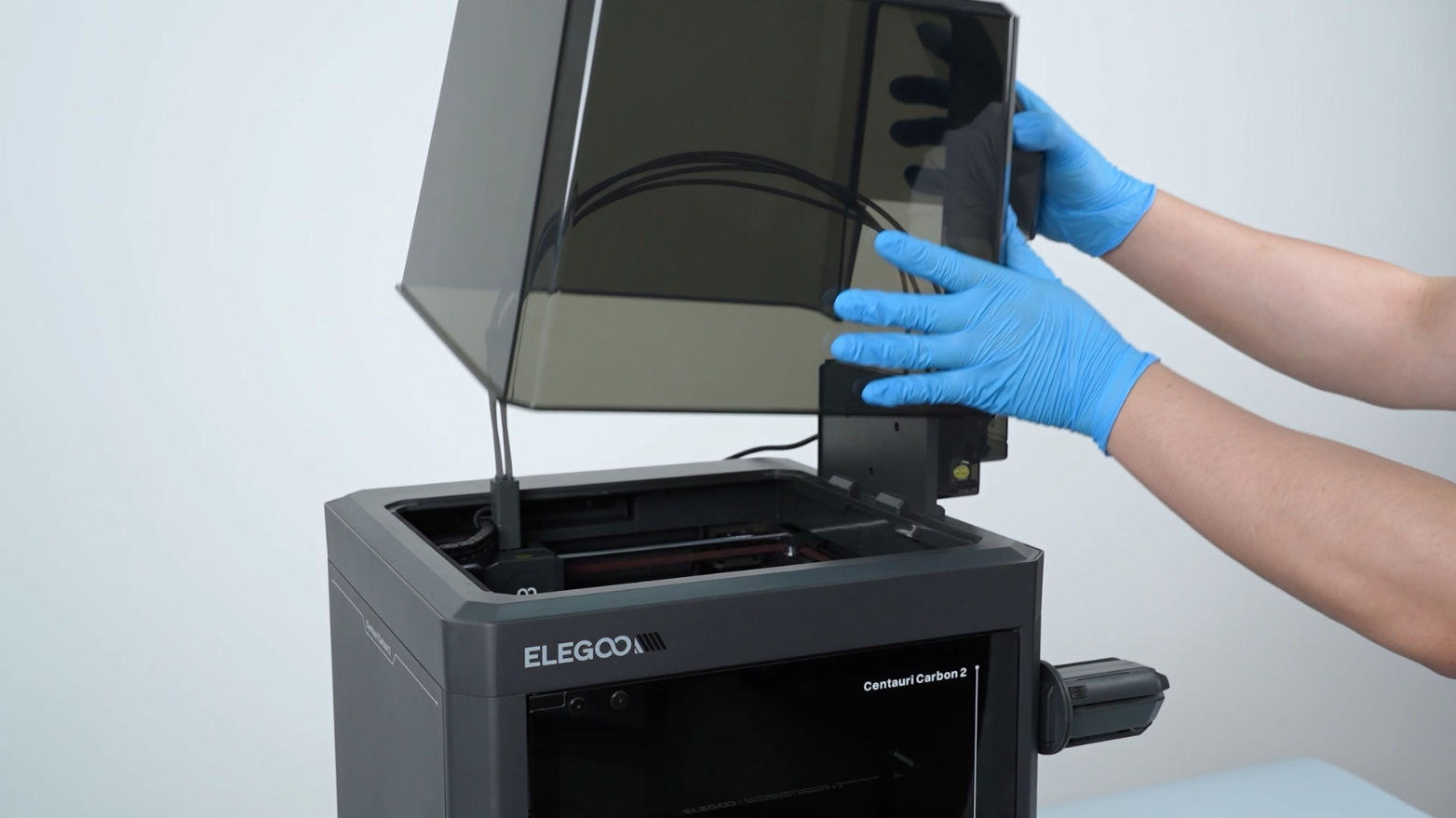

Remove the lid.
-
Check whether the both ends of the PTFE tube are correctly installed.
Note: If any end of the PTFE tube is not installed correctly, the filament cannot feed properly into the tool head.
-
If the PTFE tube is not installed correctly, re-install both ends of the PTFE tube.
-
If the PTFE tube is installed correctly, refer to Step 2 for further troubleshooting.
¶ Step 2 Check whether the feeding channel gear of the CANVAS can function properly.
-
Insert the filament into the upper end of the abnormal CANVAS feeding channel.
-
Pull out the filament from the lower end and check whether the filament is worn.
- If there are no signs of wear, it indicates that the gears of the feeding channel are slipping and needs to be replaced with a new one.
