¶ Issue Description
The nozzle temperature sensor is disconnected.
¶ Reasons
-
The hotend thermistor cable is loose.
-
The hotend thermistor is damaged .
¶ Troubleshooting Steps
¶ Tools needed for troubleshooting
-
Turn the power switch OFF (symbol "〇") and unplug the power supply cable.
-

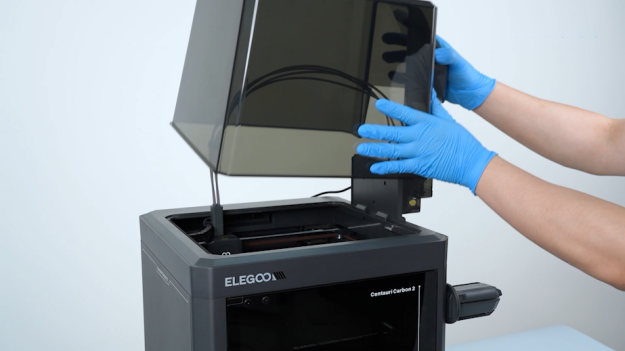

Remove the lid.
-

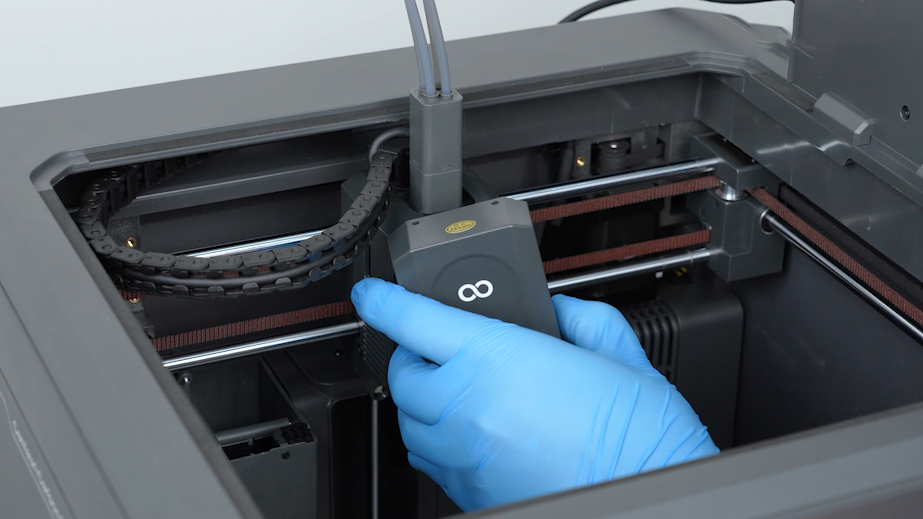

Remove the front cover of the tool head.
-

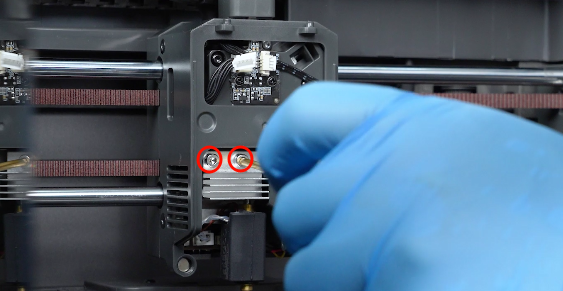

Loosen the screws securing the hotend with a 2.5 mm Allen key and remove the hotend.
-

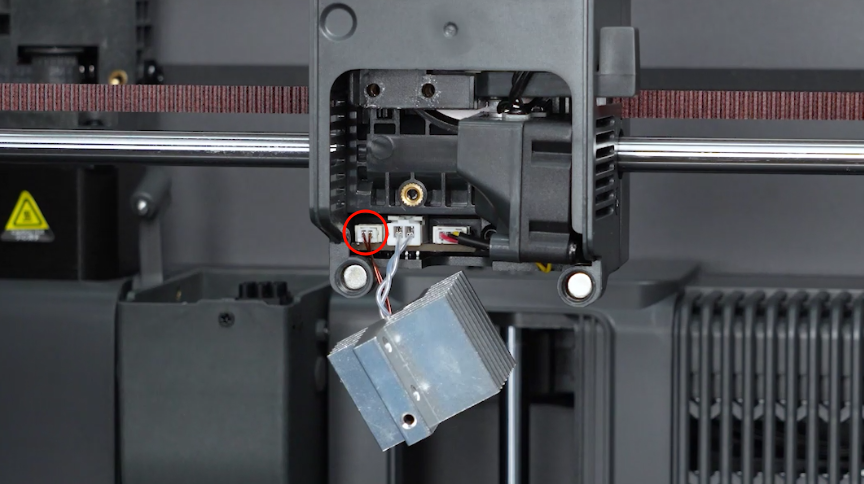

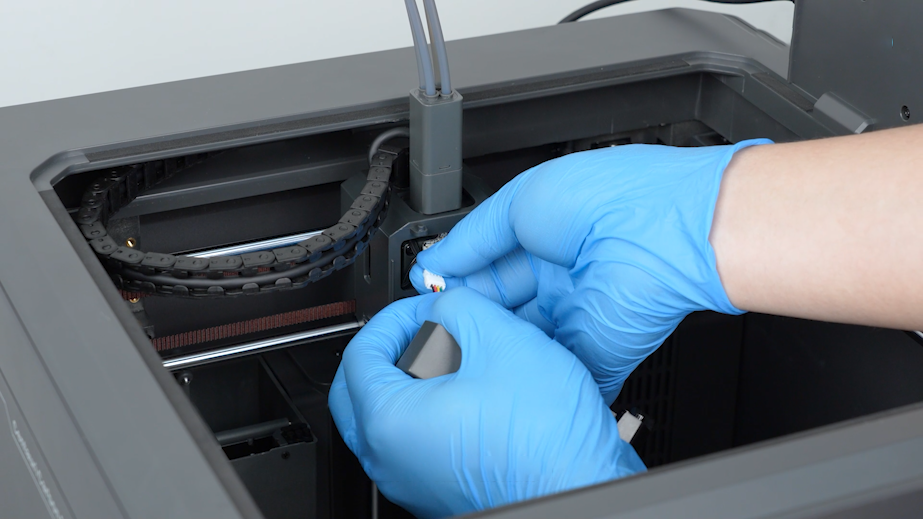

Re-plug the hotend thermistor cable.
-
If the error code disappears, it indicates that the issue has been resolved.
-
If the error code still occurs after re-plugging, it indicates that the hotend thermistor is damaged and needs to be replaced.
