¶ Issue Description
The hotend does not heat as expected.
¶ Reasons
- The cable of the ceramic heating plate of the hotend is loose.
- The ceramic heating plate is damaged.
¶ Troubleshooting Steps
¶ Tools needed for troubleshooting
- A 2.5 mm Allen key
- Turn the power switch OFF (symbol "〇") and unplug the power supply cable.

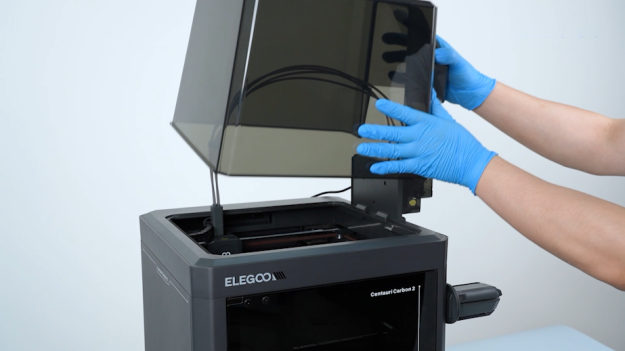

- Remove the lid.

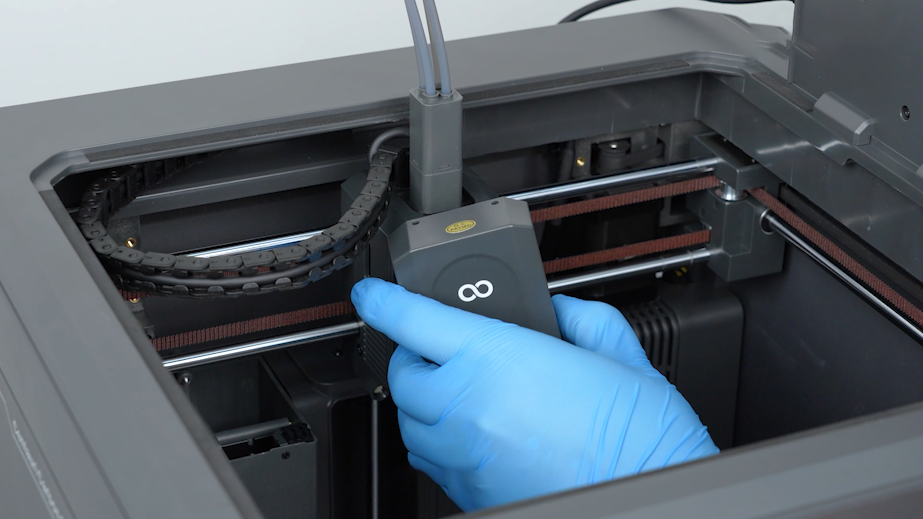

- Open the front cover of the tool head.

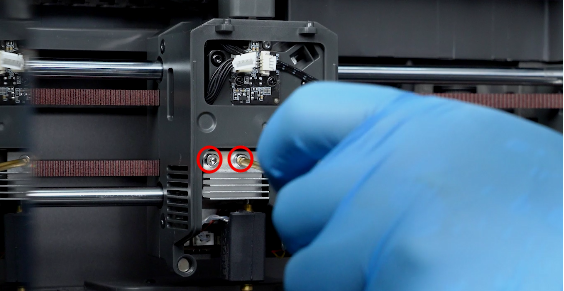

- Loosen the screws securing the hotend with a 2.5 mm Allen key and remove the hotend.

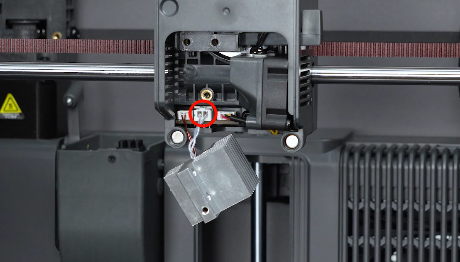

- Re-plug the cable of the hotend ceramic heating plate.
- If the error code disappears, it indicates that the issue has been resolved.
- If the error code still occurs after re-plugging, it indicates that the ceramic heating plate is damaged and needs to be replaced.
