¶ Operation Steps for Each Model
The steps below are based on Centauri Carbon 2 Combo. For other models, skip the steps related to parts that are not installed.
| Model | Action | Steps to Skip |
|---|---|---|
| Centauri Carbon 2 Combo | Follow all steps | None |
| Centauri Carbon 2 | Skip lid removal step |
|
| Centauri 2 Combo | Skip lid removal step |
|
| Centauri 2 | Skip lid removal step |
|
¶ Tools and Materials
-
A Phillips screwdriver
-
A new model cooling fan
¶ Tutorial Video
https://www.youtube.com/watch?v=QVgXnrA-5TU
¶ Instruction
¶ Prepare the Printer Before Replacement
Turn the power switch OFF (symbol "〇"). Unplug the power supply cable.
¶ Open the Printer Covers and Access the Tool Head

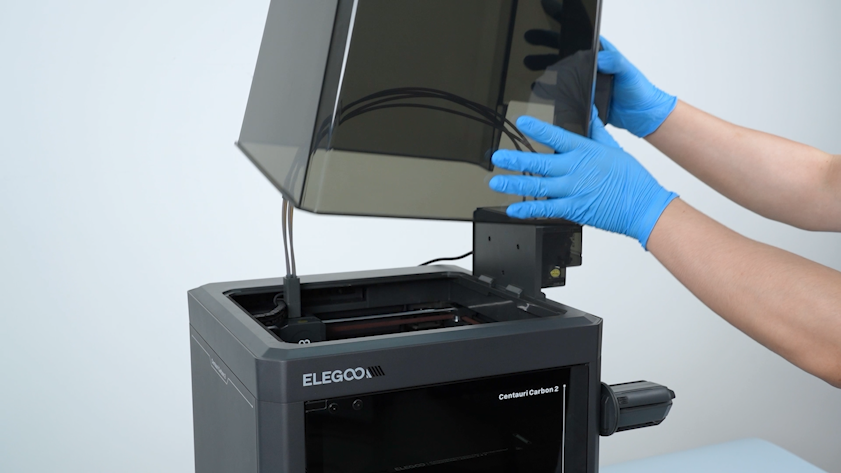

- Remove the lid.

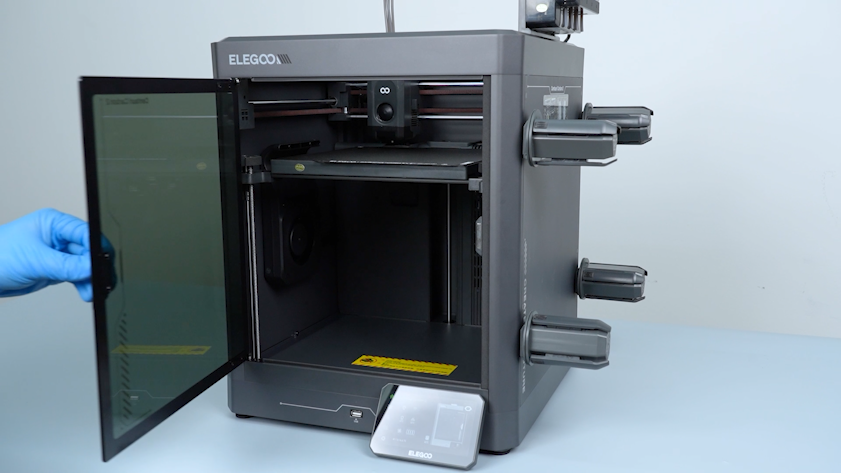

- Open the front door.

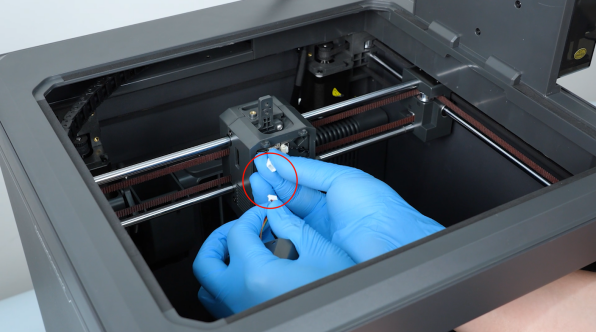

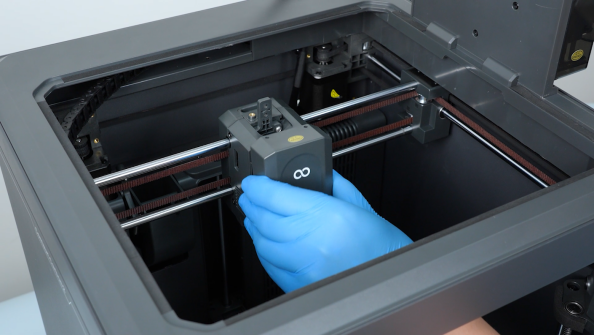

- Open the tool head front cover and remove the model cooling fan.
¶ Remove the Existing Model Cooling Fan

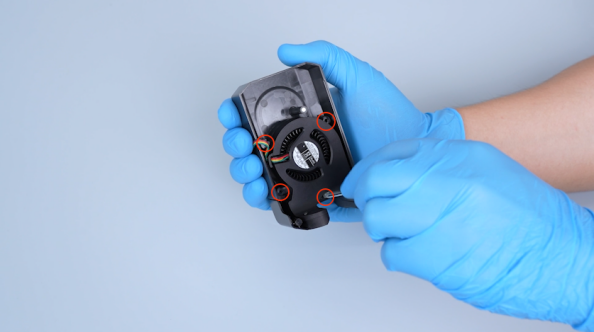

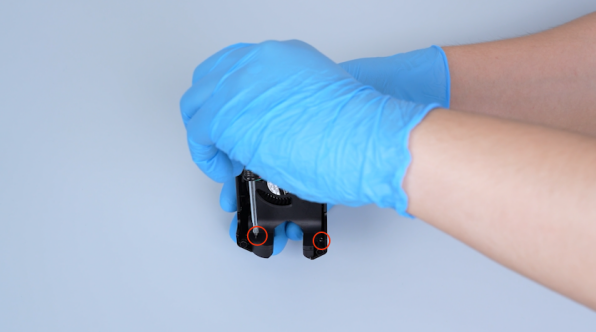

- Release and remove the six screws securing the model cooling fan with a Phillips screwdriver.

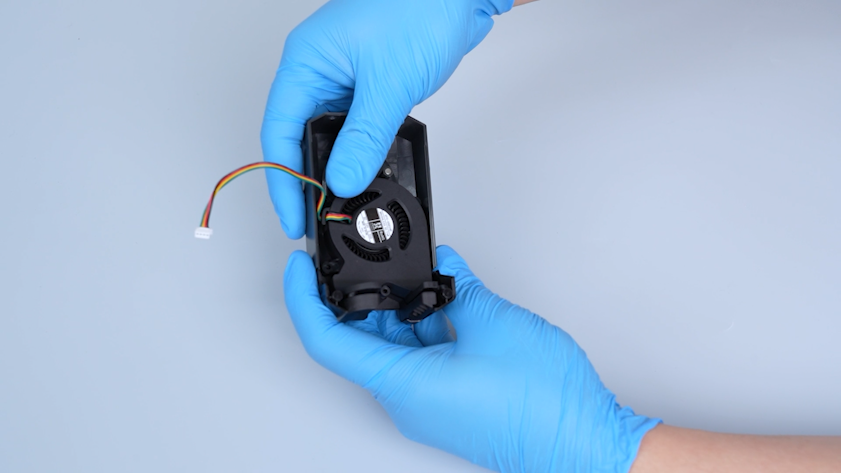

- Remove the old model cooling fan.
¶ Install the Replacement Model Cooling Fan

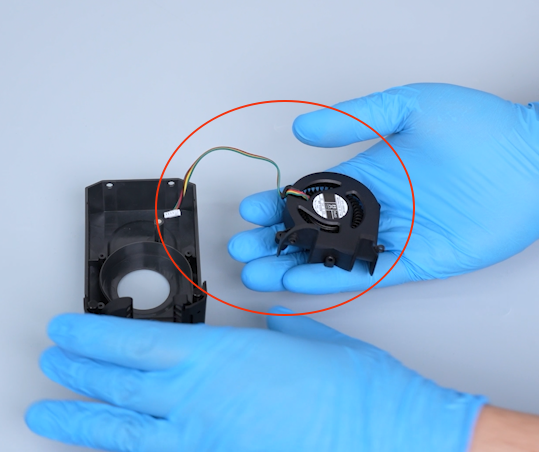

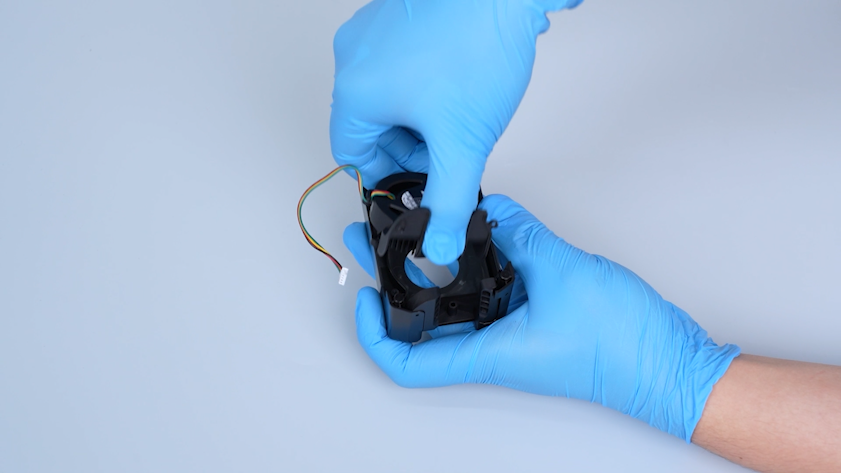

- Get the new model cooling fan and put it in the installation position.
- Tighten the six screws with a Phillips screwdriver.

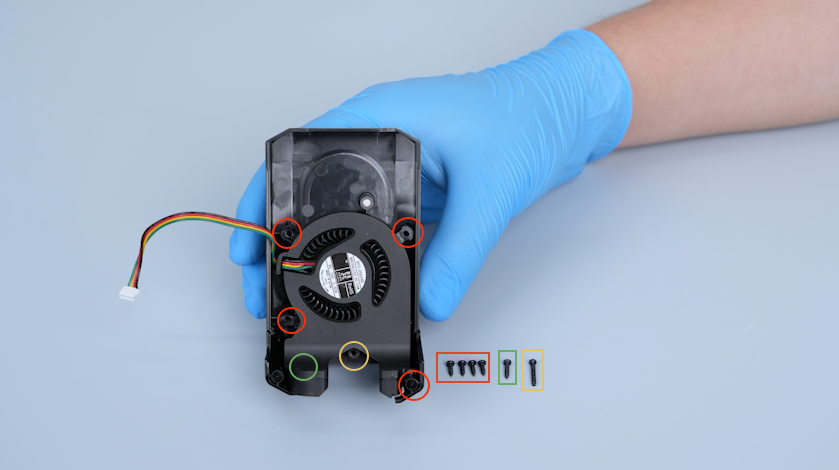

Note: Screws marked by red circle are PA2 x 6. Screws marked by yellow circle are PB2 x 12. Screws marked by green circle are PA2 x 8.
¶ Reconnect the Model Cooling Fan and Reinstall the Tool Head Cover

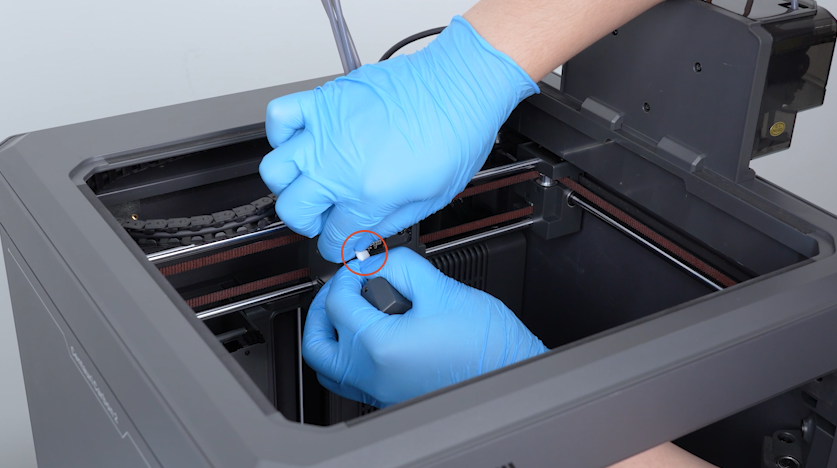

- Insert the plug of the model cooling fan.

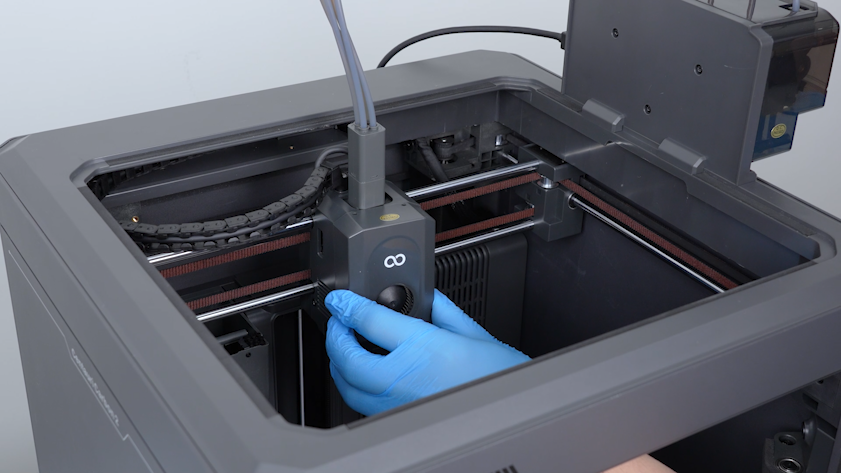

- Install the tool head front cover.
¶ Verify the Model Cooling Fan Function
-
Plug in the power supply cable. Turn the power switch ON (symbol "|").
-

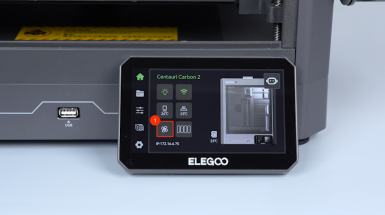

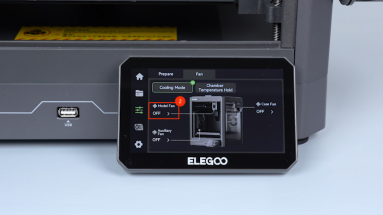

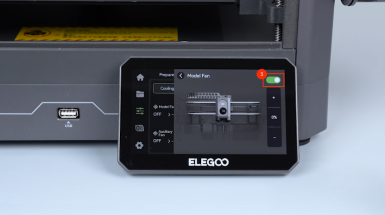

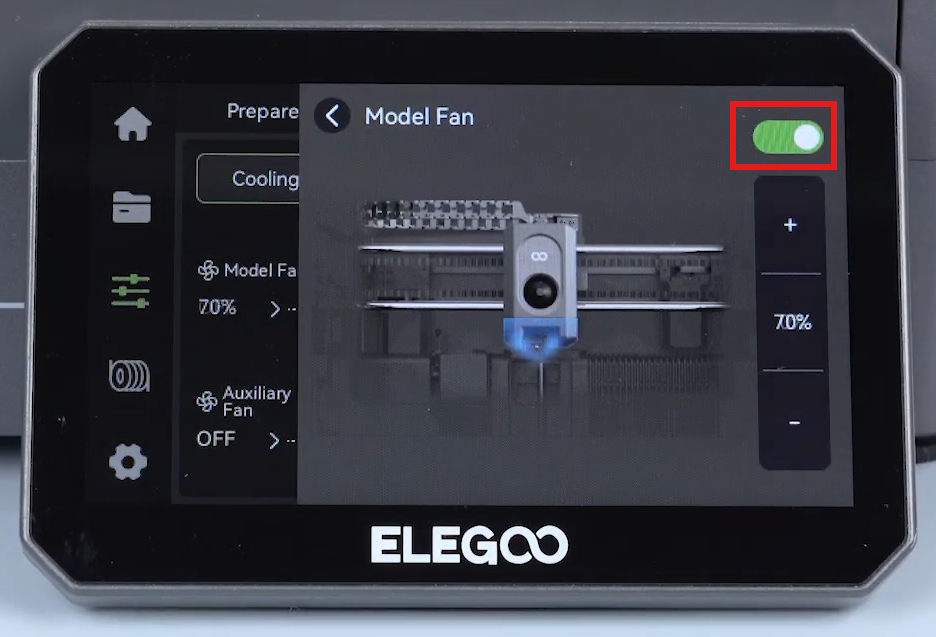

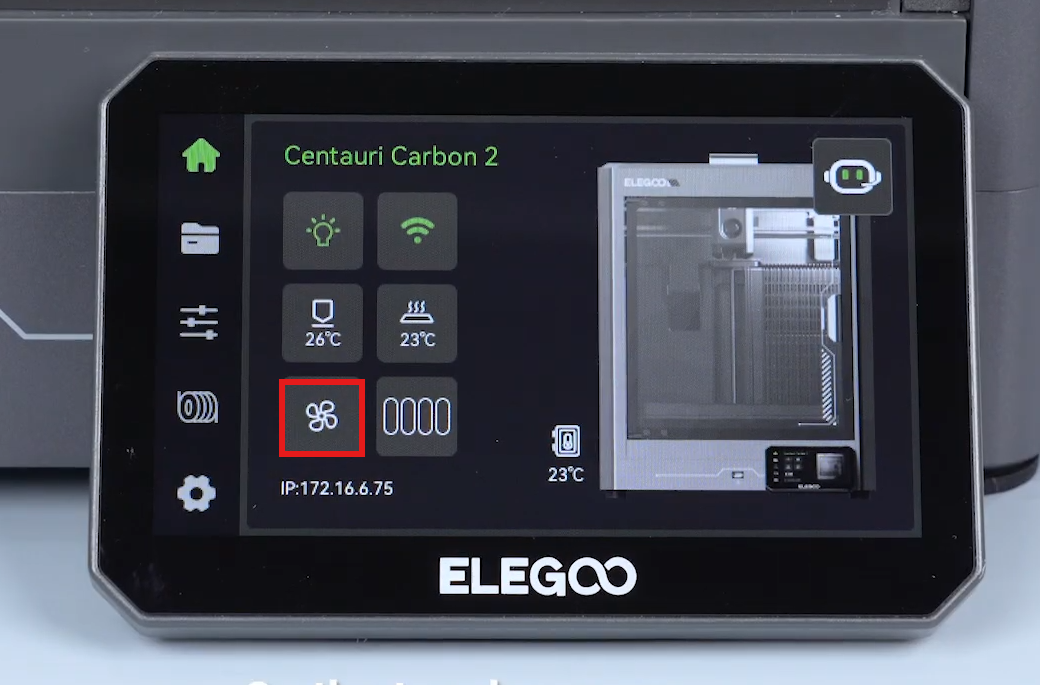

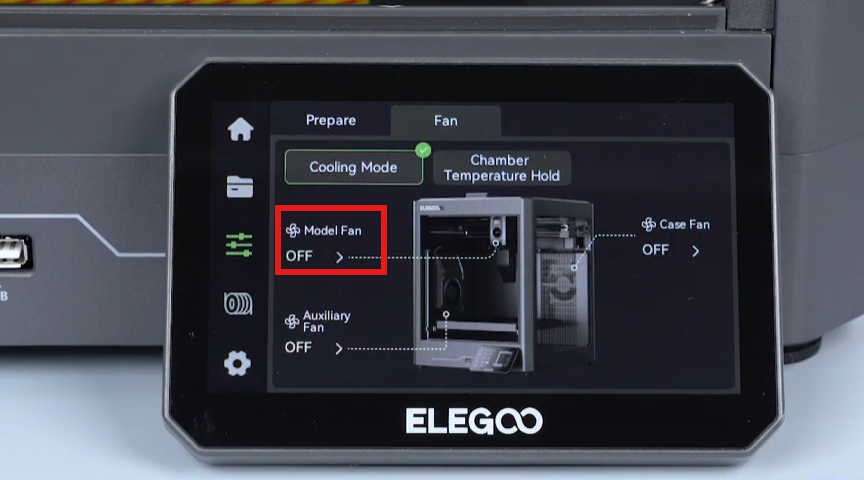

On the touchscreen, click Fan - Model Fan and turn on the model cooling fan.
- Verify that the model fan rotates normally and the printer is ready for use.
