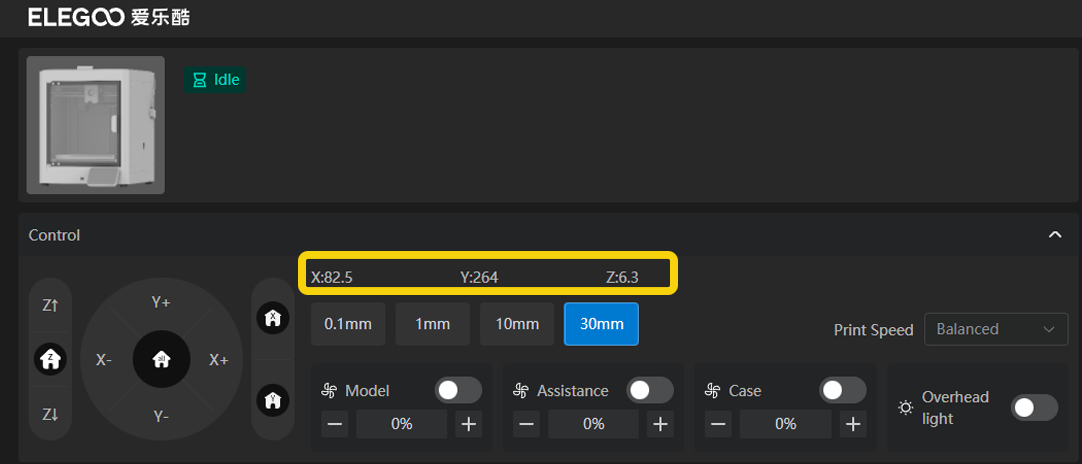

¶ 1. Check the real-time coordinate of the tool head.

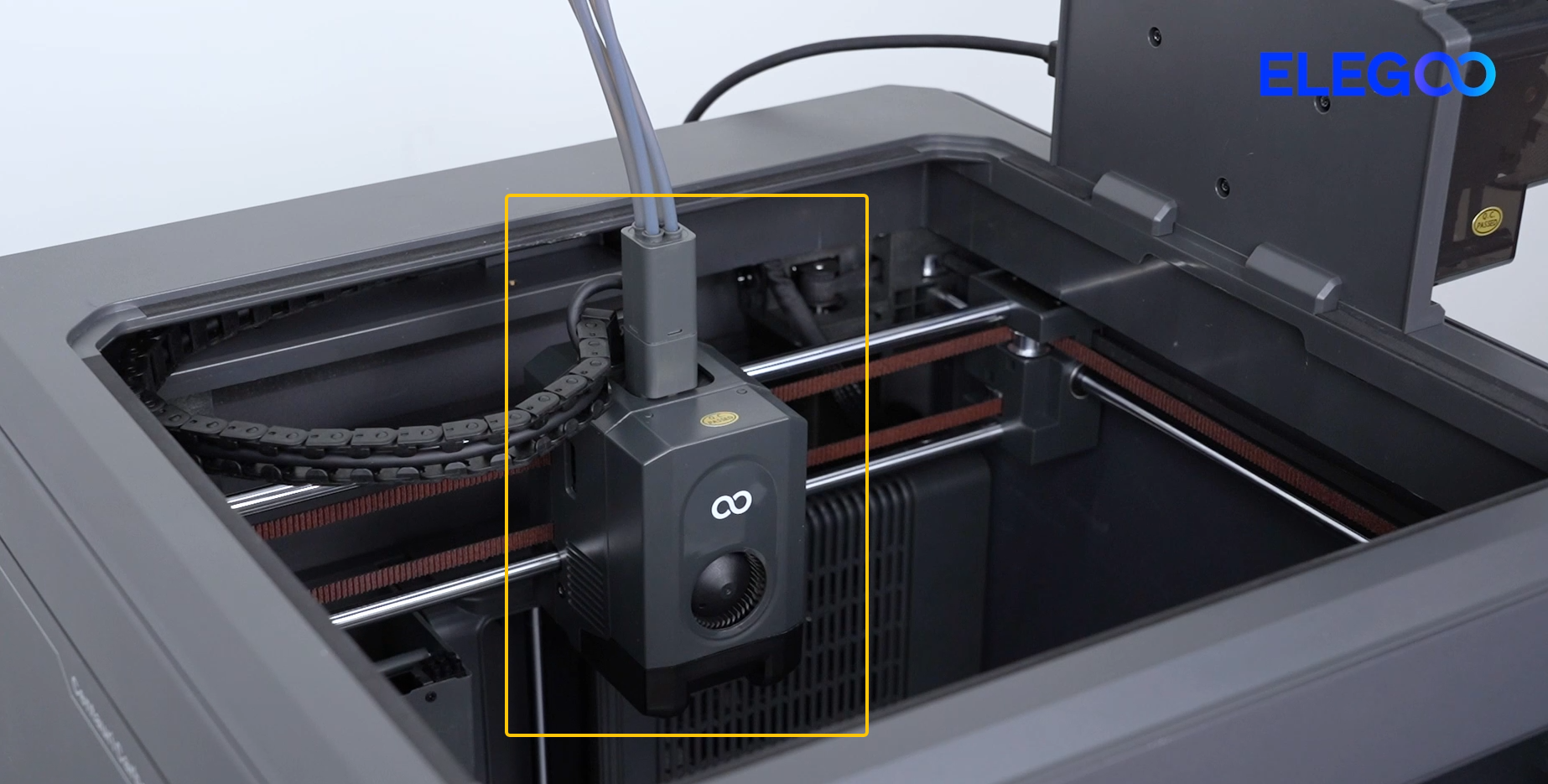

Tool head

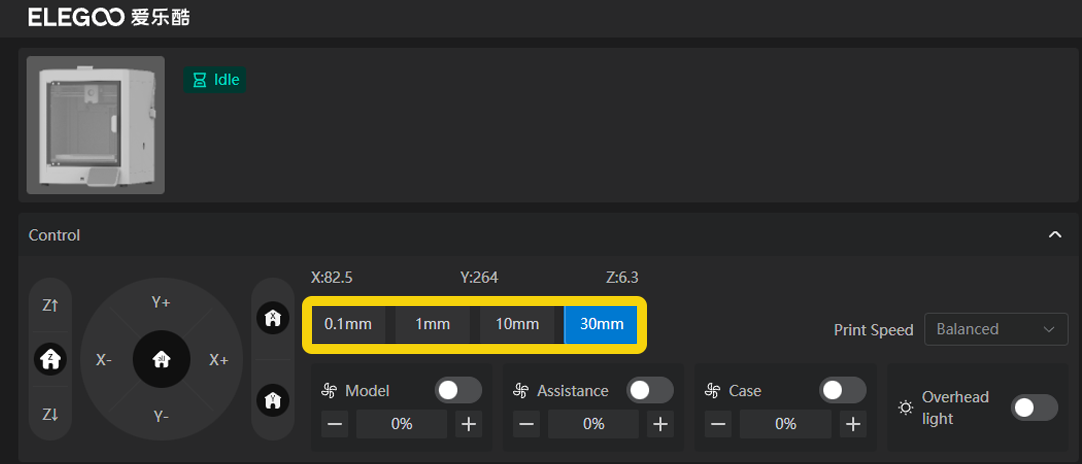

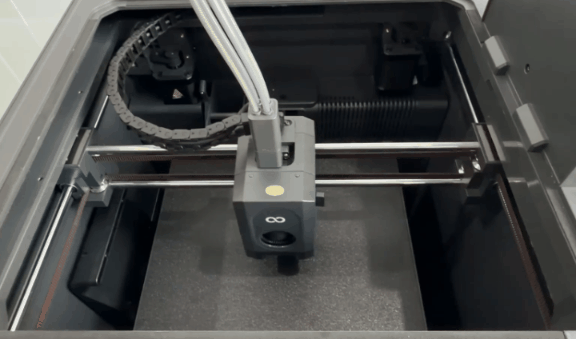

¶ 2. Set the movement distance of the tool head and the heated bed.
This function is often used with the X +, X -, Y- and Y + buttons on the left side.
-
Set the movement distance of the motor as 0.1 mm, 1 mm, 10 mm and 30 mm.
-
Click the X +, X -, Y- and Y + buttons on the left side.
-
The tool head or the heated bed moves to the set location.

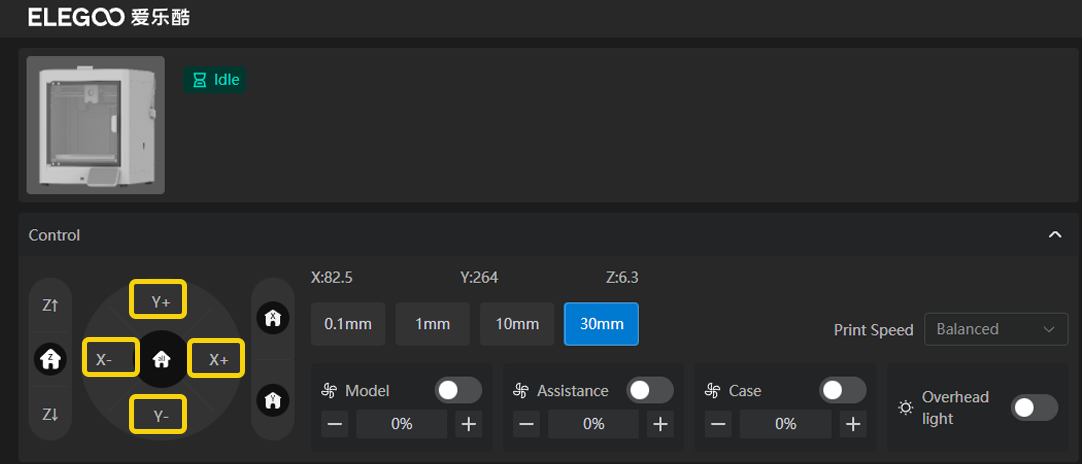

¶ 3. Move the tool head in X and Y directions.

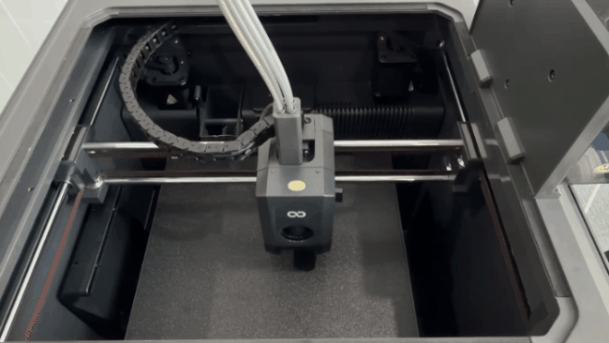

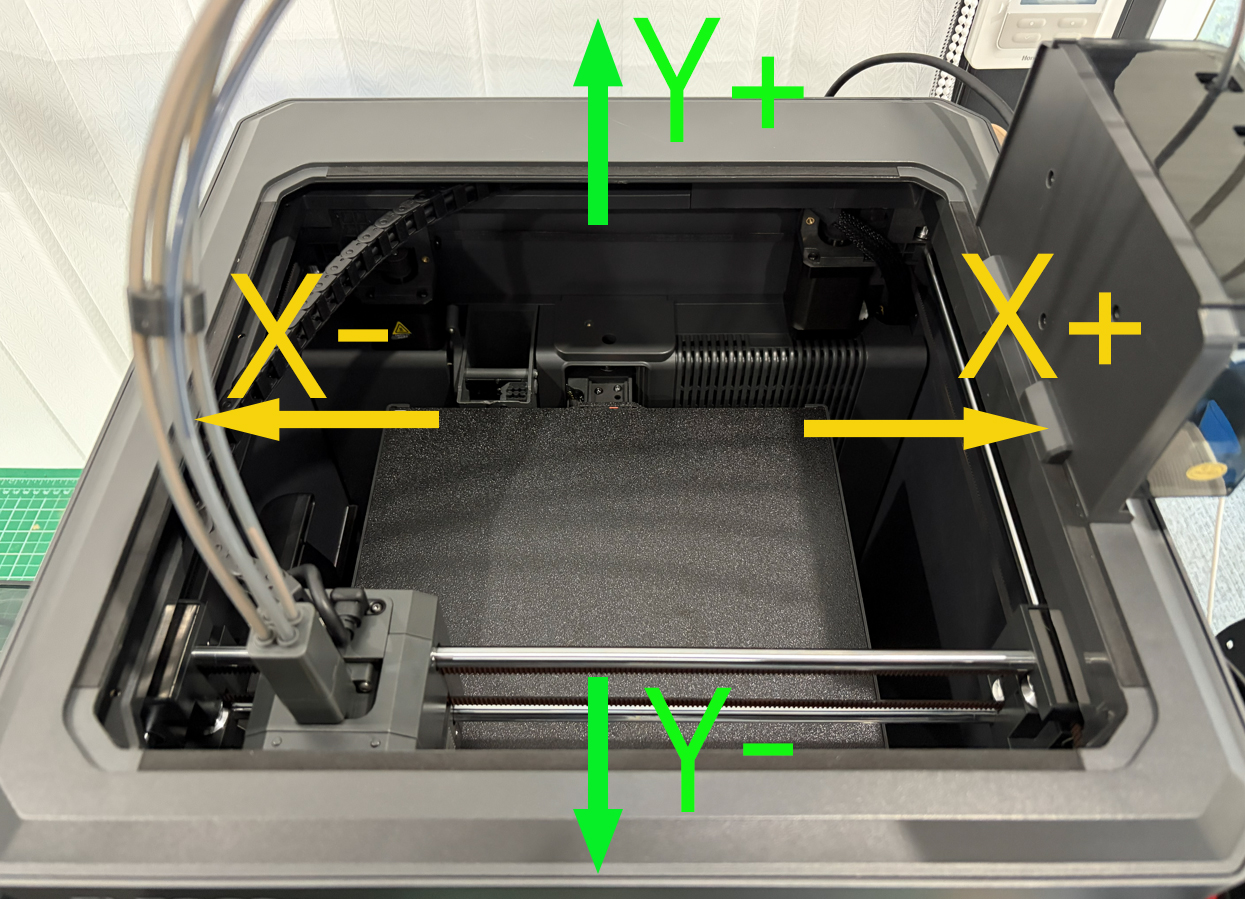

The directions of X+, X-, Y+ and Y- are shown in the picture below.

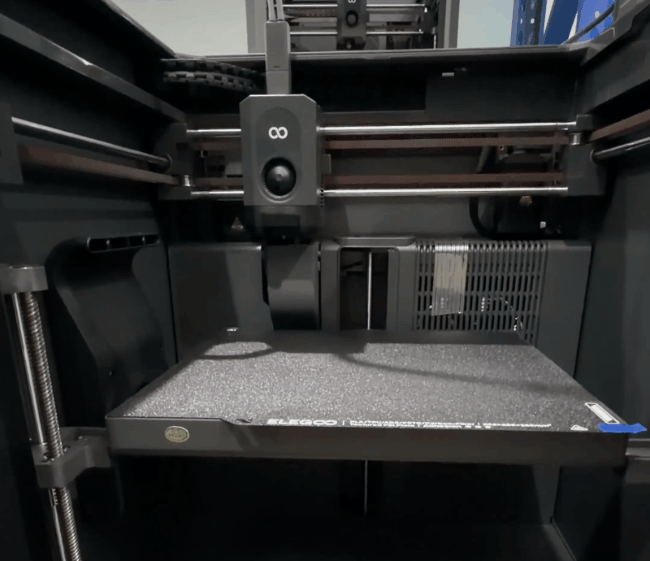

¶ 4. Move the heated bed up and down.
Z↑: Move the heated bed up
Z↓: Move the heated bed down
¶ 5. Home the tool head and the heated bed in according direction。
X home
Y home
Z home

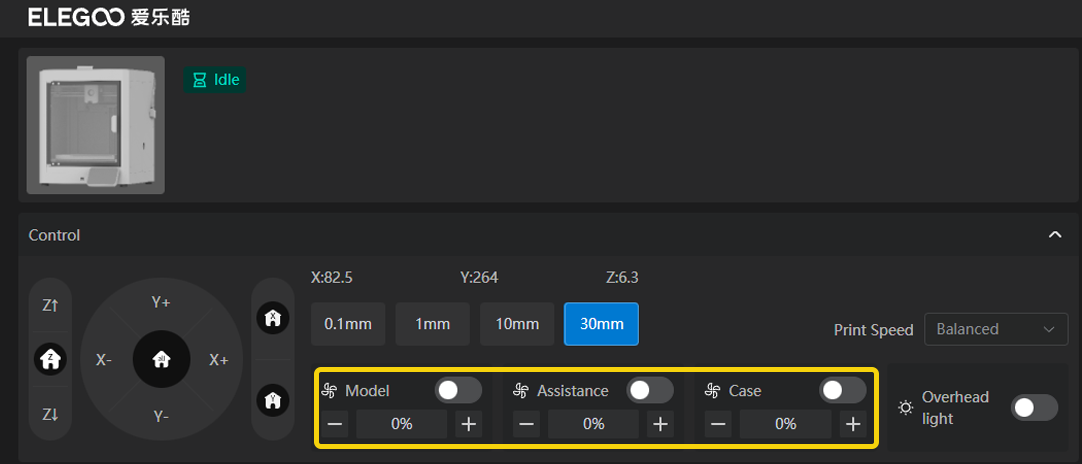

¶ 6. Turn the fan on or off and set the rotating speed percentage.
Model cooling fan

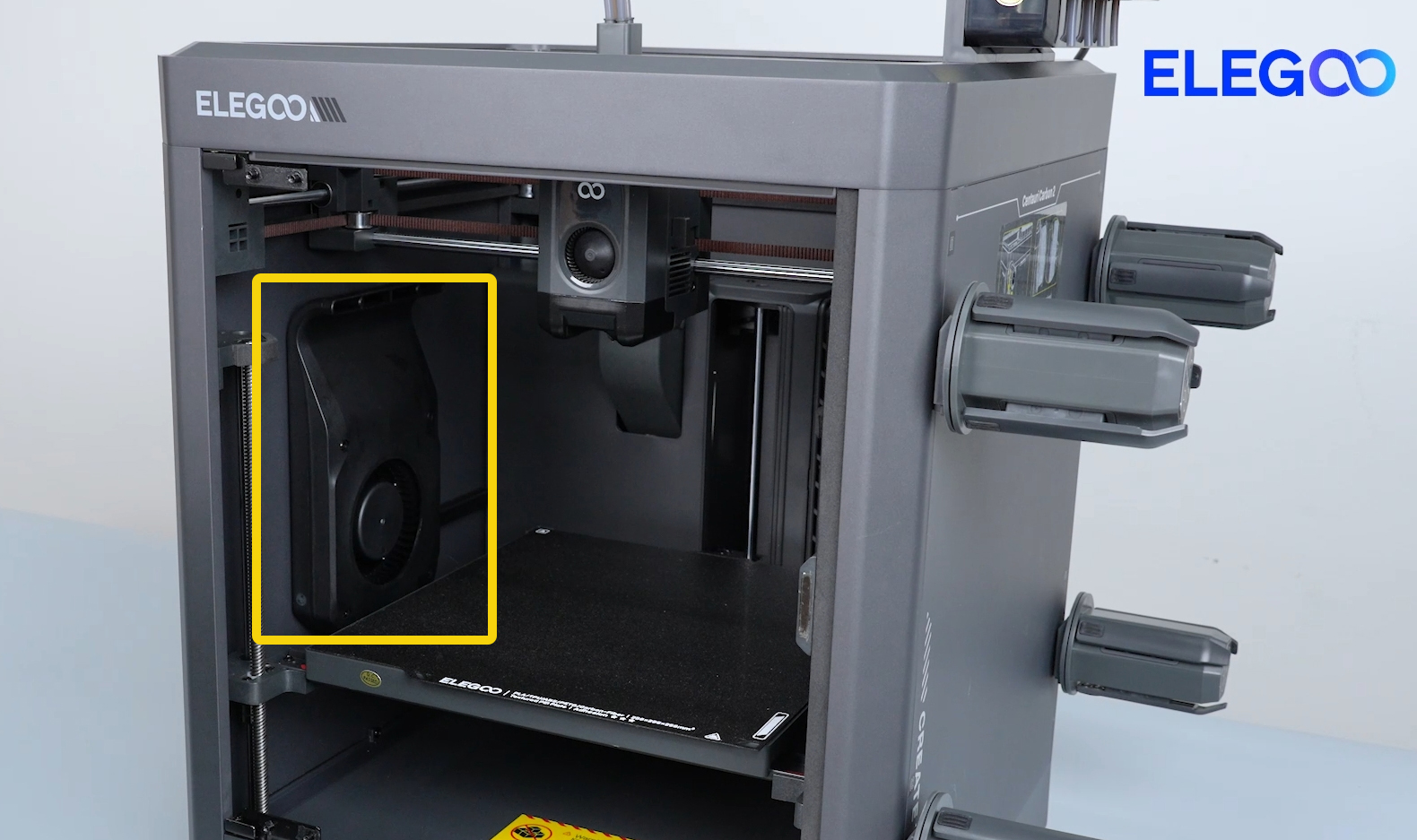

Auxiliary cooling fan

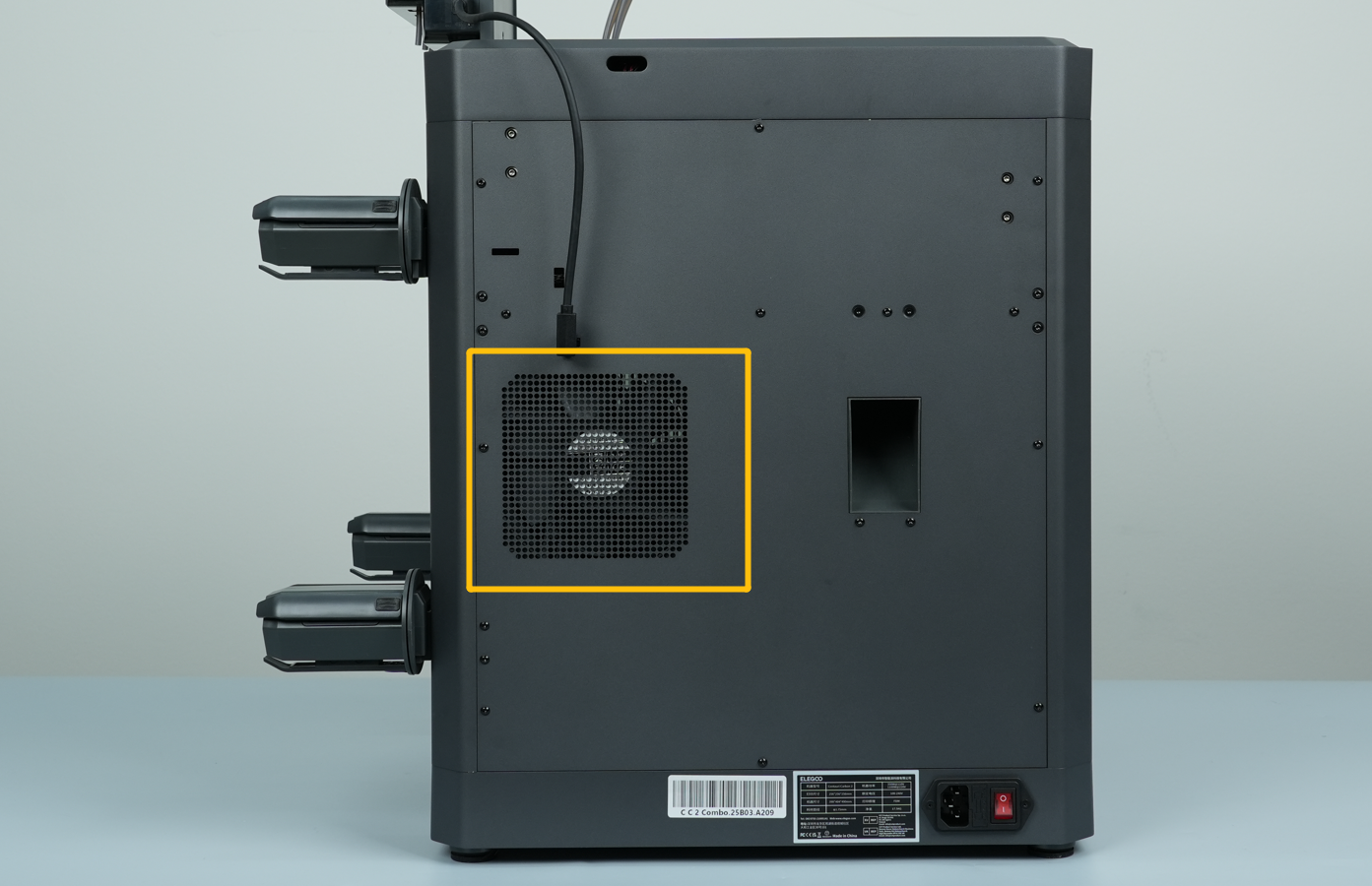

Chamber cooling fan

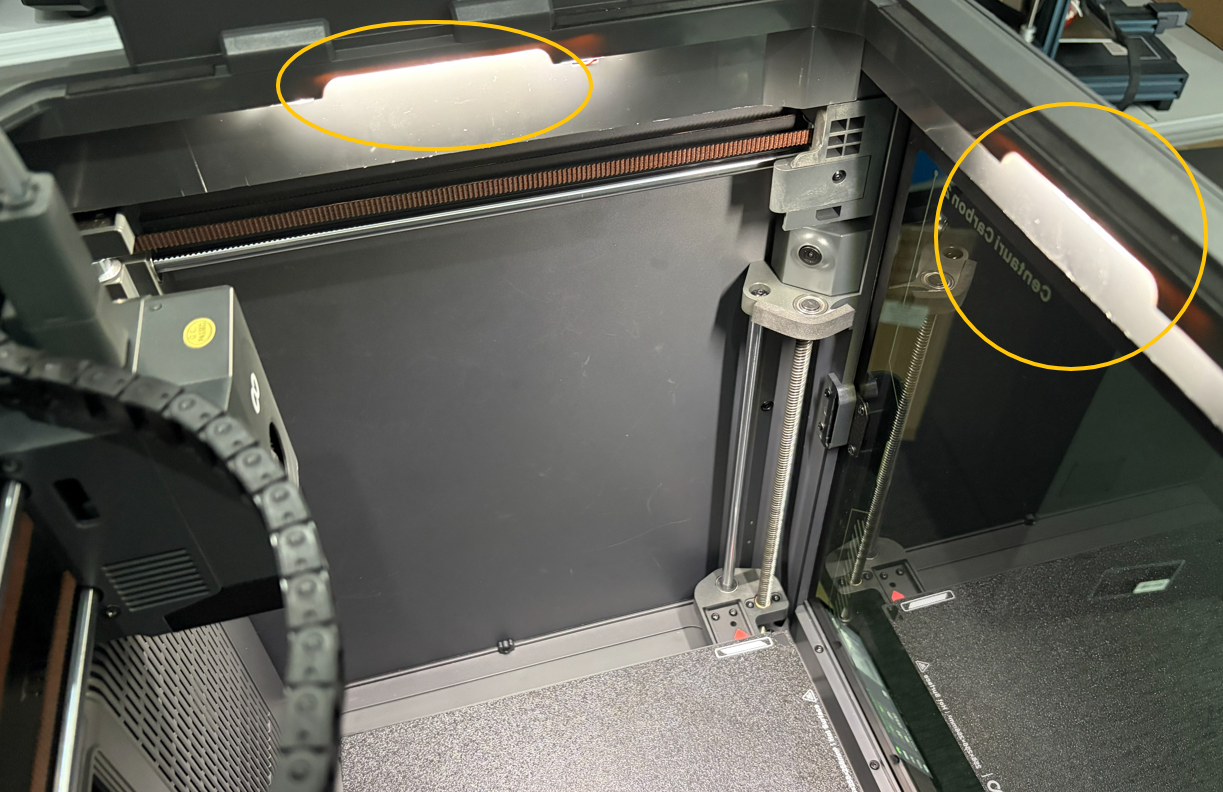

¶ 7. Turn the LED off or on.
LED
