¶ Preparation steps:
- Download and install Elegoo slicer
- If initiating a print directly through Elegoo slicer, you need to connect the printer to Wi-Fi, ensuring the printer and computer are on the same local area network.
¶ Operation steps:

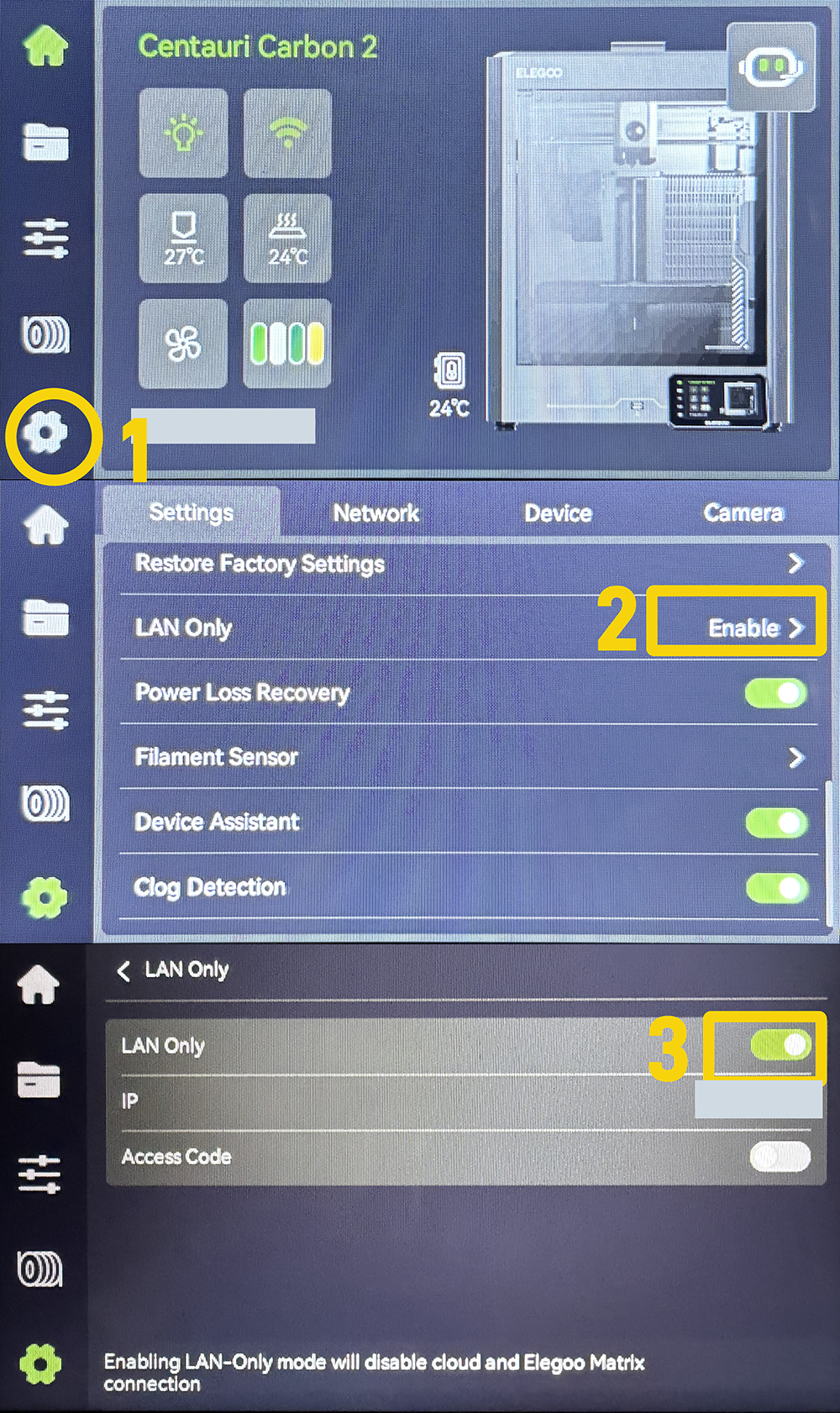

¶ 1. Enable "LAN Only" on the touchscreen
Go to Settings - LAN Only - click to enable LAN Only. When the printer is connected to the internet, the camera can be accessed normally through Elegoo slicer, but the time-lapse photography feature cannot be enabled.
.png)
¶ 2. Slice the file using Elegoo slicer

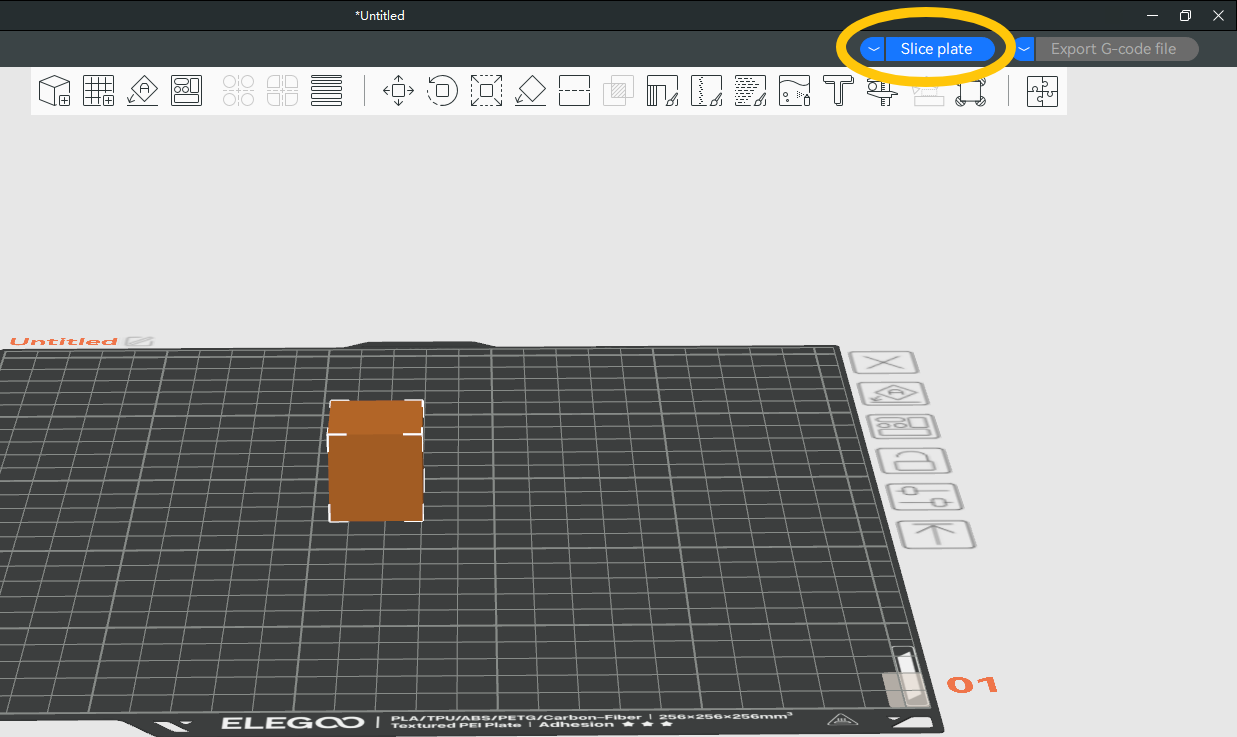

a. Load any model into Elegoo slicer and click Slice
.png)

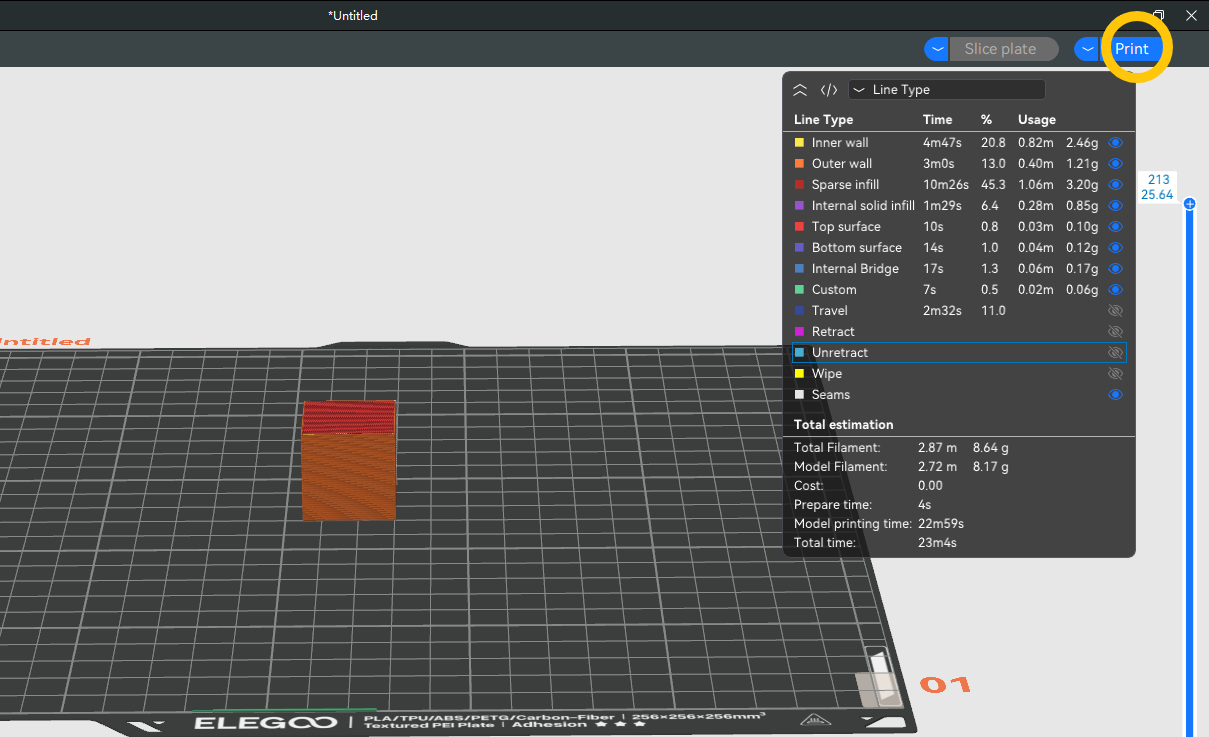

b. Click Print
.png)

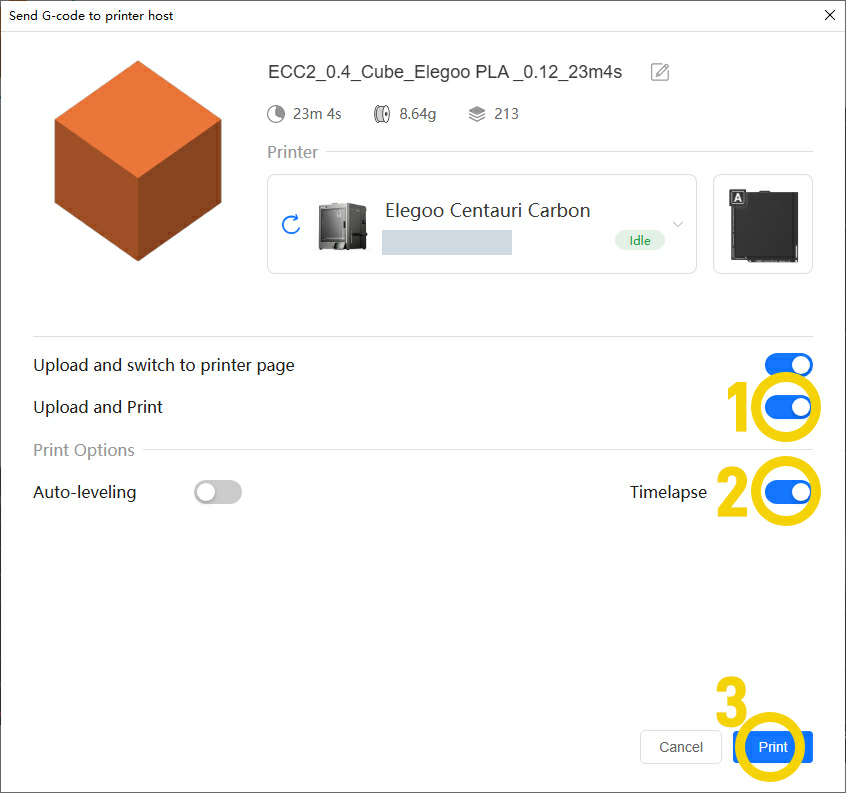

c. Click Upload and Print - Timelapse - Print
.png)

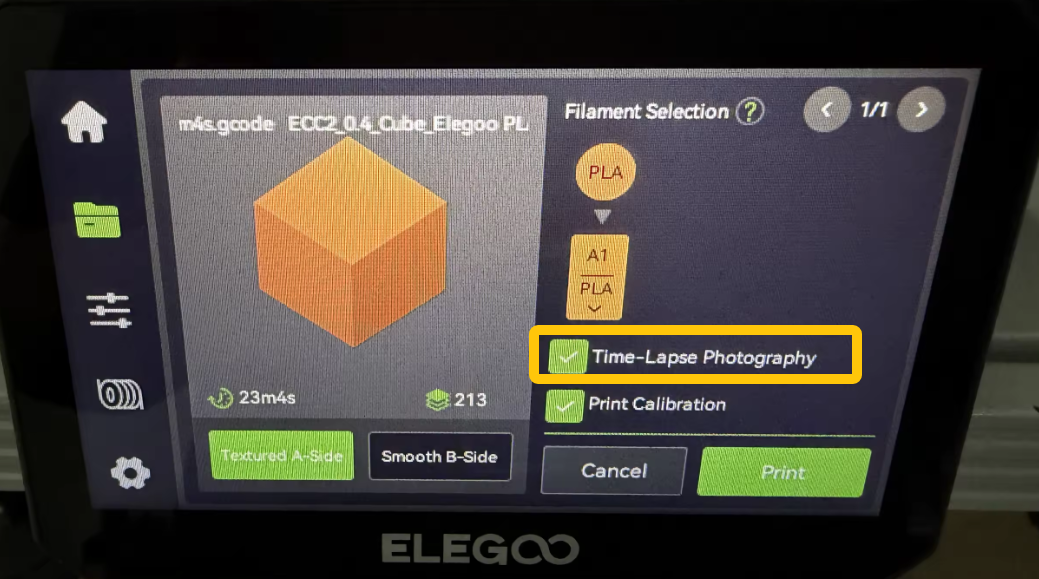

¶ 3. Enable time-lapse photography on the touchscreen
If the printer is not connected to the local area network at this point and printing is done by uploading the gcode file to a USB drive, then manually enable the time-lapse photography feature via the touchscreen.
.png)

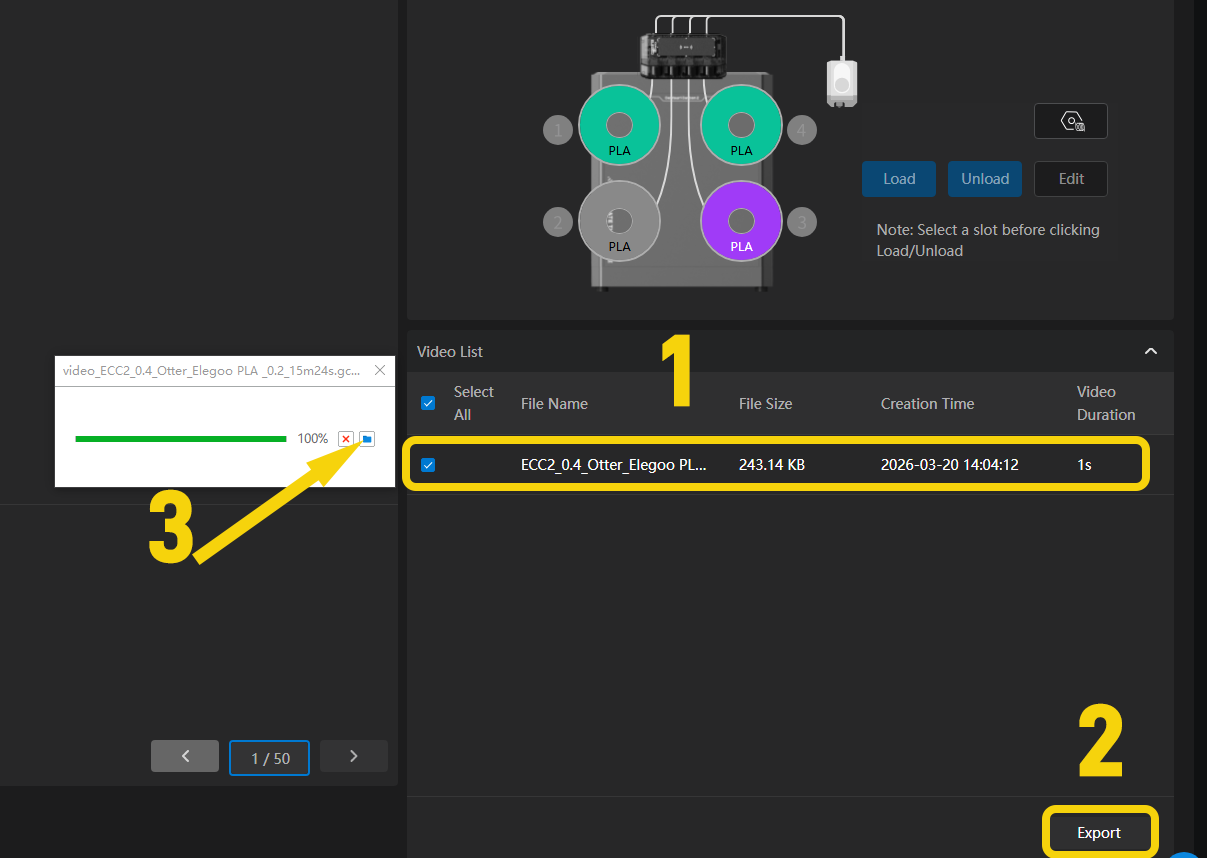

¶ 4. Find the time-lapse file
Find the generated time-lapse file via Elegoo Slicer → Background → Video List, and click Export in the bottom right corner. After the export is complete, click the folder icon in the export progress menu to find the time-lapse file.
.png)
