¶ Operation Steps for Each Model
The steps below are based on Centauri Carbon 2 Combo. For Centauri Carbon 2, skip the steps related to parts that are not installed.
| Model | Action | Steps to Skip |
|---|---|---|
| Centauri Carbon 2 Combo | Follow all steps | None |
| Centauri Carbon 2 | Skip lid removal step |
|
| Centauri 2 Combo | Skip lid removal step |
|
| Centauri 2 | Skip lid removal step |
|
If your printer has optional accessories installed, such as CANVAS or an enclosure, follow the steps related to those parts.
¶ Tools and Materials
-
A 2.0 mm Allen key
-
A new adapter board of the pressure sensor
¶ Tutorial Video
https://www.youtube.com/watch?v=R14mDmGJSG0
¶ Instruction
¶ Preparation
Turn the power switch OFF (symbol "〇") and unplug the power supply cable.
¶ Remove the Old Adapter Board of the Pressure Sensor
¶ Prepare the Printer
-

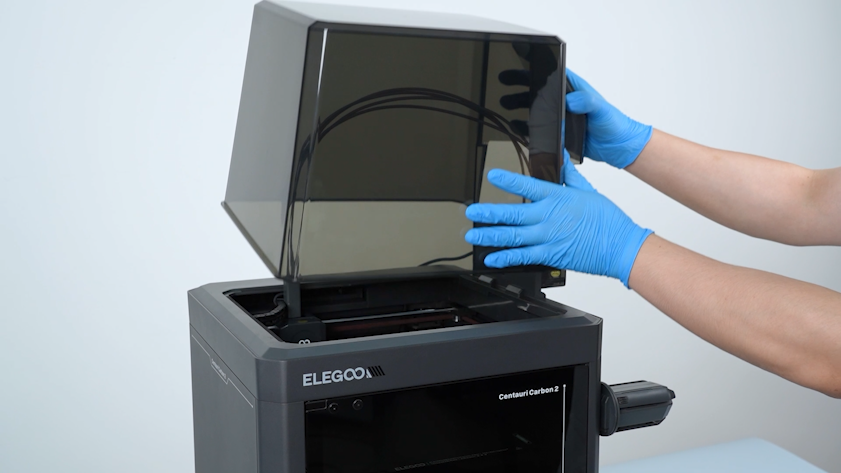

Remove the lid.
-

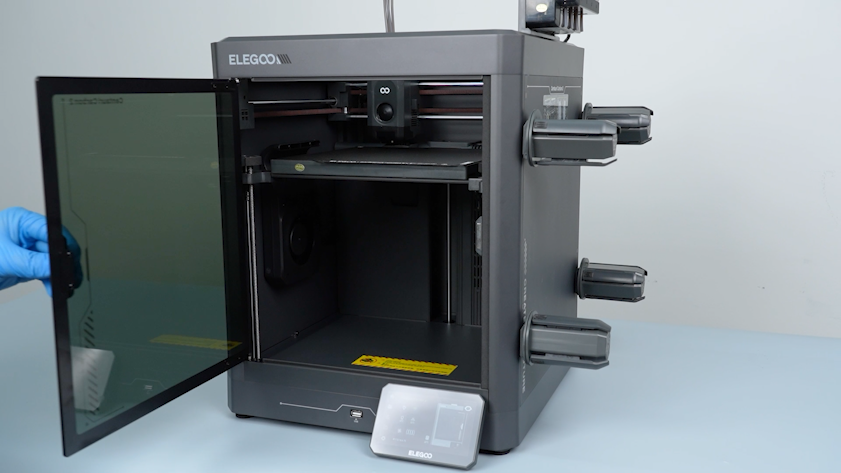

Open the front door.
-

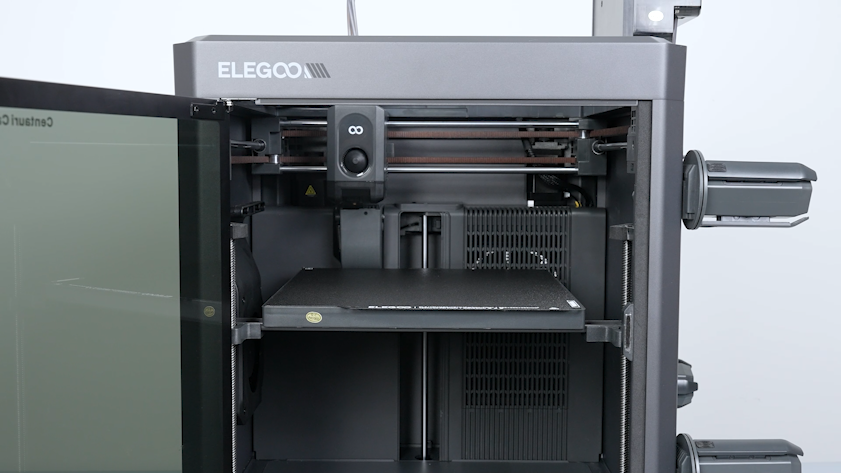

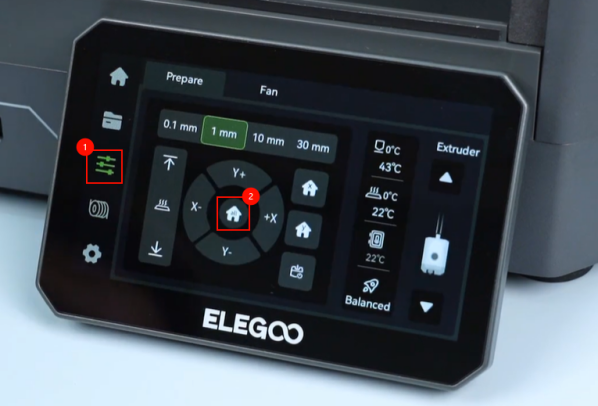

Select Settings - Home on the touch screen. Wait for the homing process of the tool head to complete.
-

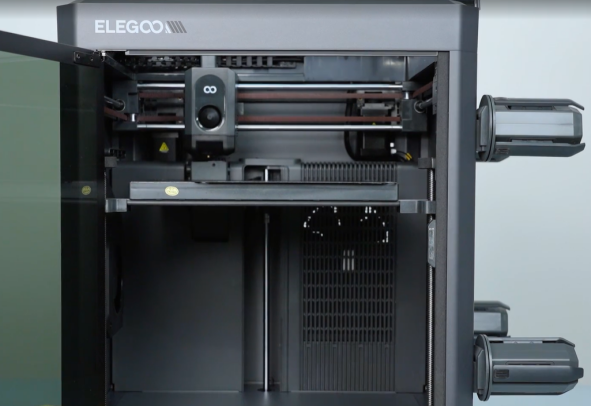

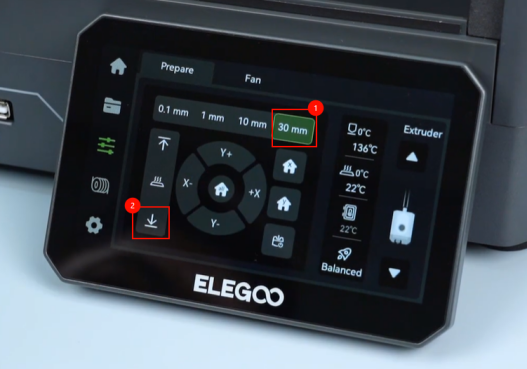

On the touch screen, select 30 mm as the motor movement distance. Select ↓ to lower the heated bed by 60 mm.
-
Turn the power switch OFF (symbol "〇") and unplug the power supply cable.
¶ Remove the Heated Bed Assembly
¶ Remove the Heated Bed Pallet
-

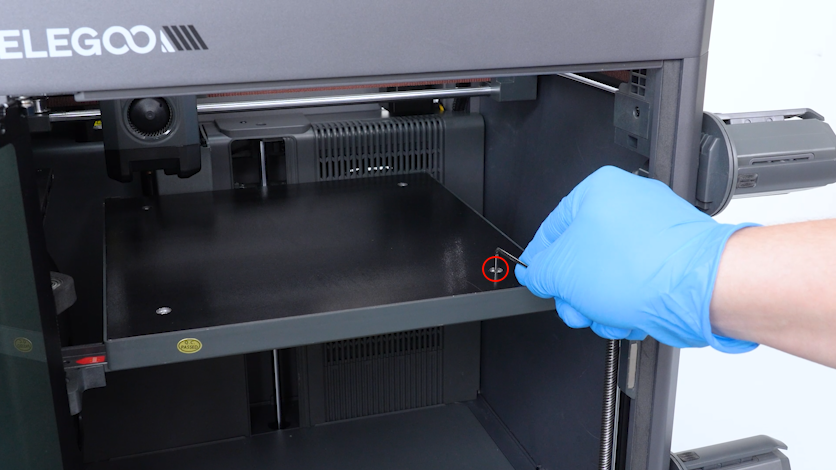

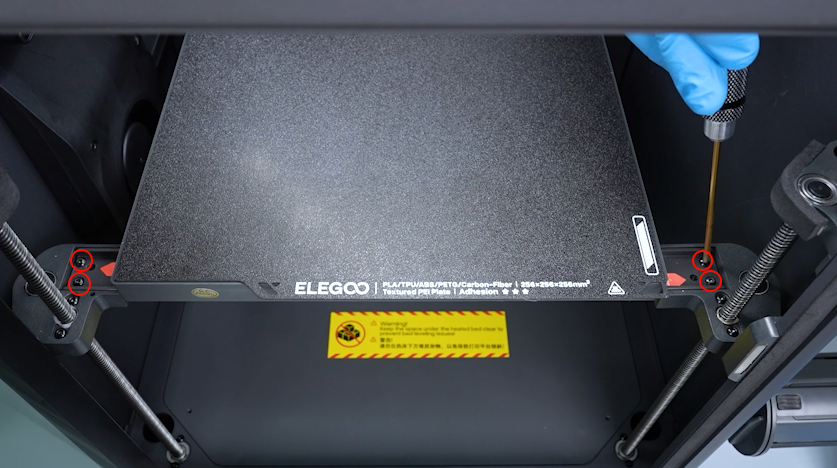

Release and remove the six screws securing the heated bed pallet with a 2.0 mm Allen key.
-

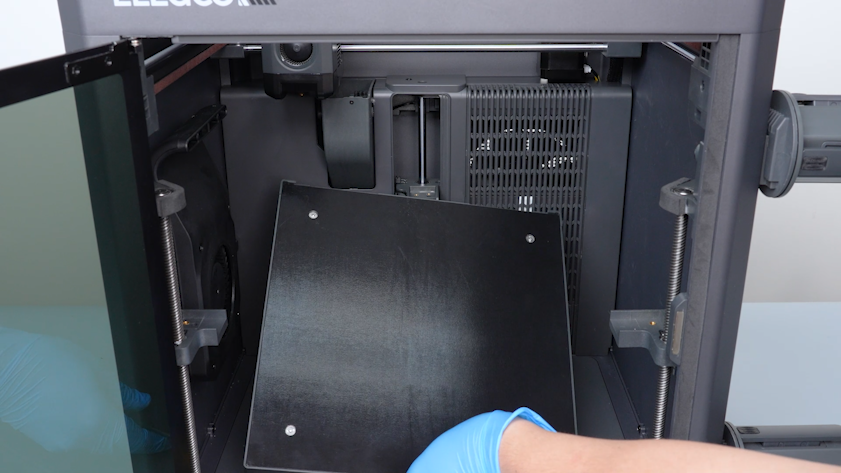

Remove the PEI plate.
¶ Remove the Mutual Locking Bolts
-

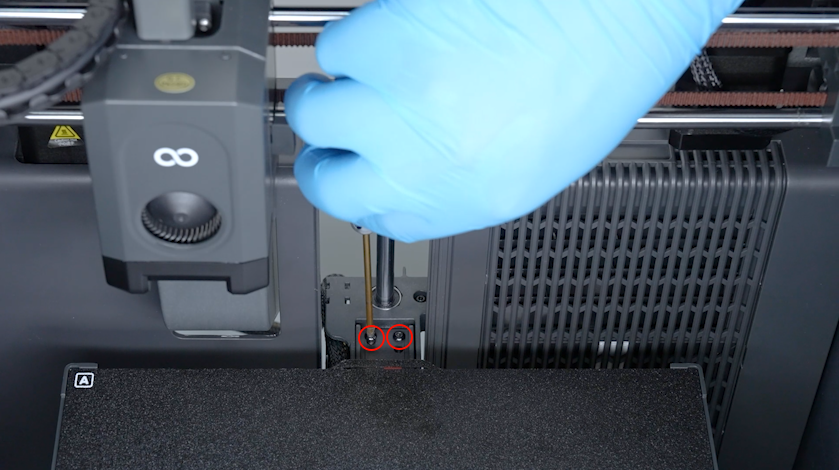

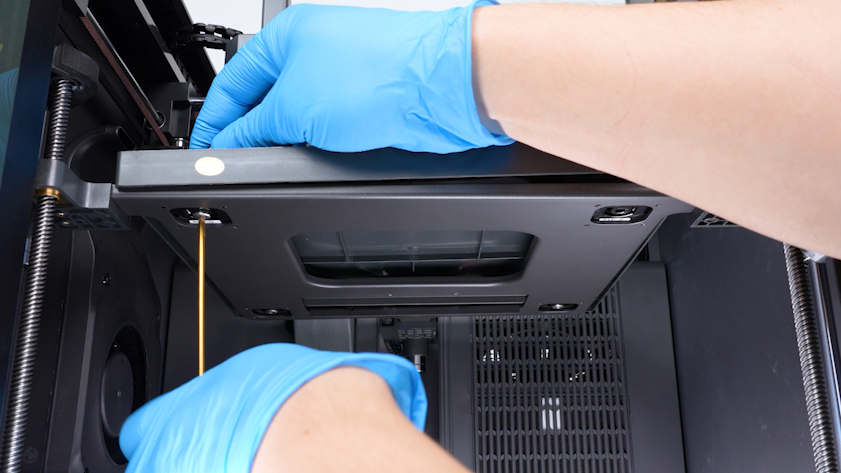

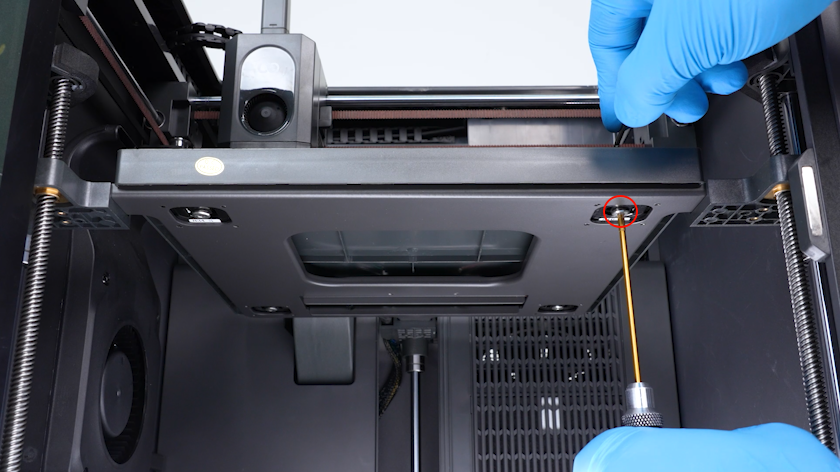

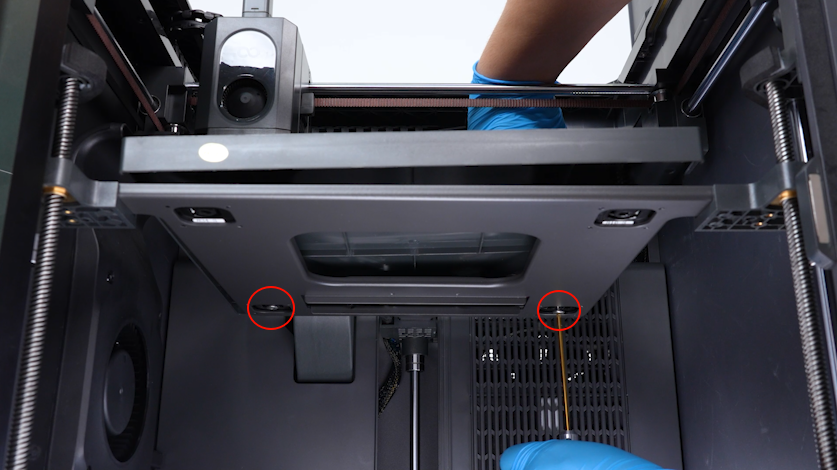

Secure the pin of the mutual locking bolt with a 2.0 mm Allen key. Release and remove the collar of the mutual locking bolt with another 2.0 mm Allen key.
-
Remove the other mutual locking bolts in the same way.
¶ Remove the Heated Bed
-

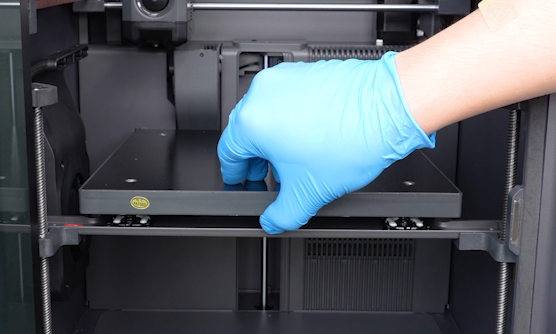

Lift the heated bed.
-
Remove the springs.
-

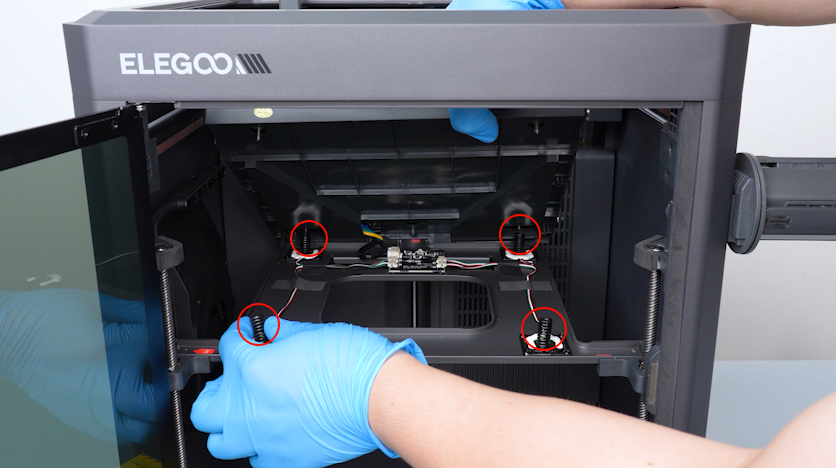

Unplug the connection cable of the pressure sensors.
-

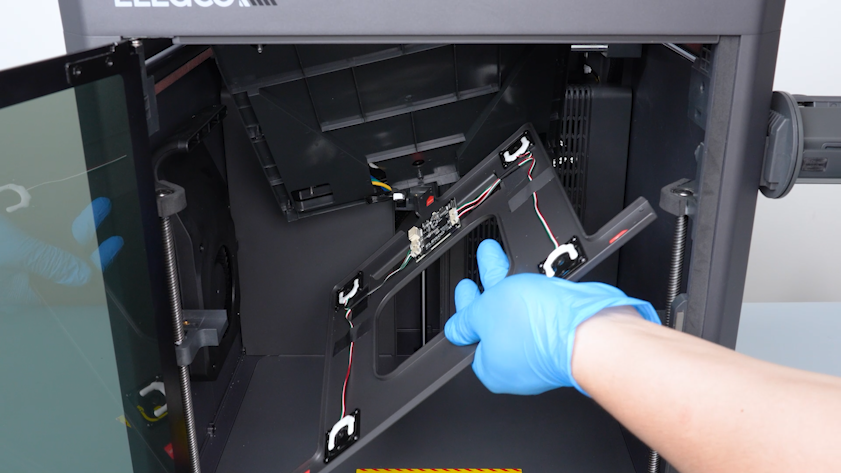

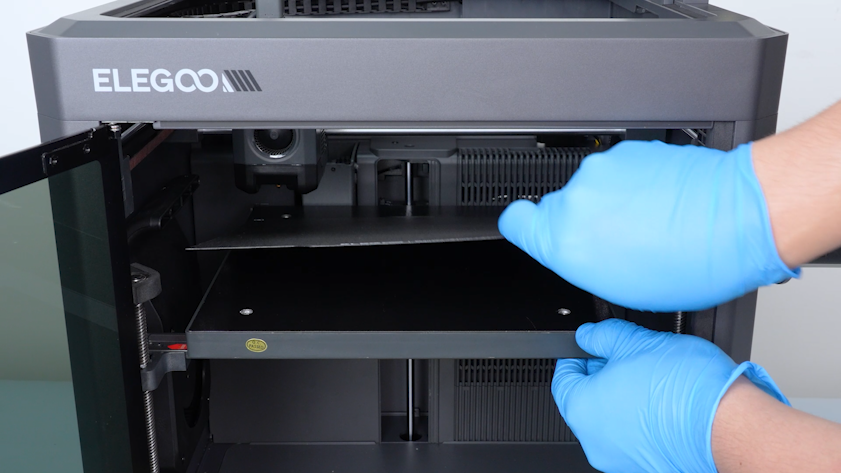

Remove the heated bed pallet.
-

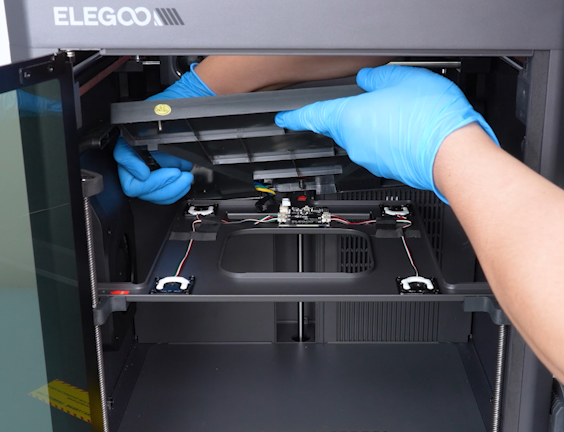

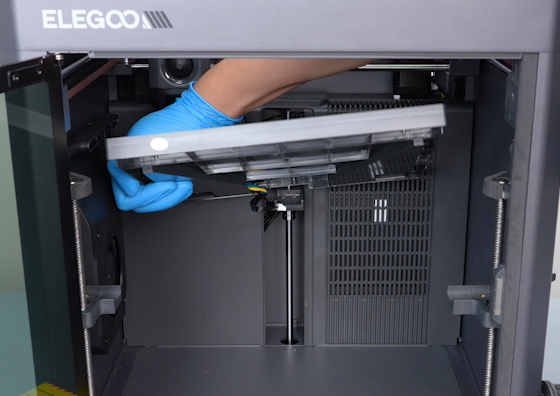

Tilt the heated bed and place it temporarily in the chamber.
¶ Remove the Old Adapter Board
¶ Disconnect the Pressure Sensor Cables

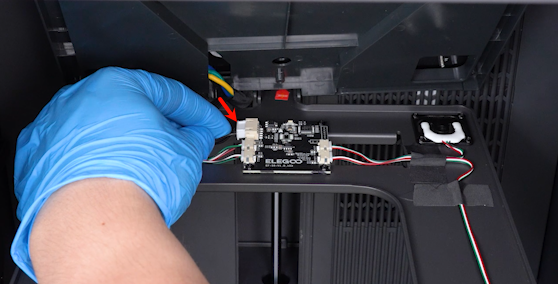

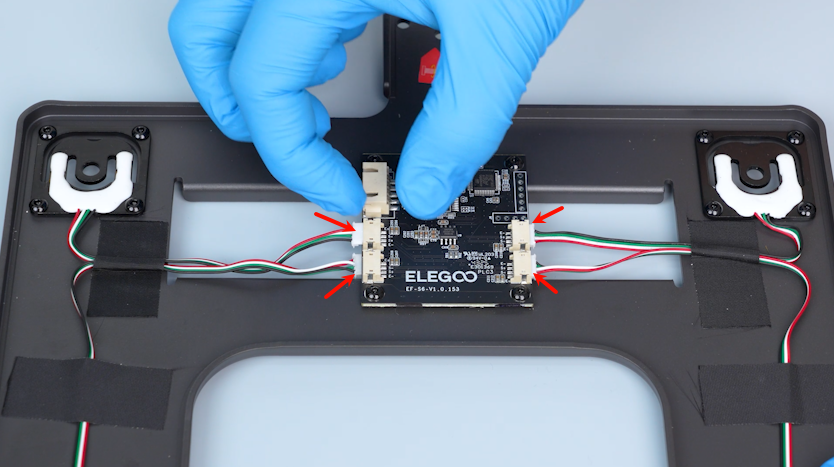

- Unplug the cables of the pressure sensors.
¶ Remove the Adapter Board

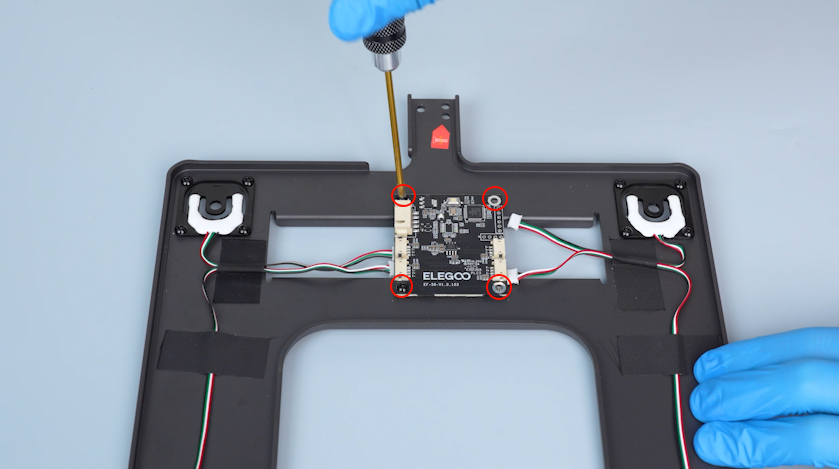

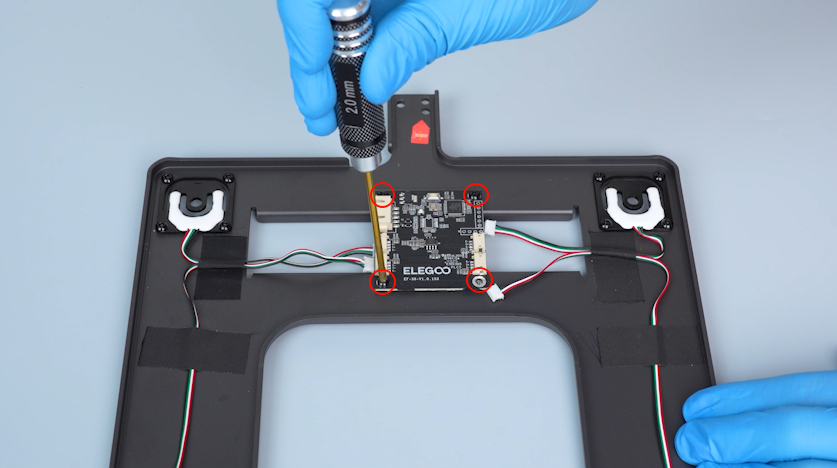

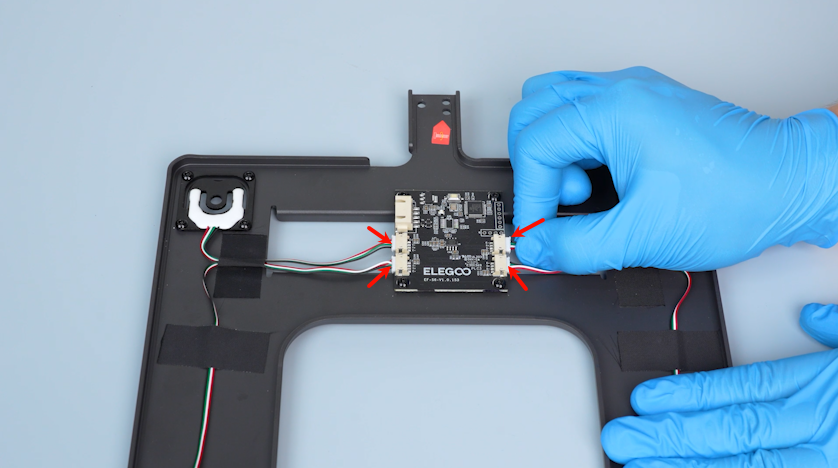

- Release and remove the four screws securing the adapter board of the pressure sensor with a 2.0 mm Allen key. Remove the old adapter board of the pressure sensor.
¶ Install the New Adapter Board of the Pressure Sensor
¶ Install the Adapter Board

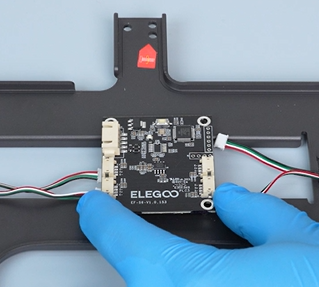

- Get the new adapter board of the pressure sensor. Tighten the four screws securing the adapter board of the pressure sensor.
¶ Reconnect the Pressure Sensor Cables

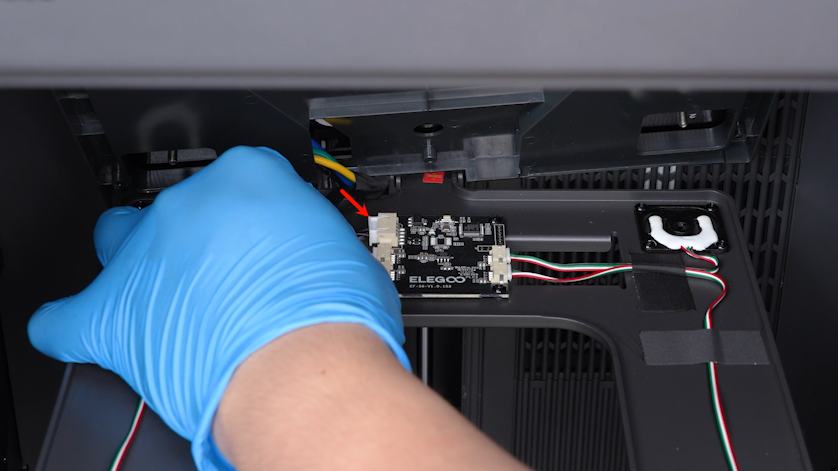

- Plug in the cables of the four pressure sensors.
¶ Reinstall the Heated Bed Assembly
¶ Install the Heated Bed Pallet
-

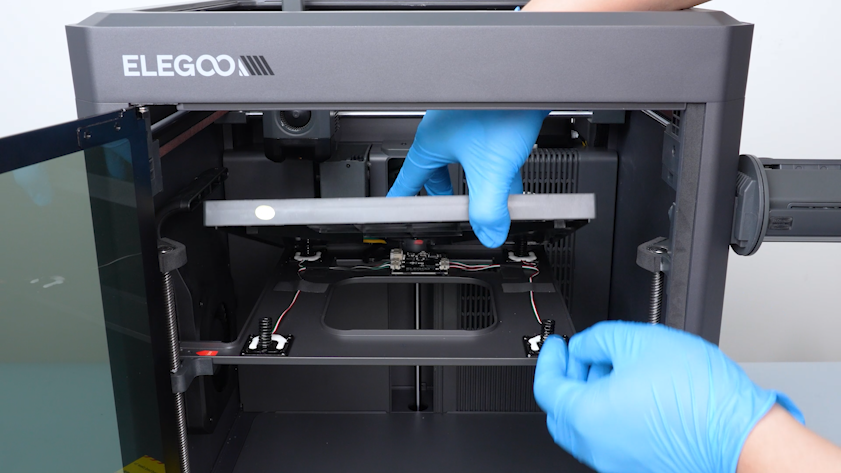

Lift the heated bed. Place the heated bed pallet in the installation position.
-
Plug in the extension cable of the pressure sensors.
¶ Install the Springs and Mutual Locking Bolts
-

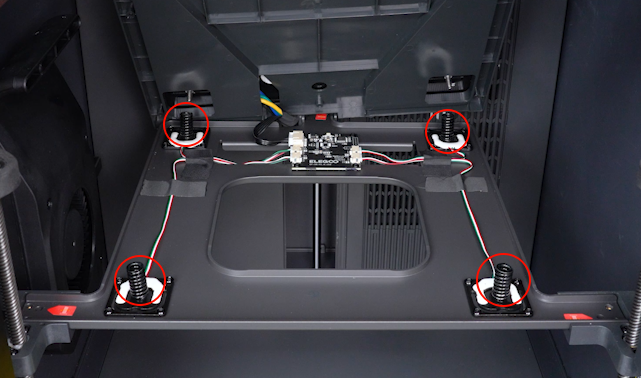

Put the springs in the installation position.
-
Carefully lay the heated bed down and align it with the springs.
-
Tighten the six screws securing the heated bed pallet.
-
Secure the pin of the mutual locking bolt and tighten the collar of the mutual locking bolt.
-
Tighten the other mutual locking bolts in the same way.
¶ Install the PEI Plate
- Put the PEI plate in the installation position.
¶ Level the Printer
¶ Perform Automatic Leveling
-
Plug in the power cord and power on the printer.
-

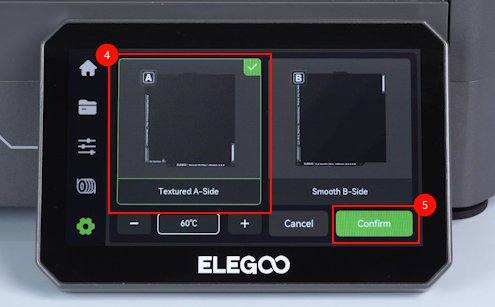

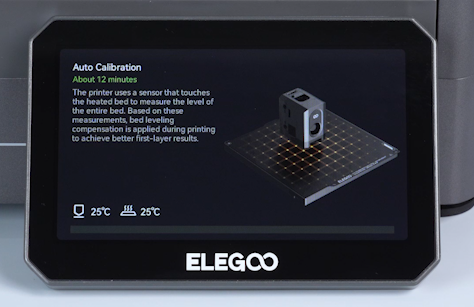

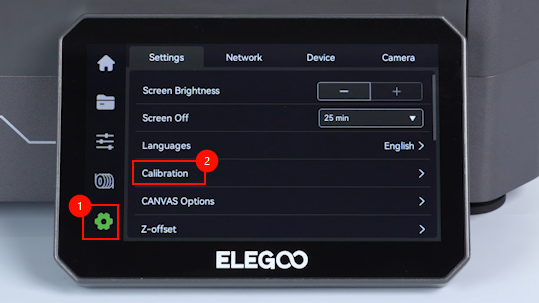

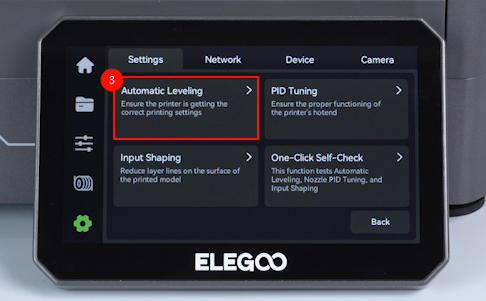

On the touch screen, select Settings - Calibrate - Automatic Leveling - Textured A-side - Confirm. The printer is then ready for use.
