¶ Tools and Materials
- A 2.0 mm Allen wrench

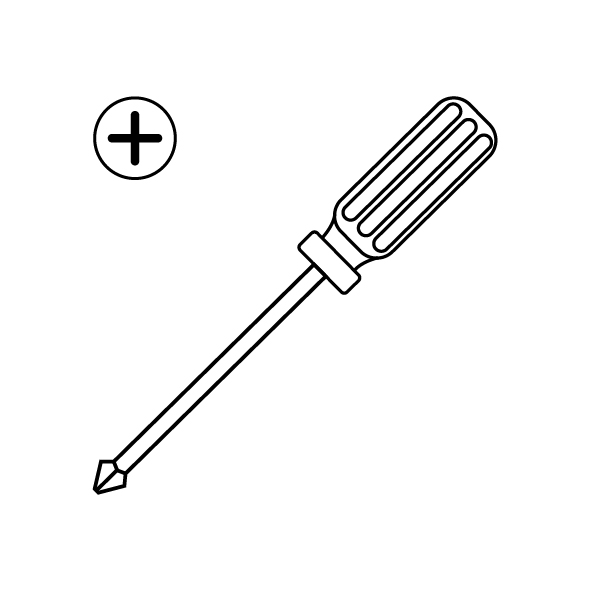

- A Phillips screwdriver
- A new power supply
¶ Tutorial Video
https://www.youtube.com/watch?v=swqalxAxPAU
¶ Instruction
¶ Remove the Old Power Supply
- Power off the printer and unplug the power cord.

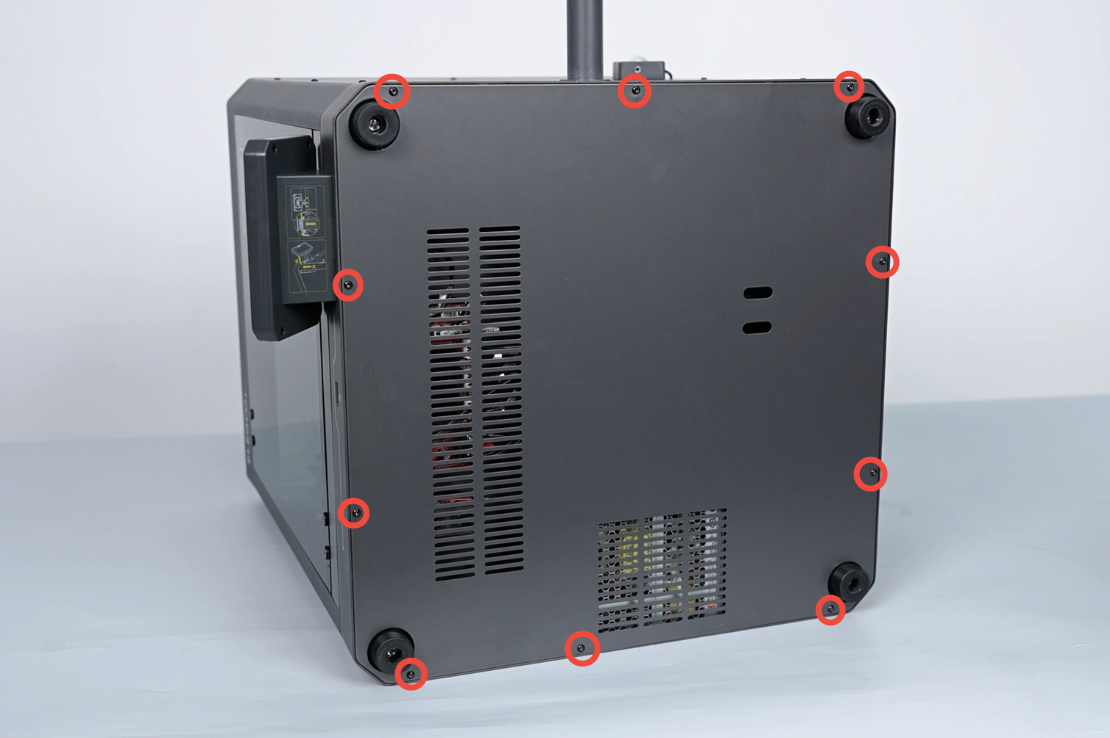

- Put the printer on its side. Use a 2.0 mm Allen wrench to loosen the 10 screws securing the bottom cover of the printer, then remove the bottom cover.

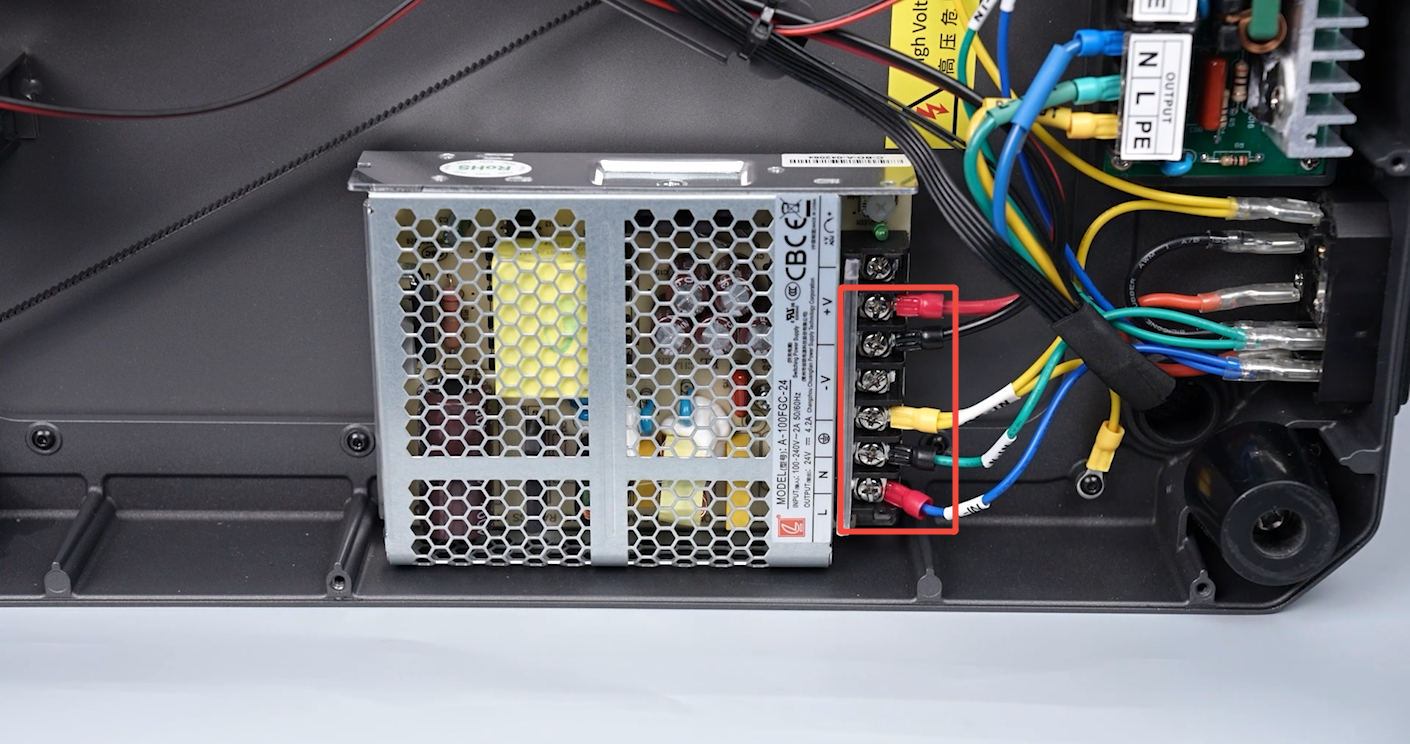

- Lift the cover plate by 90°. Use a Phillips screwdriver to loosen the cables securing the power supply port.

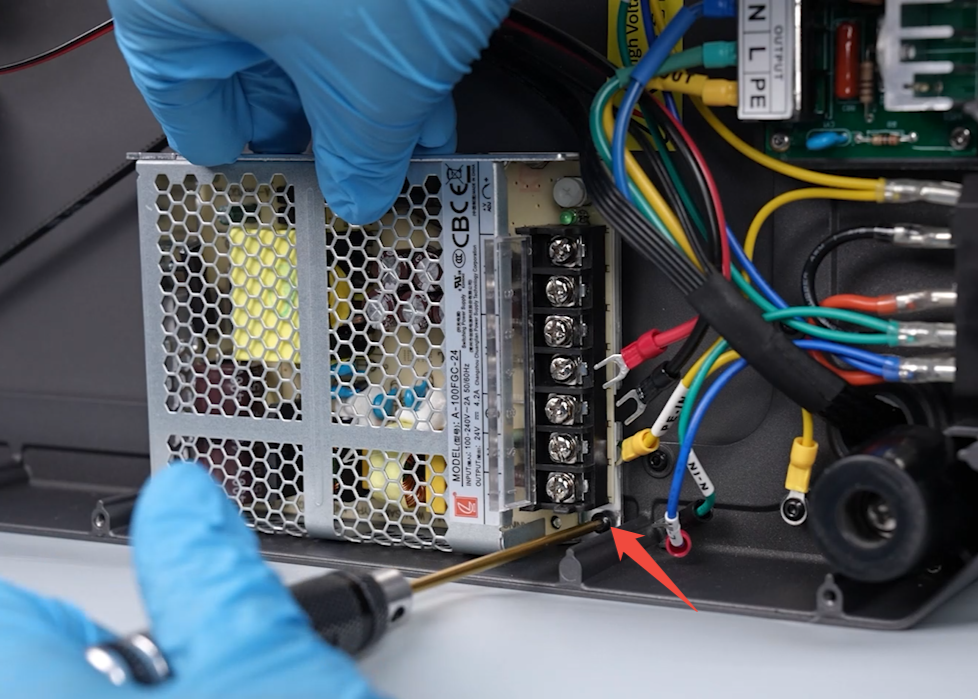

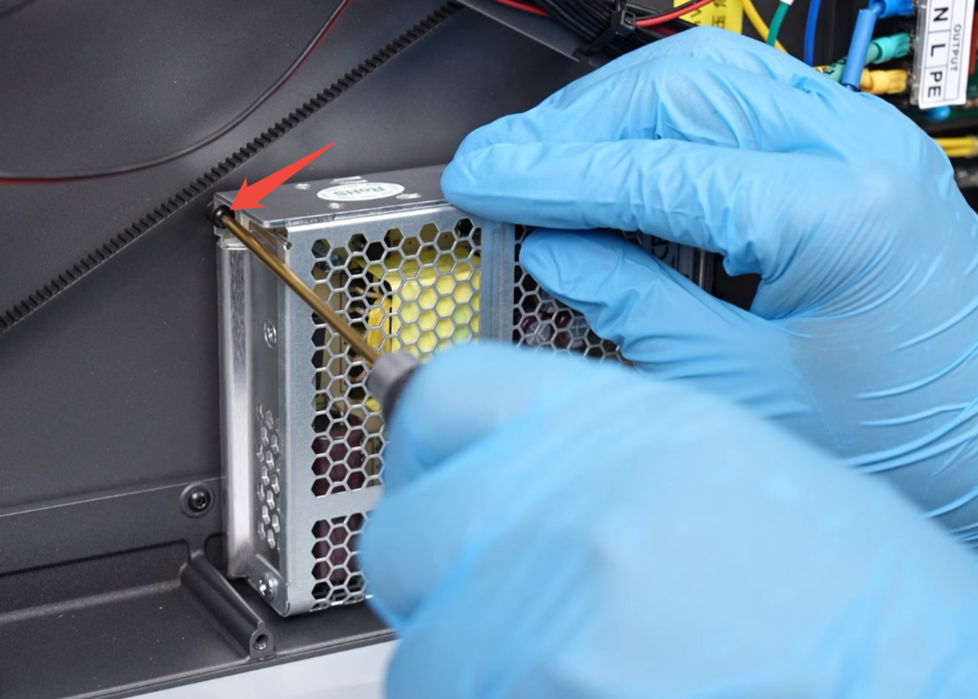

- Use a 2.0 mm Allen wrench to loosen the 2 screws securing the power supply.

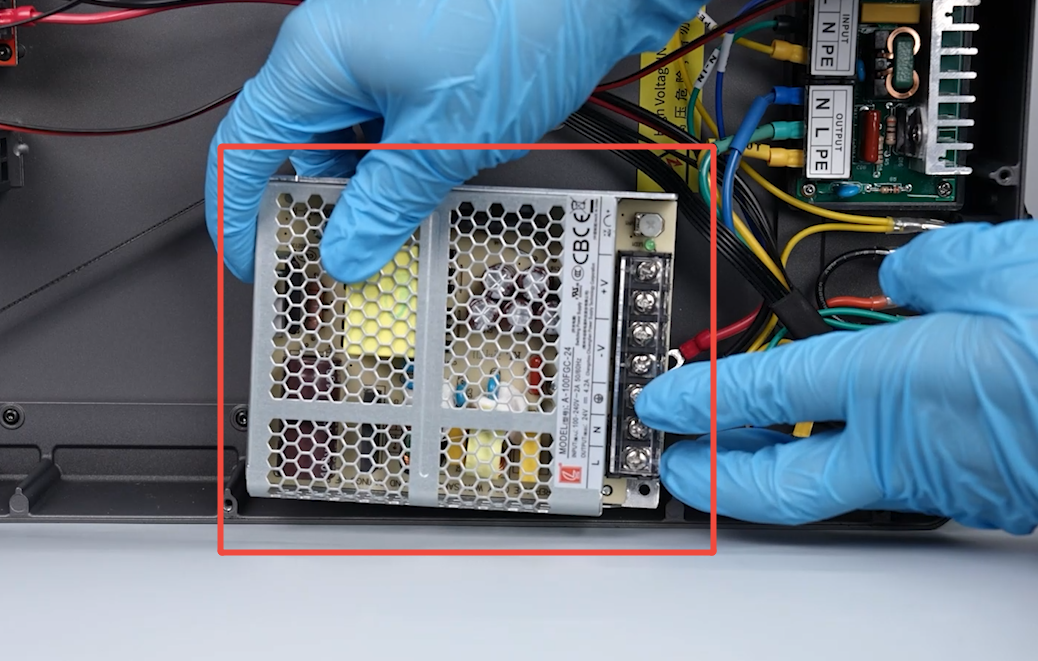

- Remove the old power supply.
¶ Install the New Power Supply

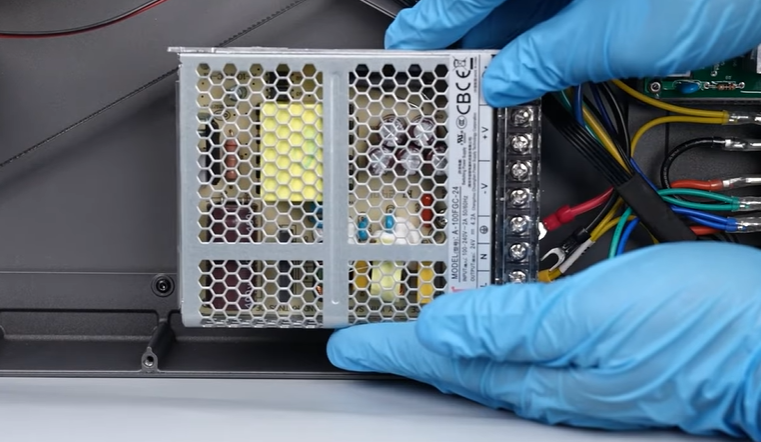

- Prepare the new power supply. Put the new power supply in the installation position by aligning it with the screw holes. Use a 2.0 mm Allen wrench to tighten the 4 screws securing the power supply.

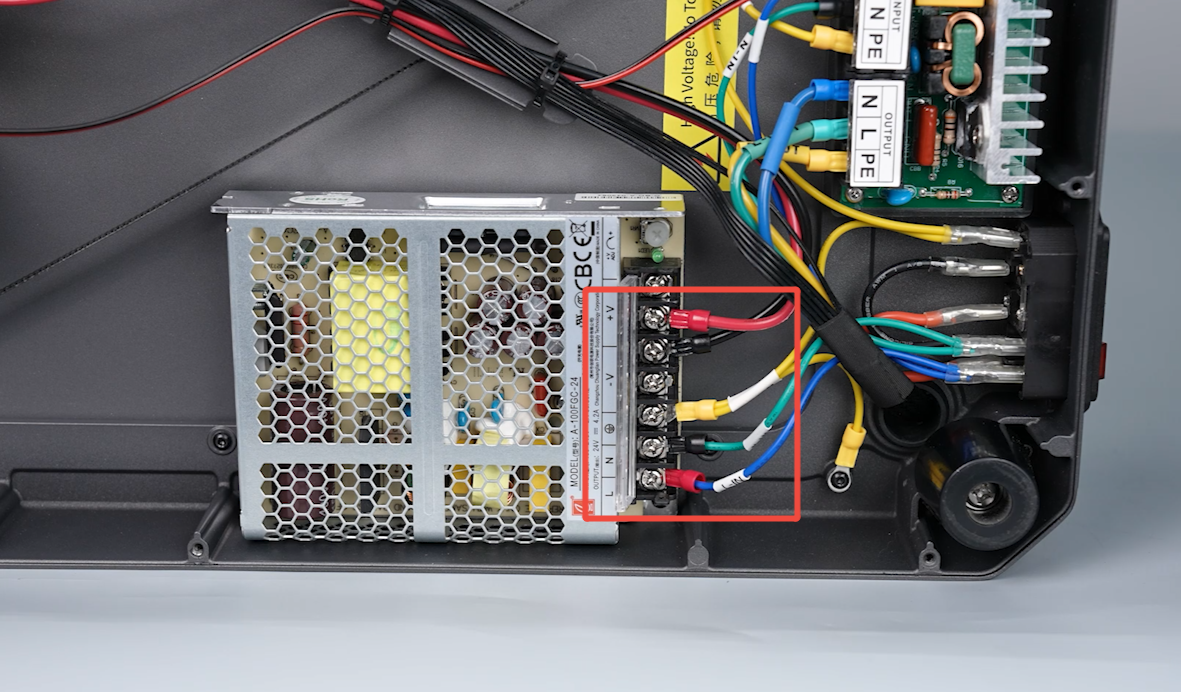

- Insert the cables into the power supply port according to the label information.
- Put the bottom cover of the printer in the installation position by aligning it with the foot pad holes and screw holes. Use a 2.0 mm Allen wrench to tighten the 10 screws securing the bottom cover of the printer.

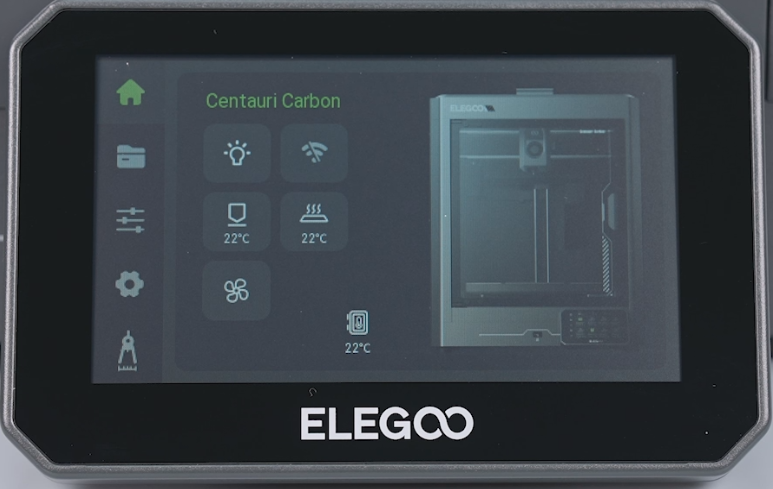

- Power on the printer. The printer is ready for use after the touchscreen works normally.
