¶ Tools and Materials
- A 2.0 mm Allen key
- A Phillips screwdriver
- A pair of tweezers
- A new chamber cooling fan
¶ Tutorial Video
Coming soon.
¶ Instruction
¶ Remove the old chamber cooling fan
- Power off the printer and unplug the power cord.

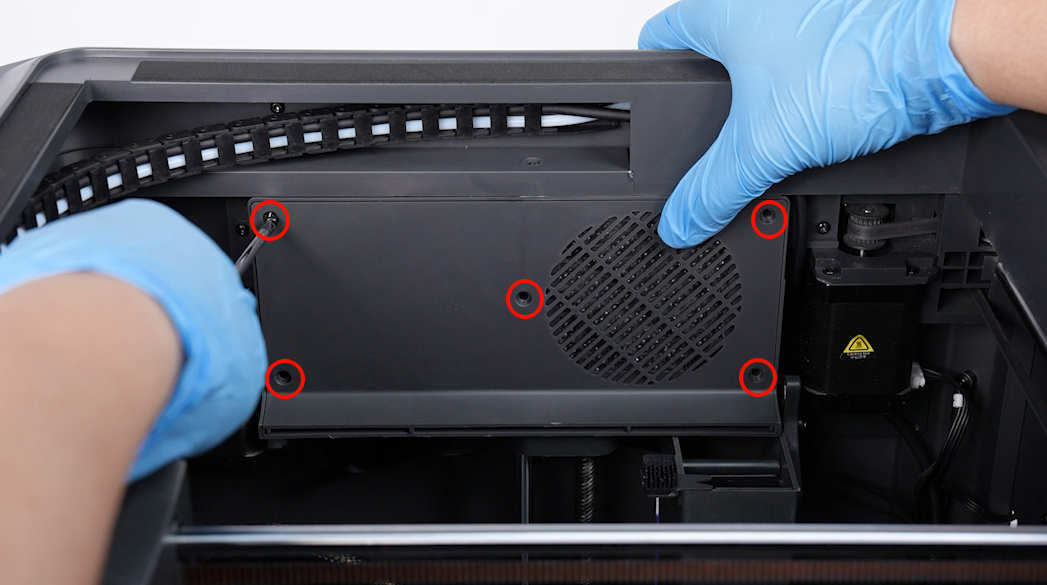

- Loosen the 5 screws securing the front cover of the fan shroud using a Phillips screwdriver.

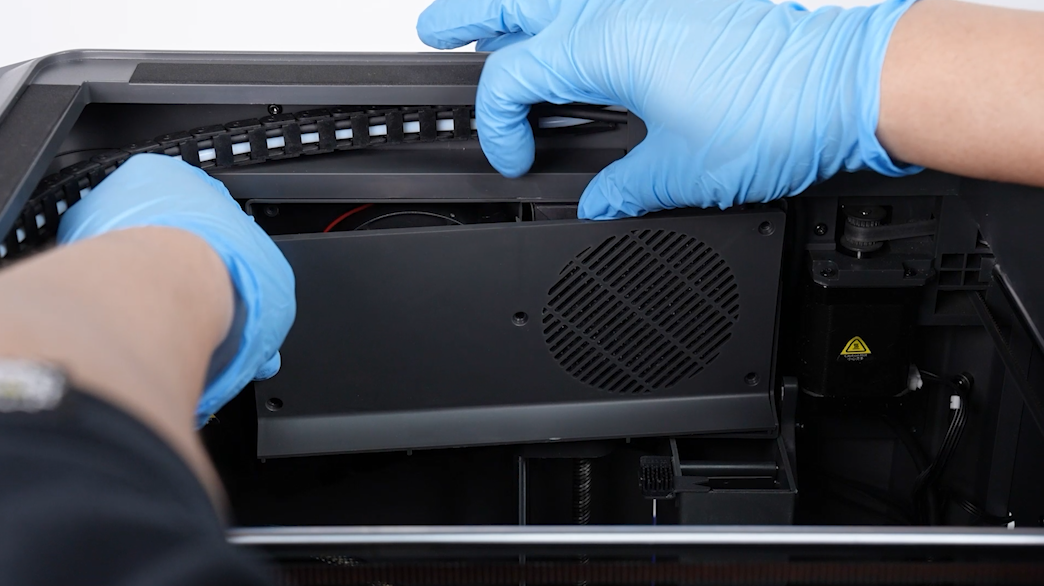

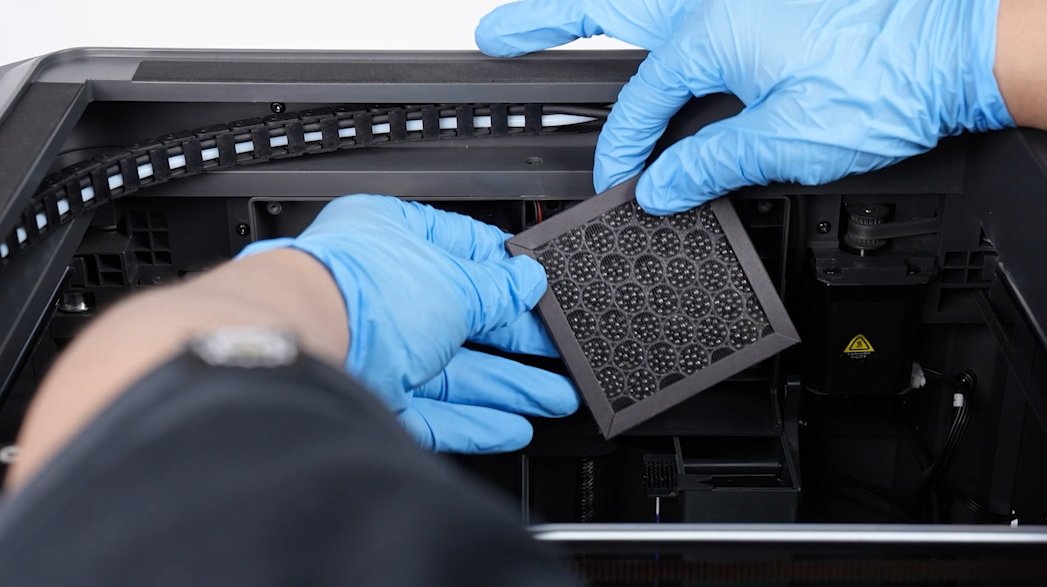

- Remove the fan shroud's front cover and the filter cartridge.

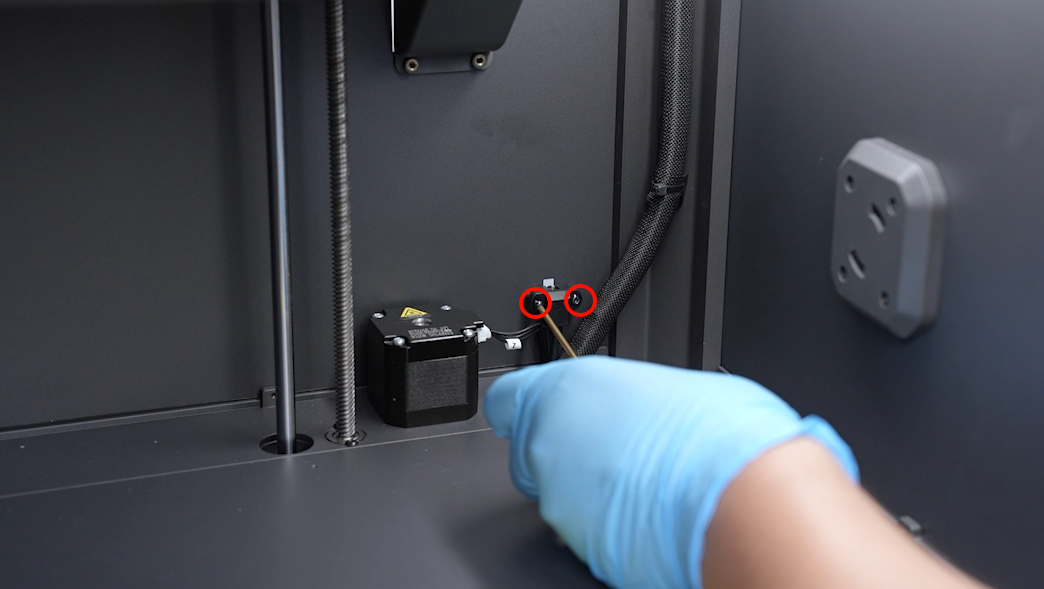

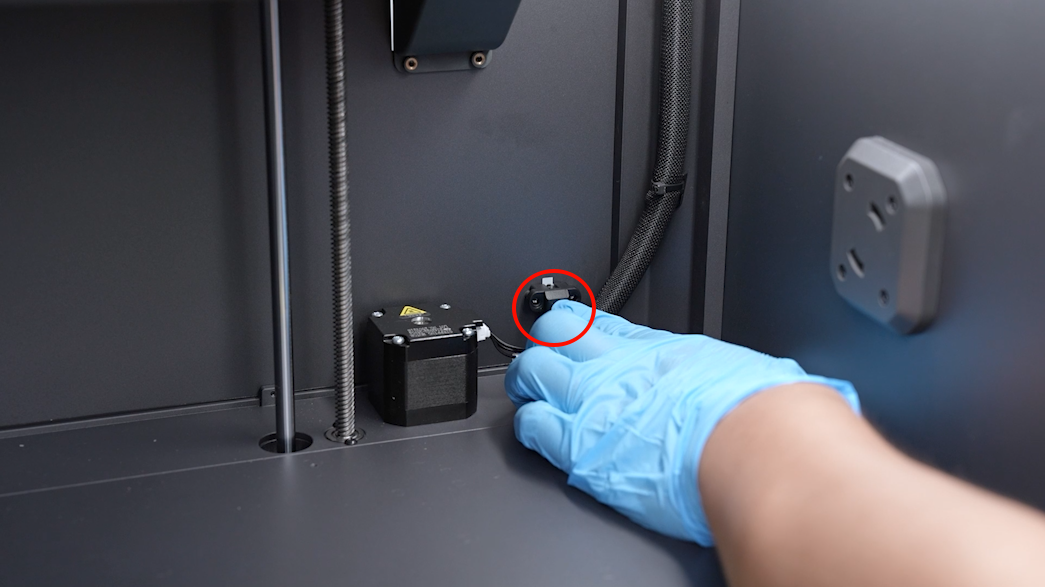

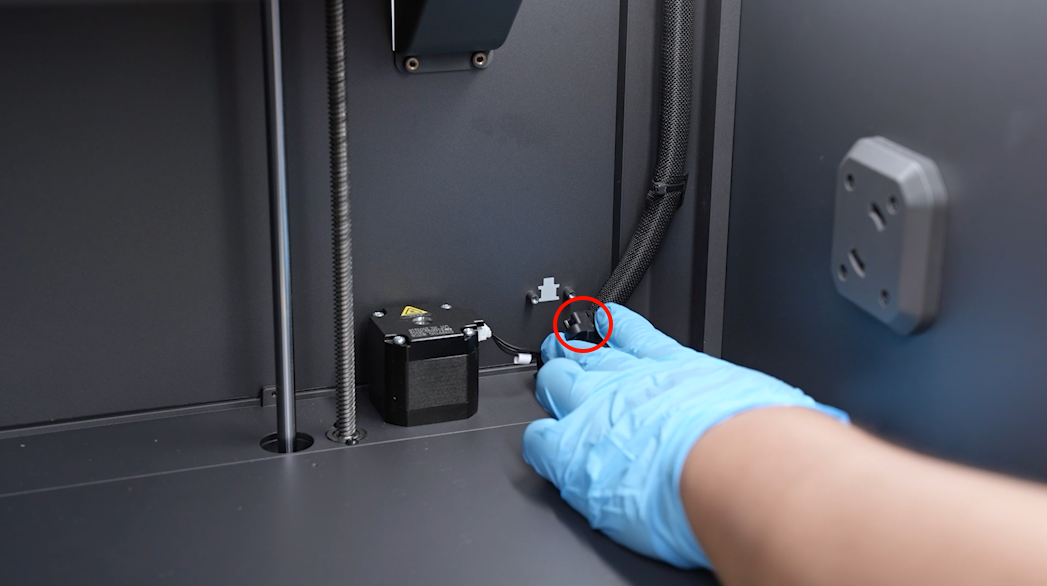

- Loosen the two screws securing the multi-color connector using a 2.0 mm Allen key, then remove connector.

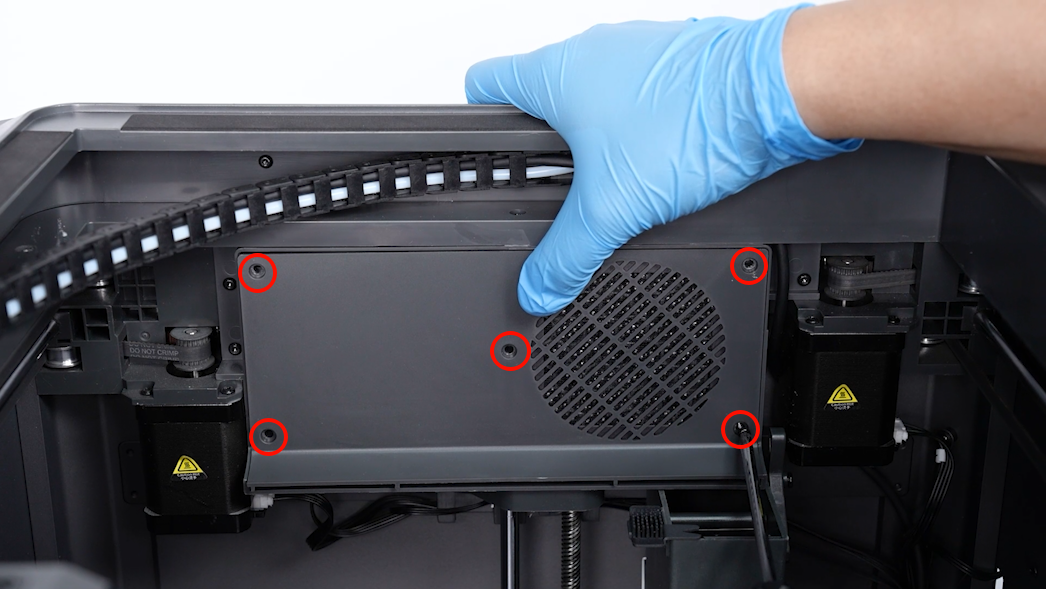

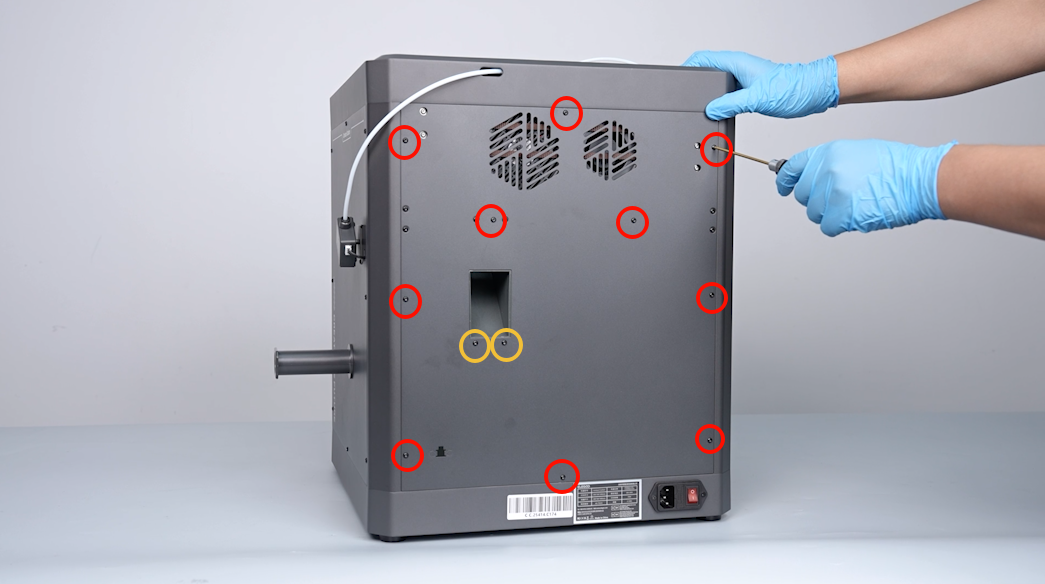

- Loosen the 12 screws securing the back cover of the printer using a 2.0 mm Allen key, then remove the back cover.
Note: Screw holes labeled by the red circle are M3*4, while screw holes labeled by the yellow circle are M3*8.

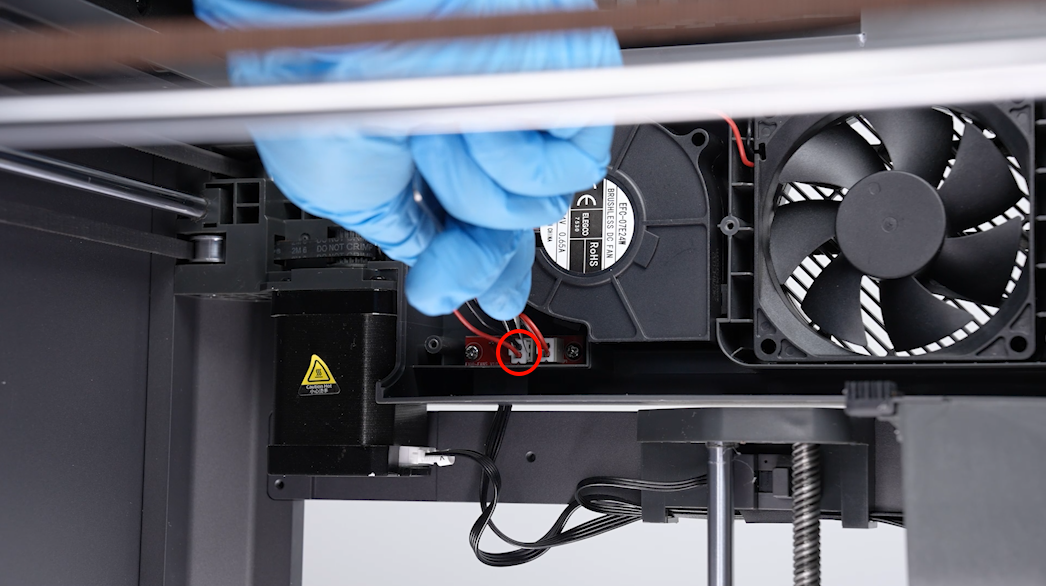

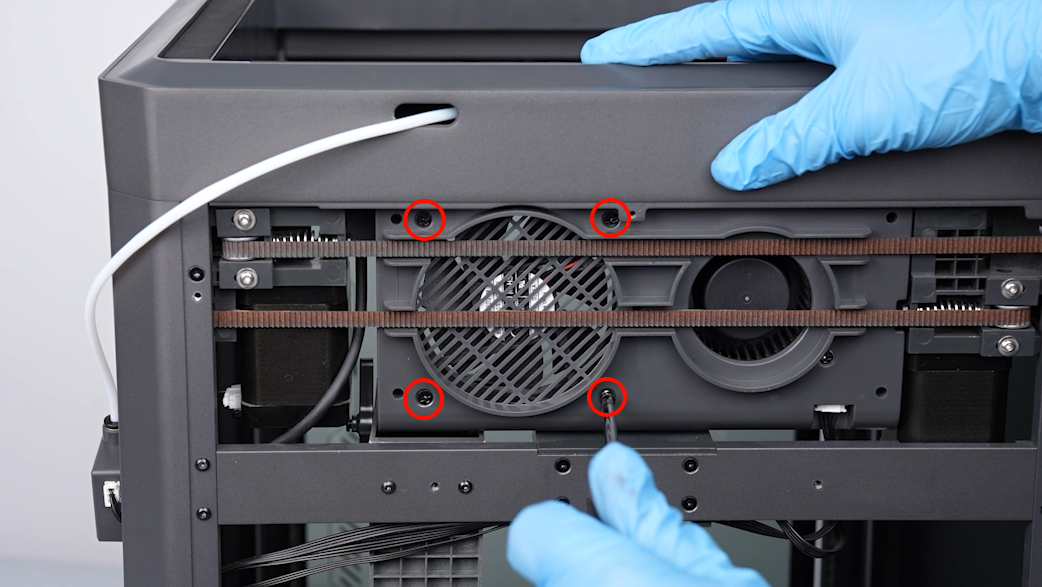

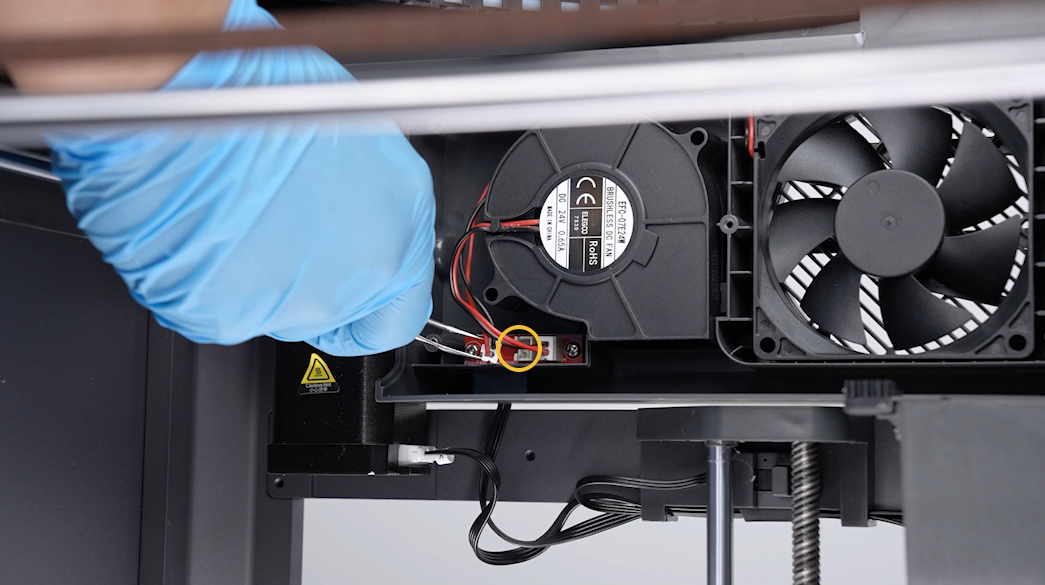

- Loosen the 4 screws securing the chamber cooling fan using a Phillips screwdriver. Unplug the ribbon cables of the chamber cooling fan.

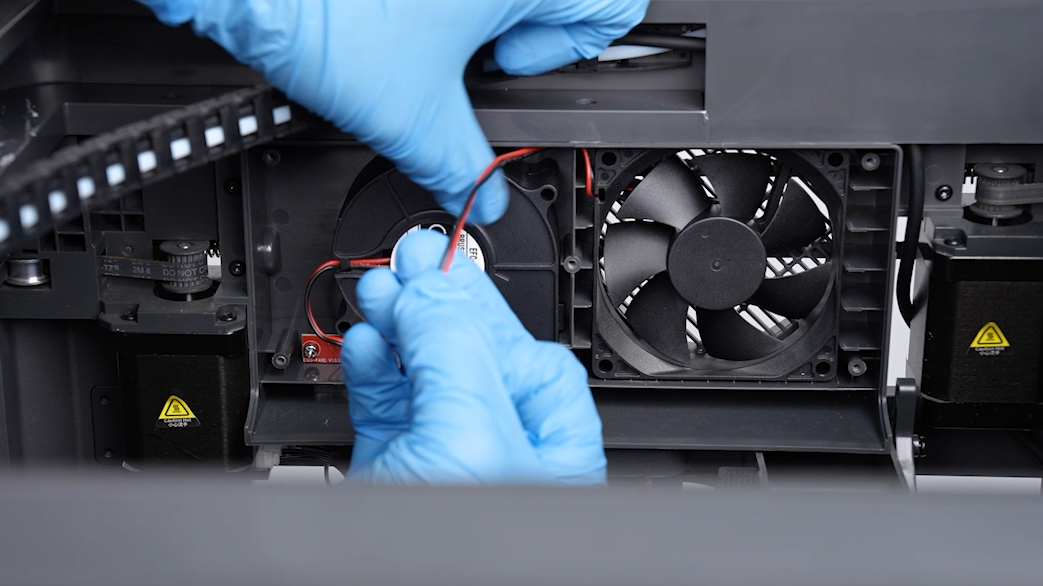

- Organize the ribbon cables, then remove the old chamber cooling fan.
¶ Install the new chamber cooling fan

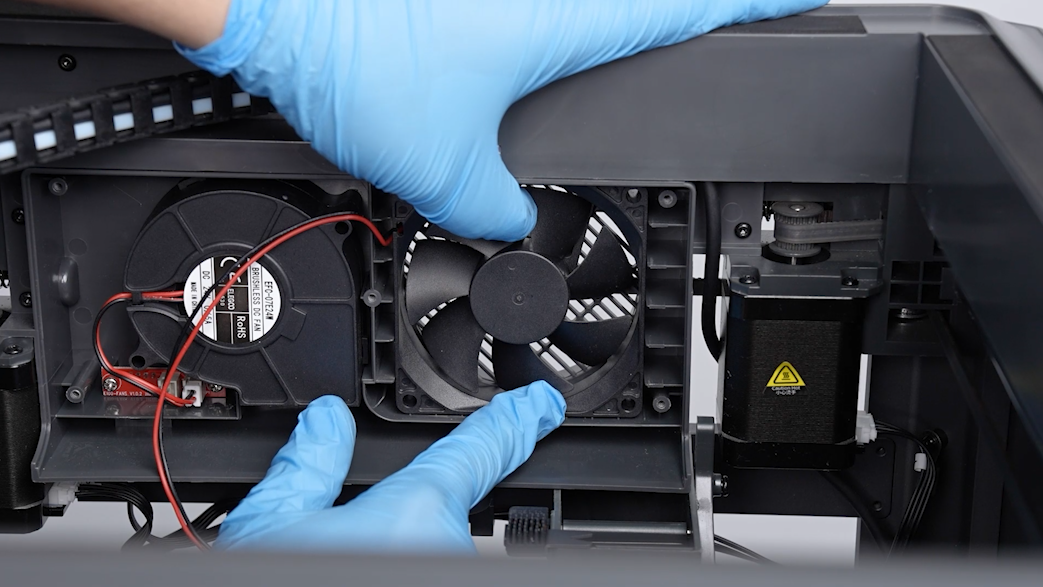

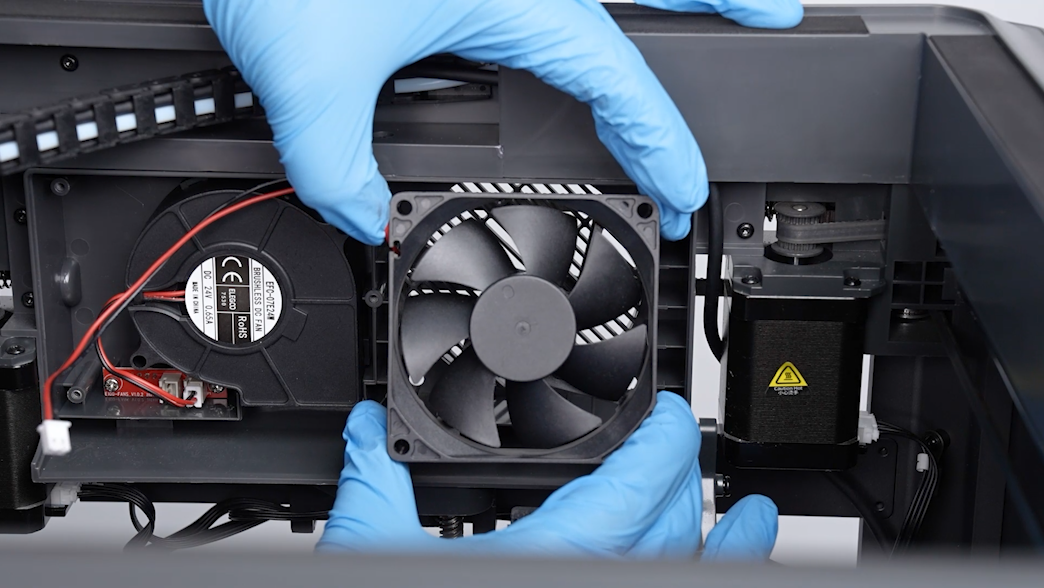

- Prepare the new chamber cooling fan. Position by aligning it with the screw holes. Organize the ribbon cables of the chamber cooling fan.
- Insert the ribbon cables into the adapter board port.
- Tighten the 4 screws securing the chamber cooling fan using a Phillips screwdriver.

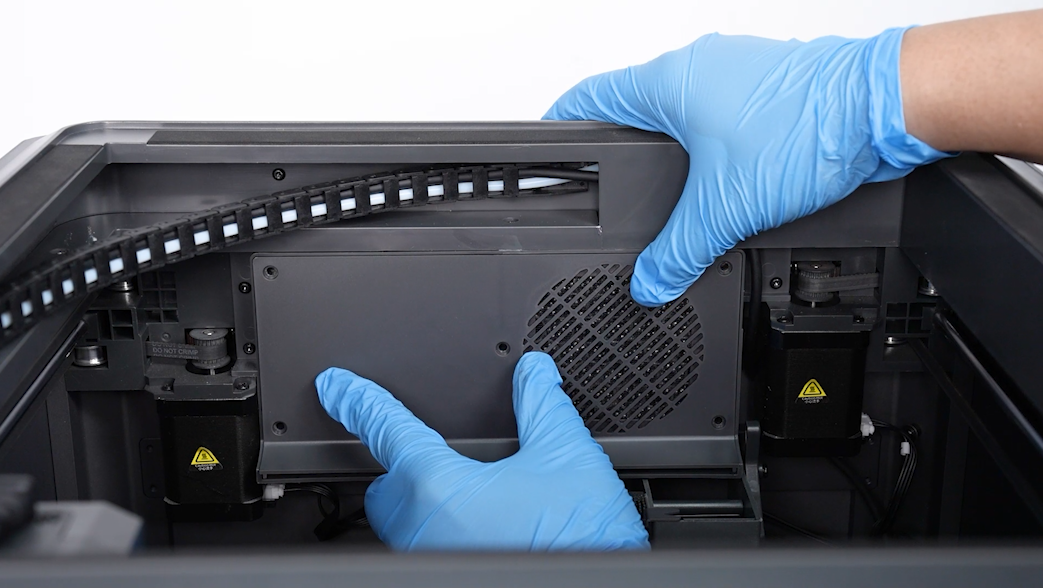

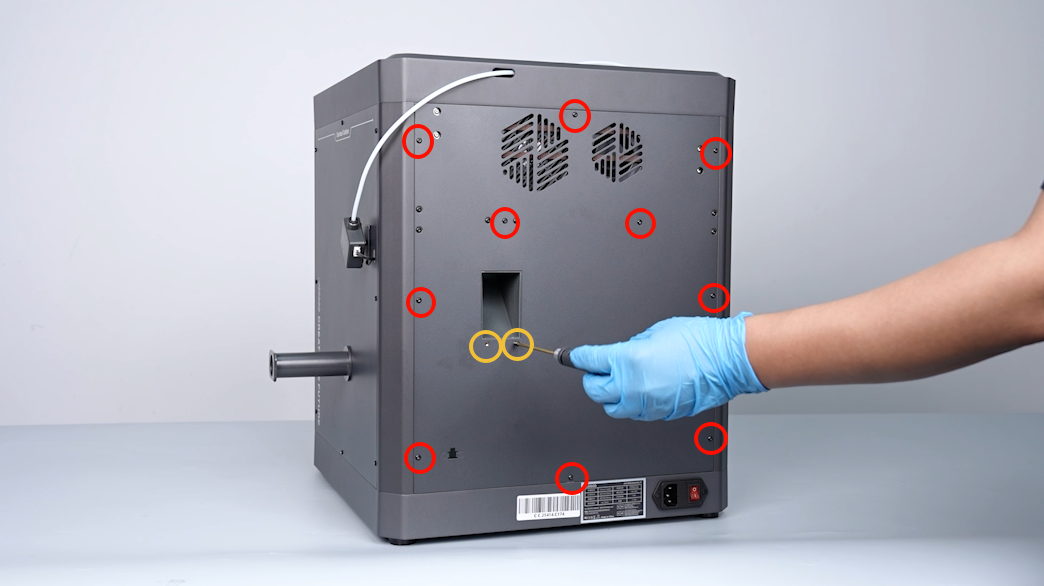

- Put the back cover in the installation position by aligning it with the screw holes. Tighten the 12 screws securing the back cover using a 2.0 mm Allen key.
Note: Screw holes labeled by the red circle are M3*4, while screw holes labeled by the yellow circle are M3*8.

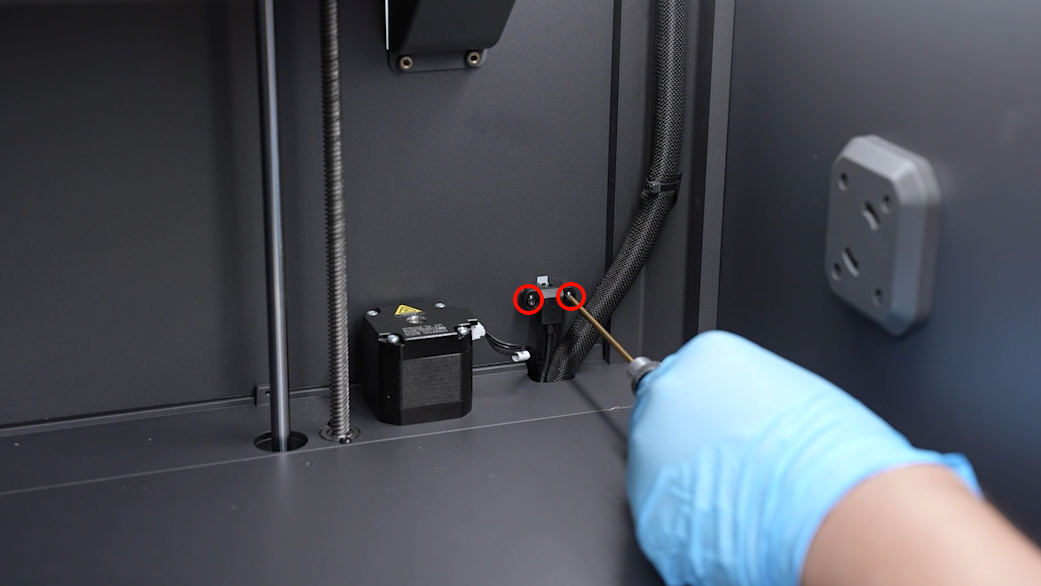

- Put the multi-color connector in the installation position by aligning it with the screw holes. Tighten the two screws securing the multi-color connector using a 2.0 mm Allen key.

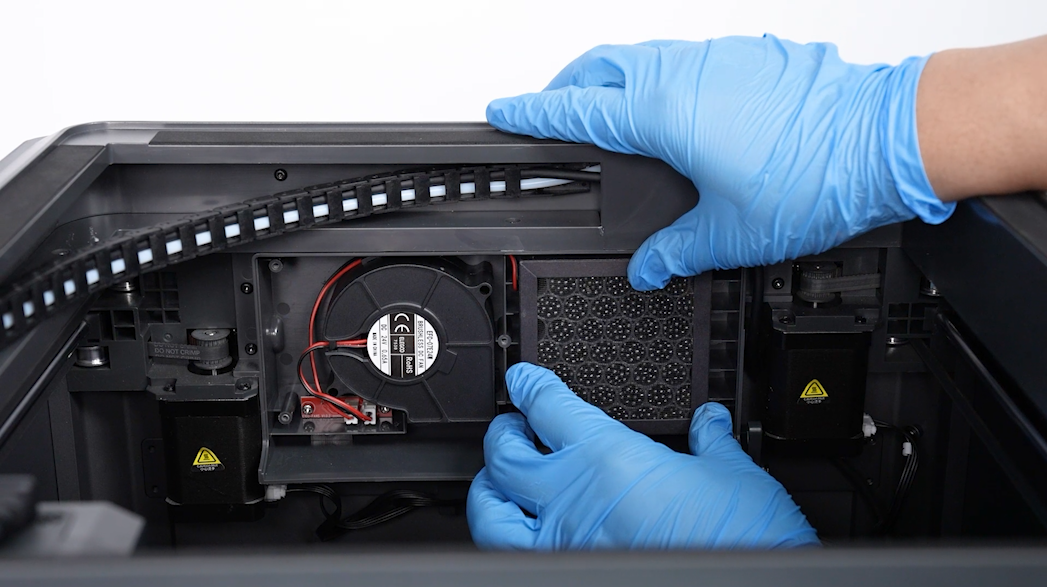

- Put the filter in the installation position.
- Put the front cover of the fan shroud in the installation position by aligning it with the screw holes. Use a Phillips screwdriver to tighten the 5 screws securing the front cover of the fan shroud.
- Power on the printer. Touch "Function - Fans - Model Cooling Fan" on the touchscreen. The printer can be used as usual after the fan rotates normally.
