¶ Tools and Materials
- A 2.0 mm Allen key
- A new PTFE tube
¶ Tutorial Video
Coming soon.
¶ Instruction
¶ Remove the old PTFE tube
- Plug in the power cord and power on the printer.

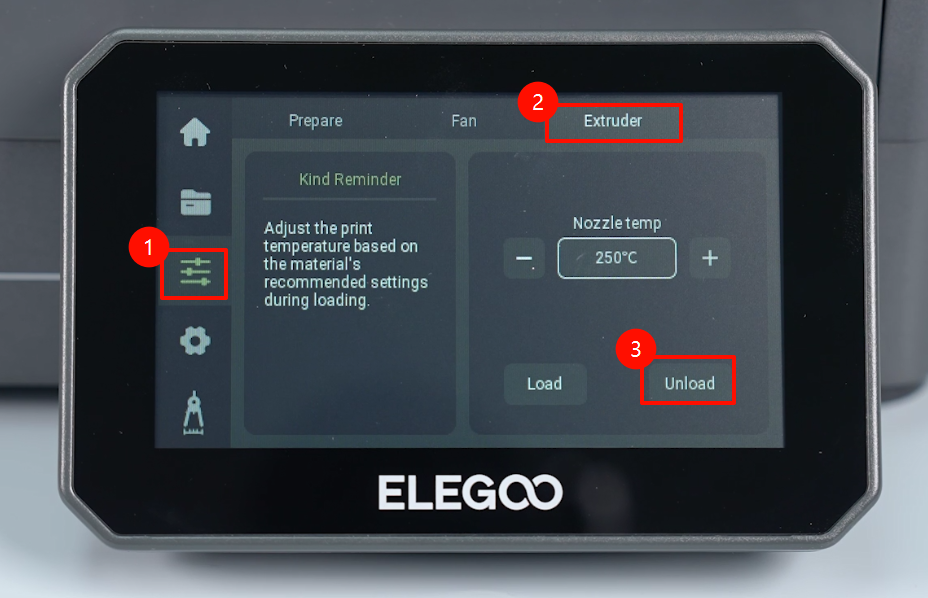

- Navigate to "Function - Extruder - Unload" " on the touchscreen.

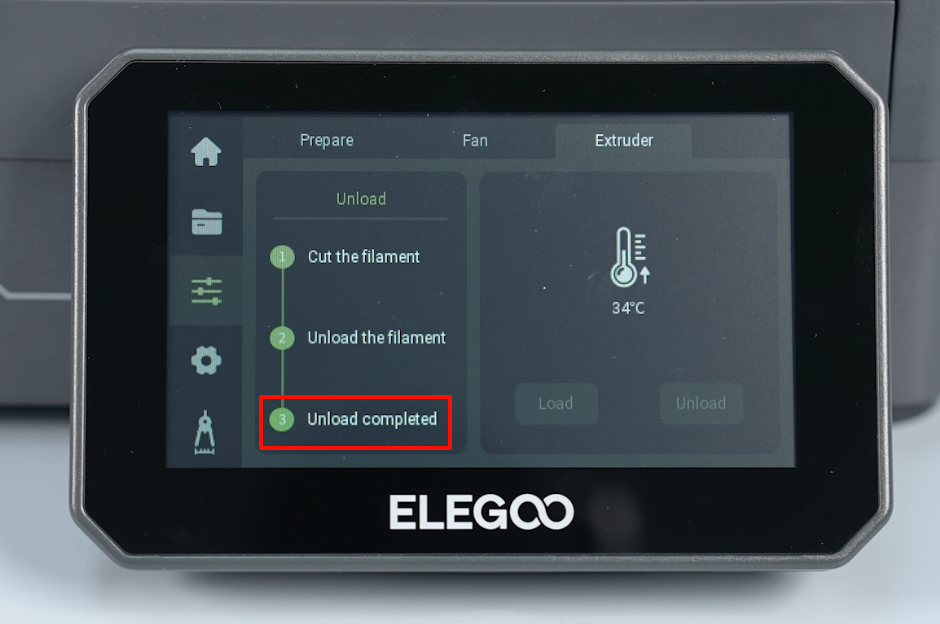

- Remove the filament when the touchscreen shows "Unload completes".

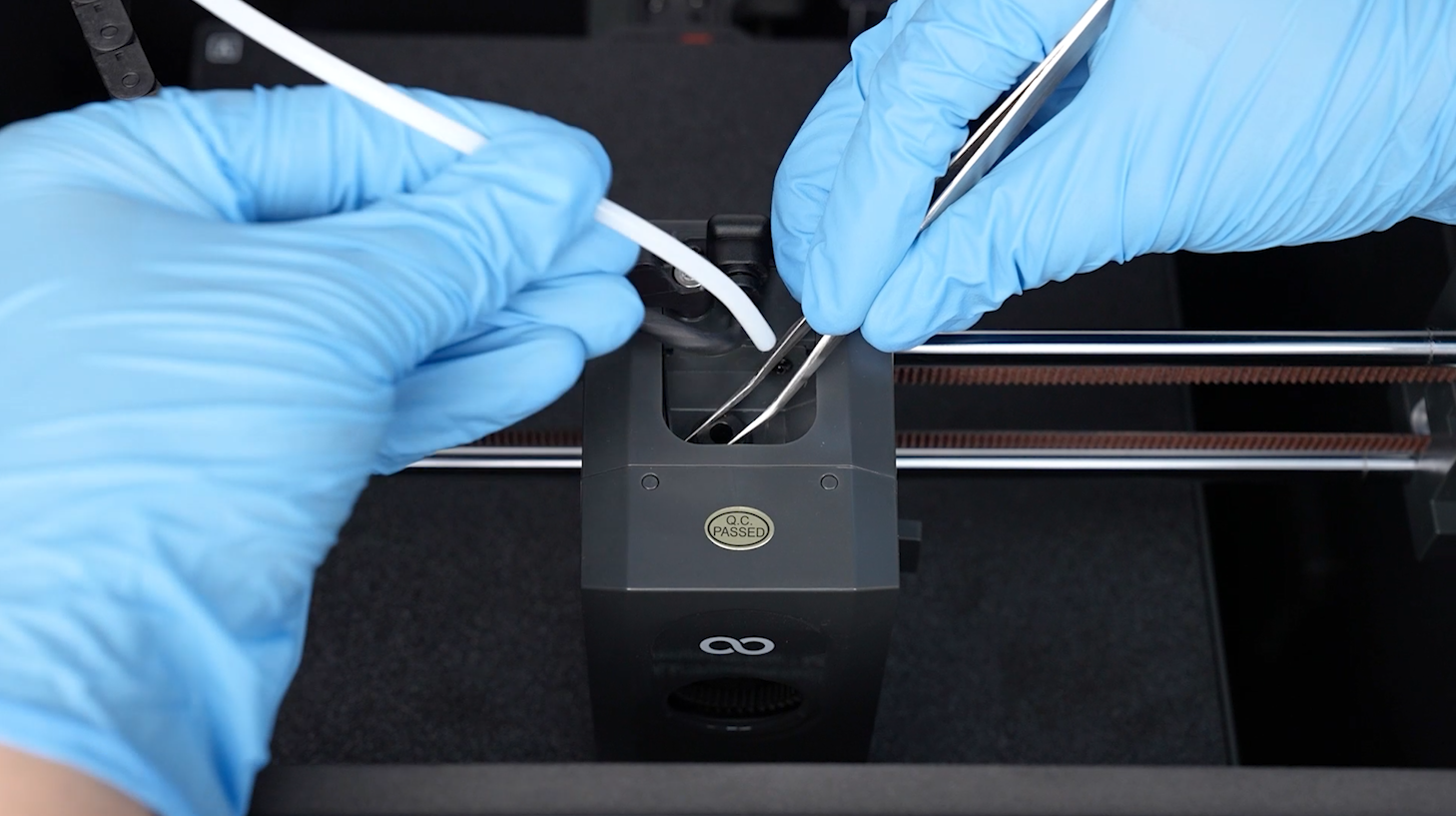

- Press down on the tablet of the connector using a pair of tweezers. Remove the PTFE tube.

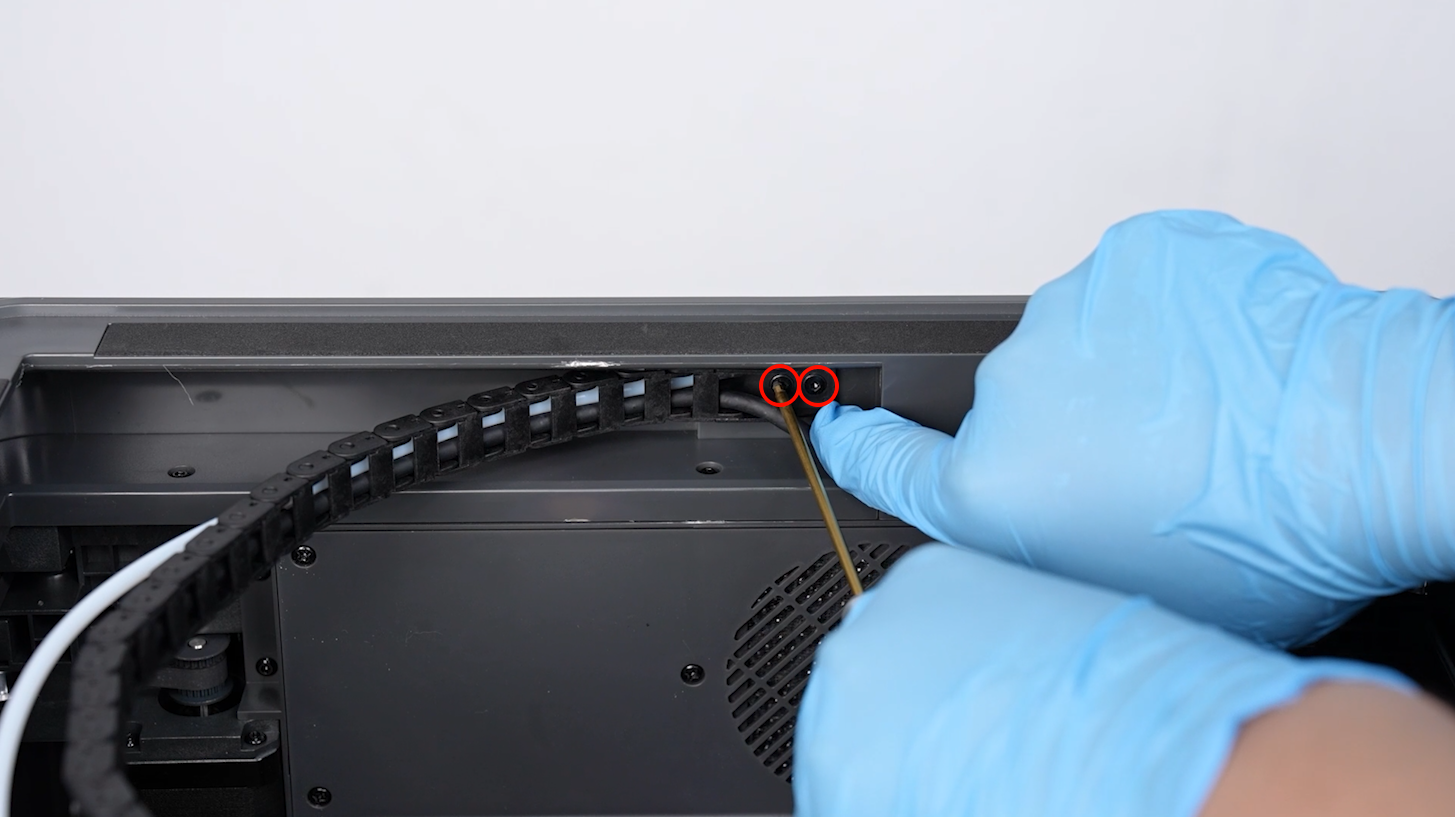

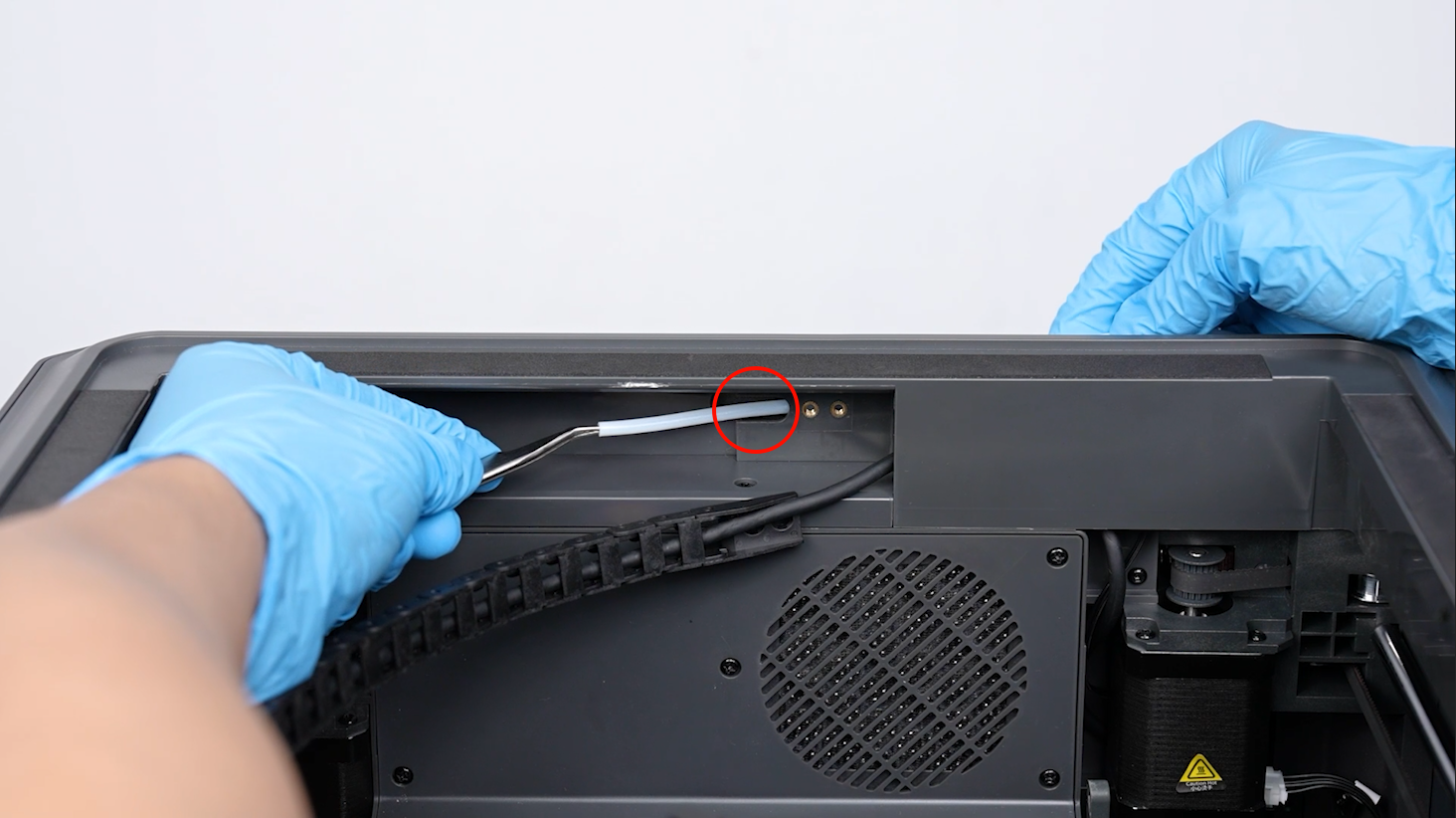

- Use a 2.0 mm Allen key to loosen the 2 screws securing the cable chain terminal, and pull out the PTFE tube from the cable chain.

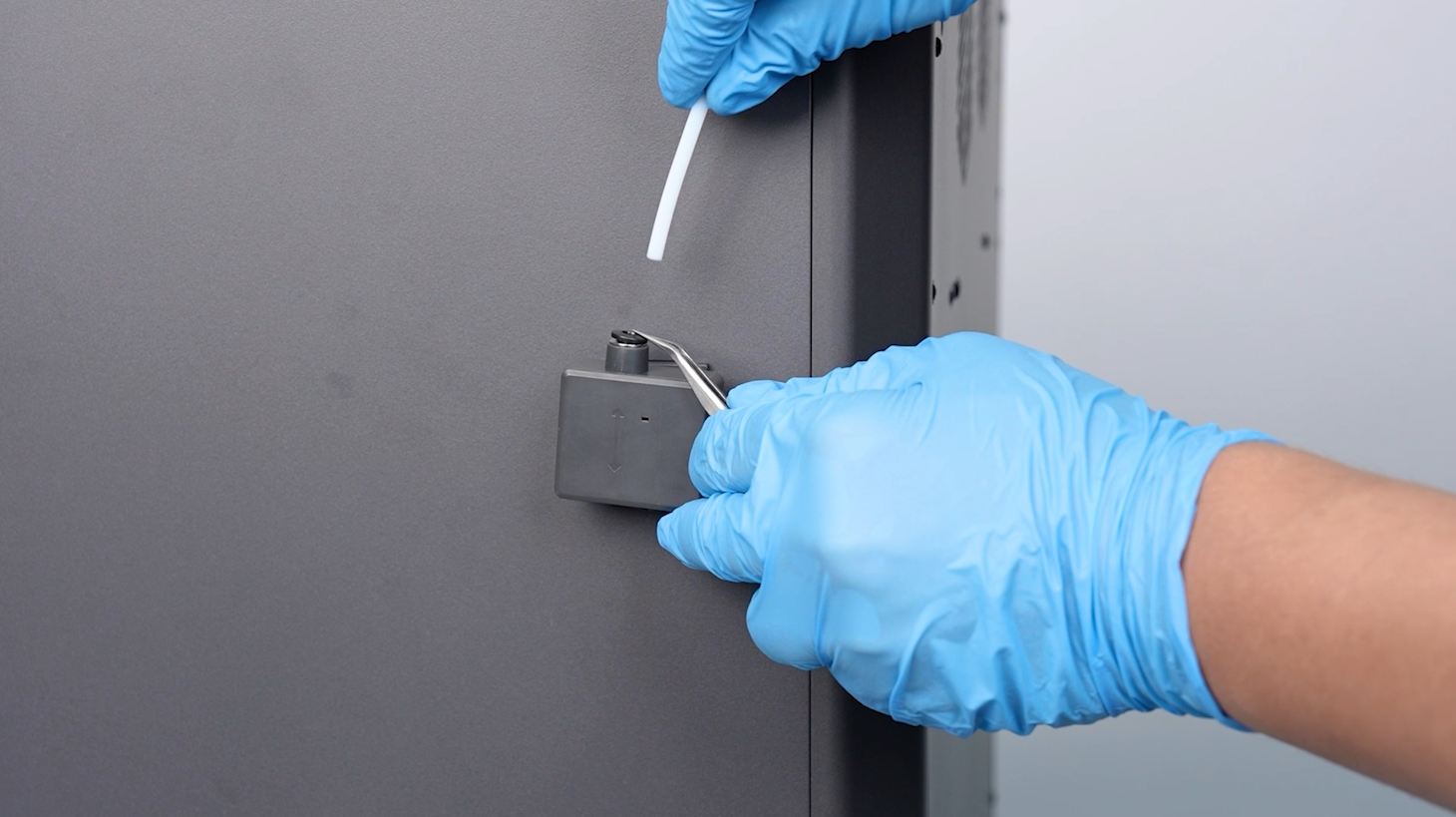

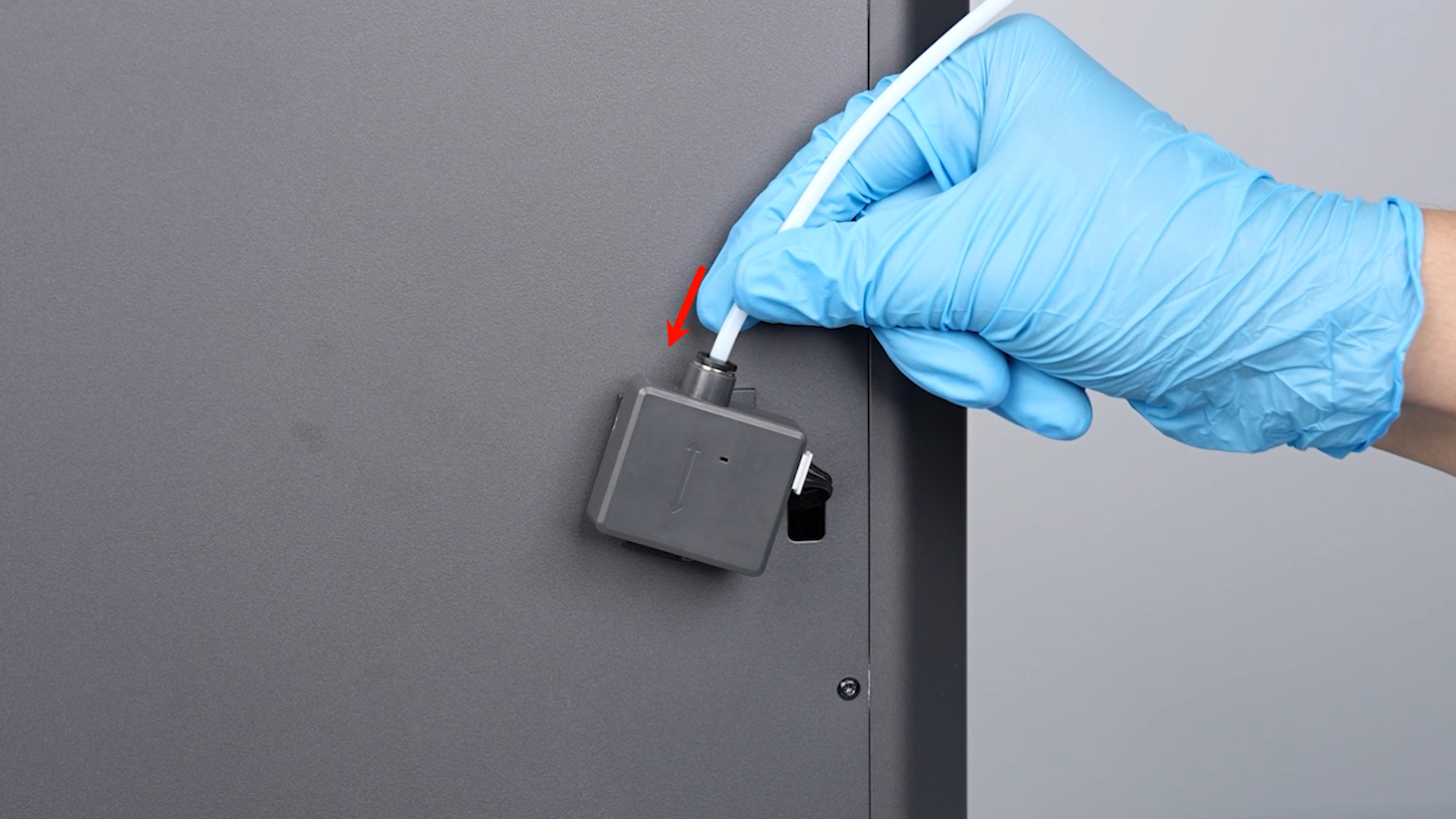

- Press down on the tablet of the connector using a pair of tweezers from above the filament runout detection module. Unload the PTFE tube.
- Pull out the old PTFE tube from the back of the printer.
¶ Install the new PTFE tube

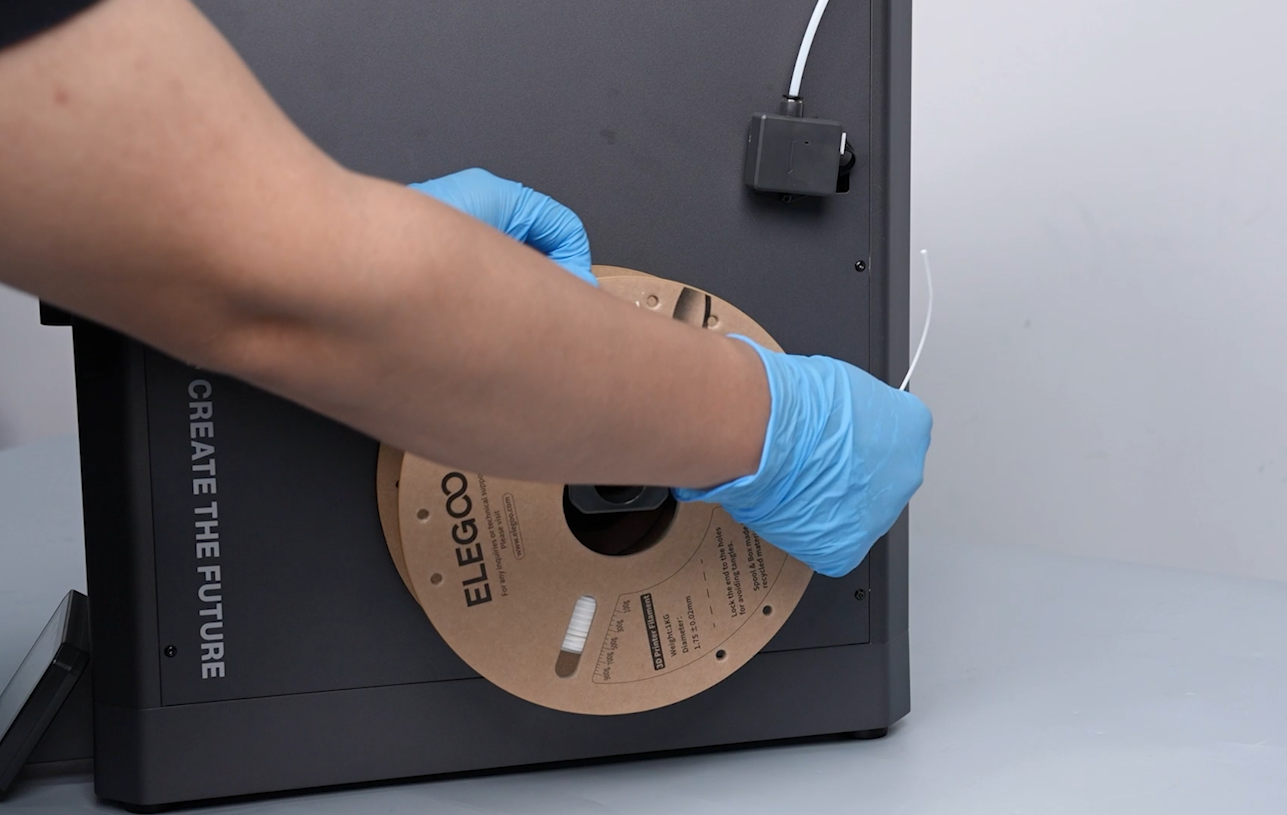

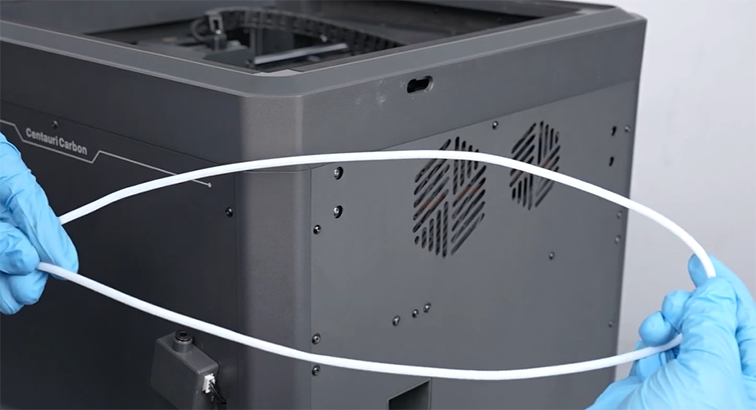

- Prepare the new PTFE tube Insert the connector above the filament runout detection module.

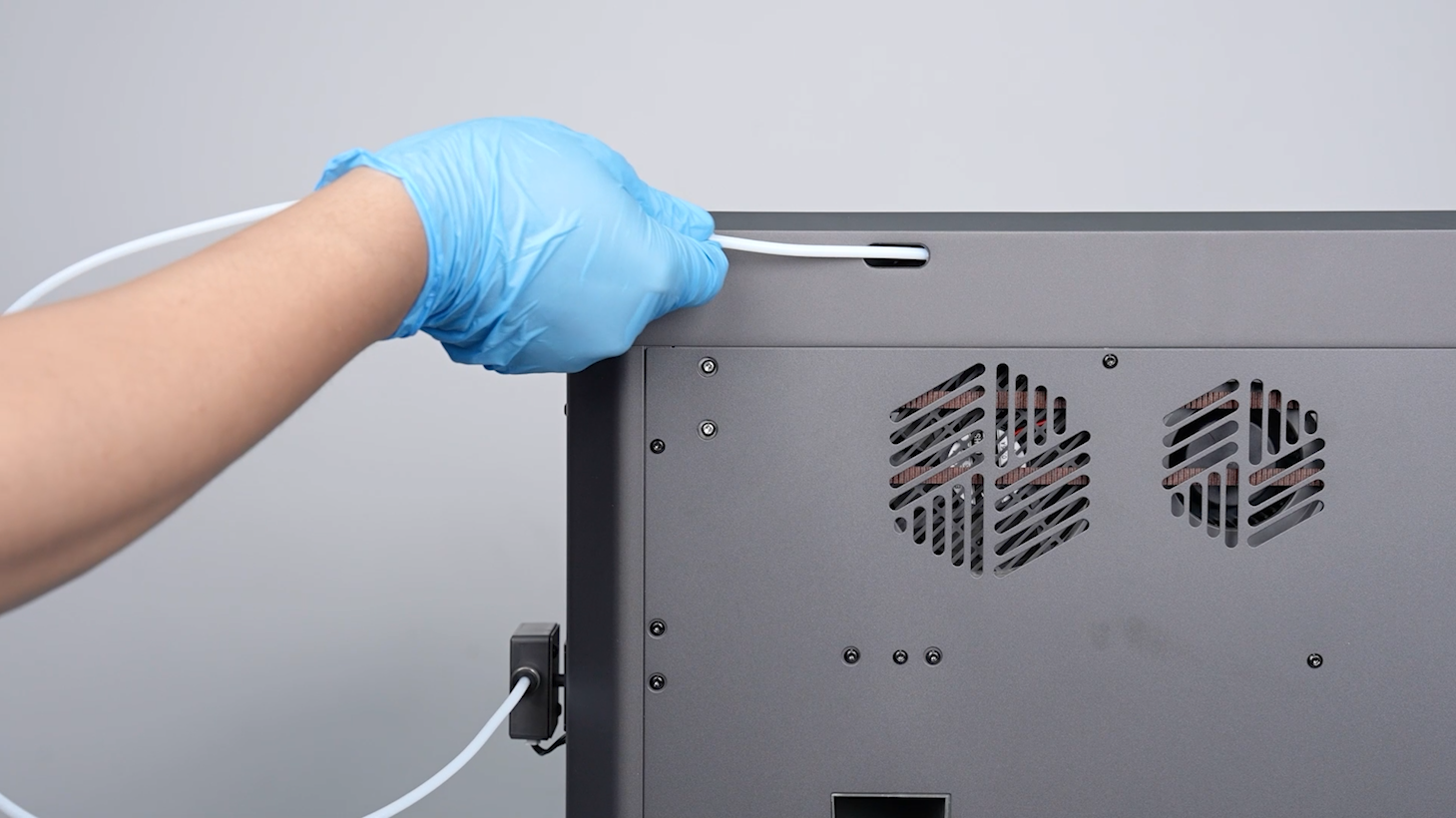

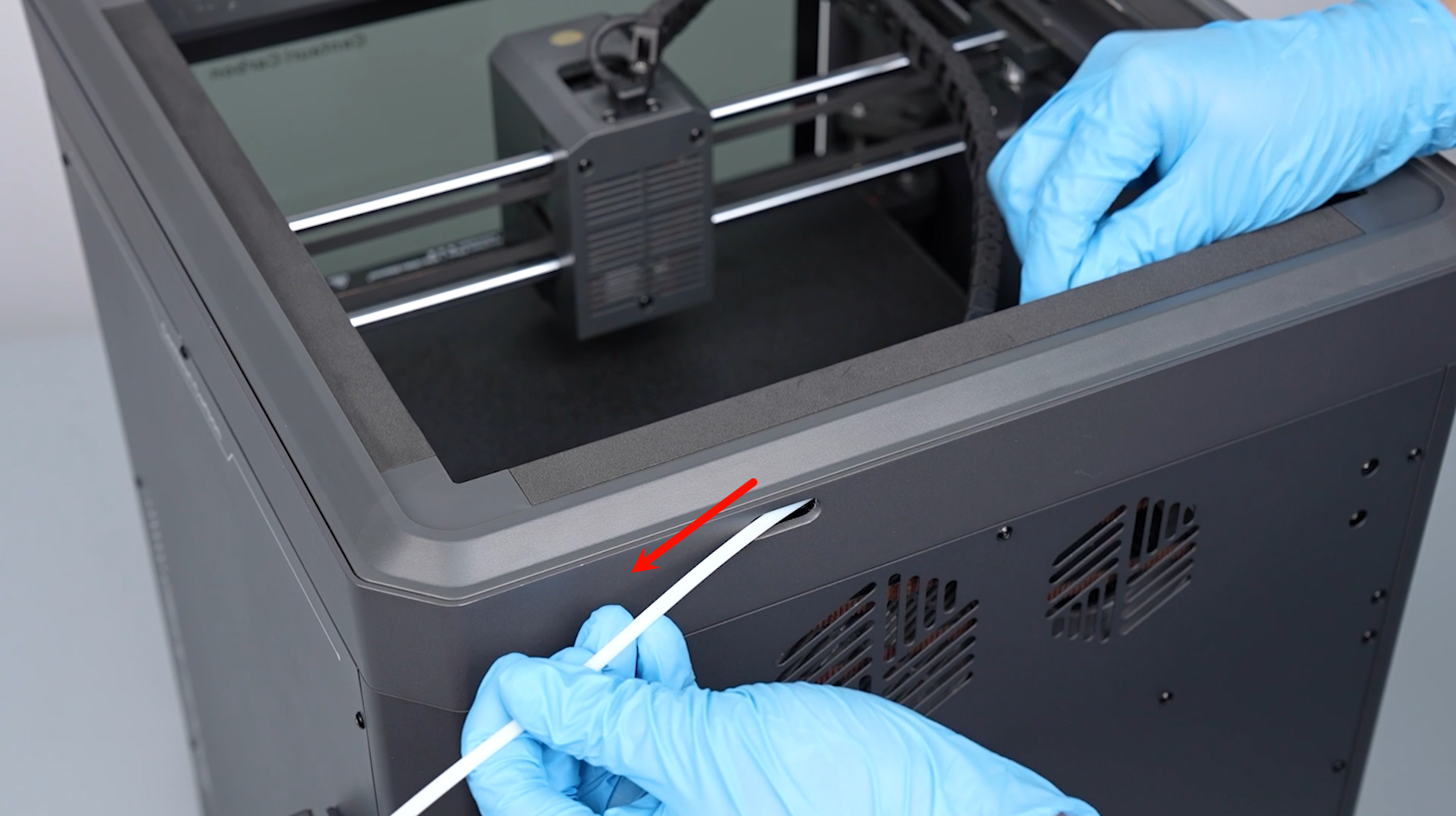

- Pass the PTFE tube through the filament hole at the back of the printer. Holding the front part of the tube using a pair of tweezers and pull out the tube.

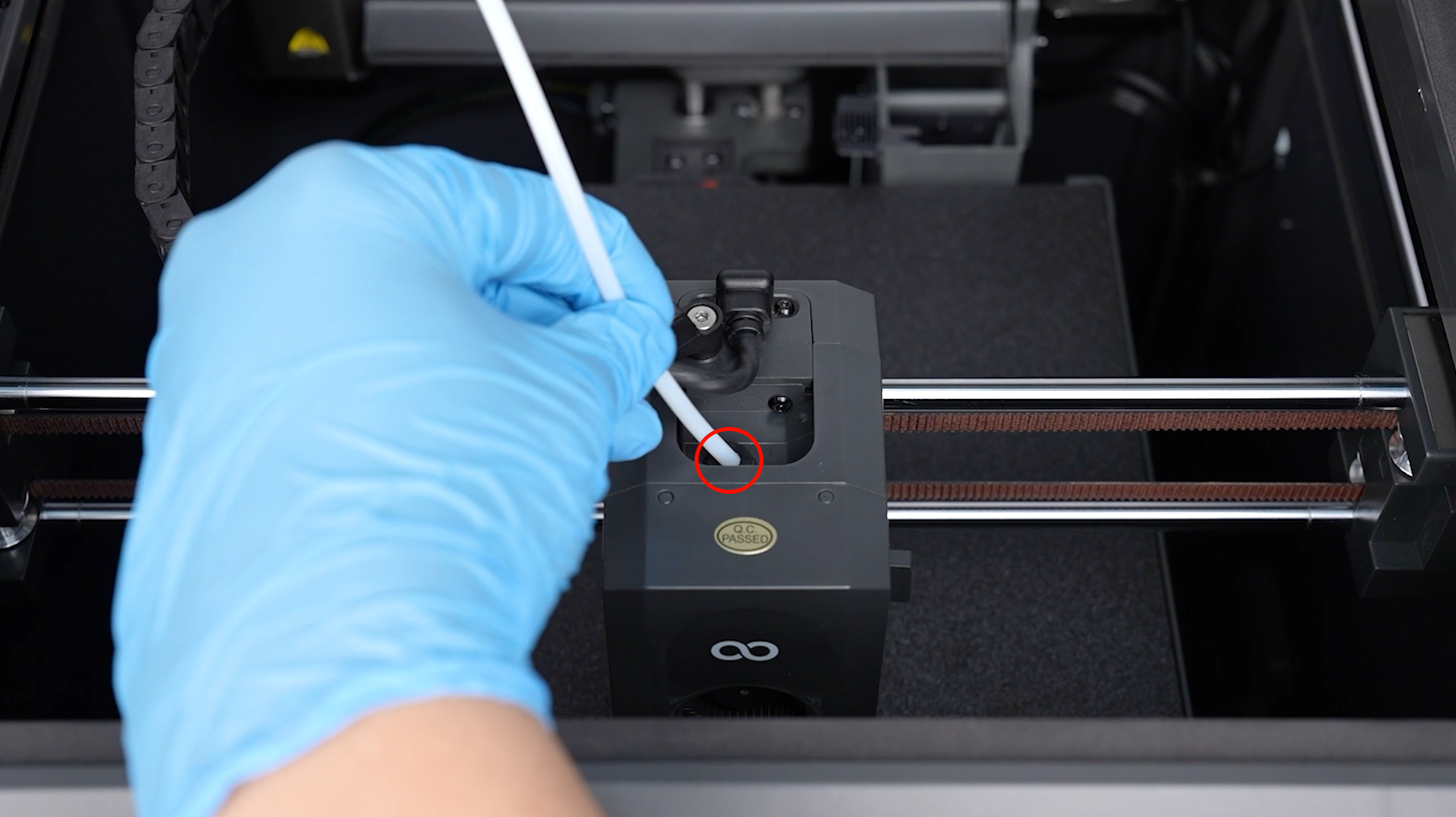

- Insert the PTFE tube into the connector above the print head.

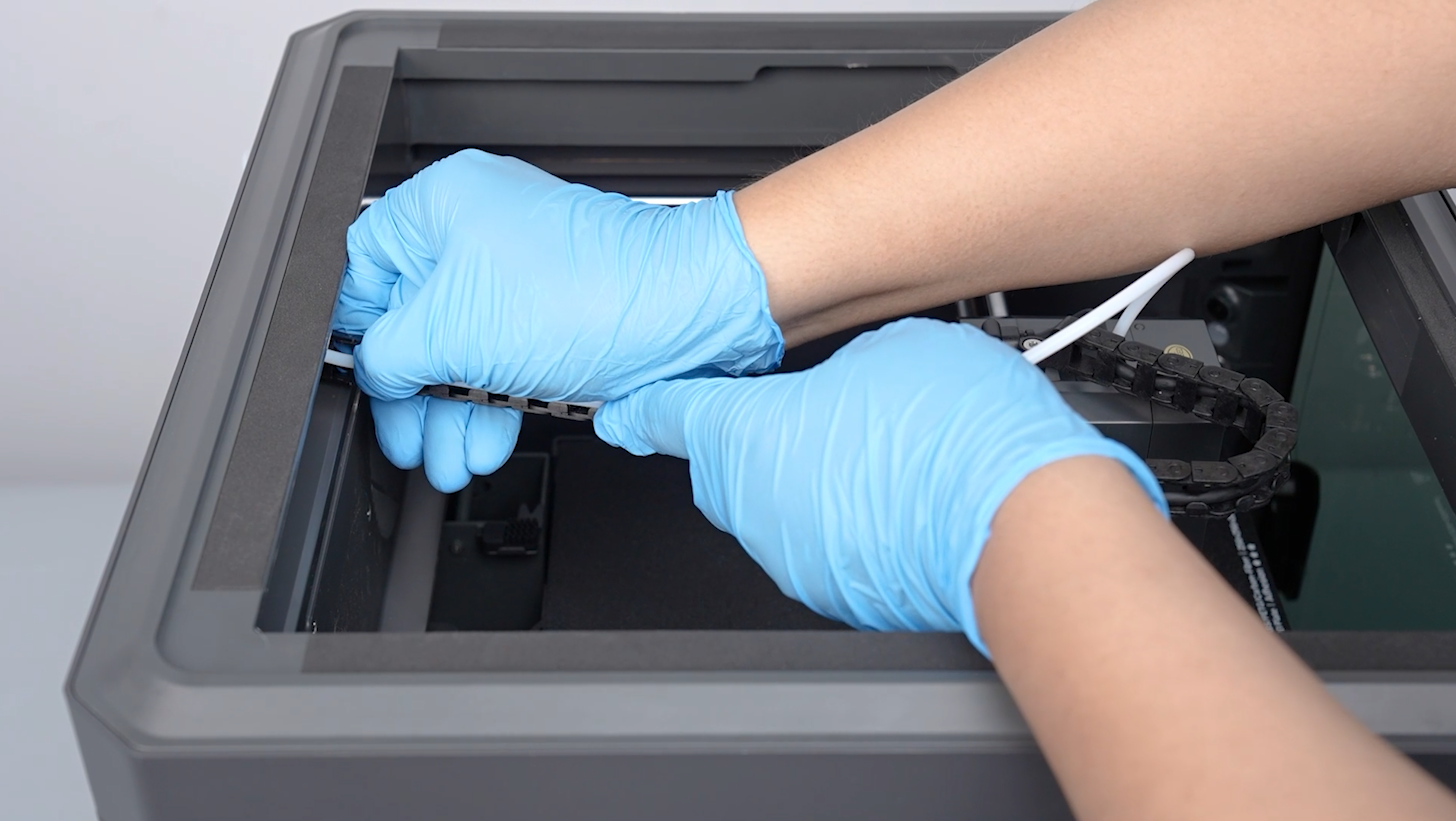

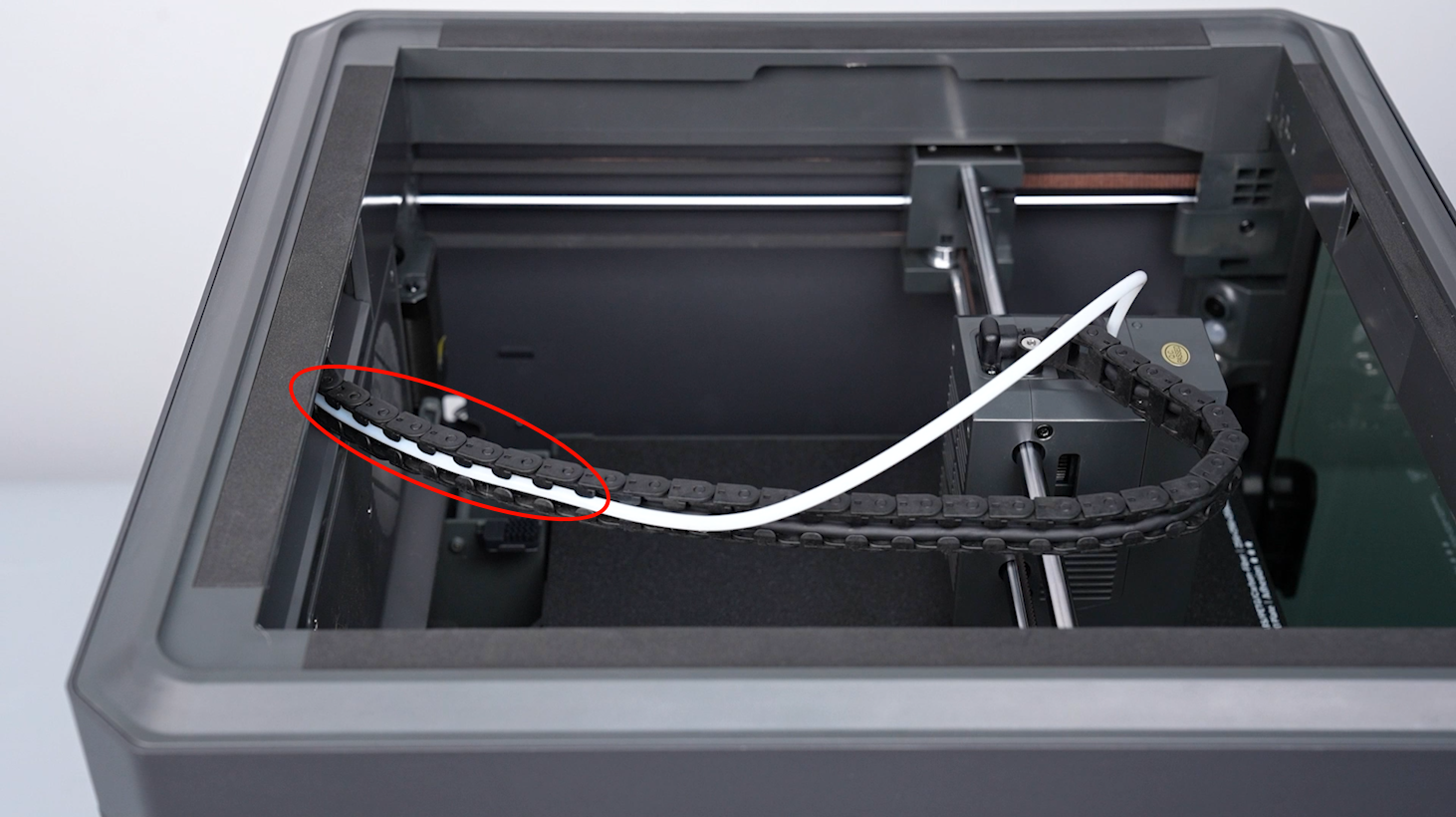

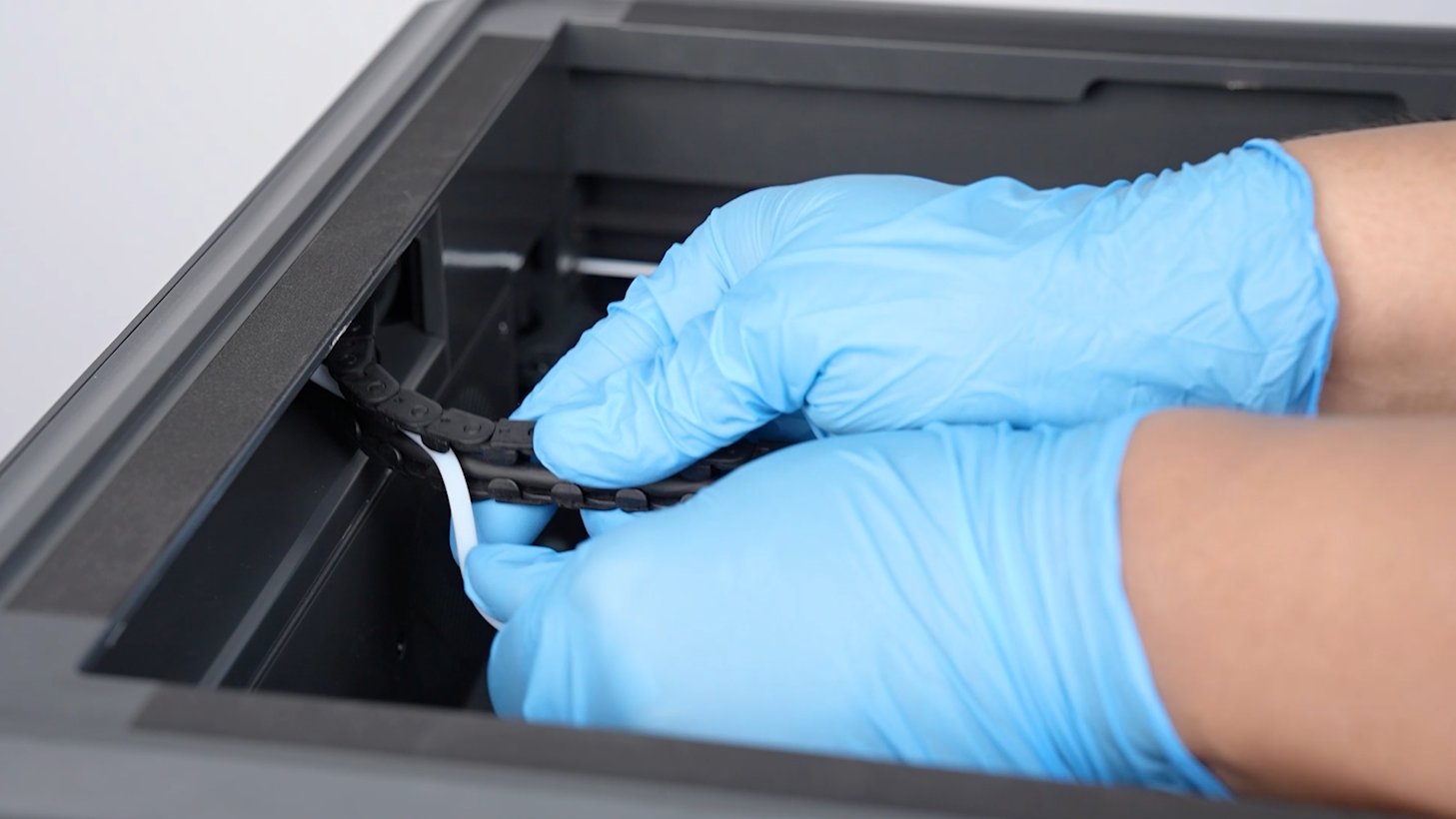

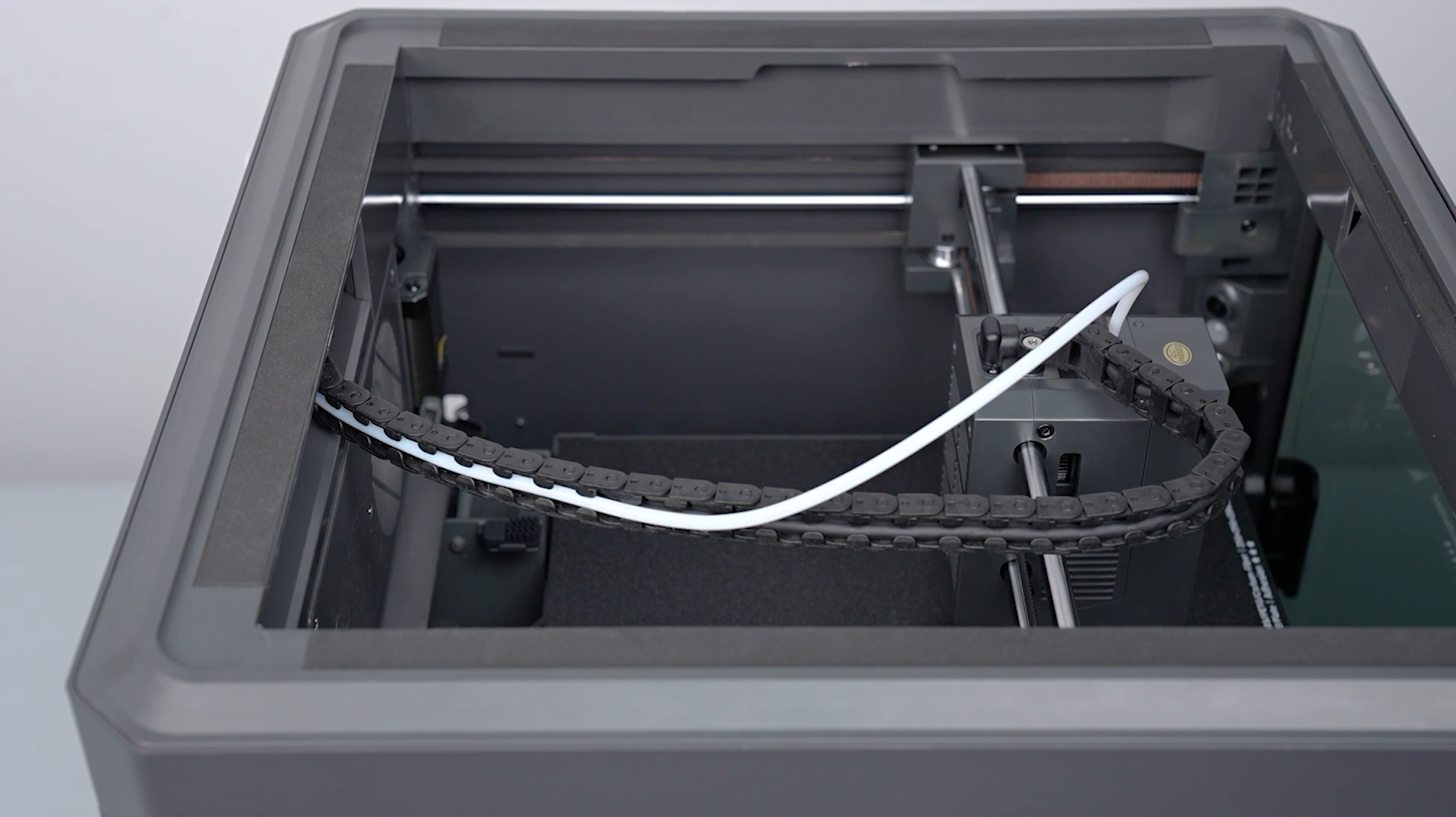

- Press the PTFE tube into the cable chain from the terminal of the cable chain to one-third of the distance from the terminal.

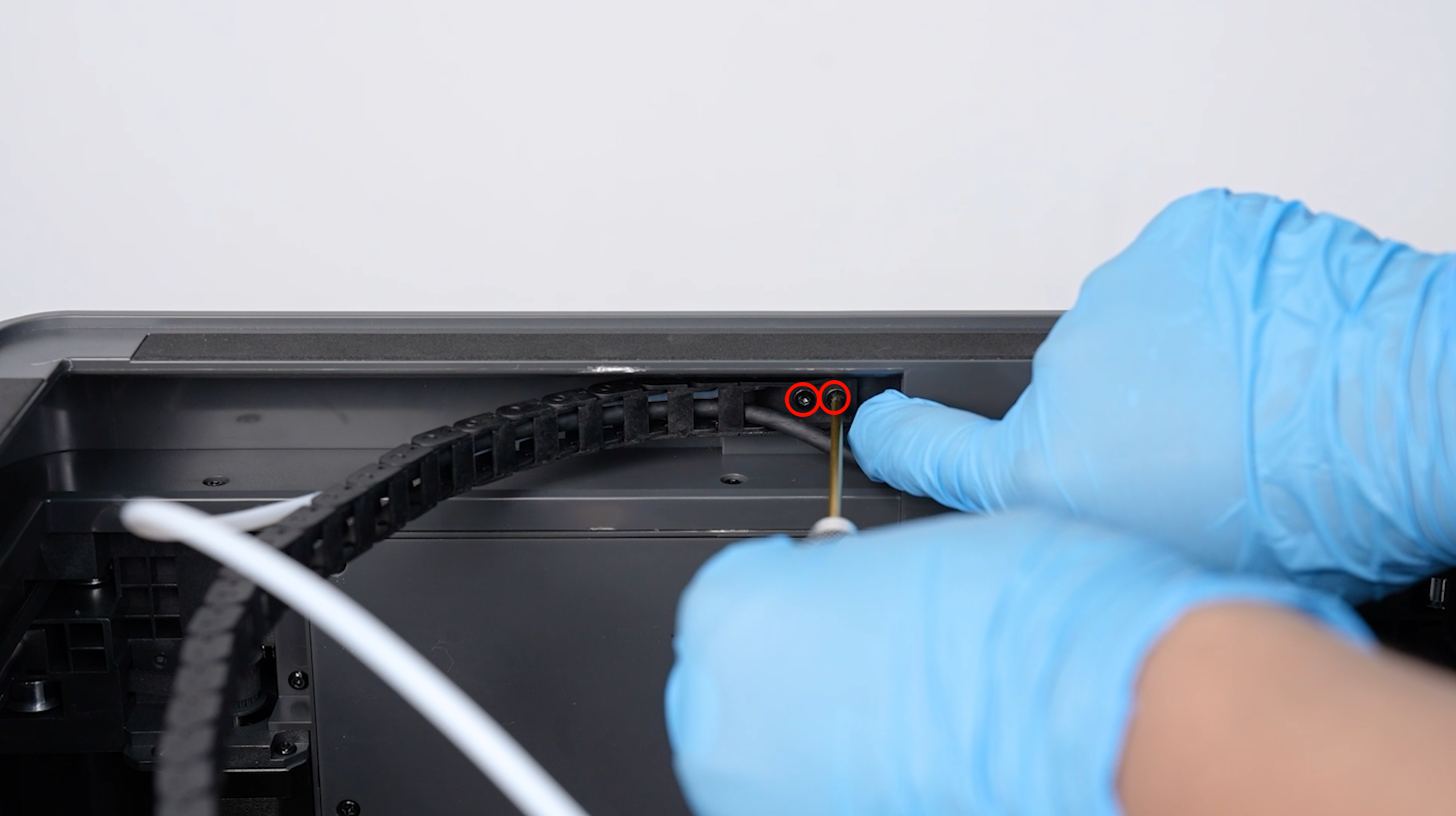

- Tighten the 2 screws securing the cable chain terminal using a 2.0 mm Allen key.
- The printer can be used as usual after checking that the PTFE tube is in proper connection condition and not deformed.
